Front Door: Testing and Inspection
ON-VEHICLE INSPECTION1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

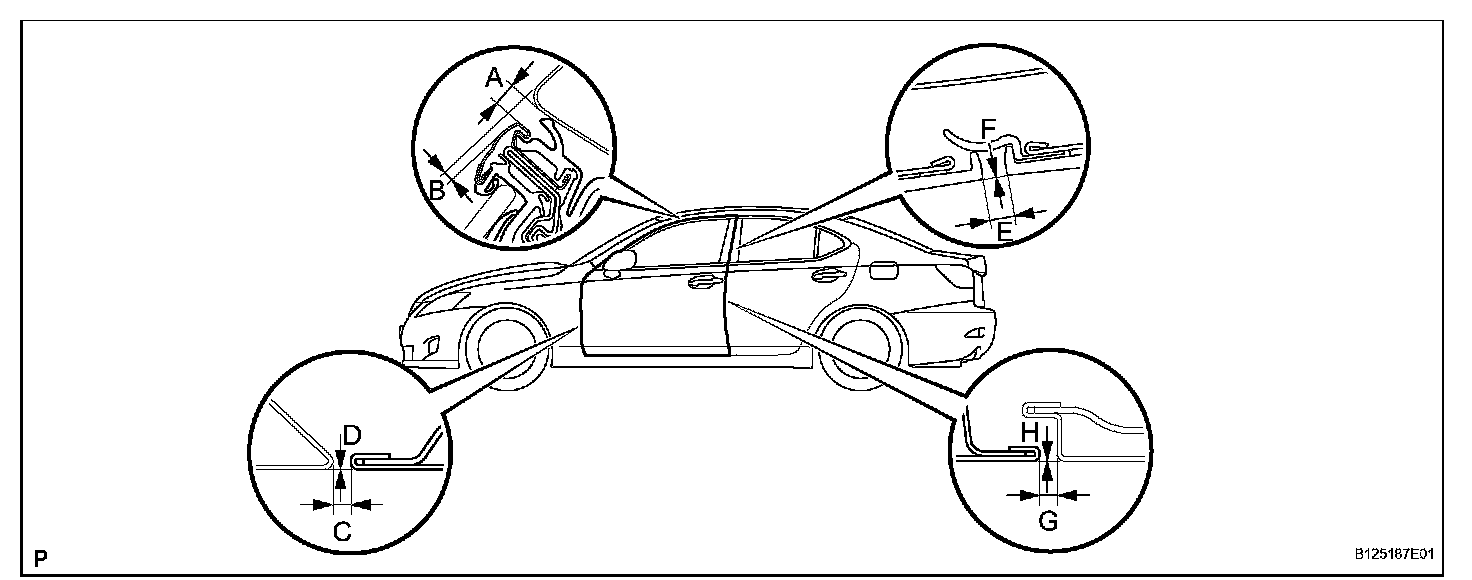

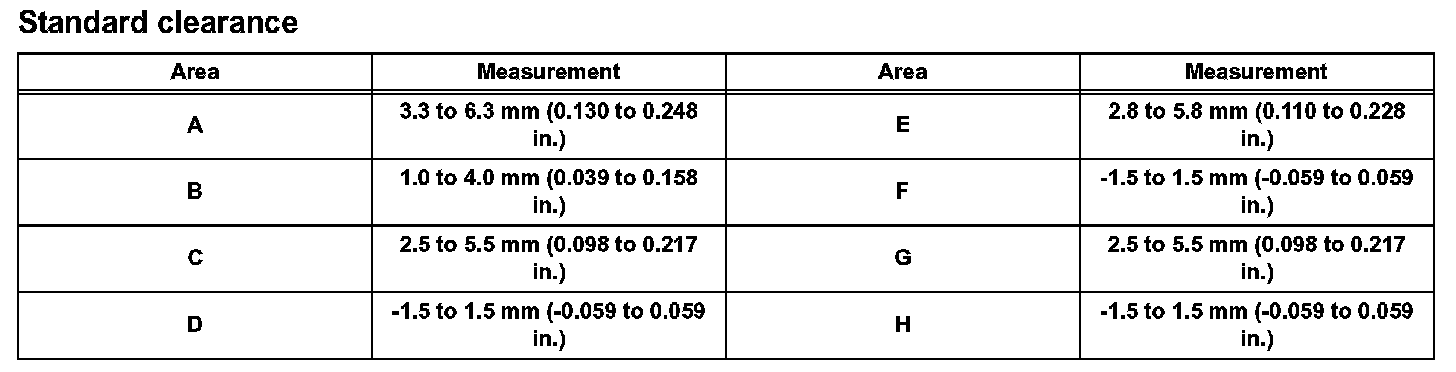

a. Check that the clearance measurements of areas A to H are within each standard range.
1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY
a. Check that the clearance measurements of areas A to H are within each standard range.
