Engine Serial Number and Transmission Serial Number

ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER




a. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

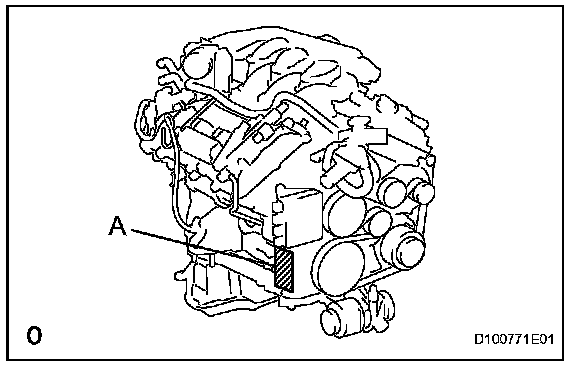

A: 2GR-FSE, 4GR-FSE


b. The transmission serial number is stamped on the housing as shown in the illustration.

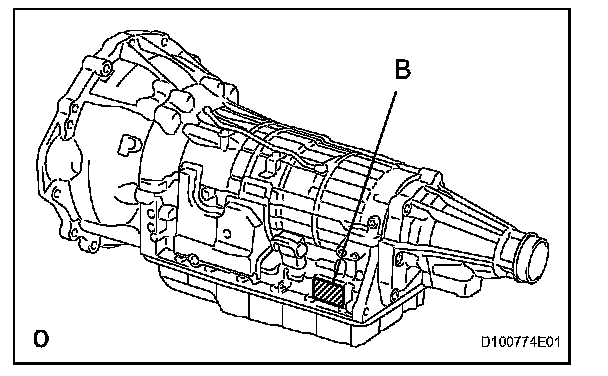

B: A960E Transmission Serial Number




C: A760E Transmission Serial Number

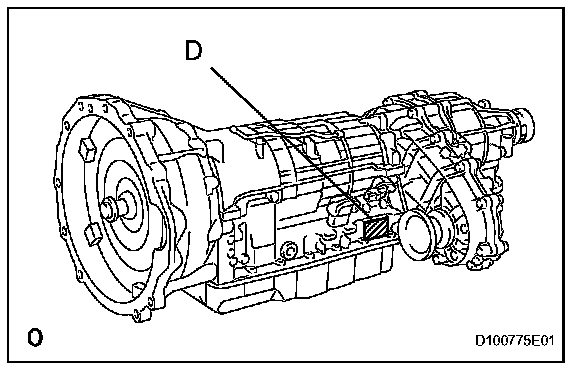

D: A760H Transmission Serial Number

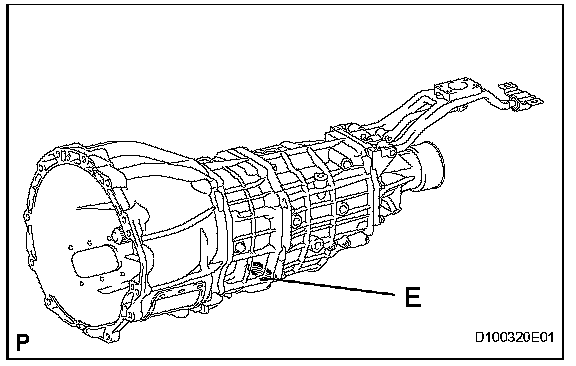

E: RA62 Transmission Serial Number
