FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Lexus >> 2007 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Radio Broadcast Cannot Be Received (Poor Reception)

Radio Broadcast Cannot Be Received (Poor Reception)

Radio Broadcast cannot be Received or Poor Reception

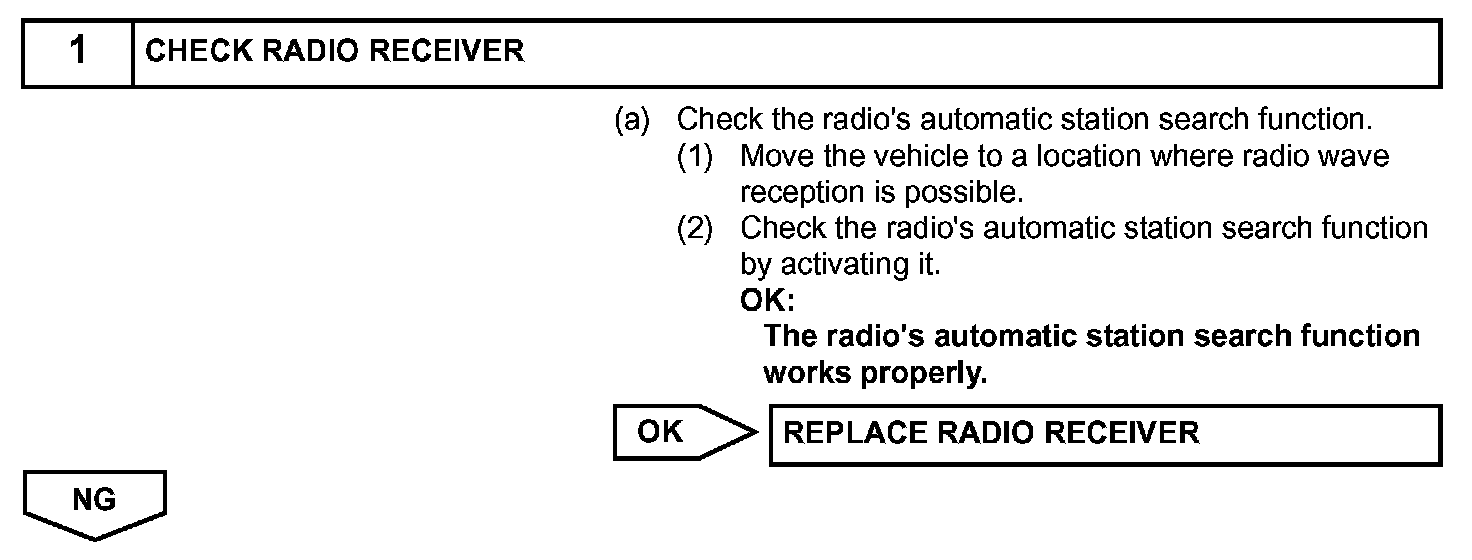

Step 1:

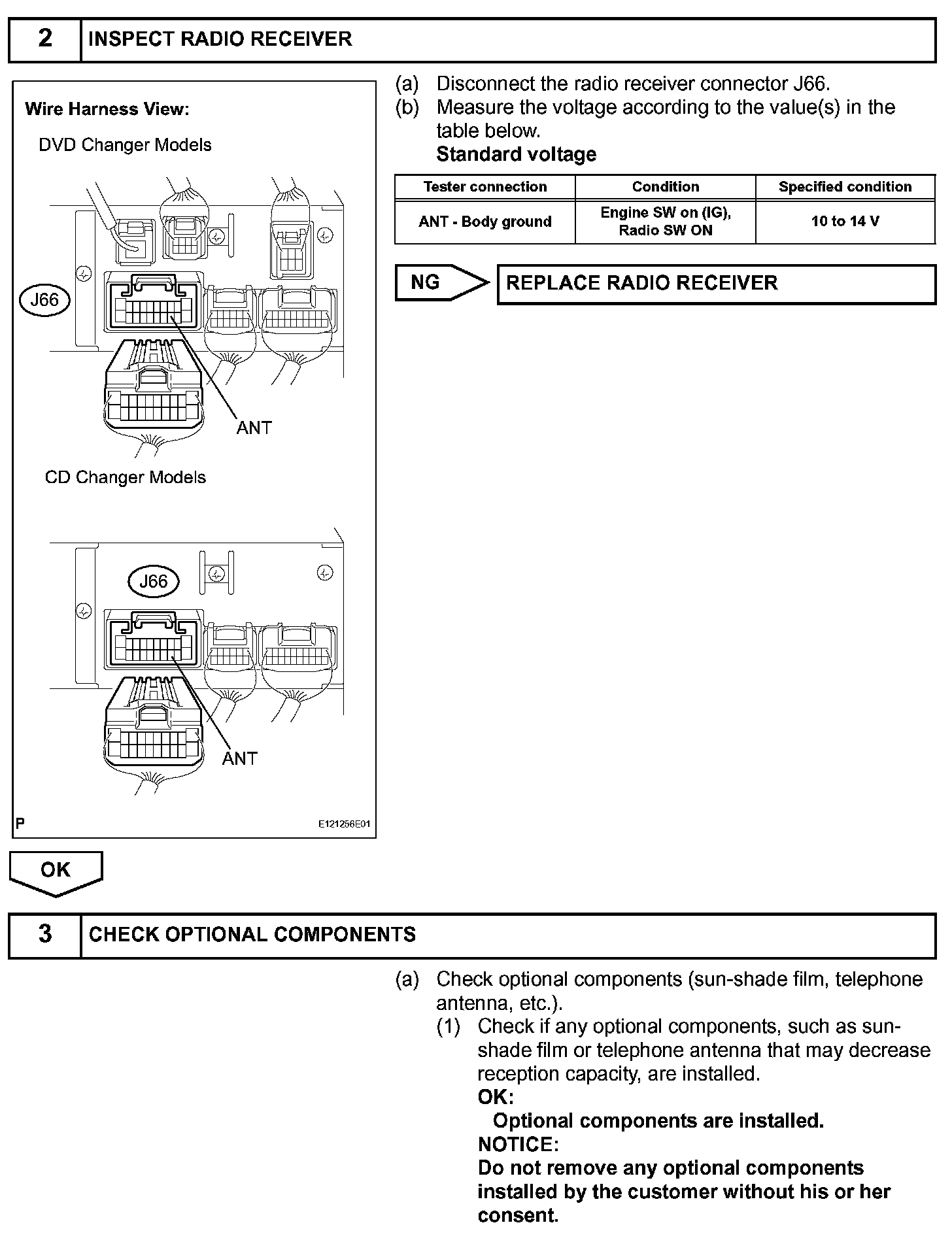

Step 2-3:




Step 3 (Continued)-5:

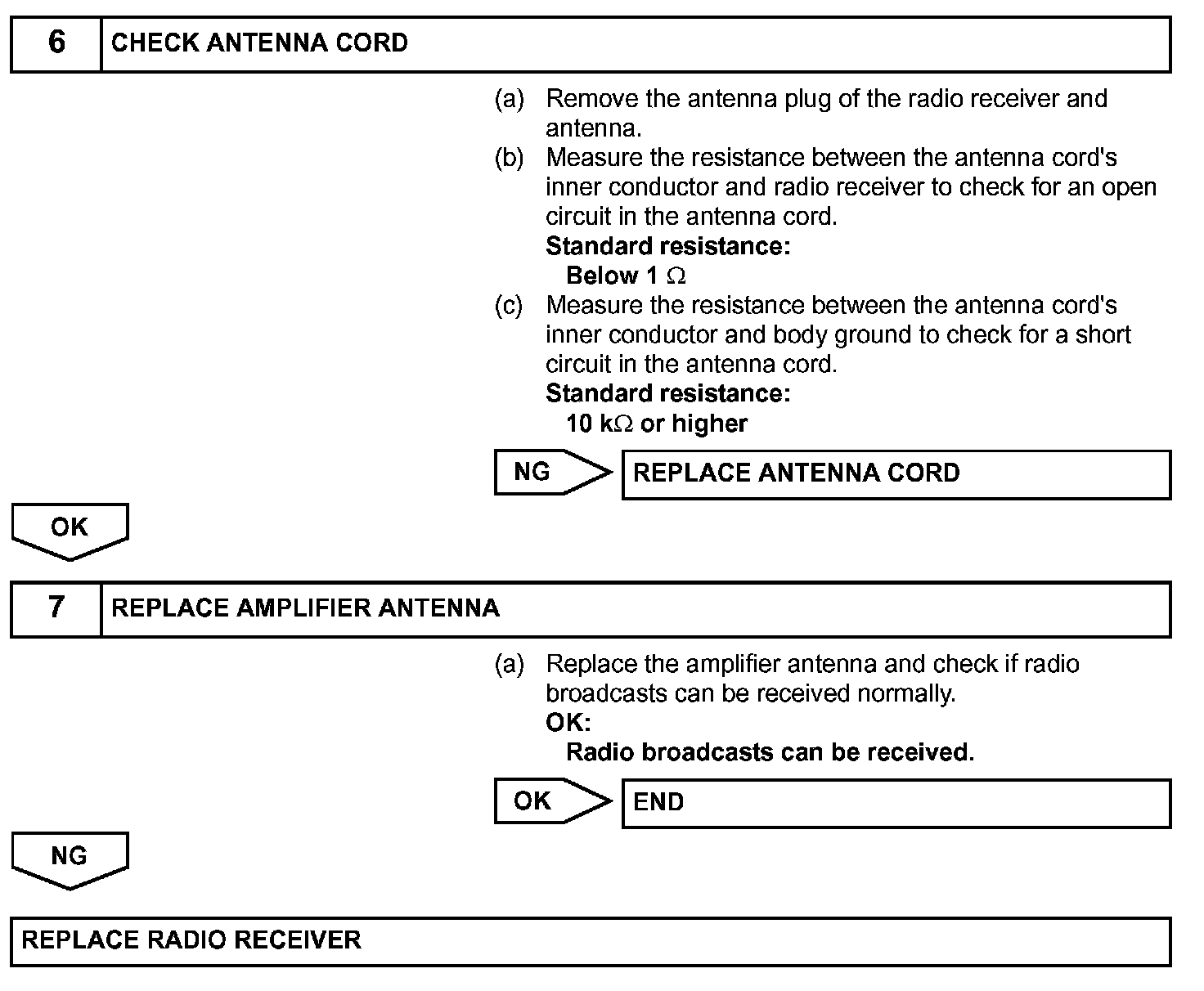

Step 6-7:




INSPECTION PROCEDURE
