Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

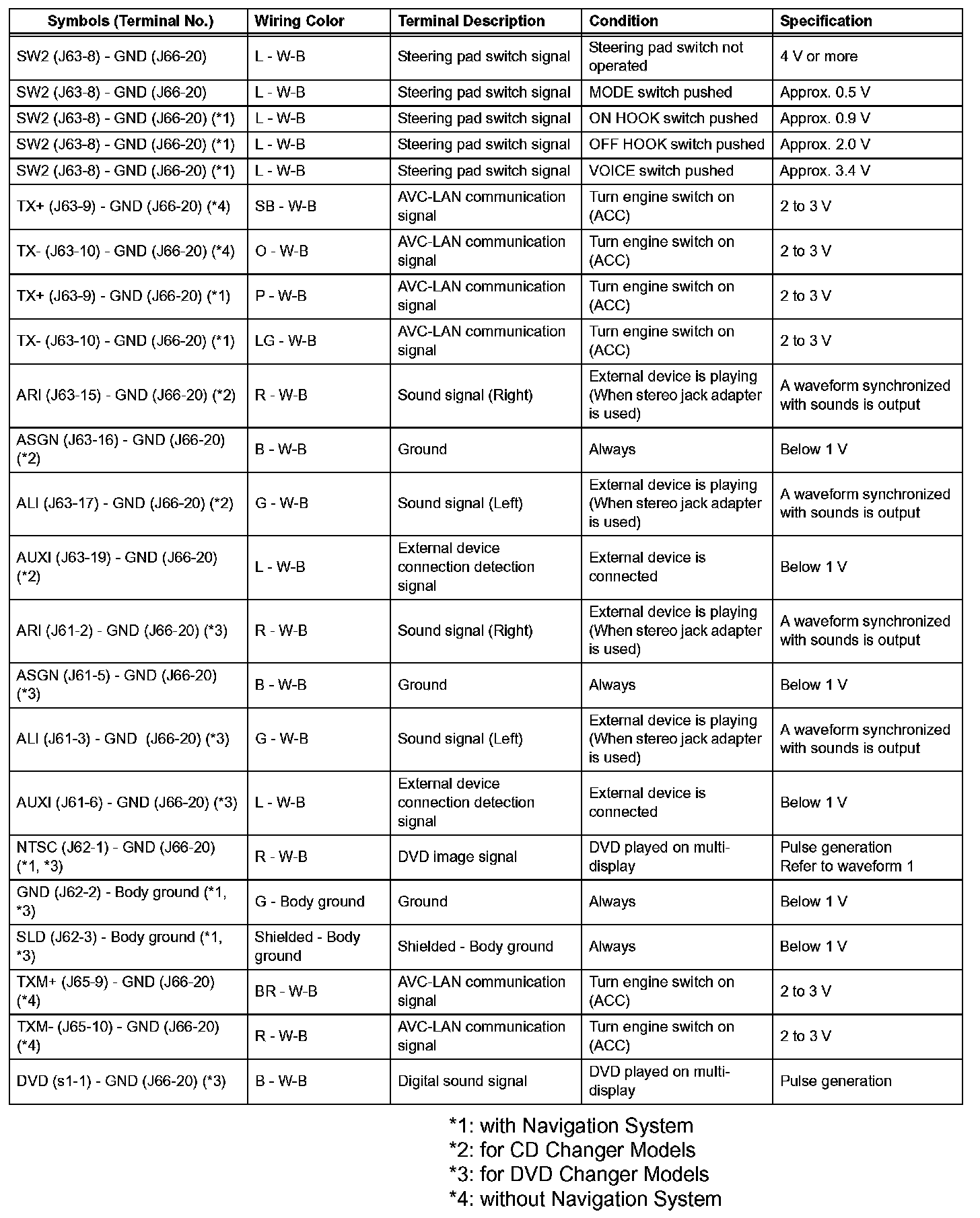

Terminals Of Control Module/Pinouts - Radio Receiver (Part 1):

Terminals Of Control Module/Pinouts - Radio Receiver (Part 2):

1. RADIO RECEIVER

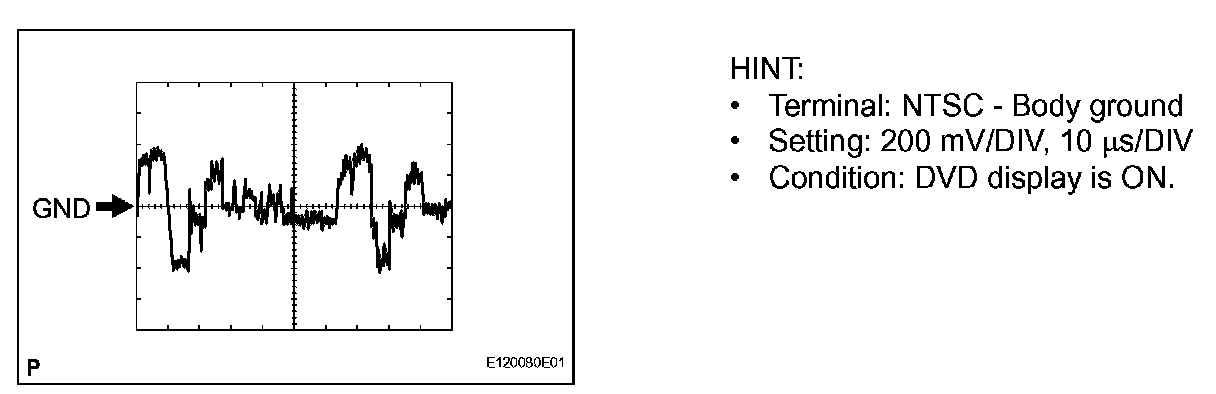

Radio Receiver - Oscilloscope Waveform:

a. Reference: waveform 1

Terminals Of Control Module/Pinouts - Integration Control & Panel Assembly (Without Navigation System):

2. INTEGRATION CONTROL & PANEL ASSEMBLY (WITHOUT NAVIGATION SYSTEM)

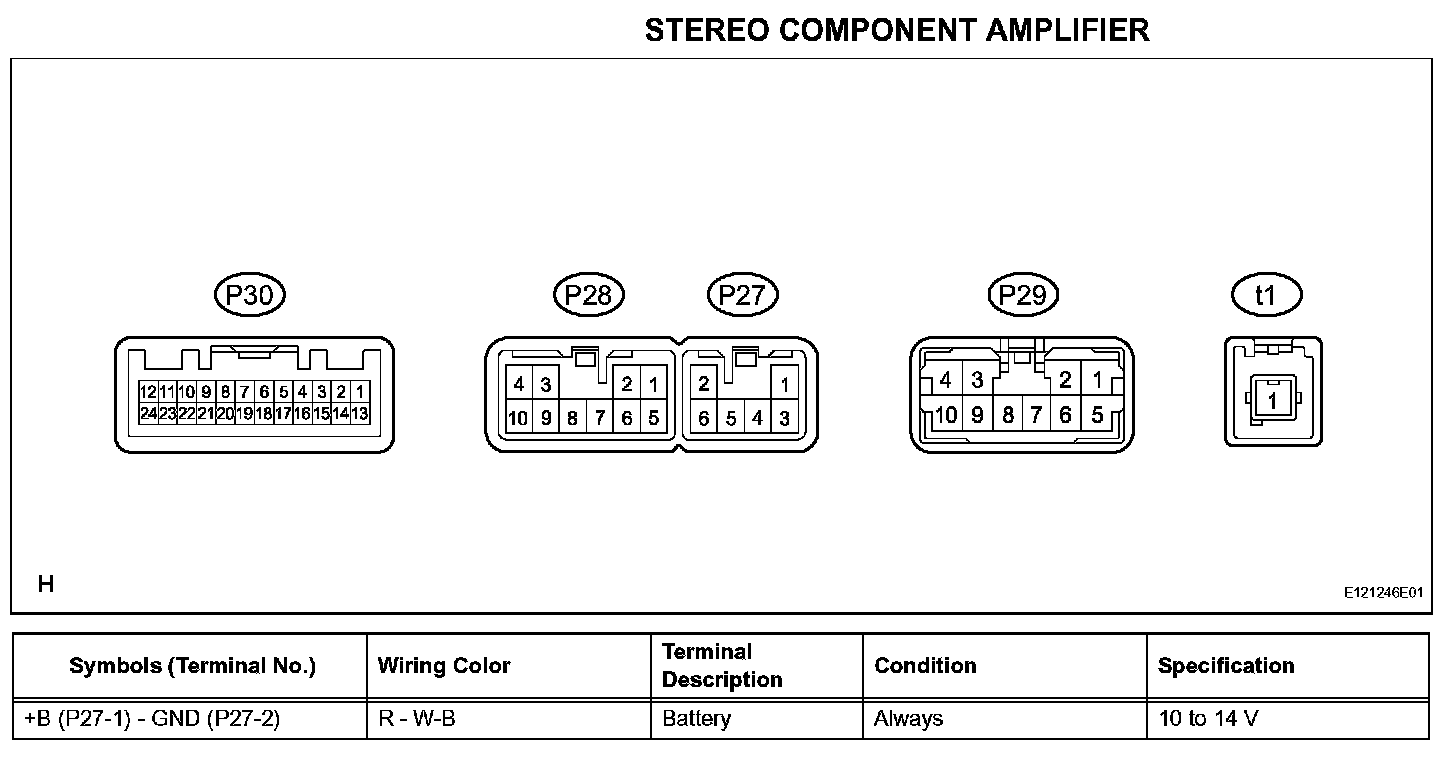

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Part 1):

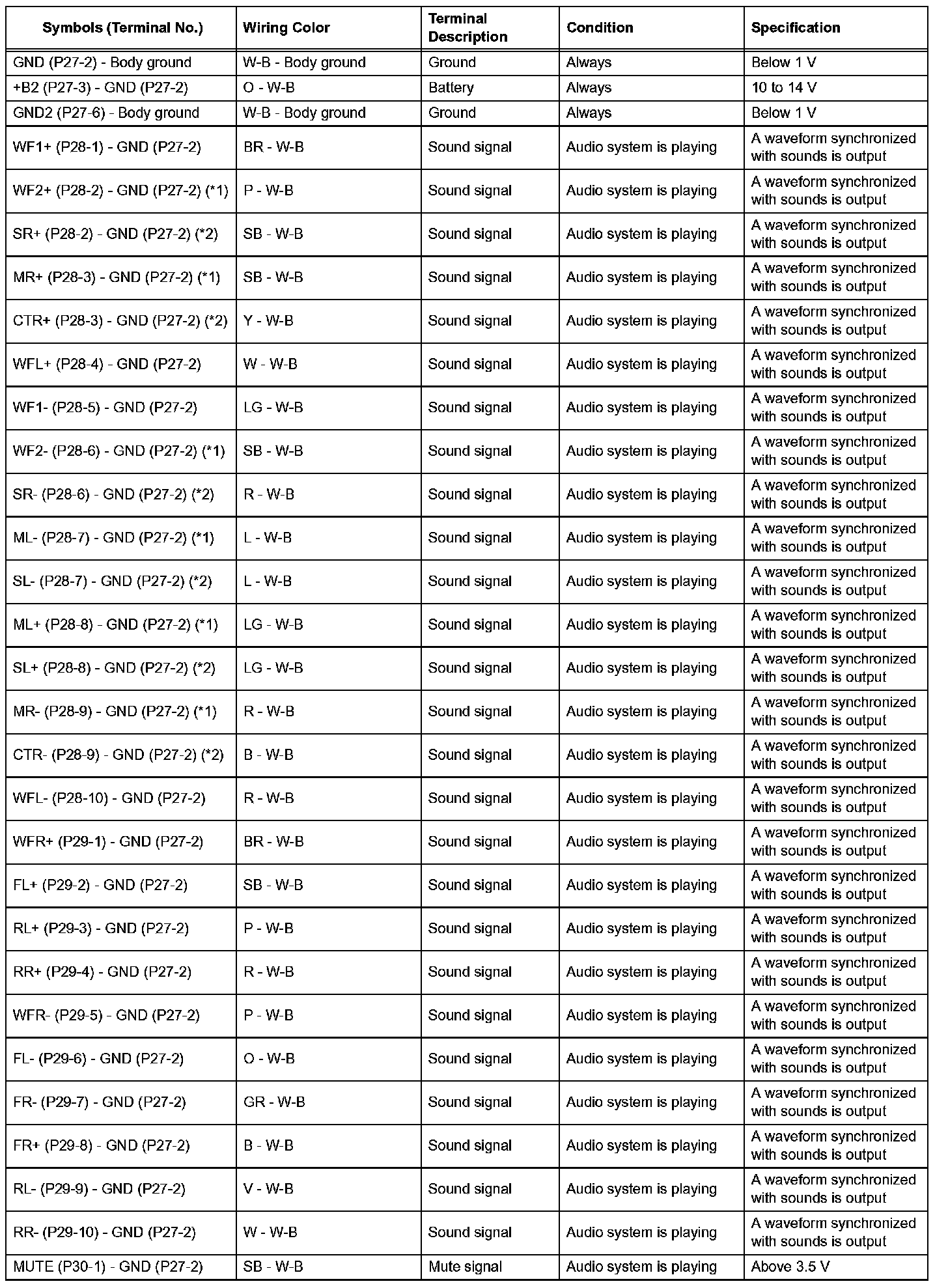

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Part 2):

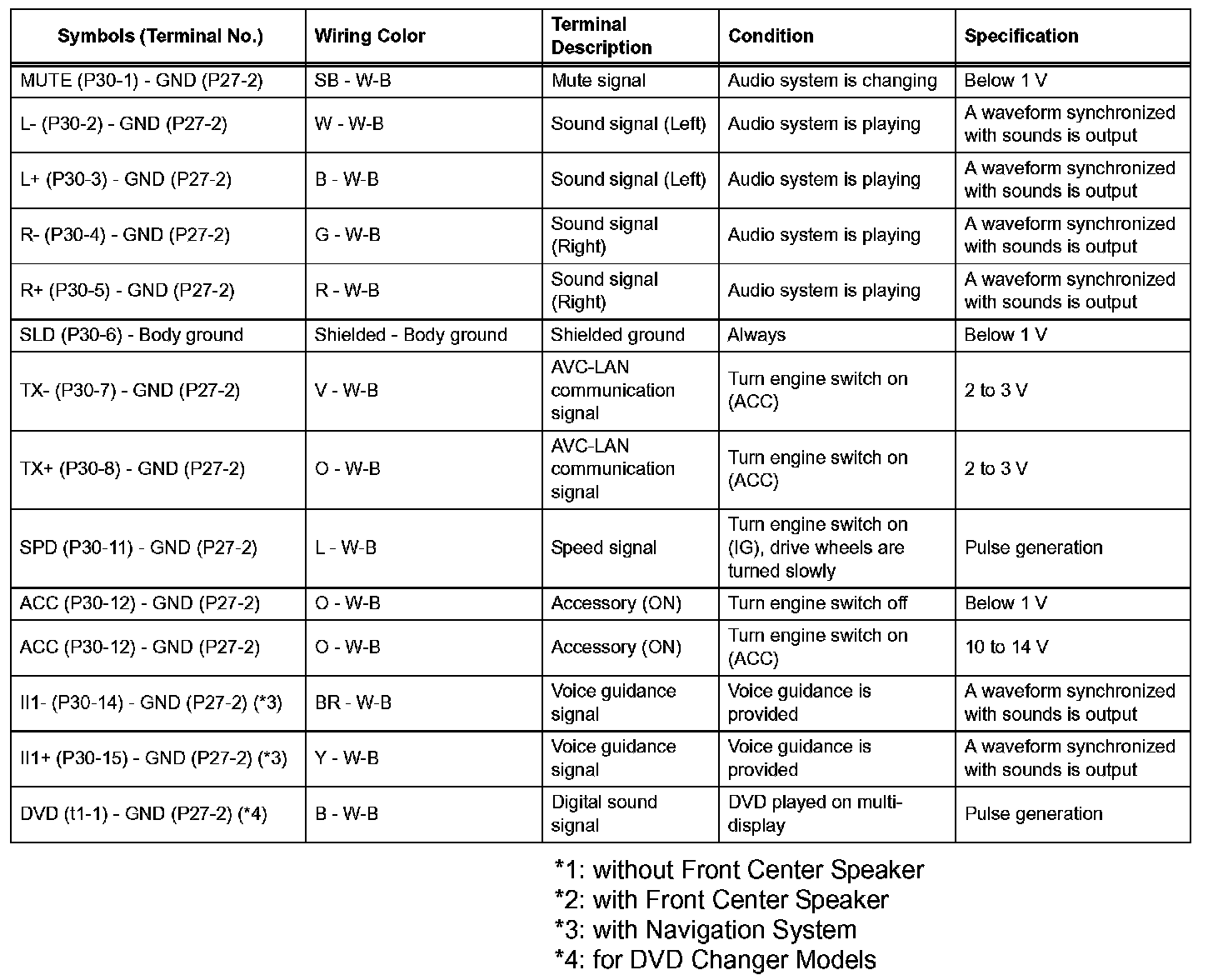

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Part 3):

3. STEREO COMPONENT AMPLIFIER

4. GATEWAY ECU Central Control Module
