Steering Pad Switch Circuit

Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch to the radio receiver.

If there is an open in the circuit, the audio system cannot be operated using the steering pad switch.

If there is a short in the circuit, the same condition as that when the switch is continuously depressed occurs.

Therefore, the radio receiver cannot be operated using the steering pad switch, and also the radio receiver itself cannot function.

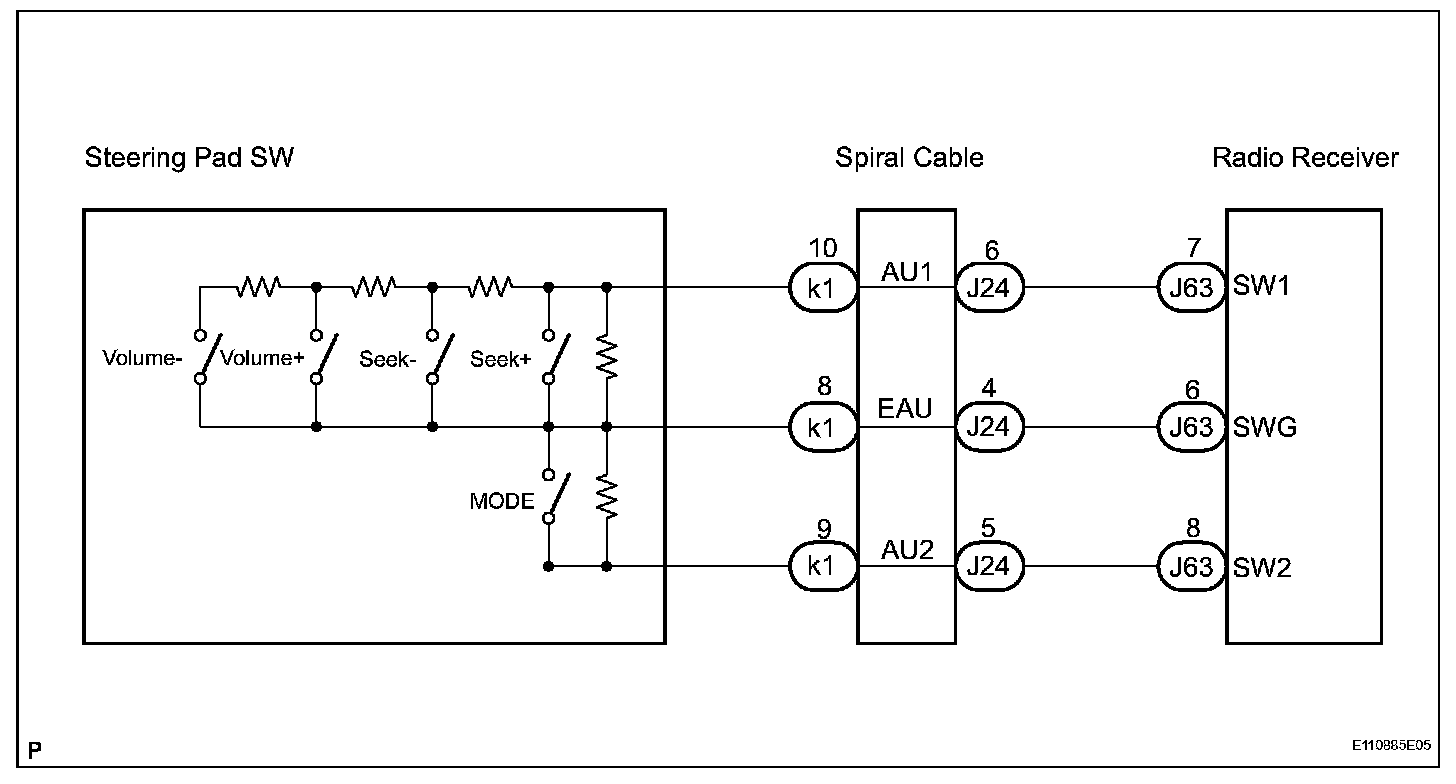

Wiring Diagram:

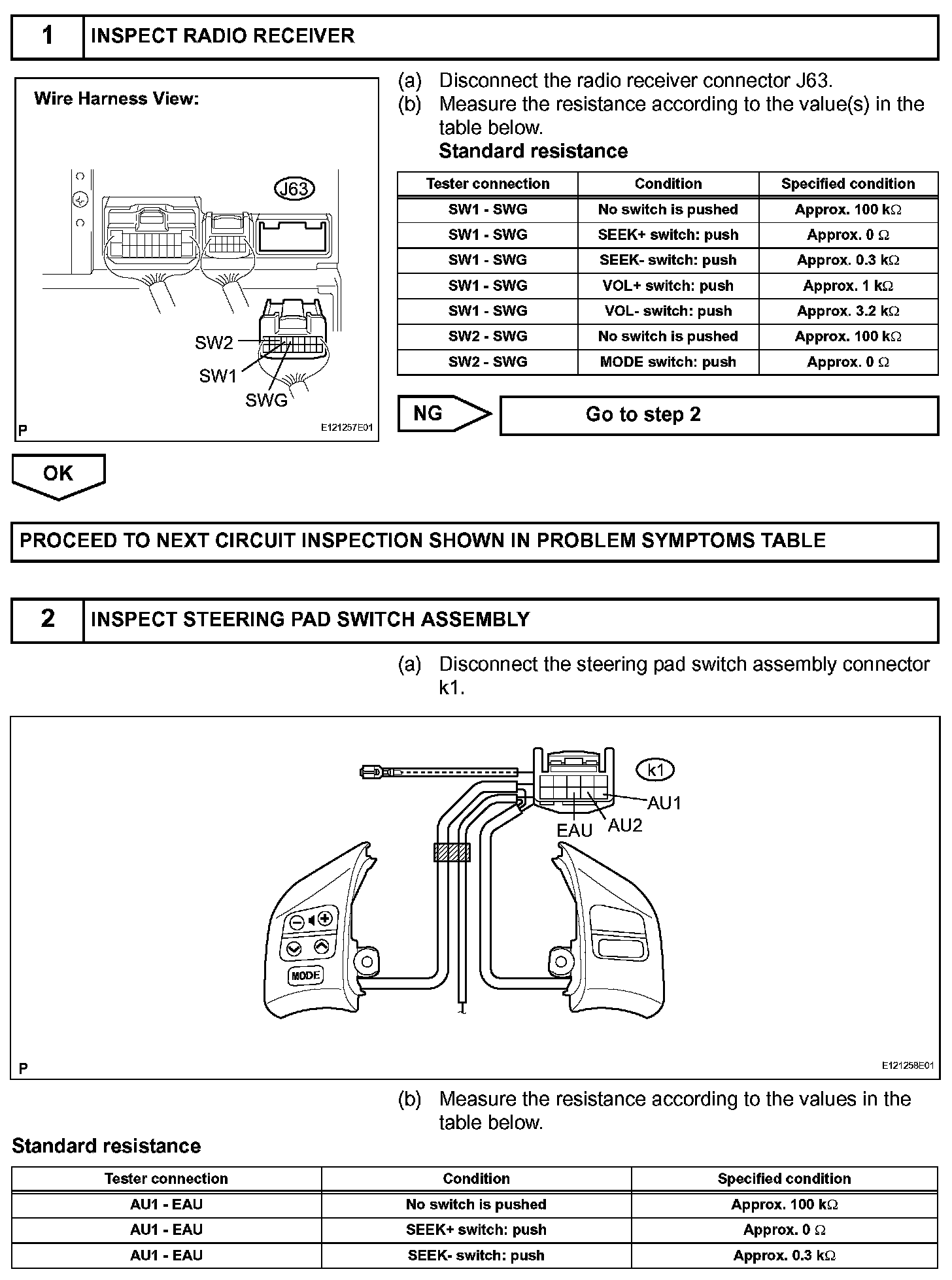

Step 1-2:

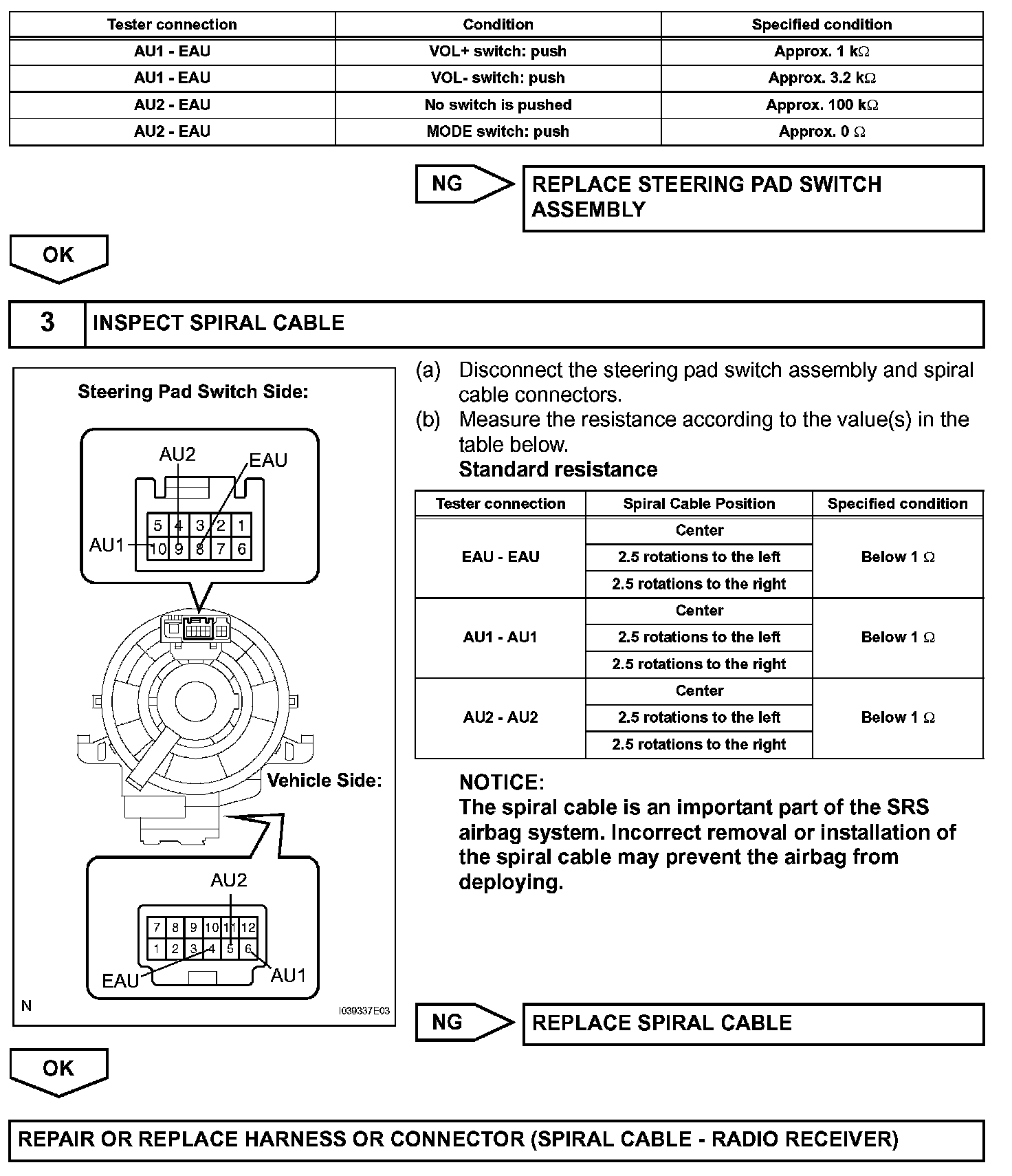

Step 2 (Continued)-3:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), Refer to Restraint Systems Service Precautions.
