Integration Control and Panel Assembly Communication Error

Integration Control and Panel Assembly Communication Error

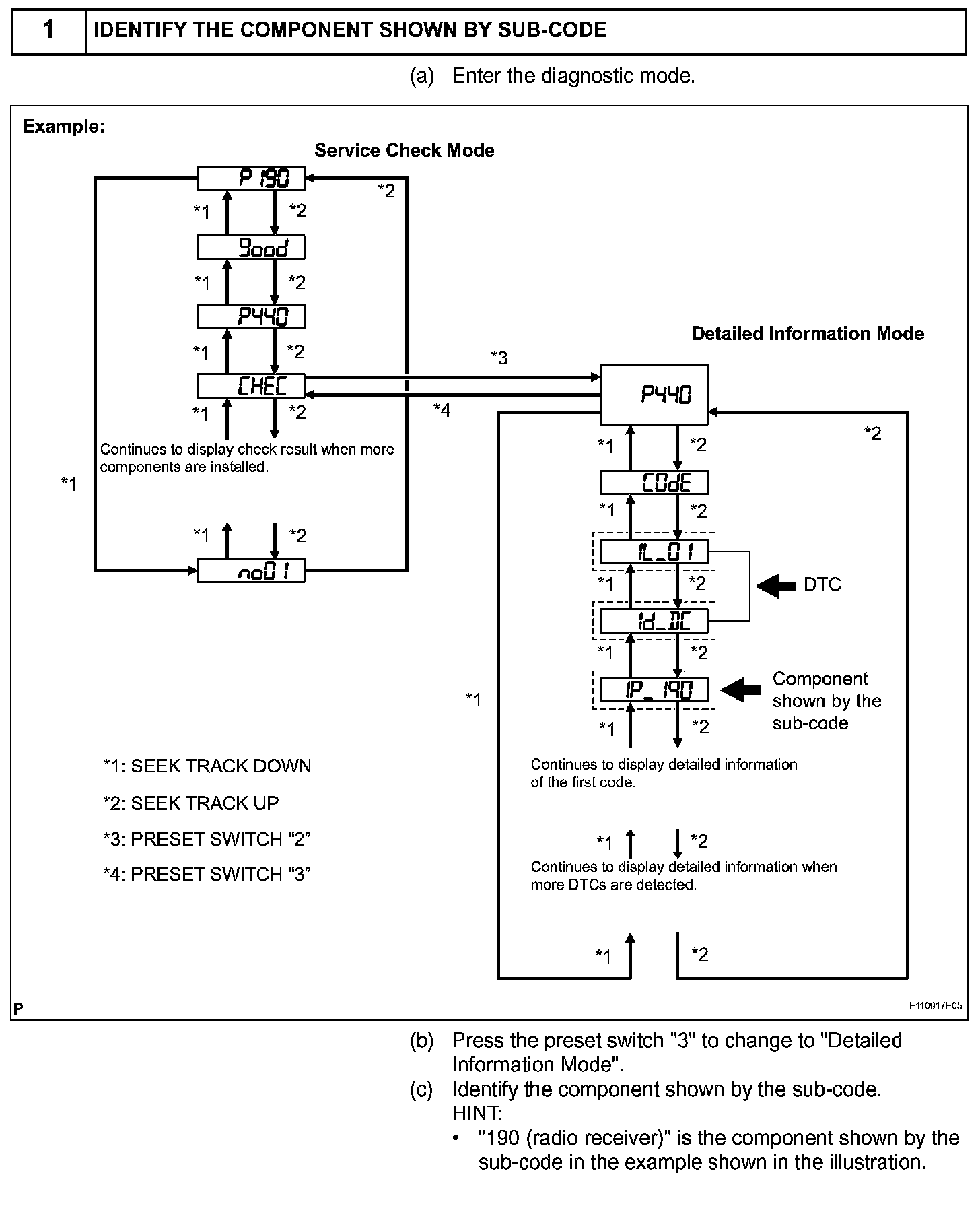

Step 1:

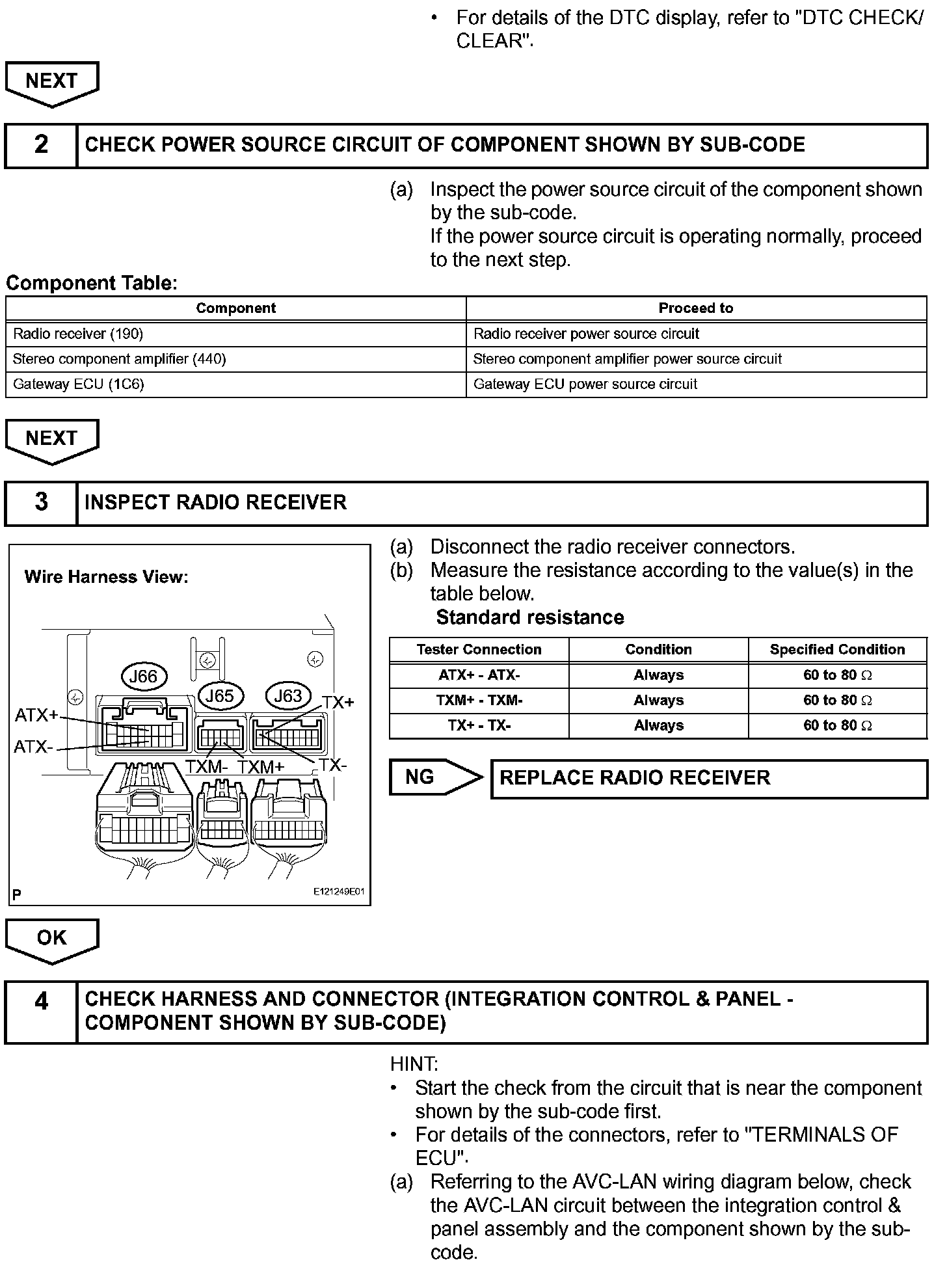

Step 1 (Continued)-4:

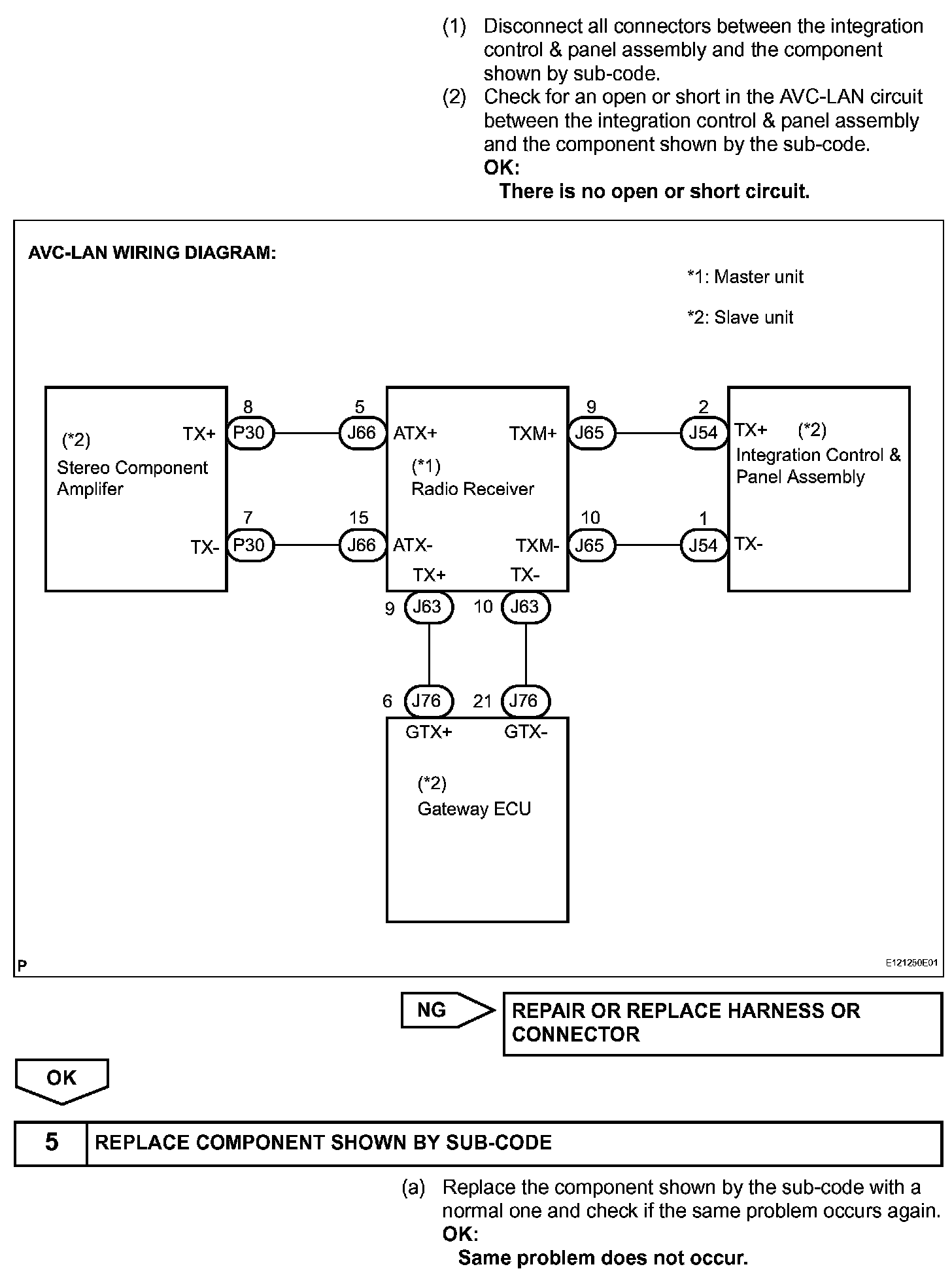

Step 4 (Continued)-5:

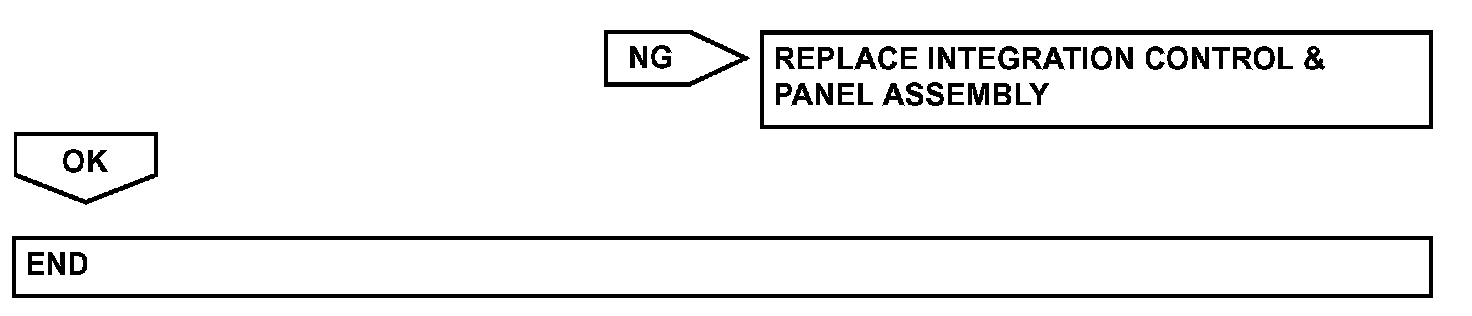

Step 5 (Continued):




INSPECTION PROCEDURE
