Vehicle Speed Signal Circuit between Navigation ECU and Multi- Display
Vehicle Speed Signal Circuit between Navigation ECU and Multi- DisplayDESCRIPTION
The navigation ECU receives a vehicle speed signal from the multi-display and information about the GPS antenna, and then adjusts vehicle position.
HINT:
- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in an ECU, all systems in the diagram given will not operate normally.

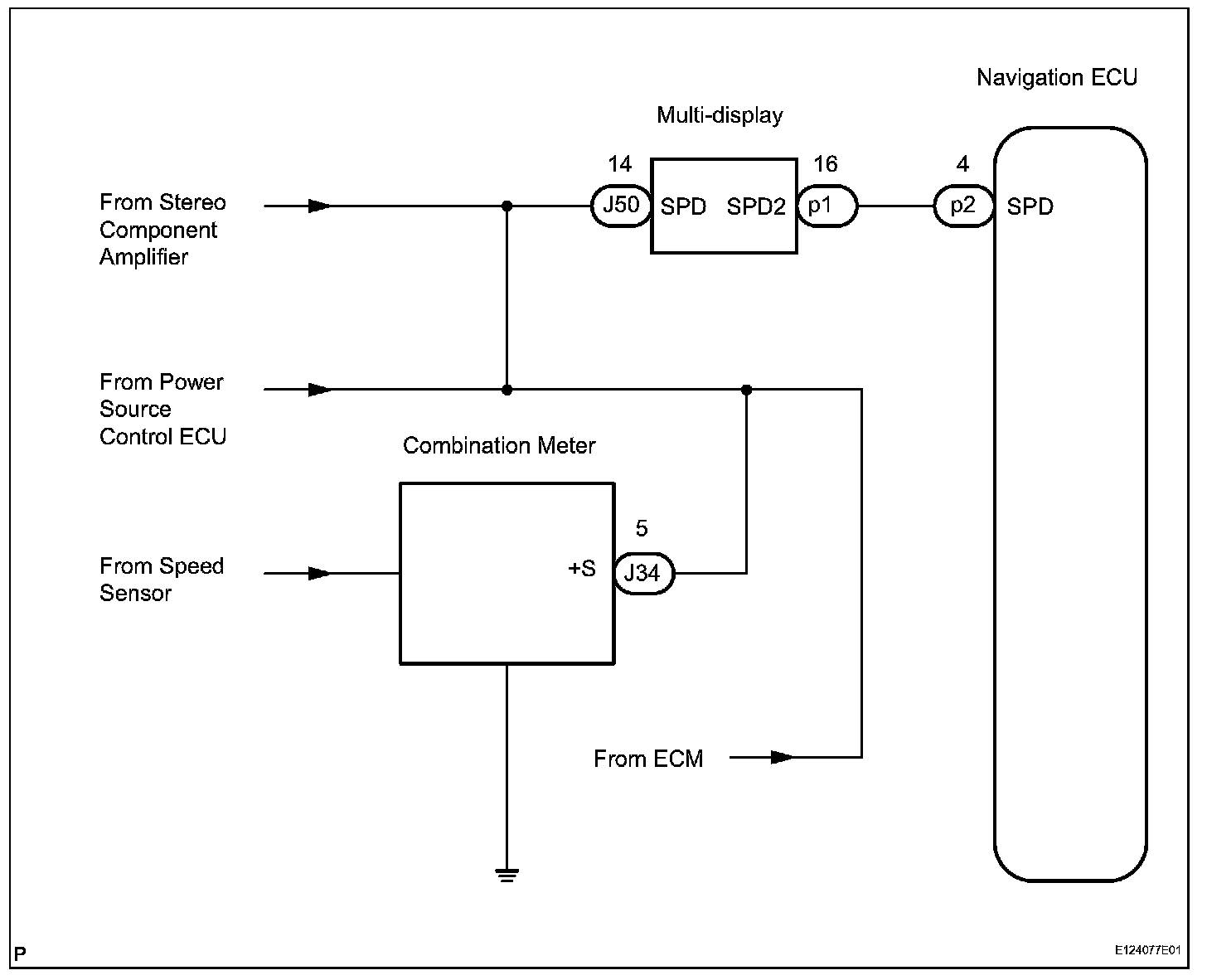

Wiring Diagram:

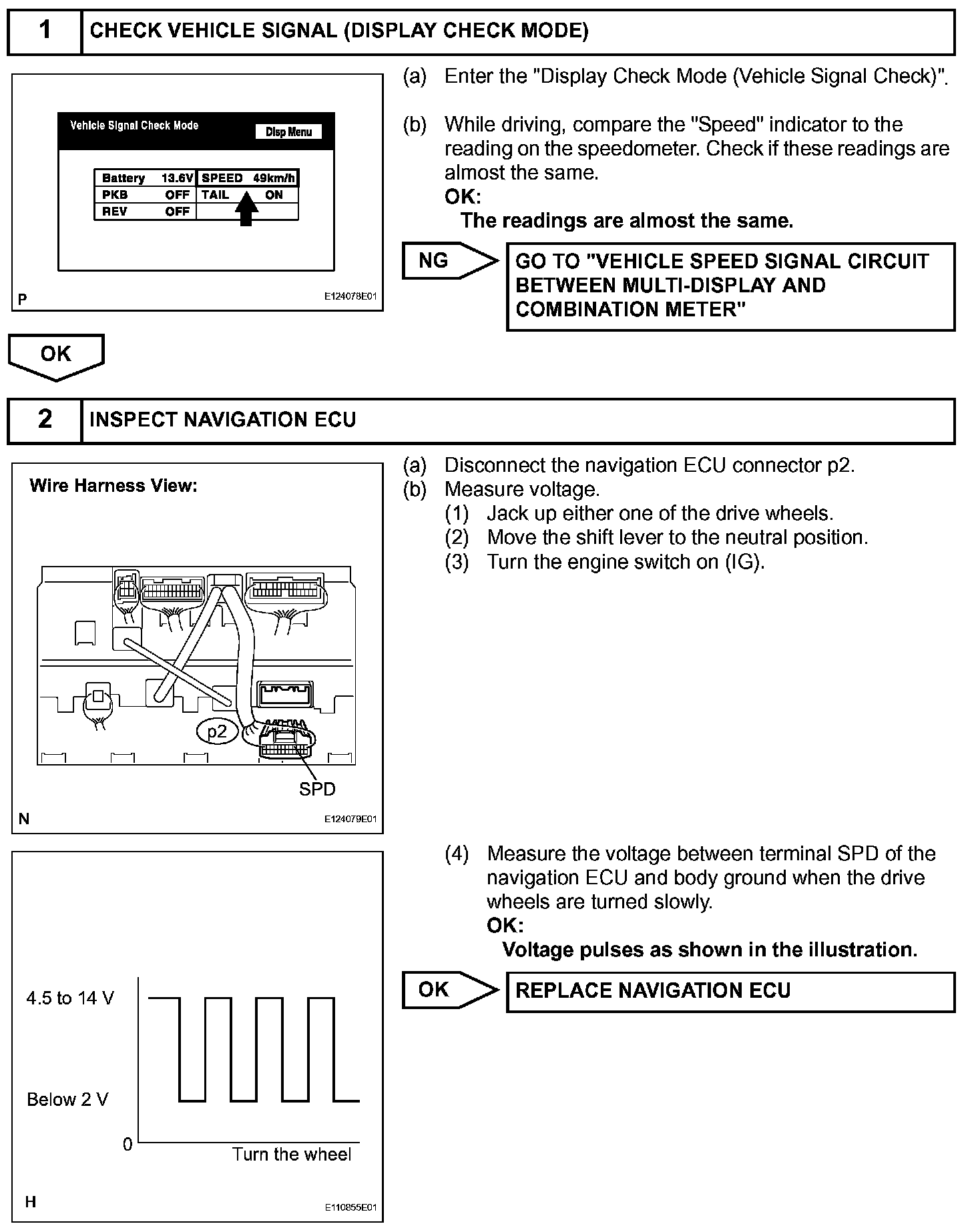

Step 1-2:

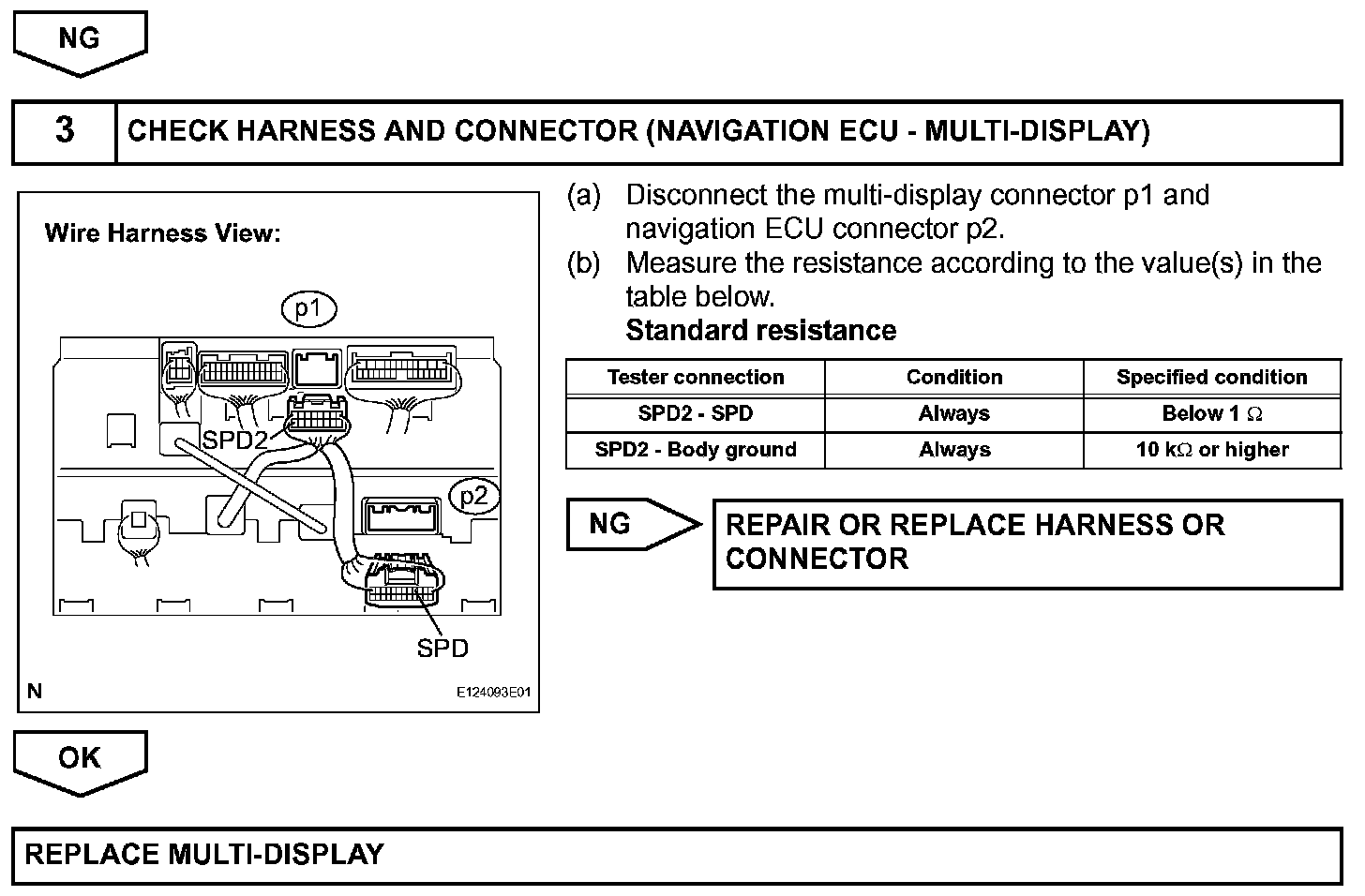

Step 2 (Continued)-3:
INSPECTION PROCEDURE
