Vehicle Speed Signal Circuit Between Multi-Display and Combination Meter

Vehicle Speed Signal Circuit between Multi-display and Combination Meter

DESCRIPTION
The multi-display performs switch operation control during driving by receiving a vehicle speed signal from the combination meter.

HINT:
- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in an ECU, all systems in the diagram given will not operate normally.

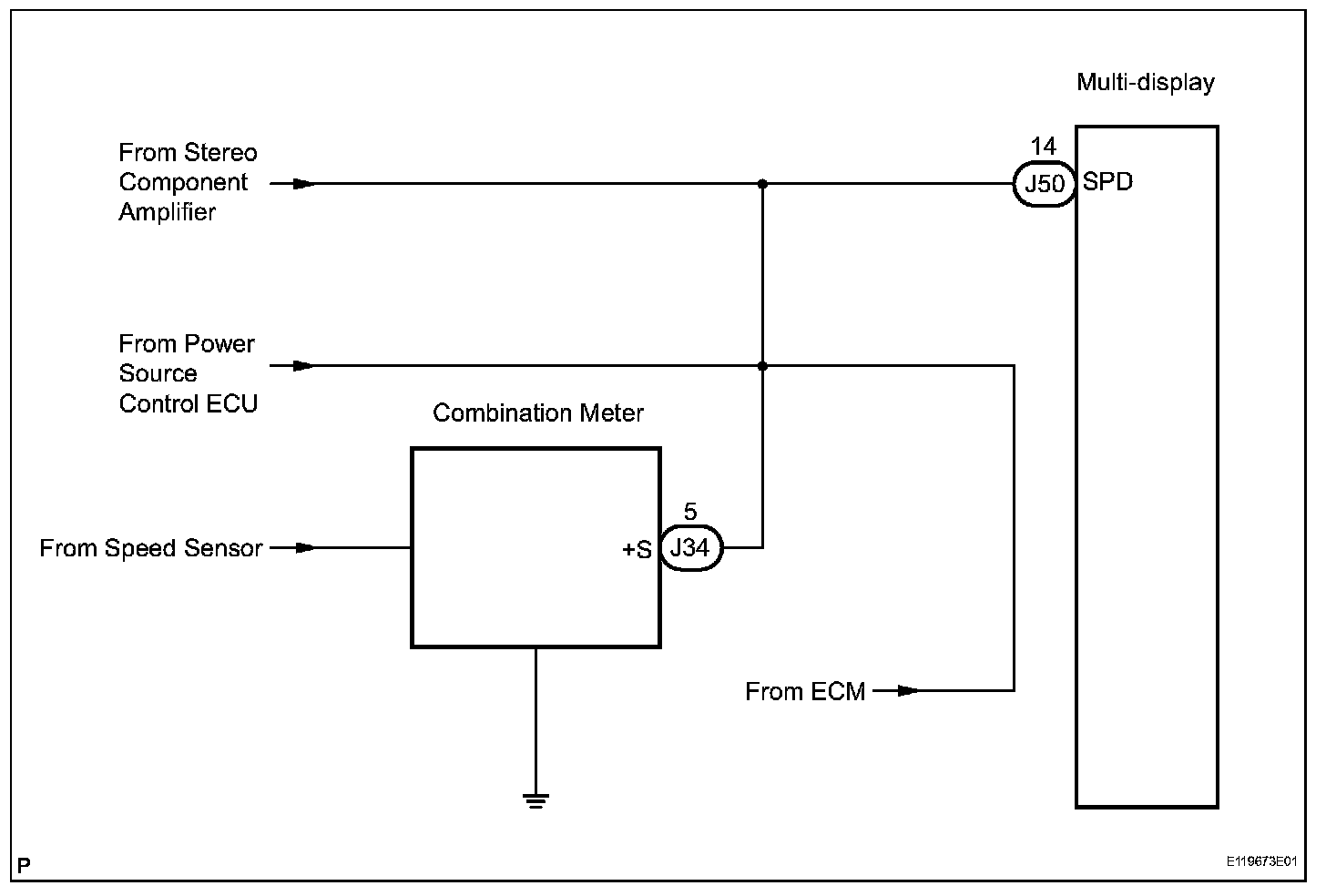

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

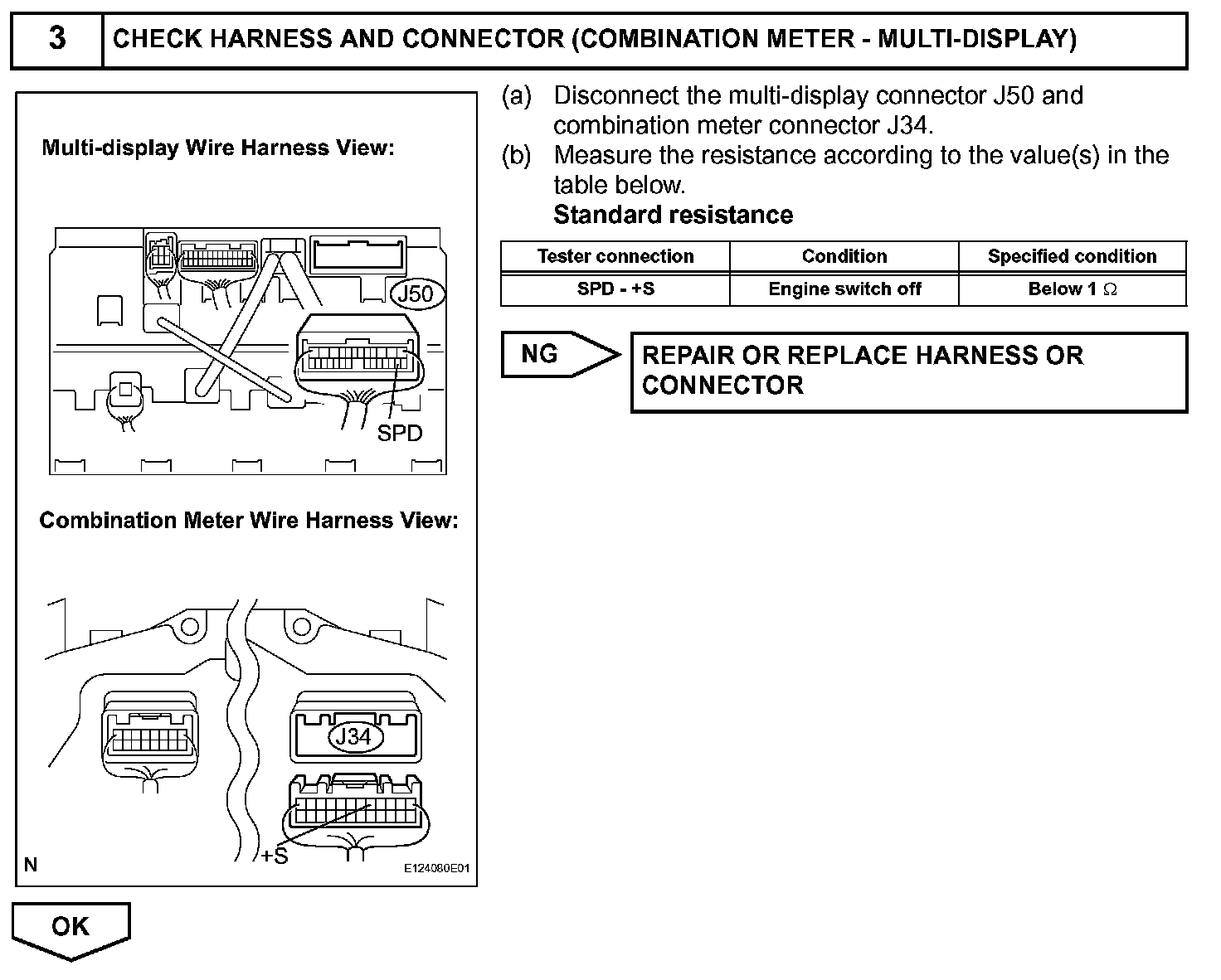

Step 3:

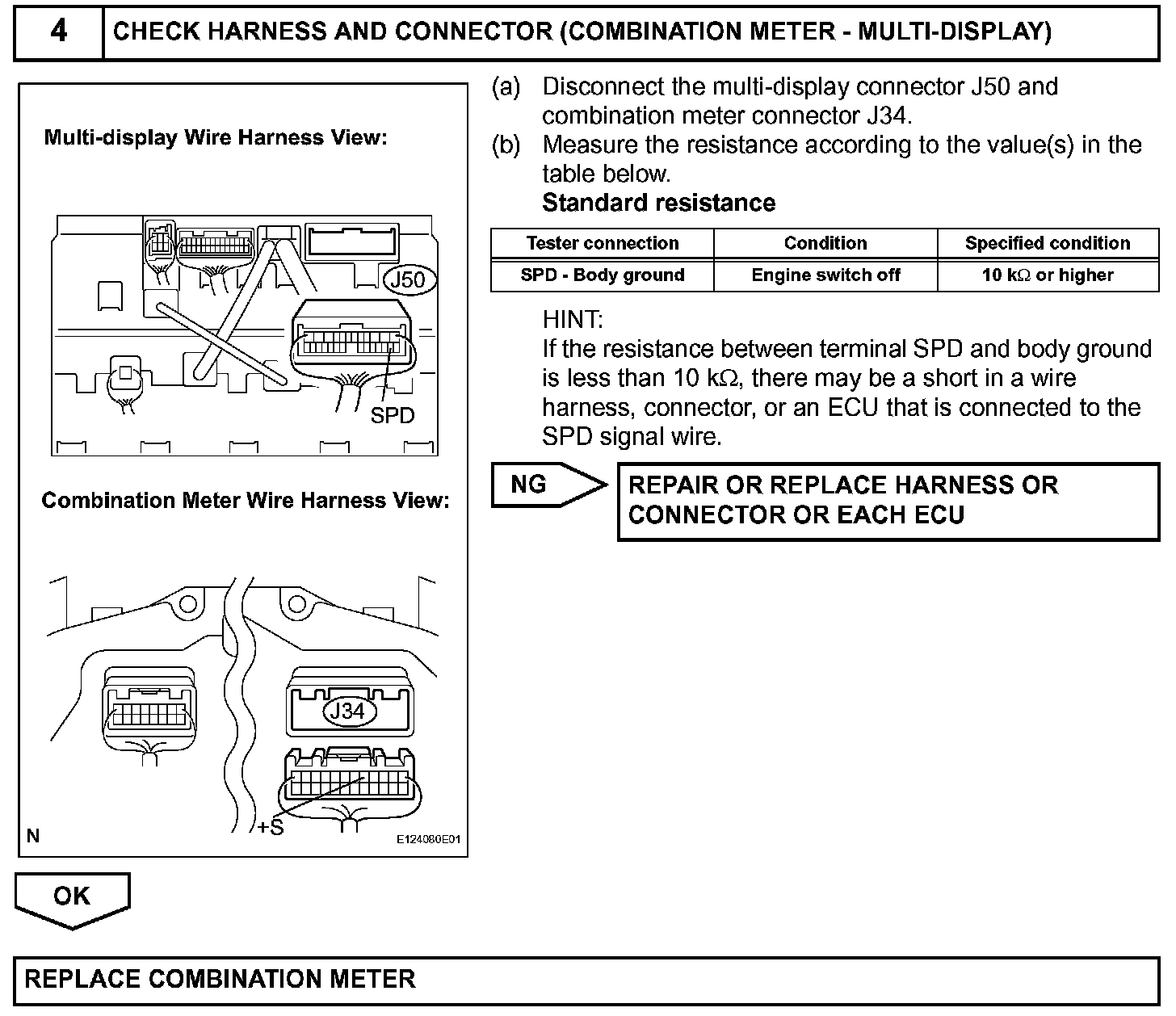

Step 4:

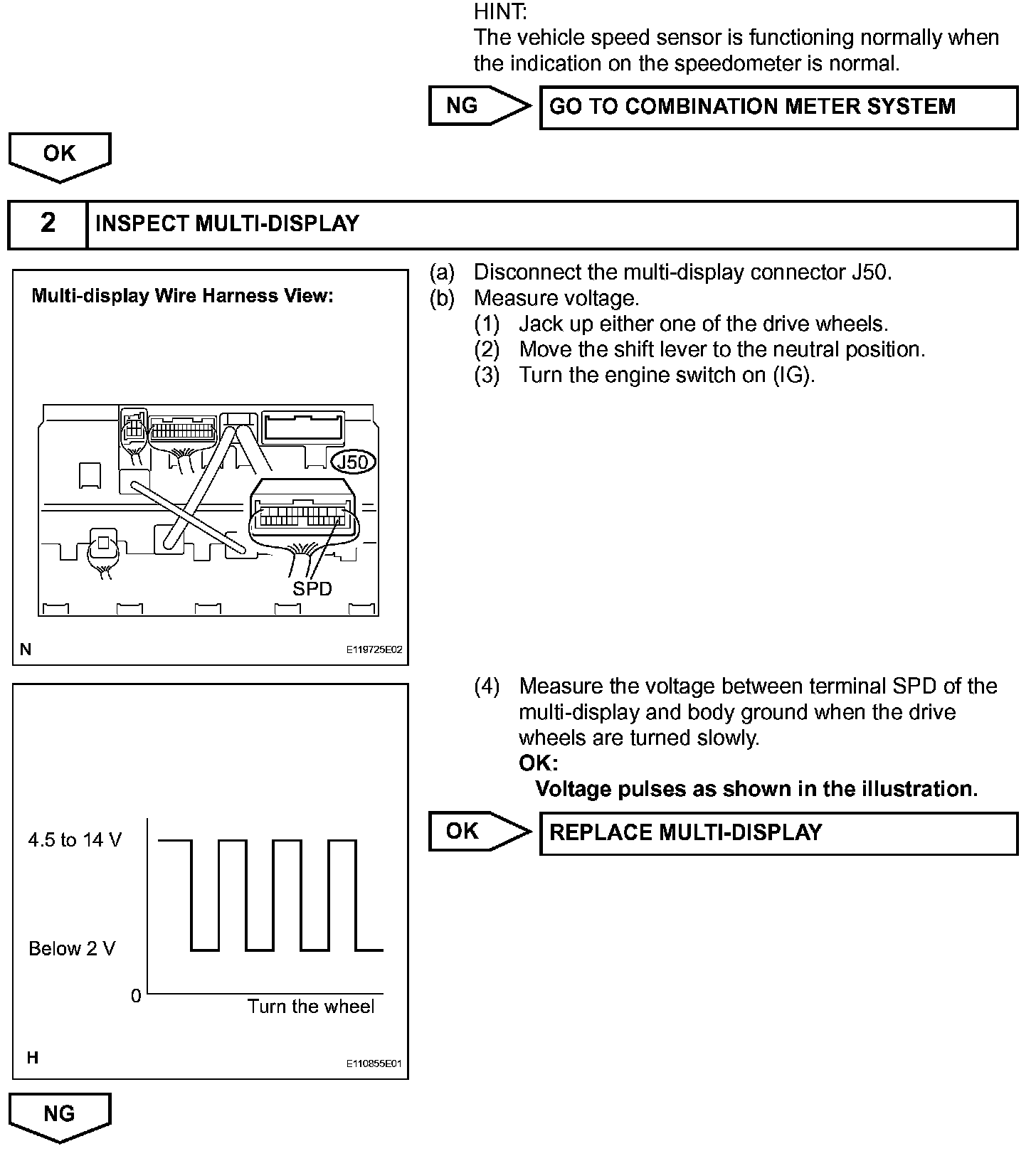

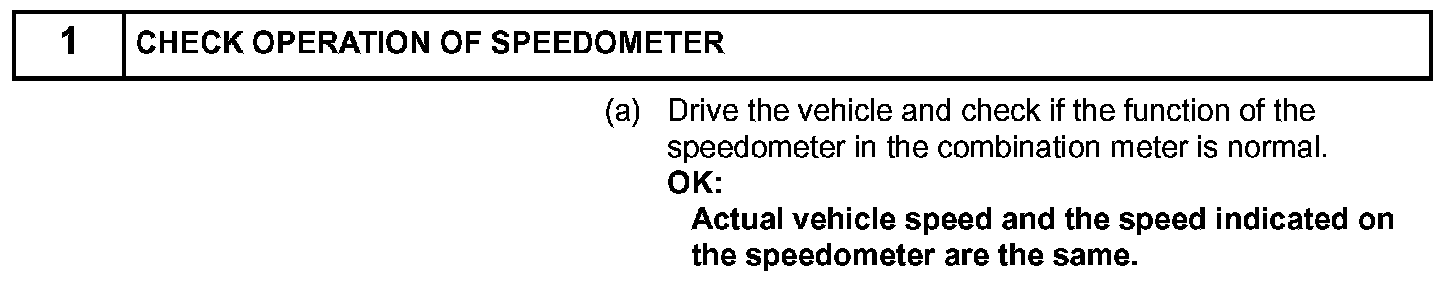

INSPECTION PROCEDURE
