Without Scan Tool

DTC CLEAR/RECHECK




a. Clear DTC

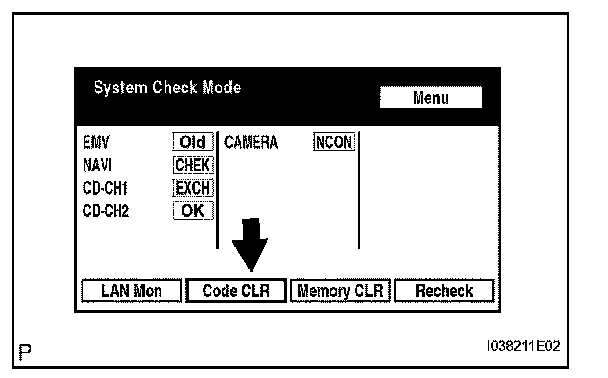

1. Press the "Code CLR" switch for 3 seconds.
2. The check results are cleared.




b. Recheck

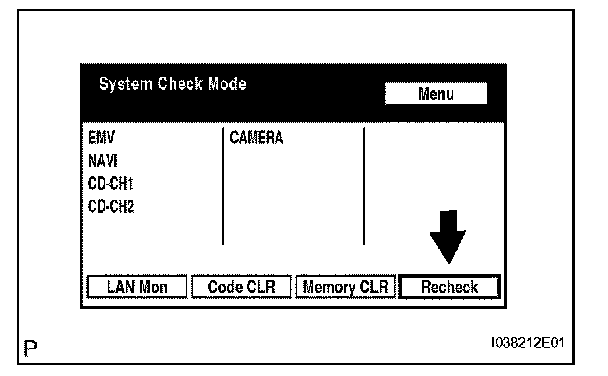

1. Press the "Recheck" switch.

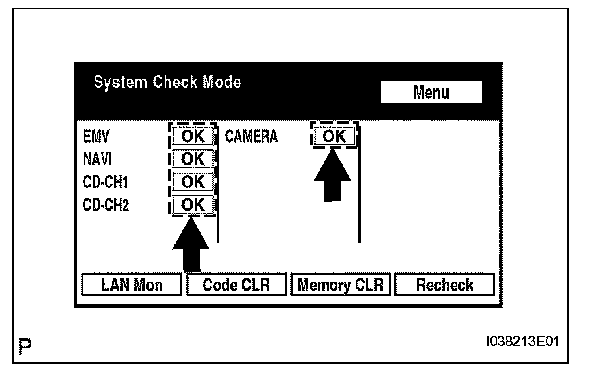

2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, troubleshoot again.

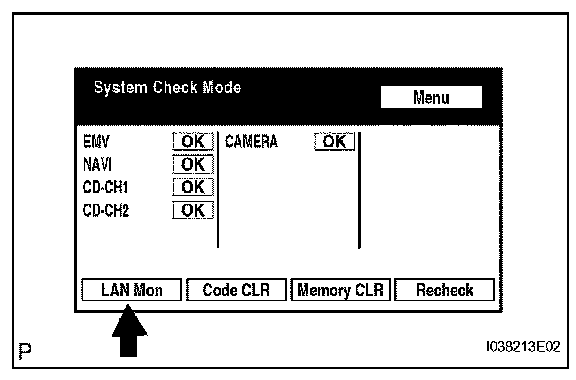

3. Press the "LAN Mon" switch to change to the "LAN Monitor" screen.




4. Confirm that all diagnostic codes are "No Err". If a code other than "No Err" is displayed, troubleshoot again.
