Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

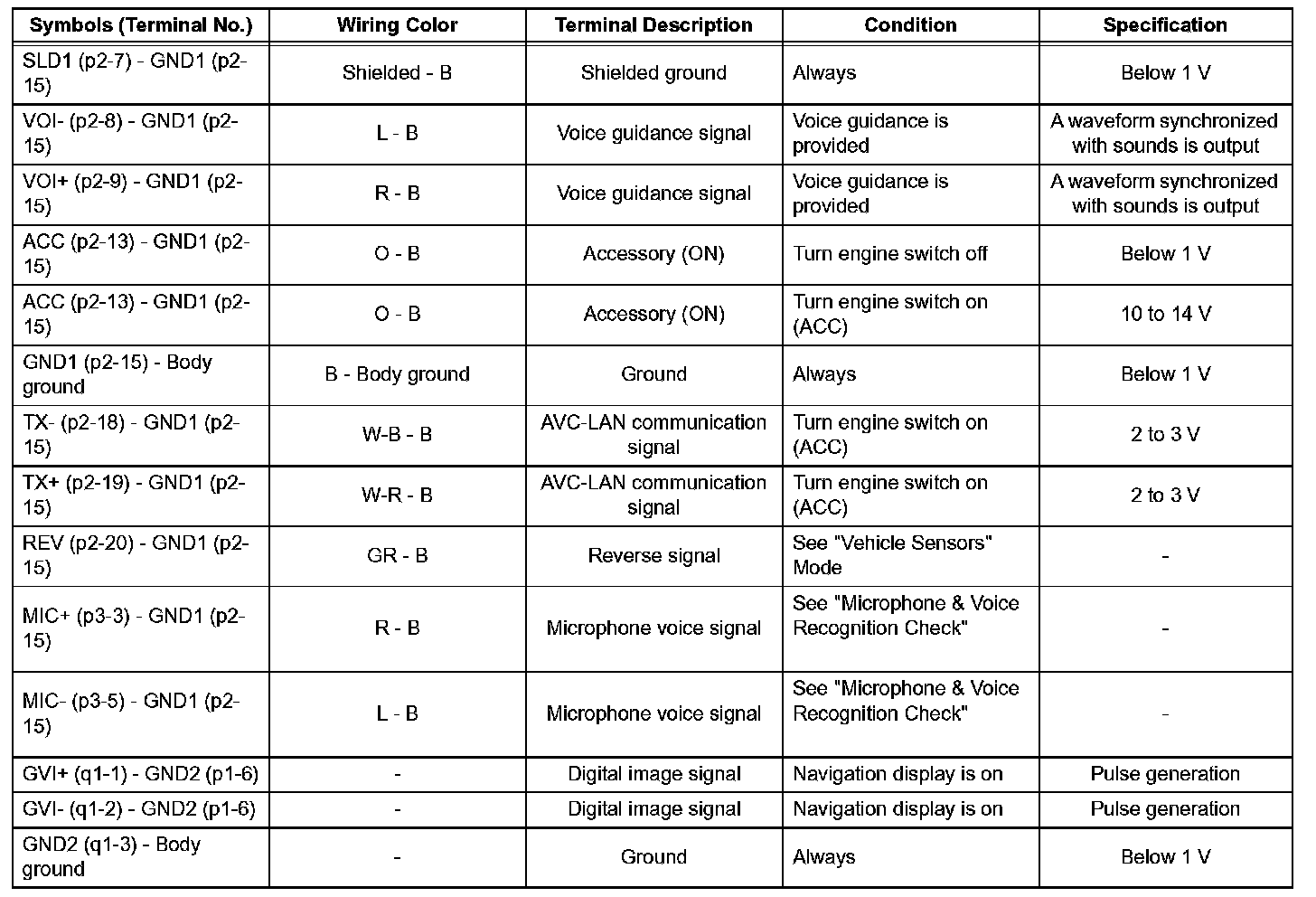

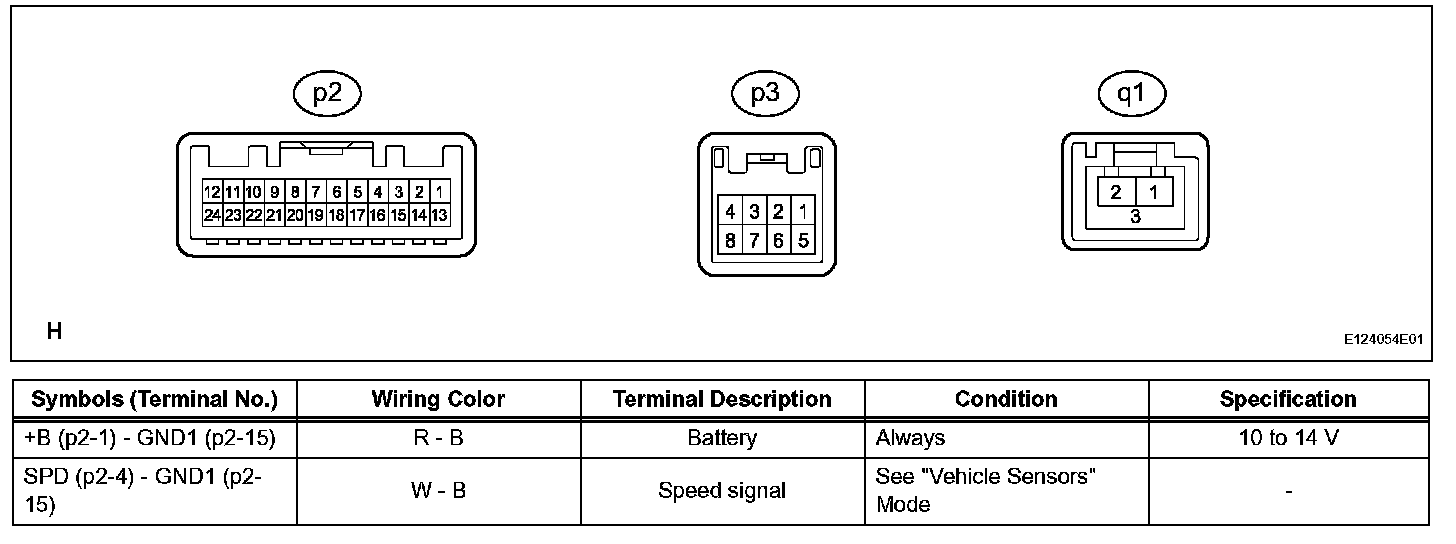

1. MULTI-DISPLAY

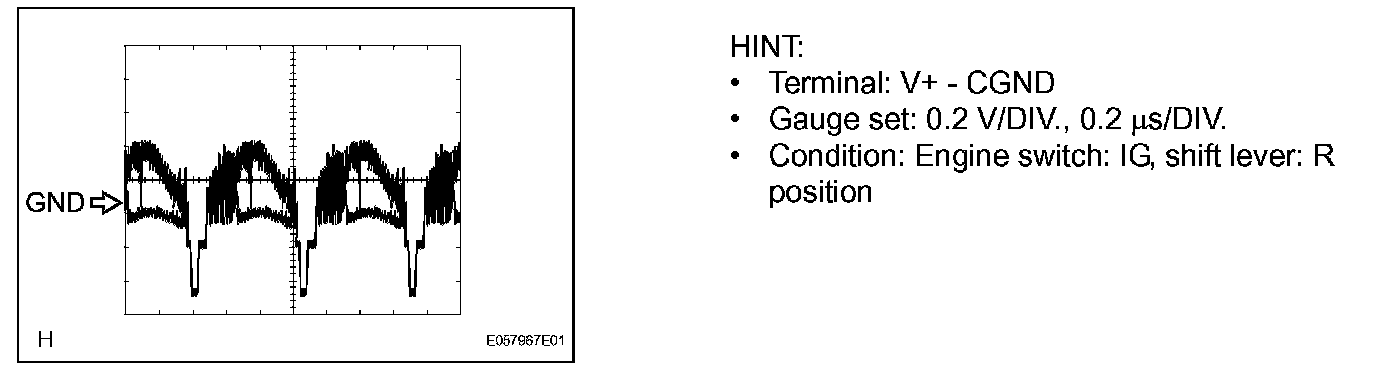

a. Reference: waveform 1

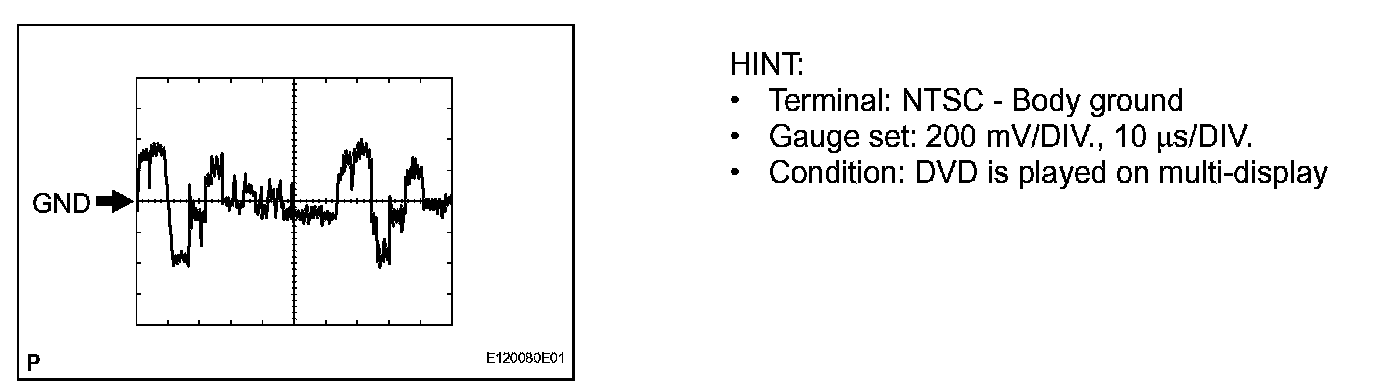

a. Reference: waveform 2

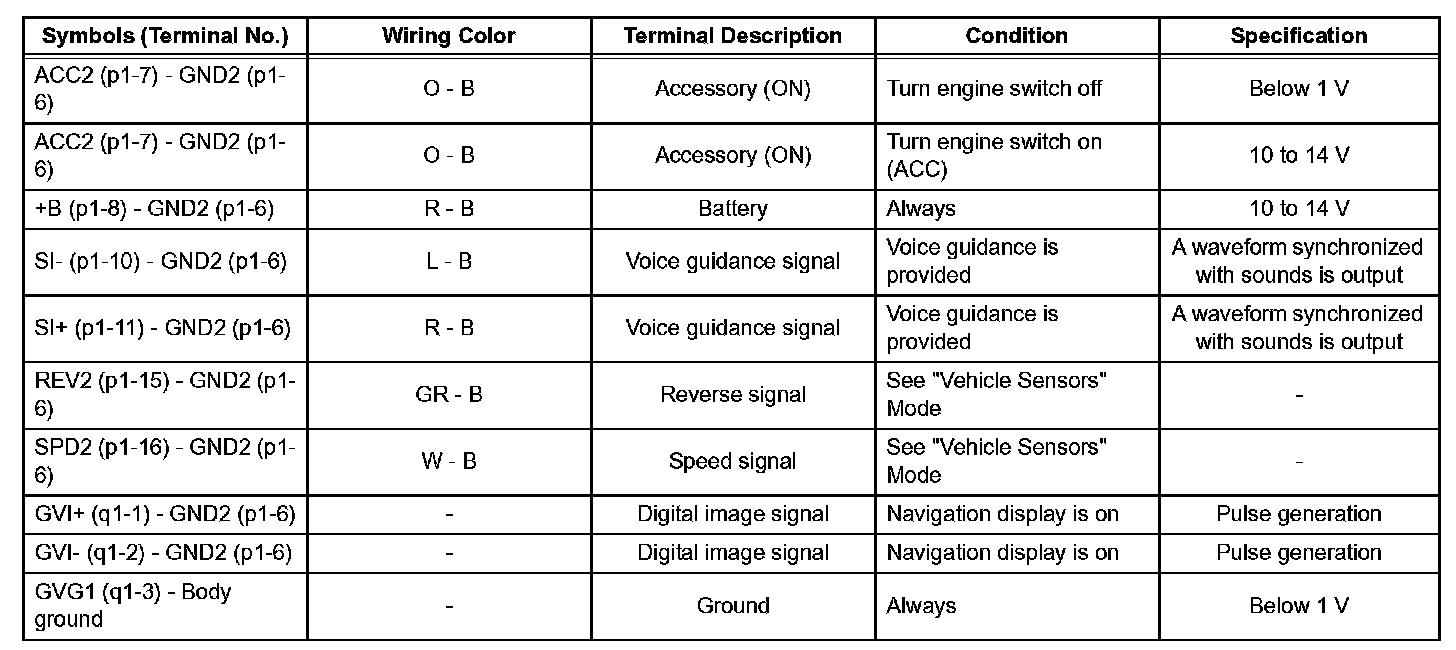

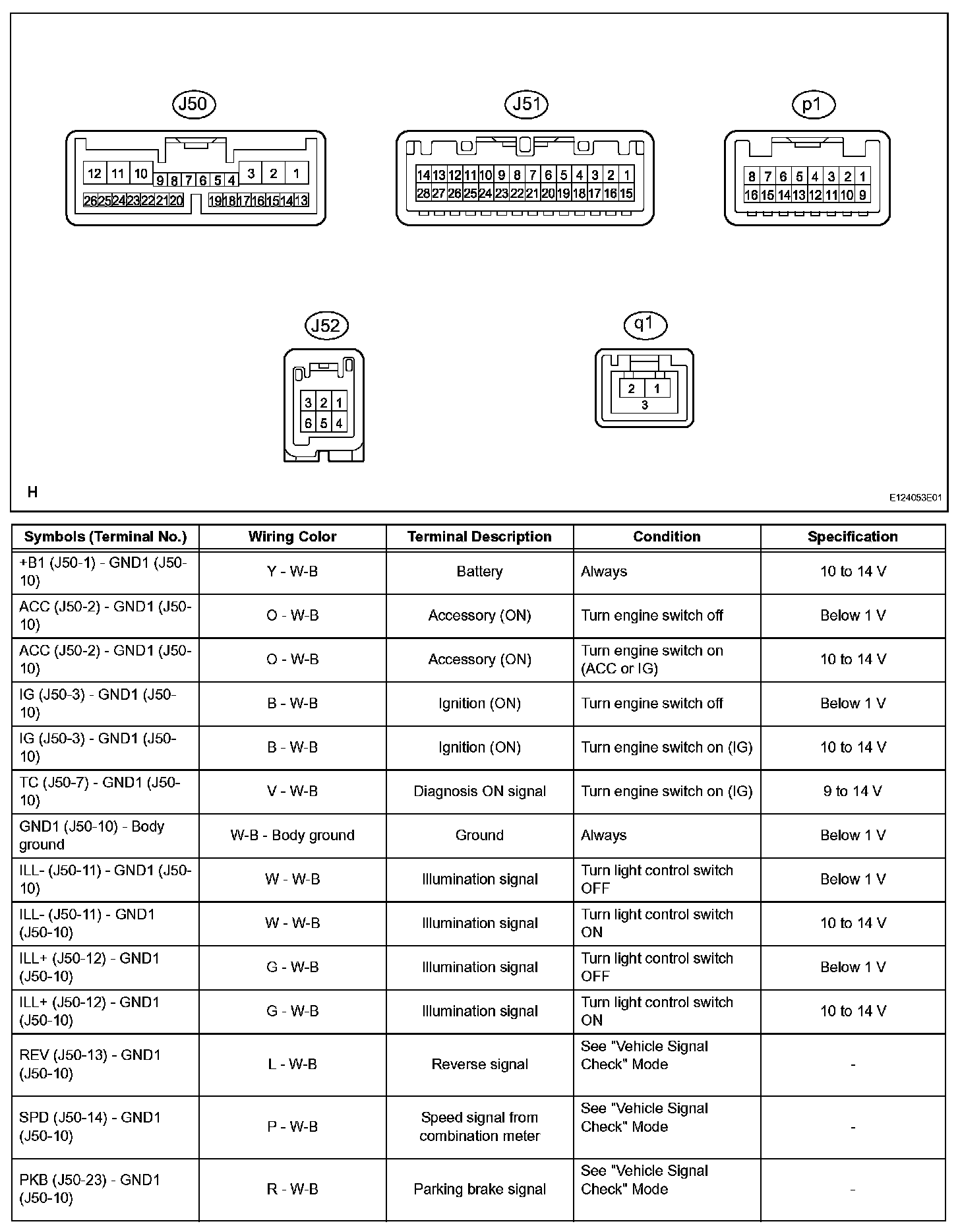

2. NAVIGATION ECU

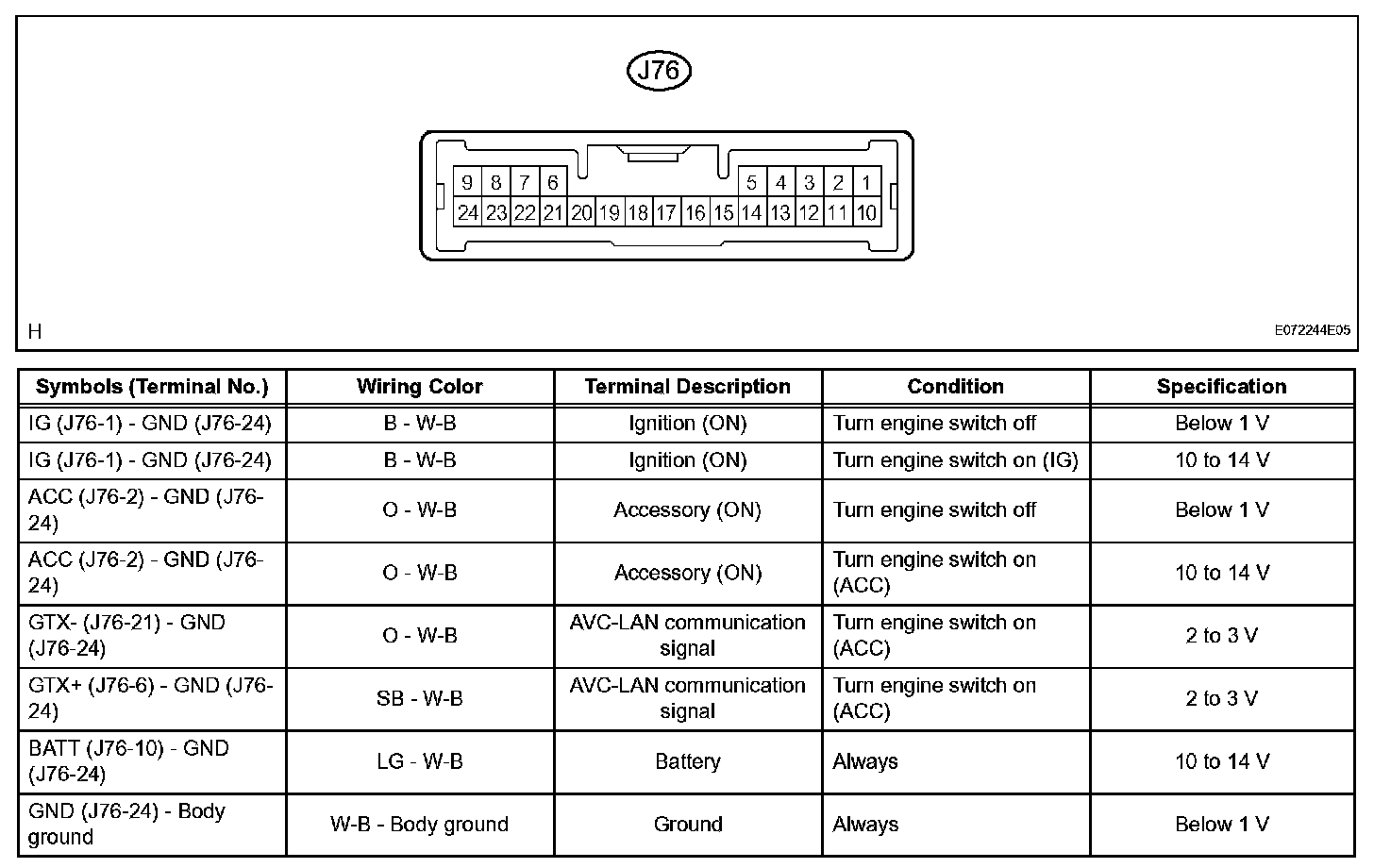

3. GATEWAY ECU
4. RADIO RECEIVER (SEE AV-16)
5. STEREO COMPONENT AMPLIFIER (SEE AV-16)
