Steering Pad Switch Circuit

Steering Pad Switch Circuit

DESCRIPTION
This circuit sends an operation signal from the steering pad switch to the radio receiver.

If there is an open in the circuit, the navigation system cannot be operated using the steering pad switch.

If there is a short in the circuit, the resulting condition is the same as if the switch were continuously depressed. Therefore, the navigation system cannot be operated using the steering pad switch, and the navigation system itself cannot function.

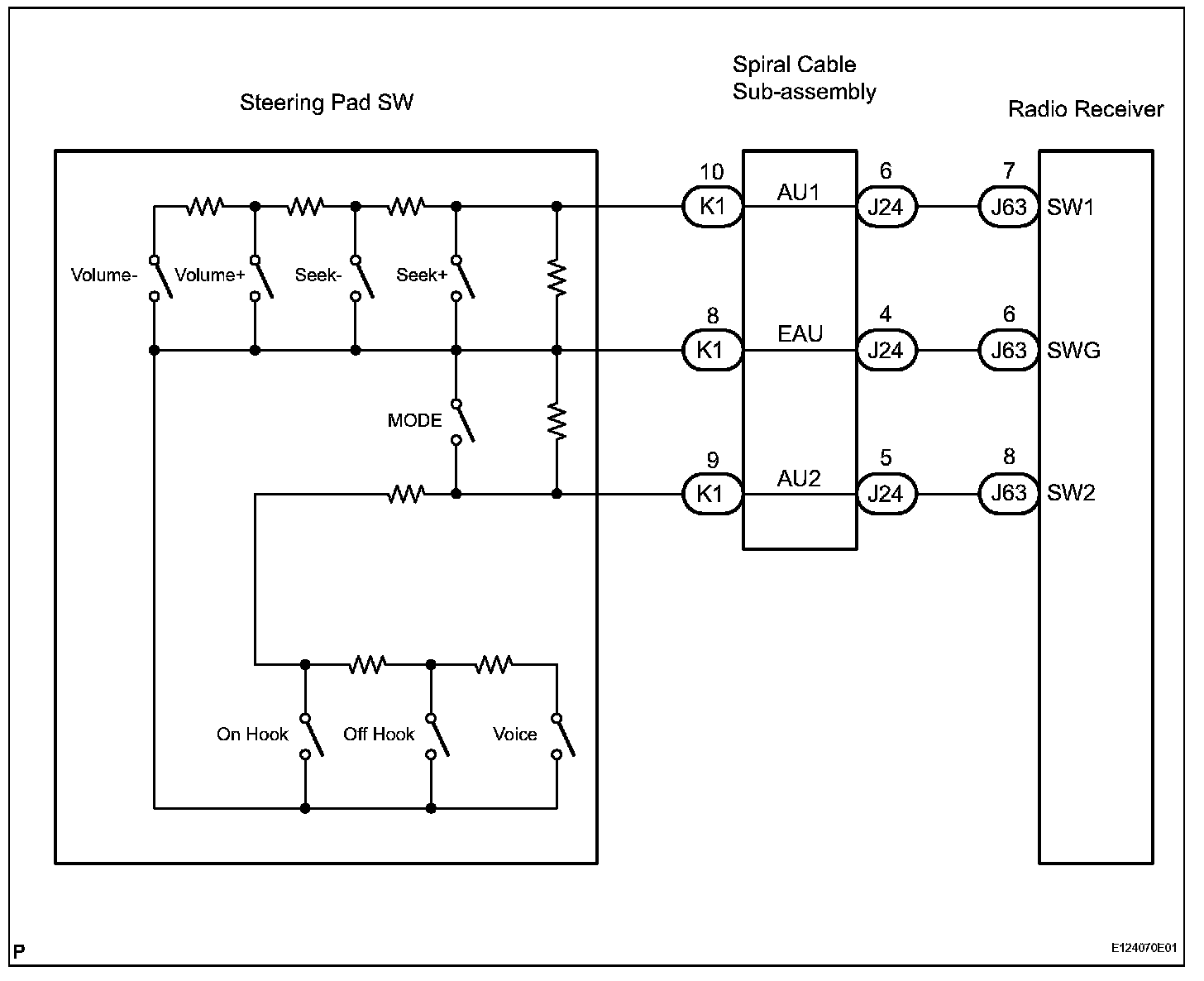

Wiring Diagram:

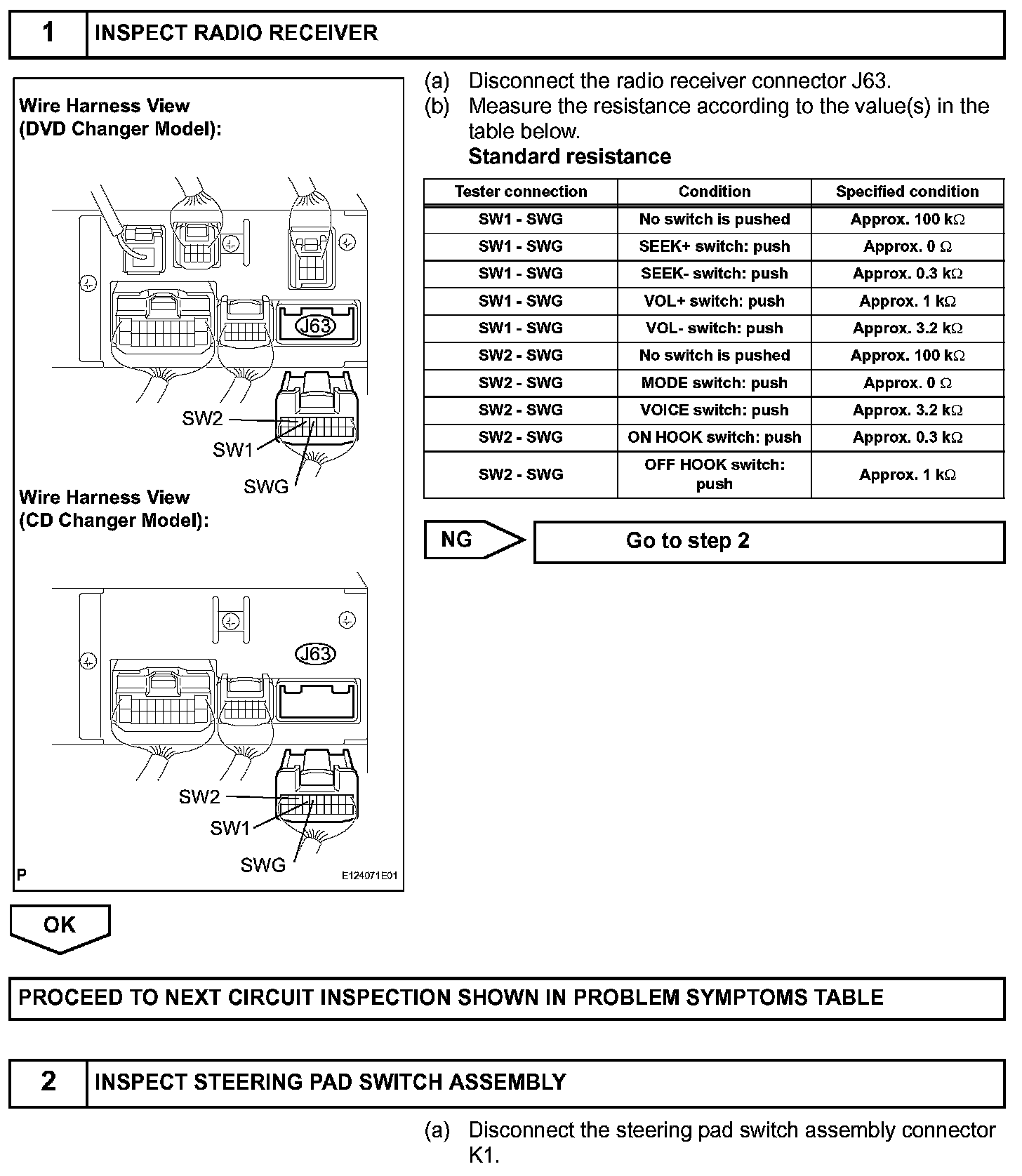

Step 1-2:

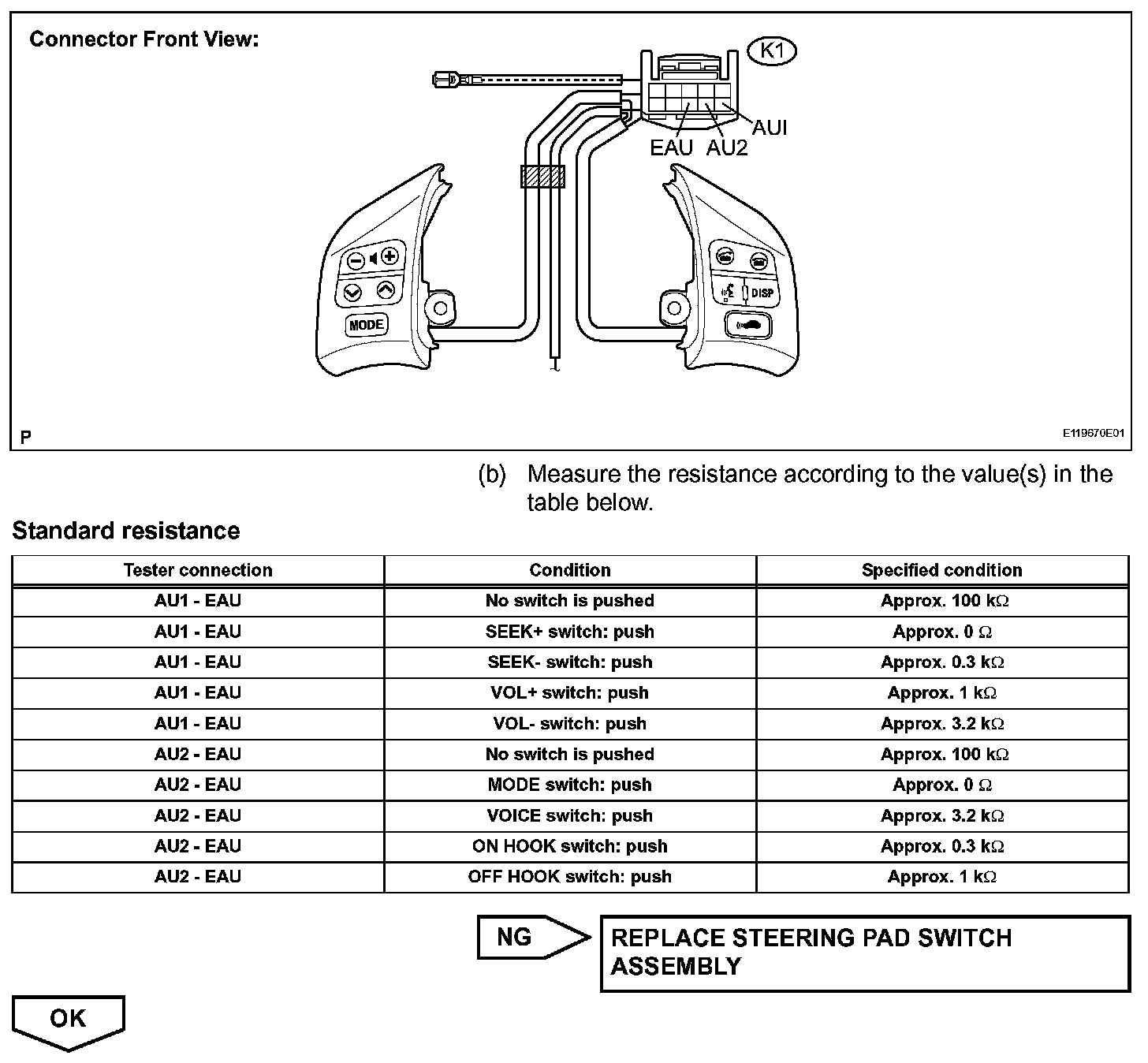

Step 2 (Continued):

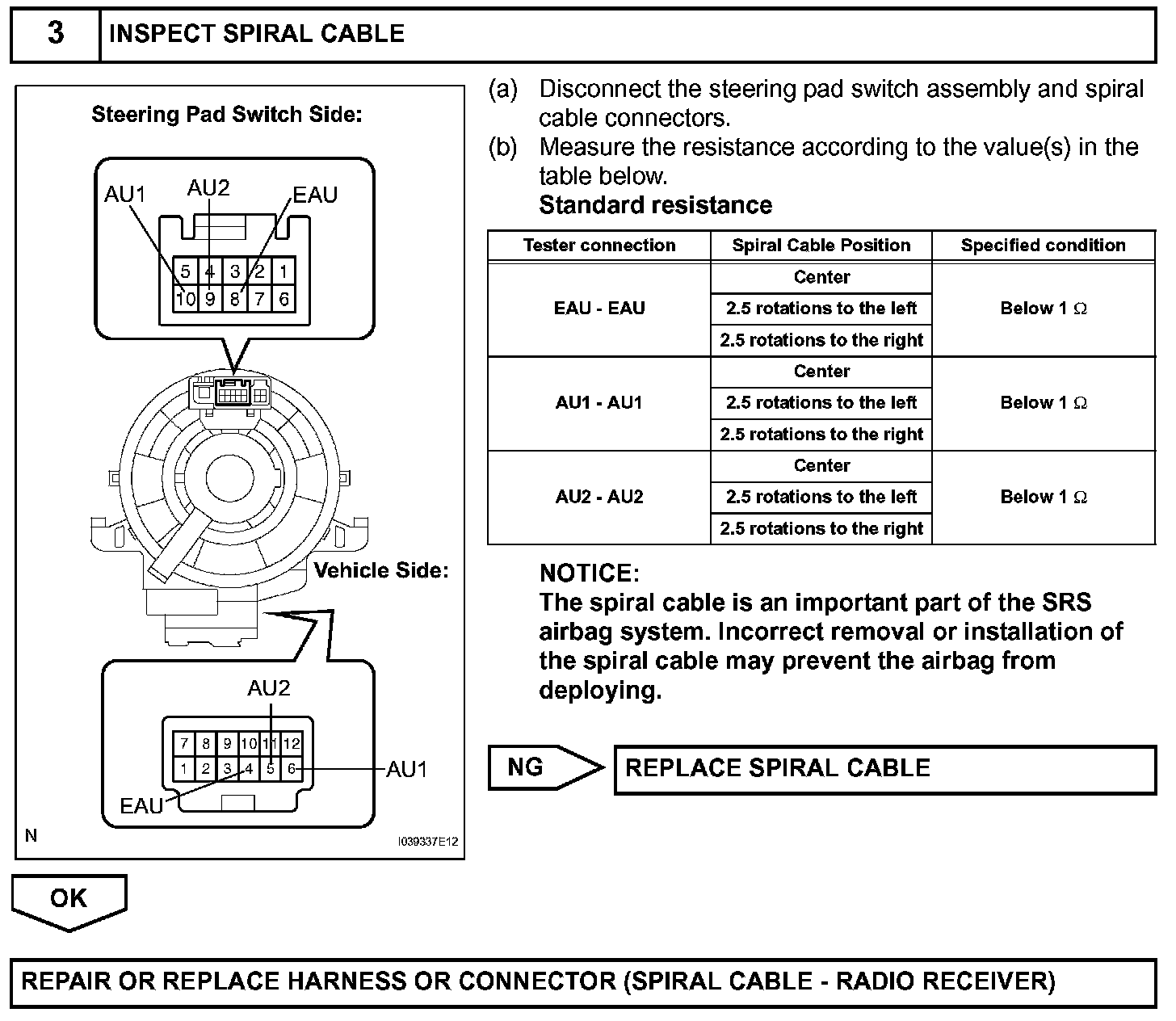

Step 3:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to "Refer to Restraint Systems Service Precautions".
