Reverse Signal Circuit
Reverse Signal CircuitDESCRIPTION
The navigation ECU receives a reverse signal from the multi-display and information about the GPS antenna, and then adjusts vehicle position.

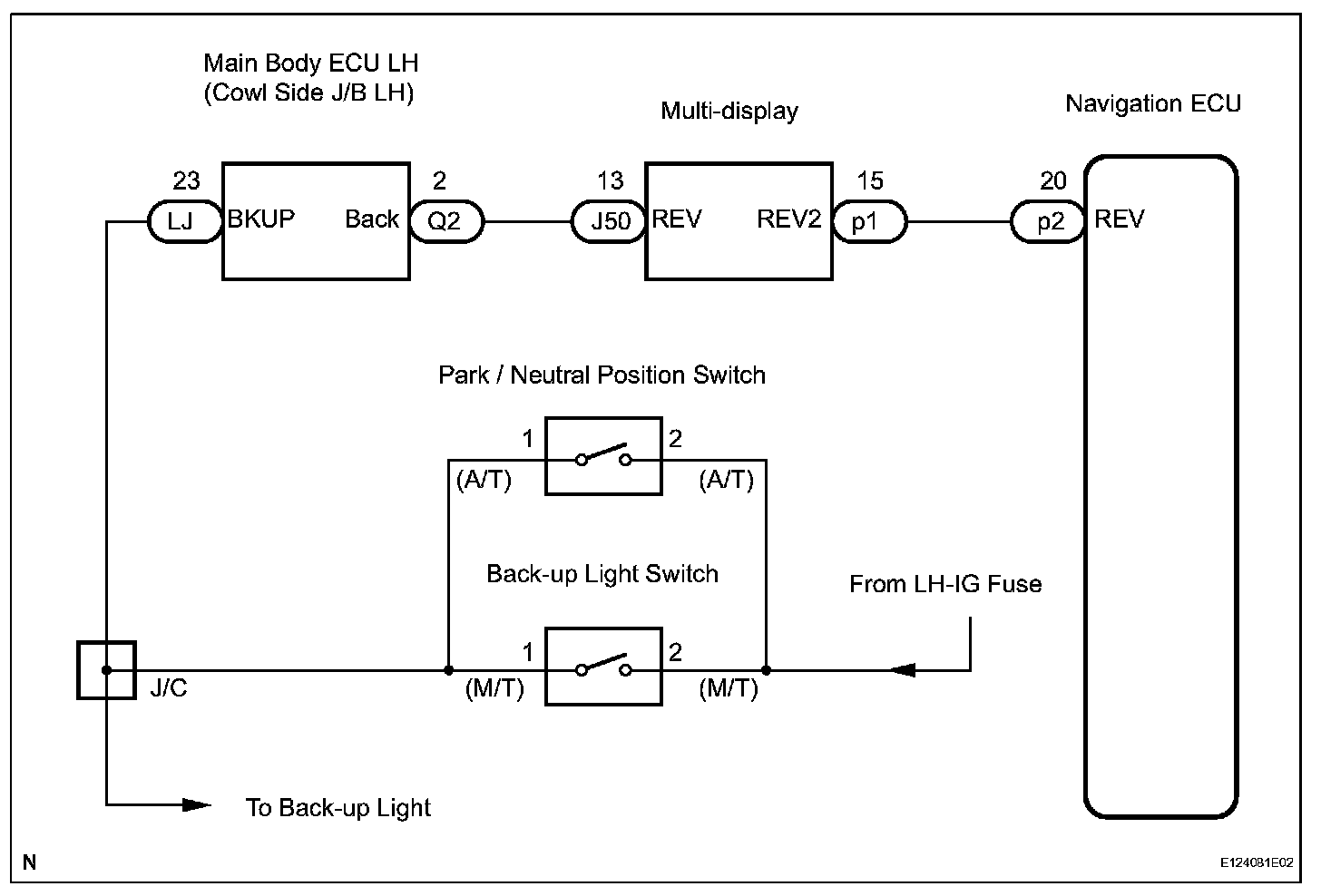

Wiring Diagram:

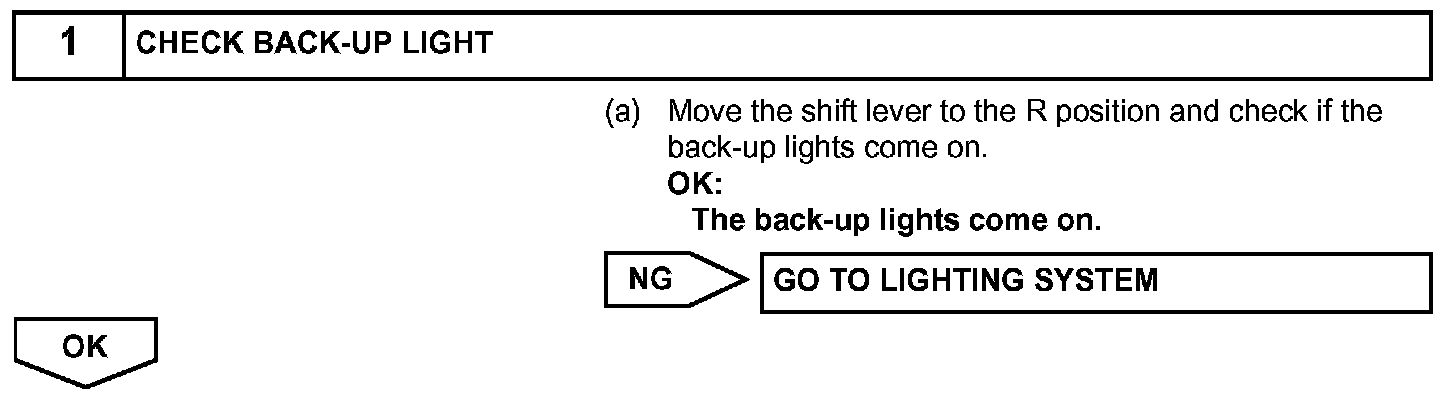

Step 1:

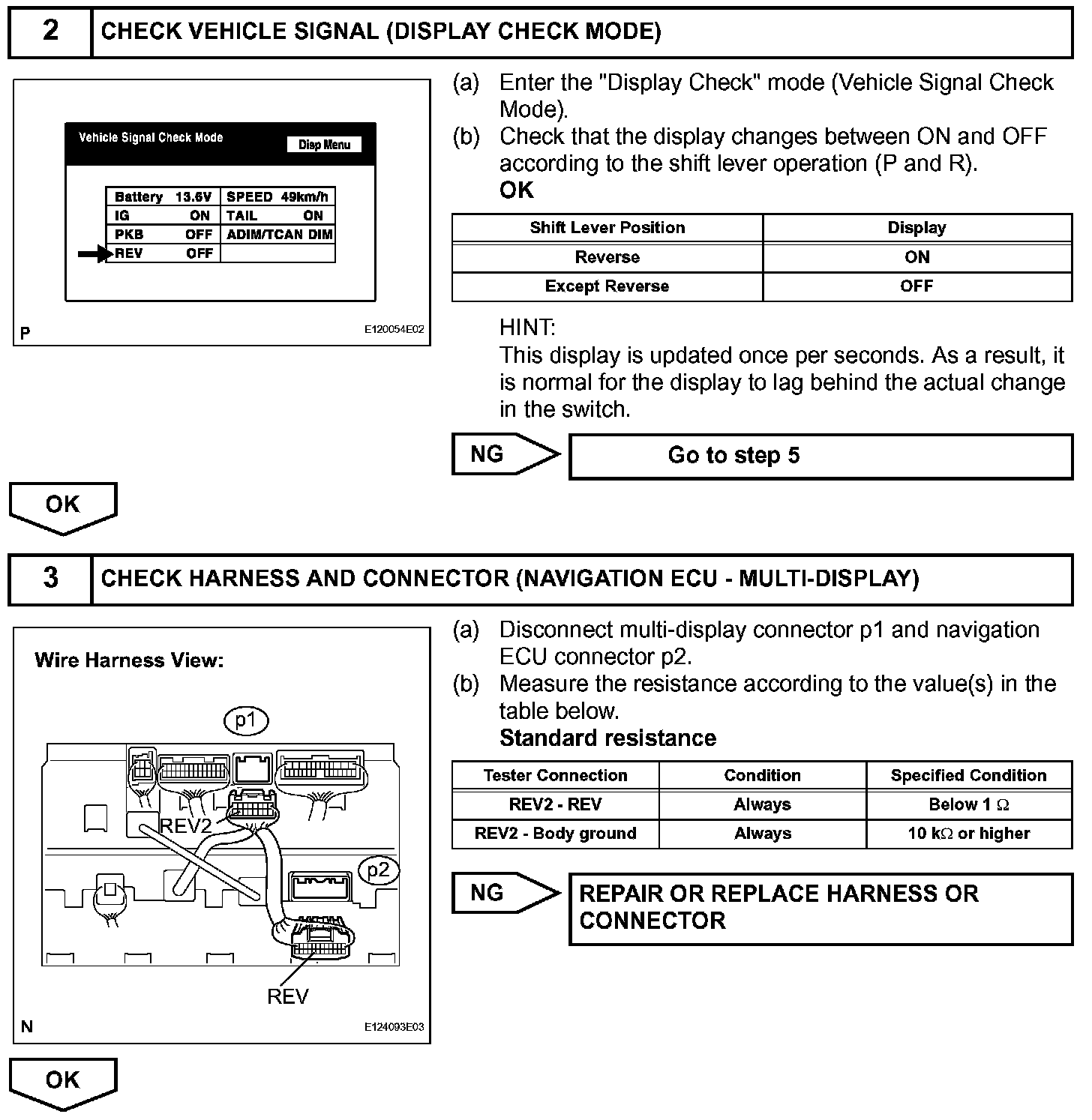

Step 2-3:

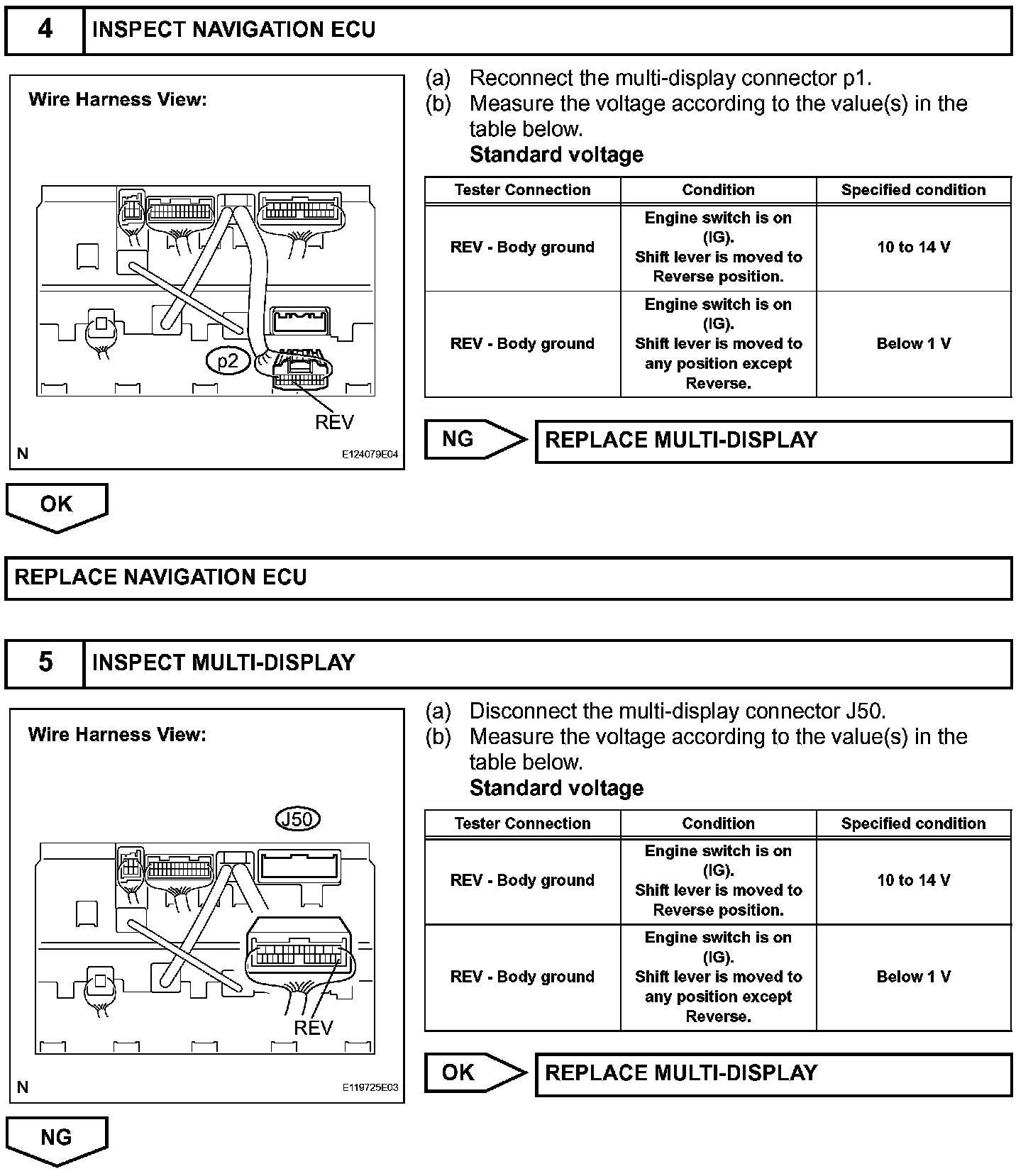

Step 4-5:

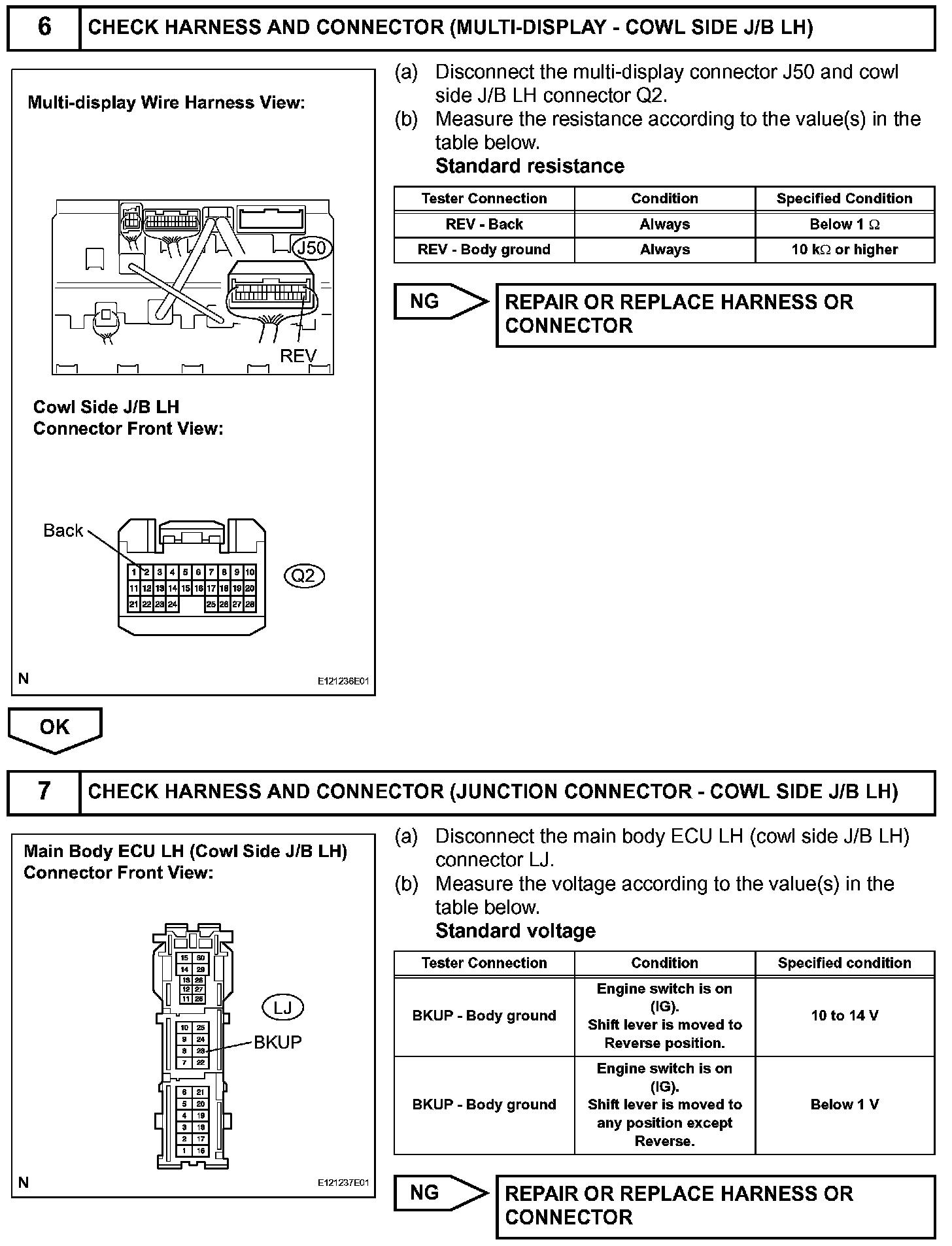

Step 6-7:
Step 7 (Continued):
INSPECTION PROCEDURE
