Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION
This circuit is from the parking brake switch to the multi-display.

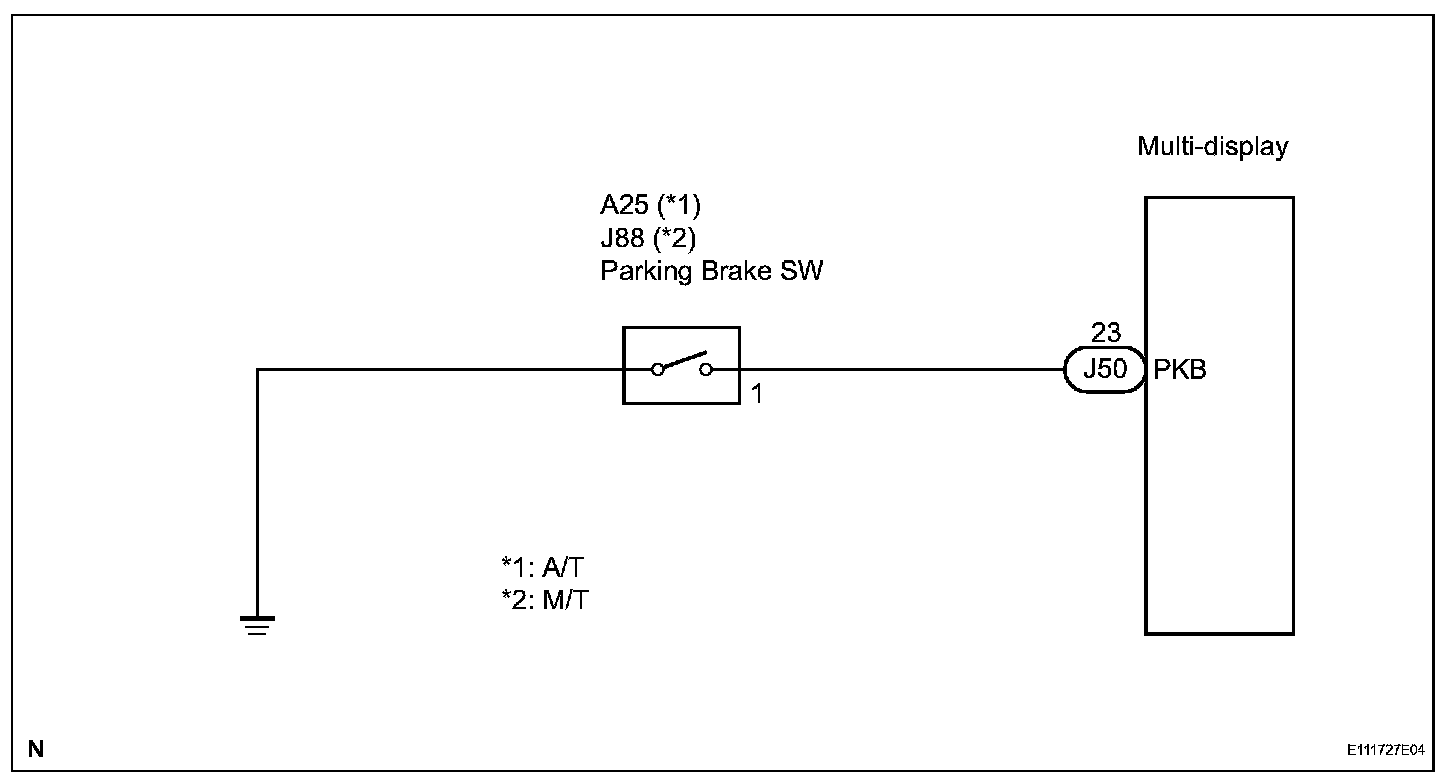

Wiring Diagram:

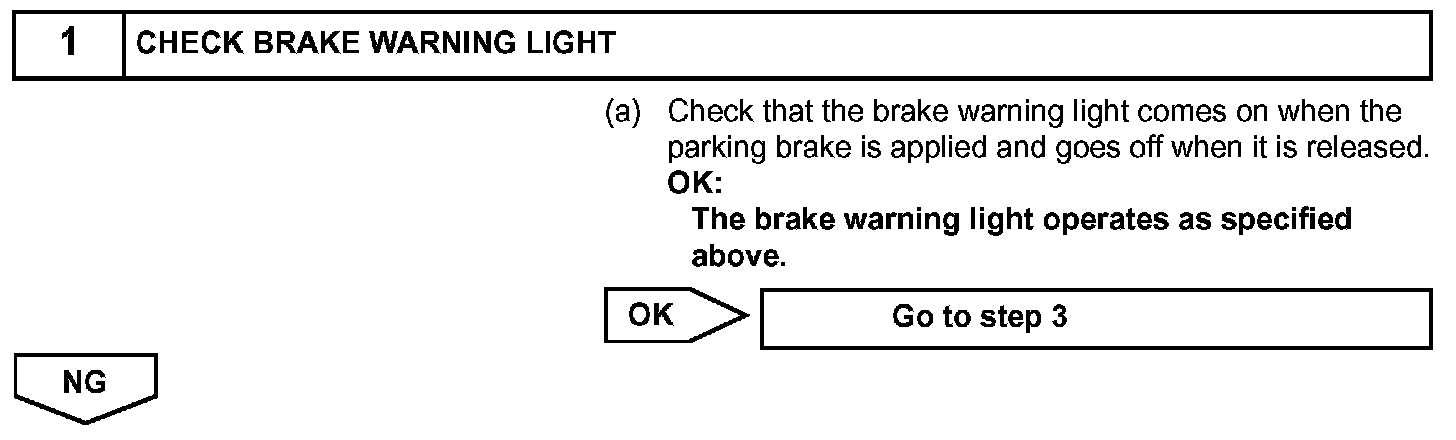

Step 1:

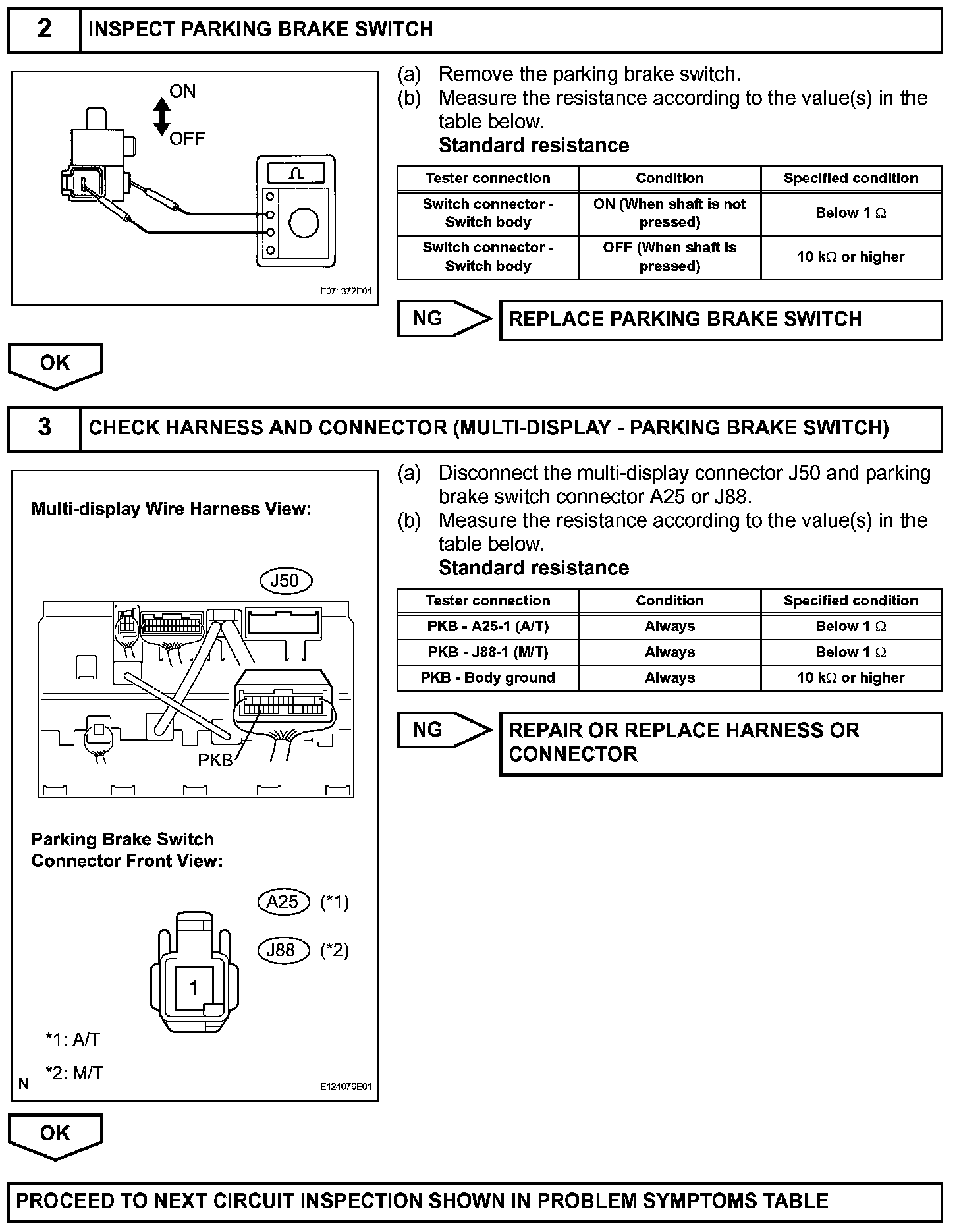

Step 2-3:




INSPECTION PROCEDURE
