Navigation ECU Communication Error

Navigation ECU Communication Error

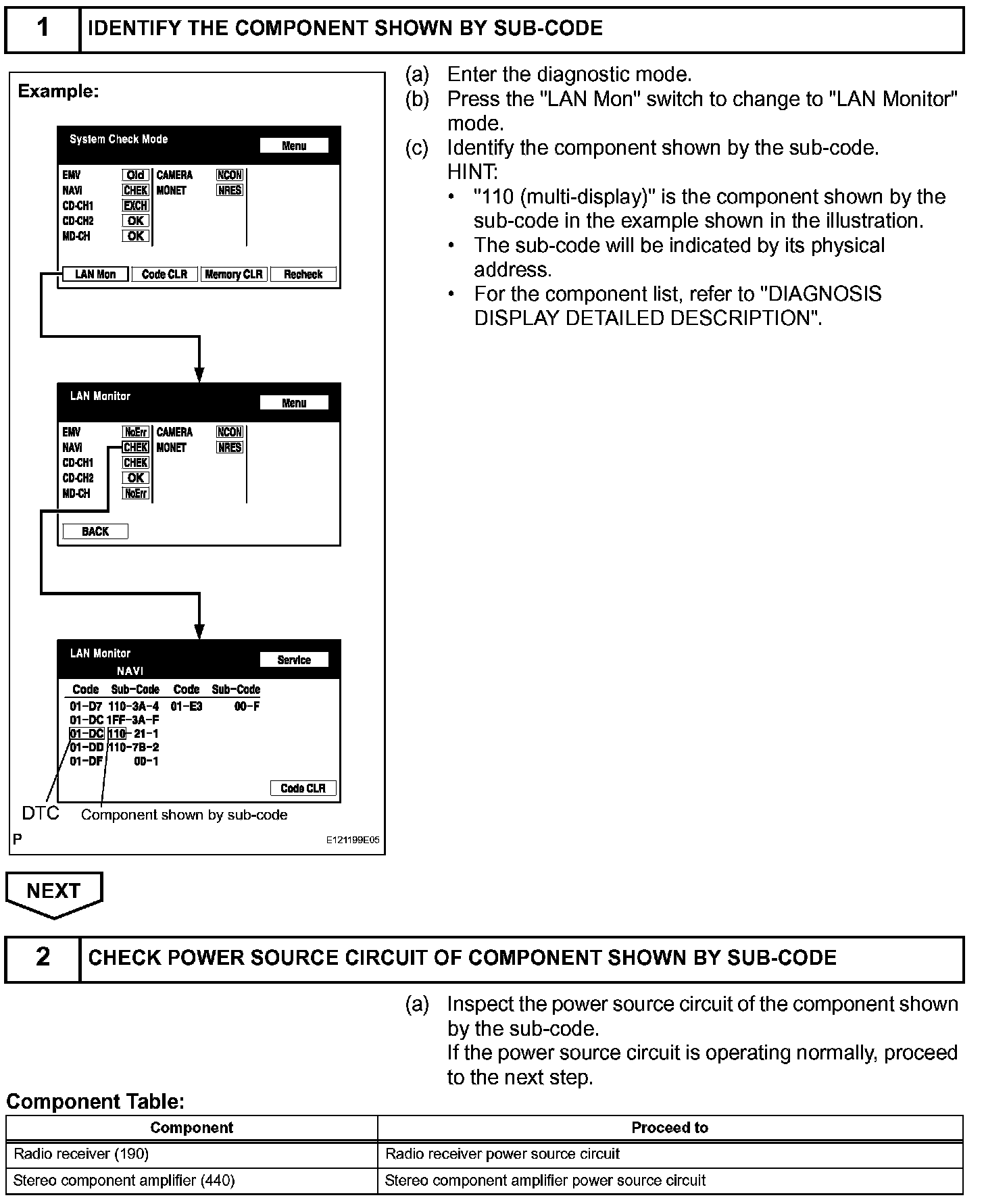

Step 1-2:




Step 1-2:

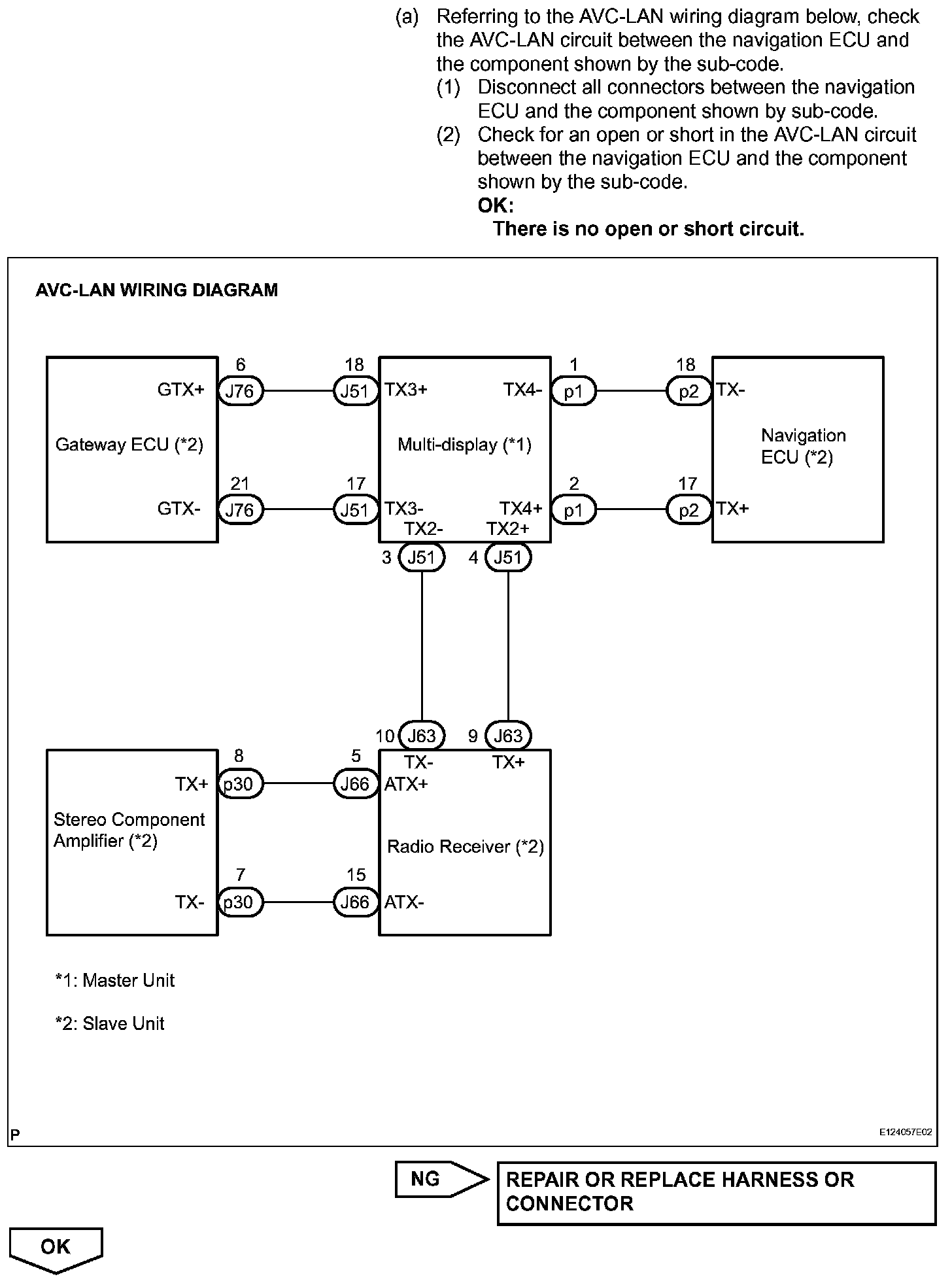

Step 2 (Continued)-4:




Step 4 (Continued):

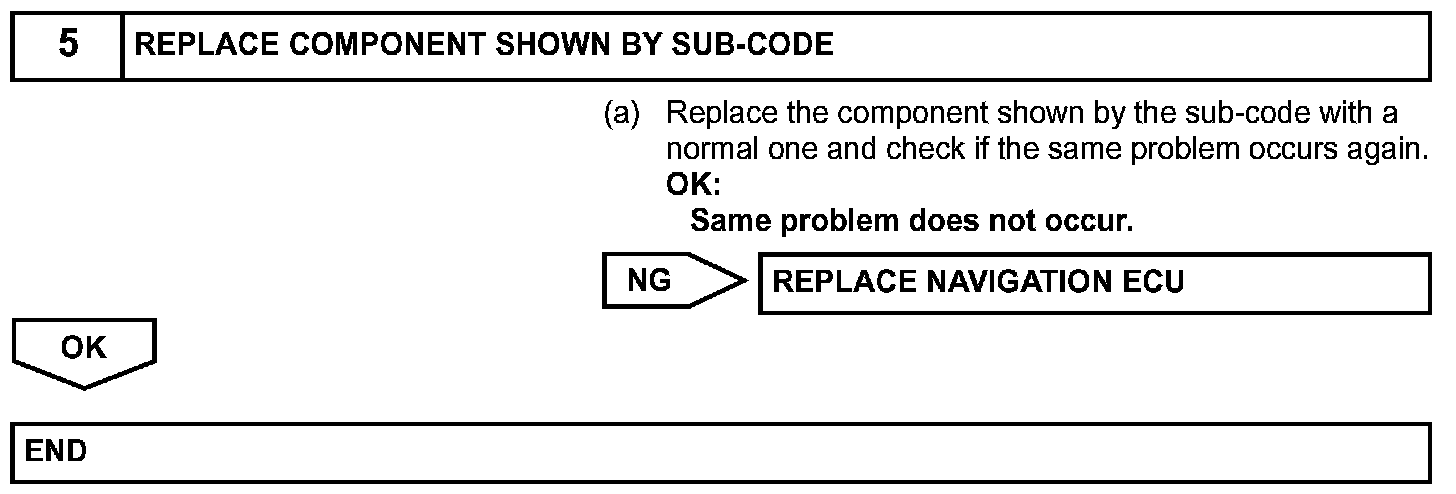

Step 5:




INSPECTION PROCEDURE
