Microphone Circuit Between Overhead J/B and Multi-Display
Microphone Circuit between Overhead J/B and Multi-displayDESCRIPTION
This circuit sends a microphone signal from the overhead J/B to the multi-display. It also supplies power from the multi-display to the overhead J/B.

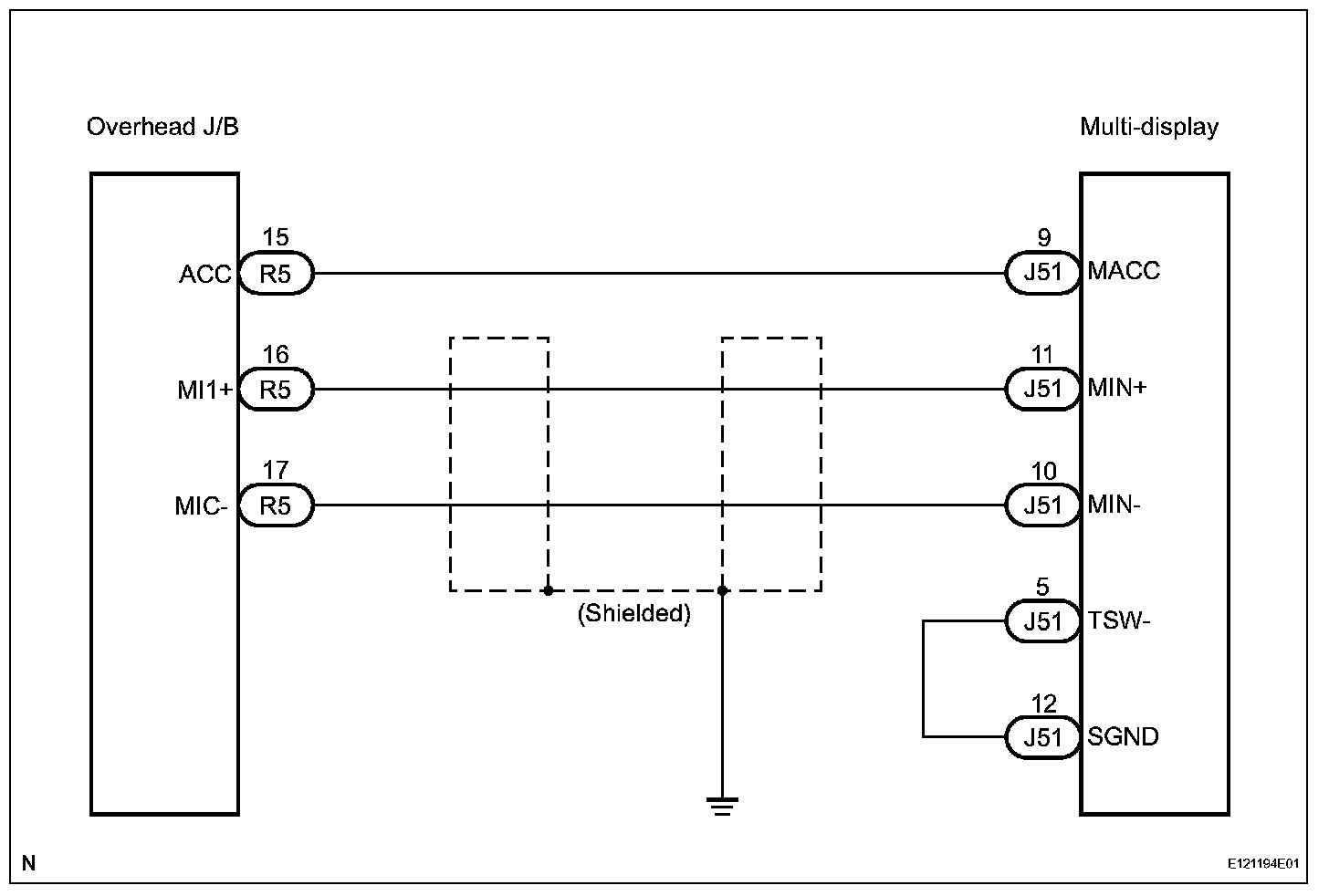

Wiring Diagram:

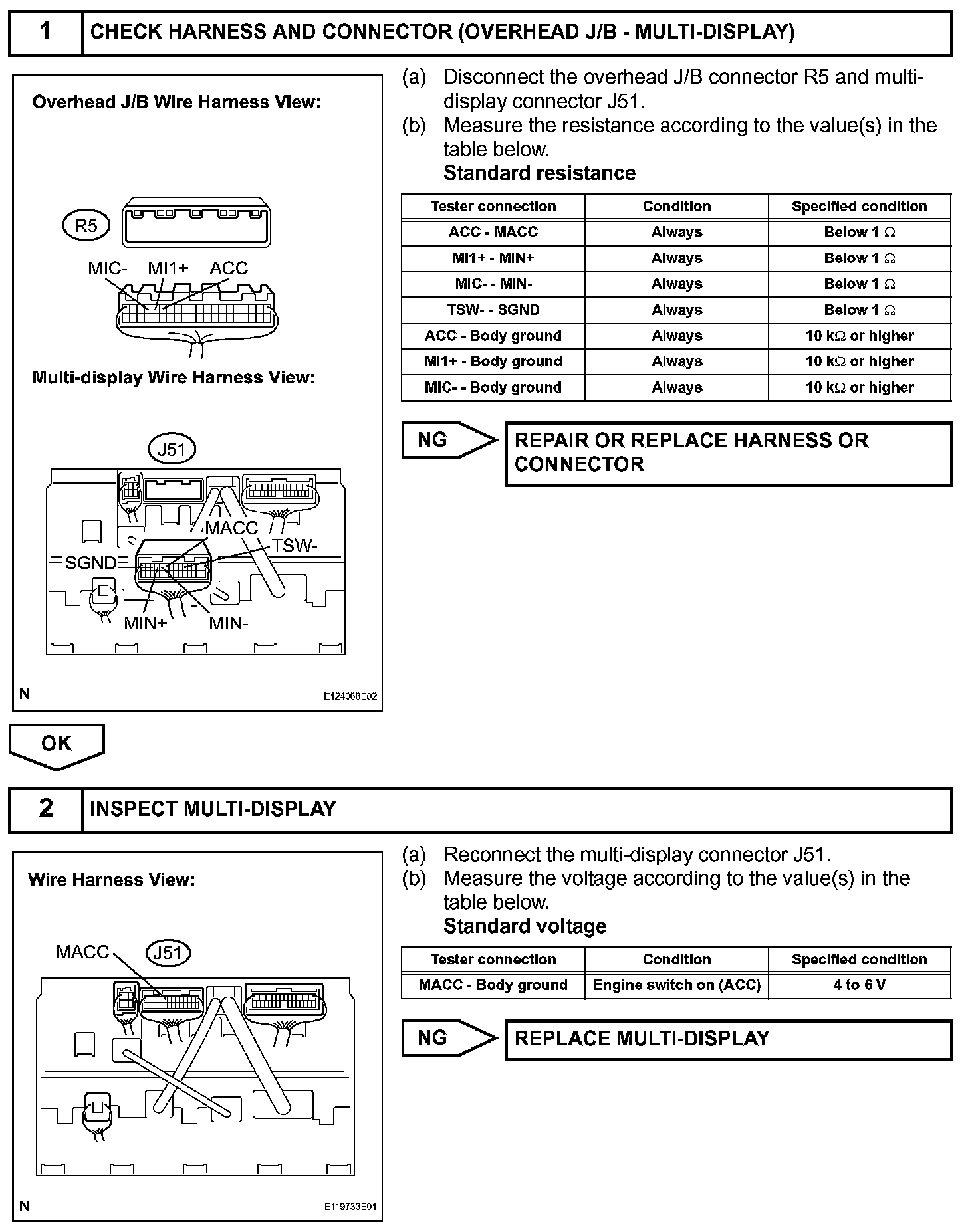

Step 1-2:
Step 2 (Continued):

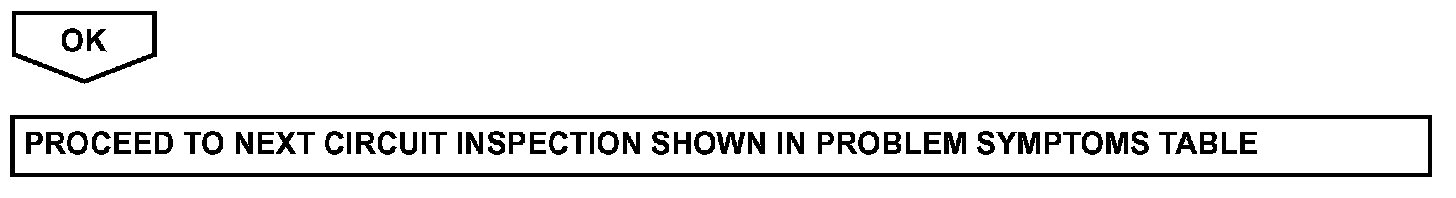

INSPECTION PROCEDURE
