Microphone Circuit Between Multi-Display and Navigation ECU

Microphone Circuit between Multi-display and Navigation ECU

DESCRIPTION
This circuit sends a microphone signal from the multi-display to the navigation ECU.

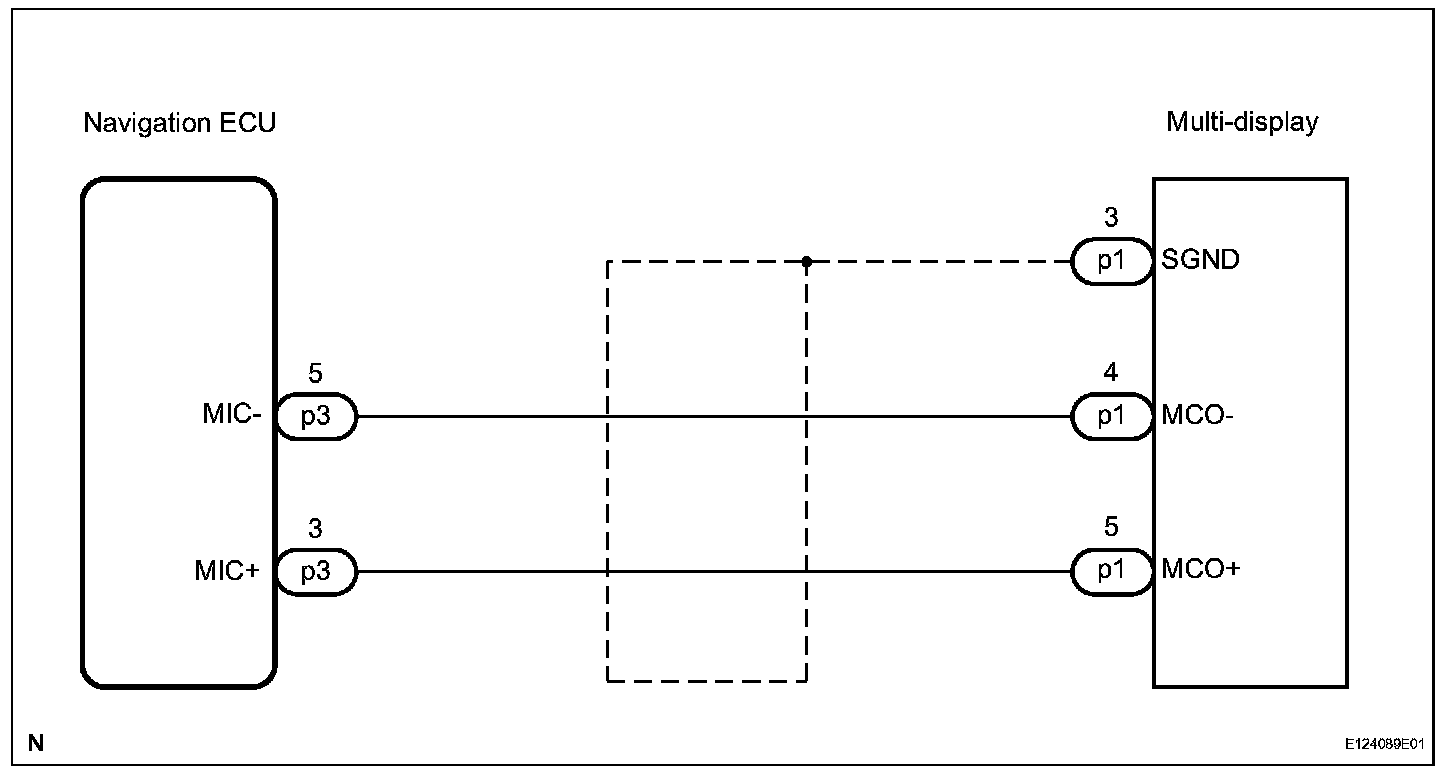

Wiring Diagram:

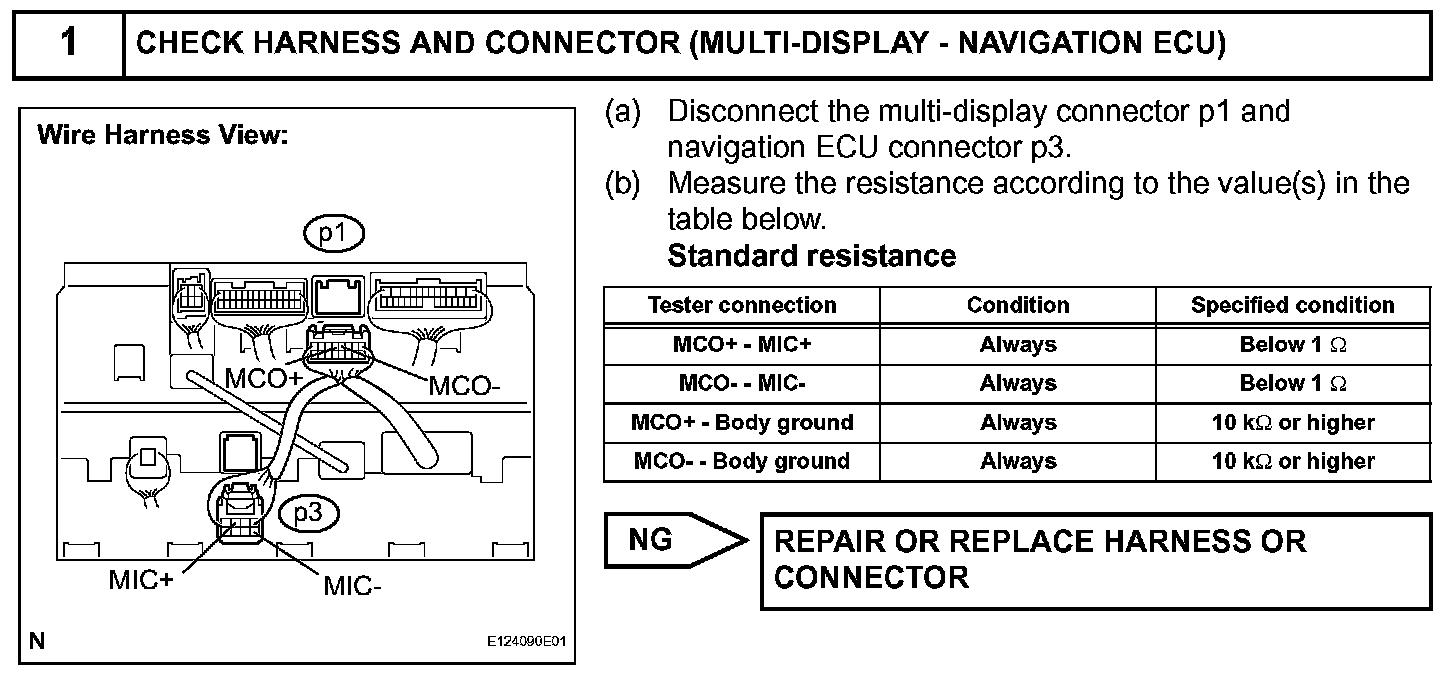

Step 1:

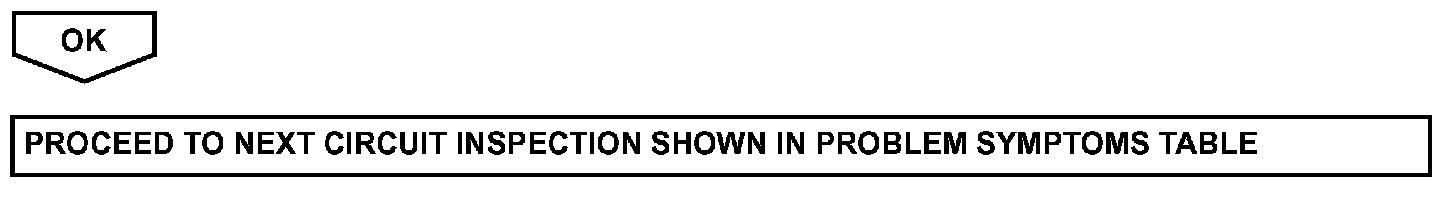

Step 1 (Continued):




INSPECTION PROCEDURE
