Active Test
ACTIVE TESTHINT: Using the intelligent tester to perform Active Test allows the operation or effects of relays, VSVs, actuators and other items to be tested without removing any parts. This non-intrusive inspection can be very useful as intermittent conditions or operation may be discovered before parts or wiring are disturbed. Using the Active Test early in troubleshooting is one way to save diagnostic time. It is possible to view Data List information on the intelligent tester while performing Active Tests.
a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the engine switch on (IG).

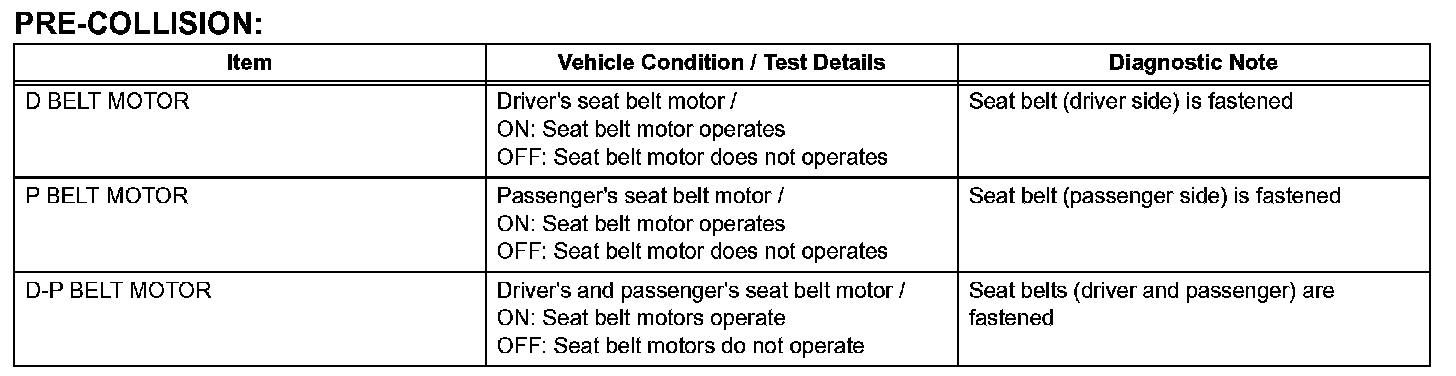

c. Following the display on the tester, select the "Active Test".
NOTE:
- The belt motor is not equipped with buckle switch is not operated.
- The protect heating up of belt motor, this test can not be activated continuously. Please operate with 30 seconds interval.
