Intuitive Parking Assist System

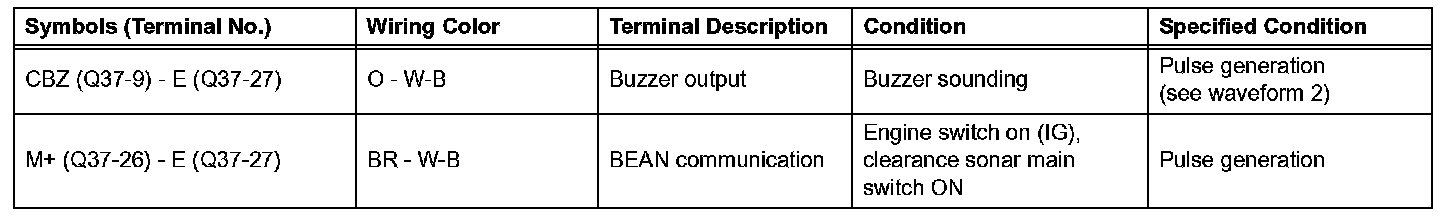

Terminals Of Control Module/Pinouts-Check Clearance Warning ECU (Part 1):



Terminals Of Control Module/Pinouts-Check Clearance Warning ECU (Part 2):

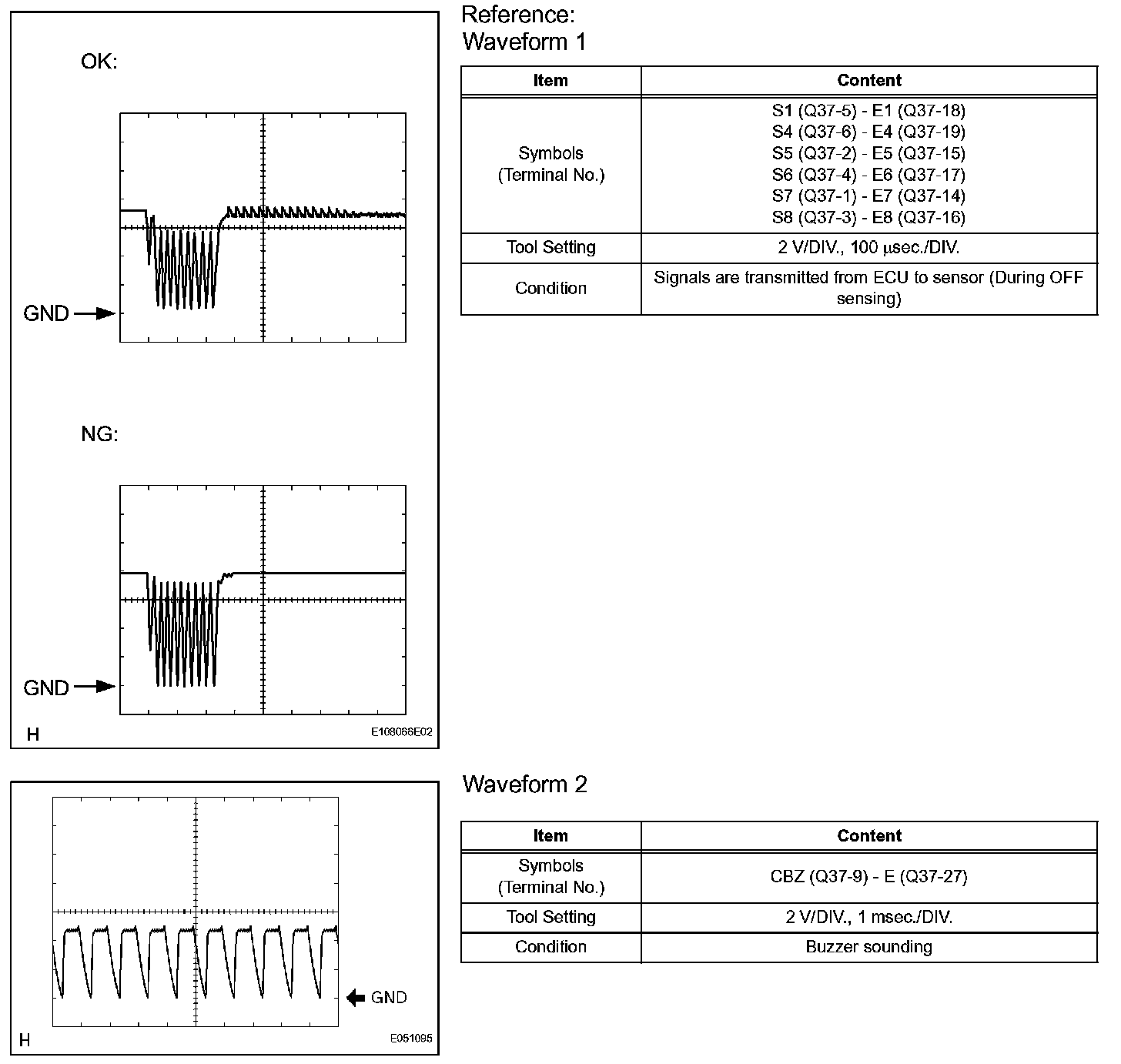

Oscilloscope Waveforms:
