Reverse Signal Circuit

Reverse Signal Circuit

DESCRIPTION
The multi-display receives a reverse signal from the main body ECU LH (cowl side J/B LH).

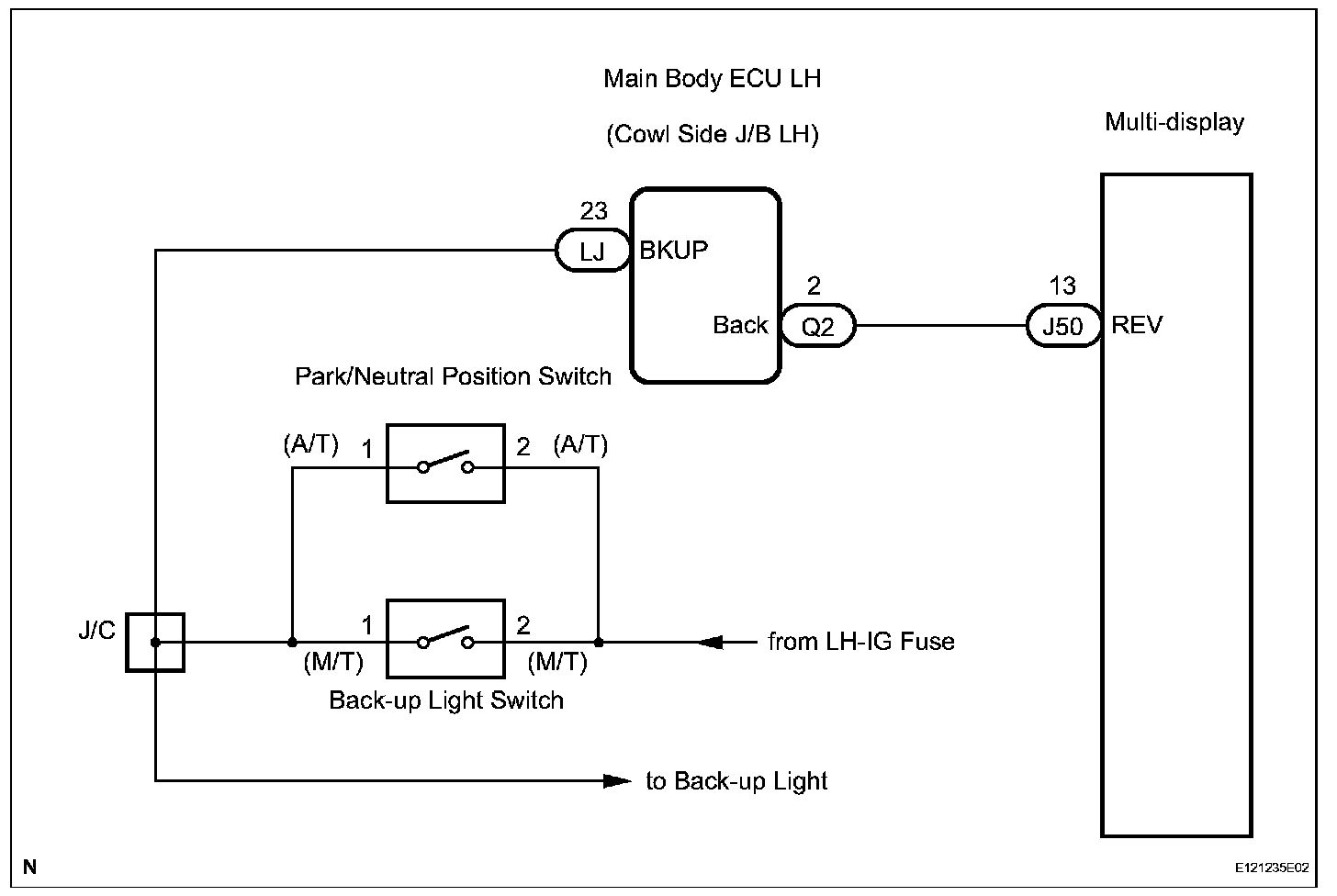

Wiring Diagram:

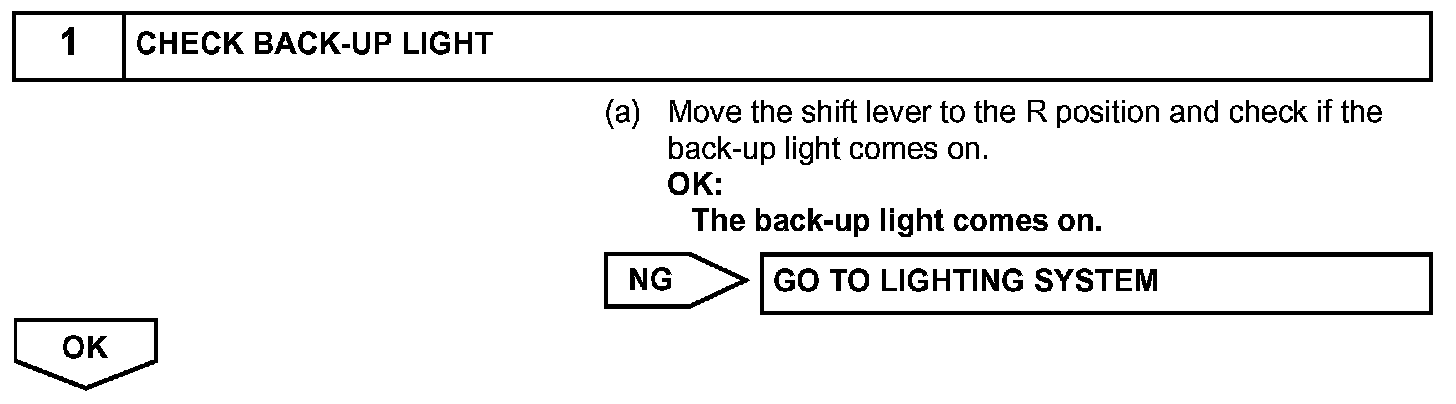

Step 1:

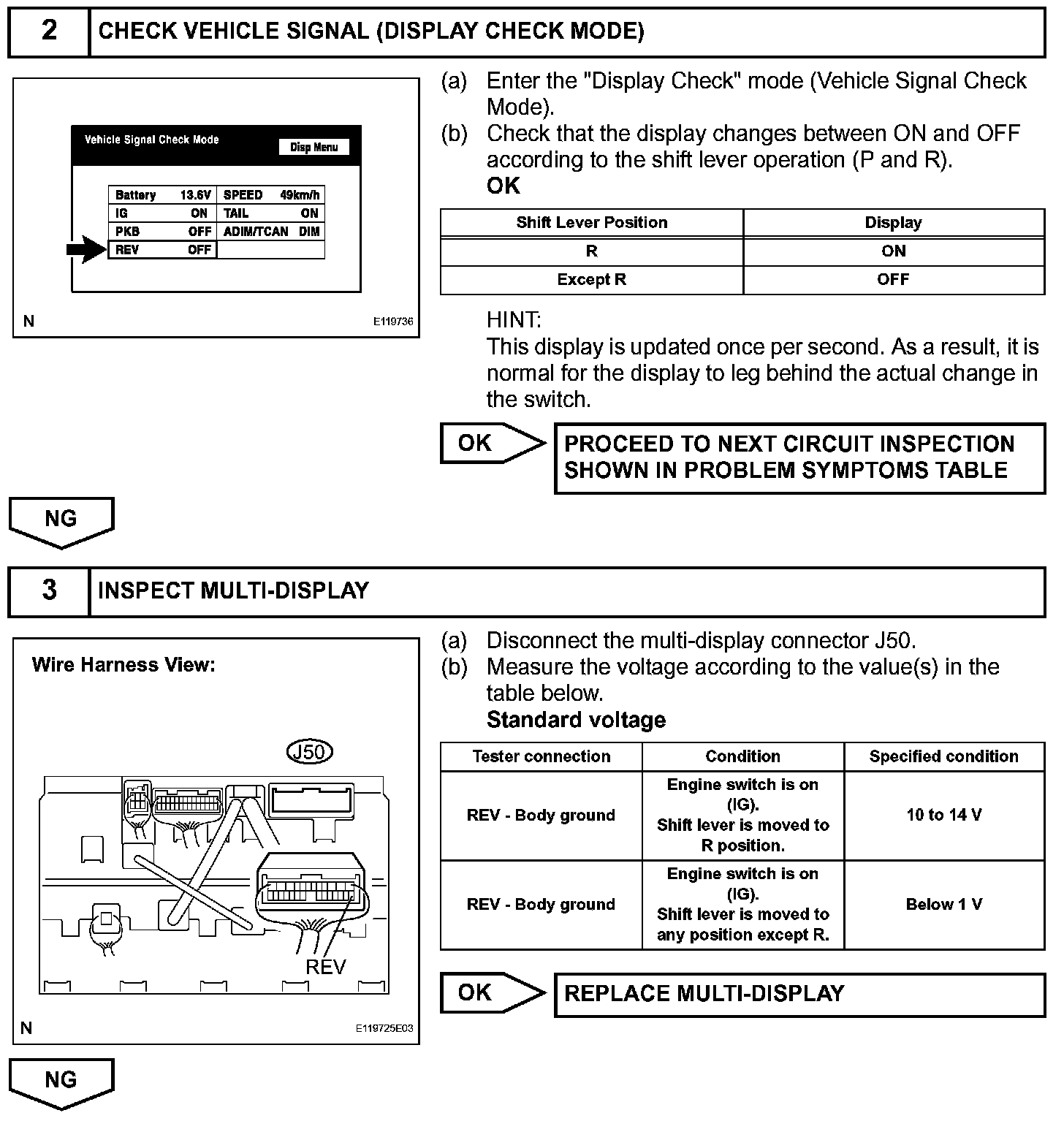

Step 2-3:

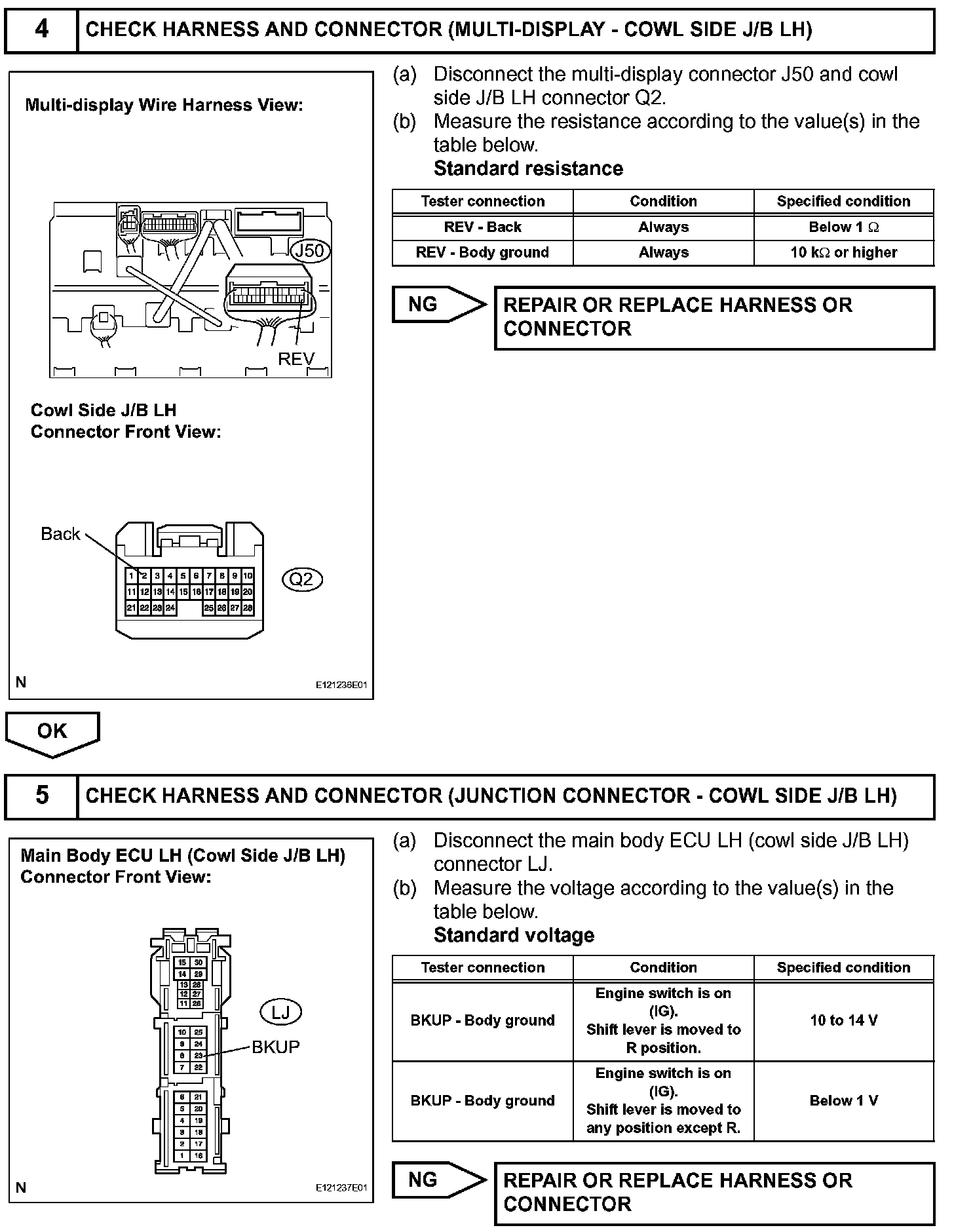

Step 4-5:

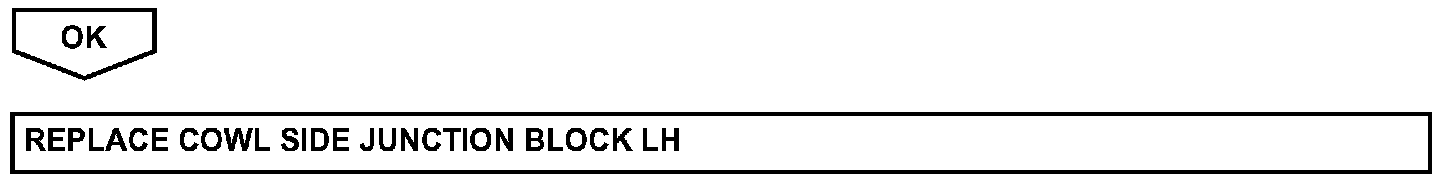

Step 5(continued):

INSPECTION PROCEDURE
