Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit supplies power to the seat belt control ECU.

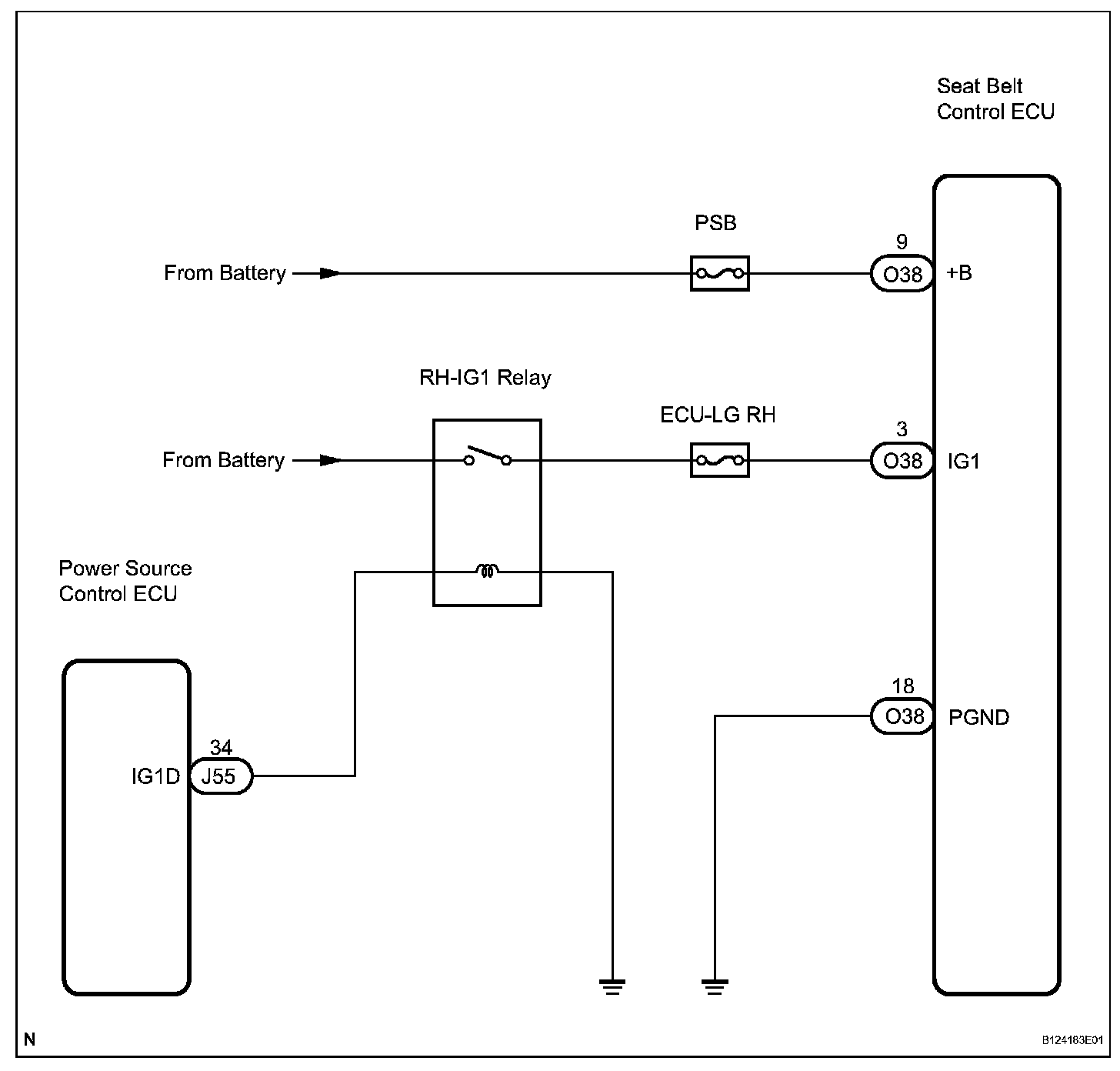

Wiring Diagram:






Step 1-2:

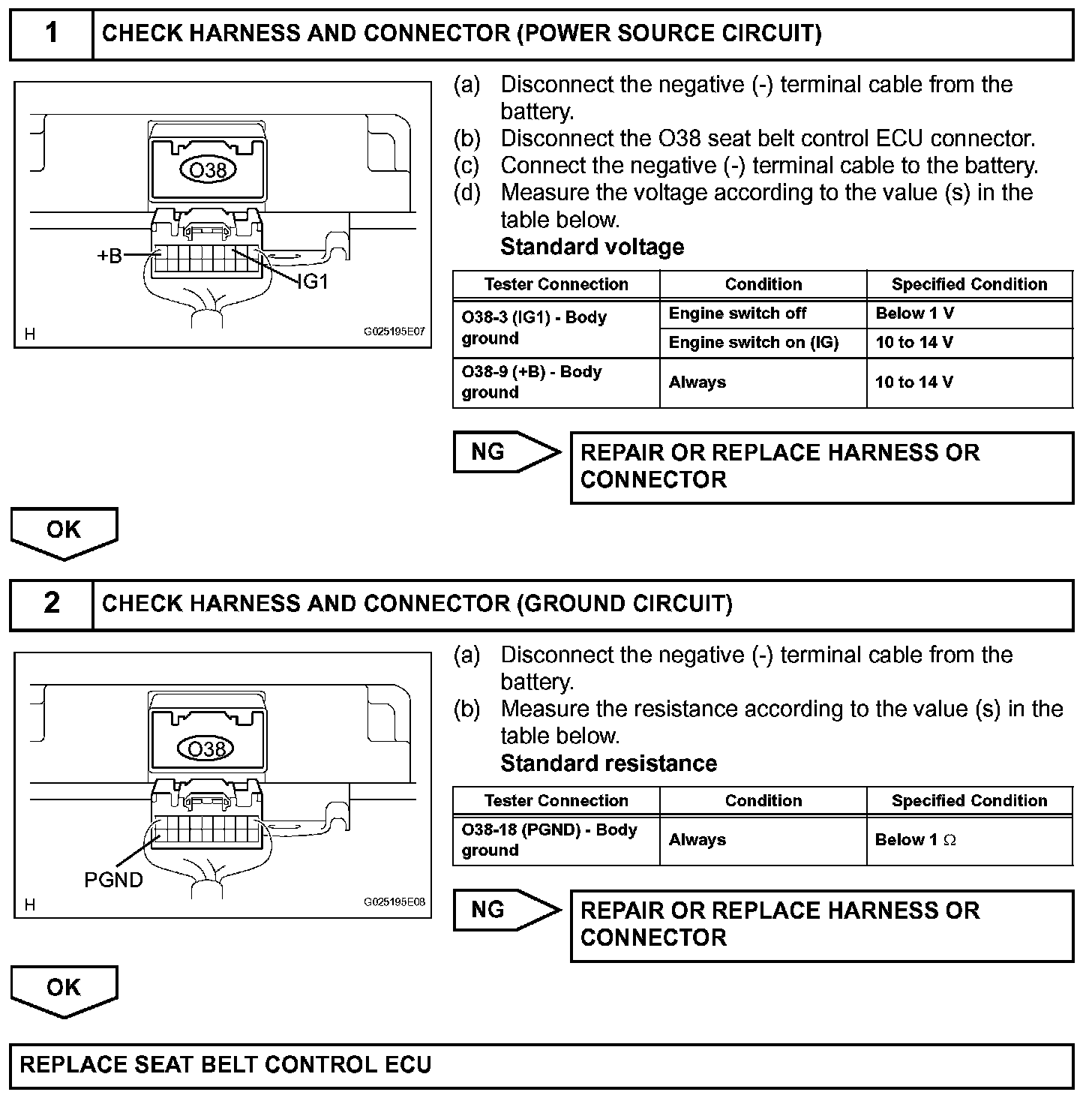

INSPECTION PROCEDURE

NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed.
