Intuitive Parking Assist System
>>
No. 1 Clearance Warning Buzzer Circuit
No. 1 Clearance Warning Buzzer Circuit
No. 1 Clearance Warning Buzzer Circuit

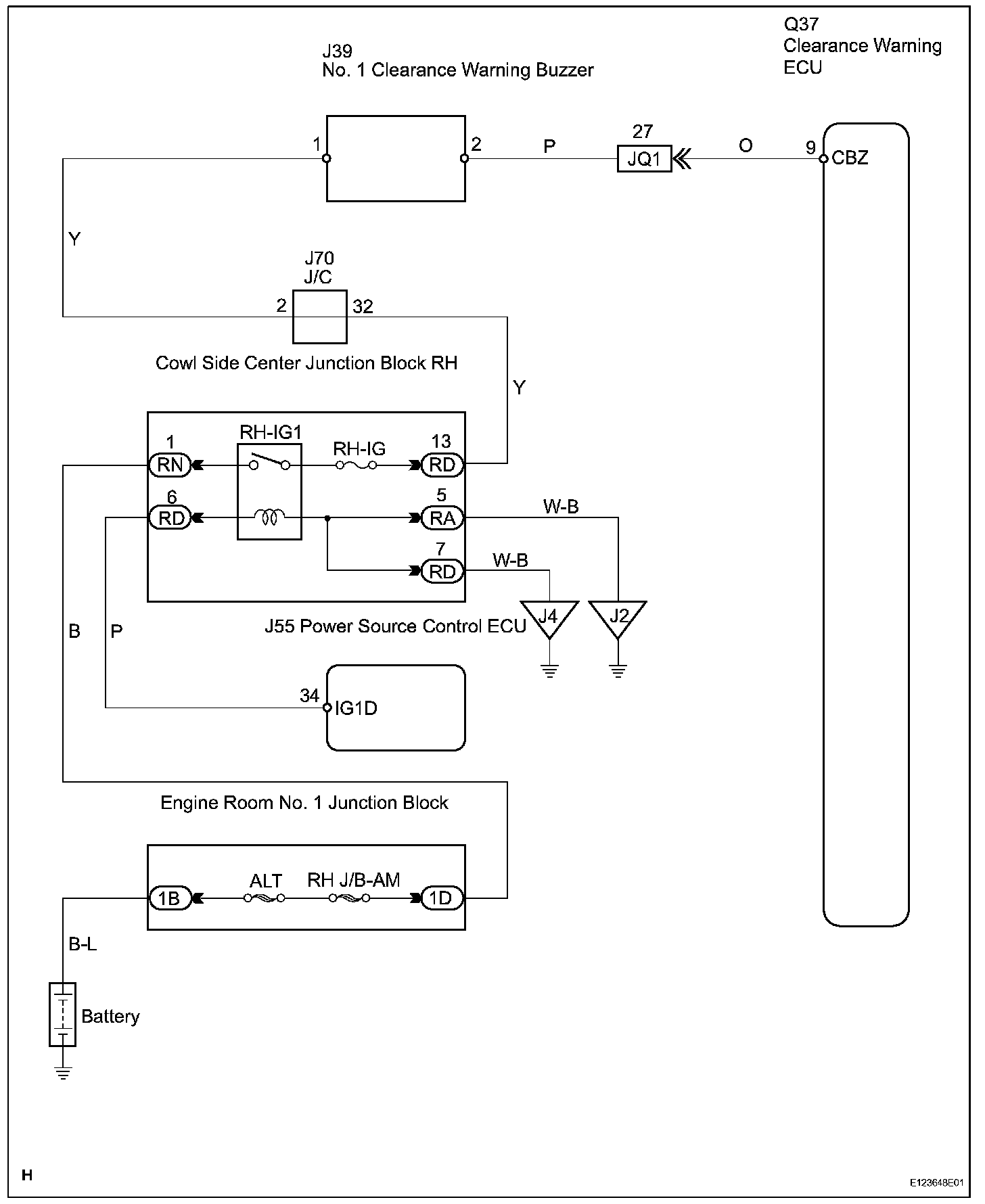

Wiring Diagram:

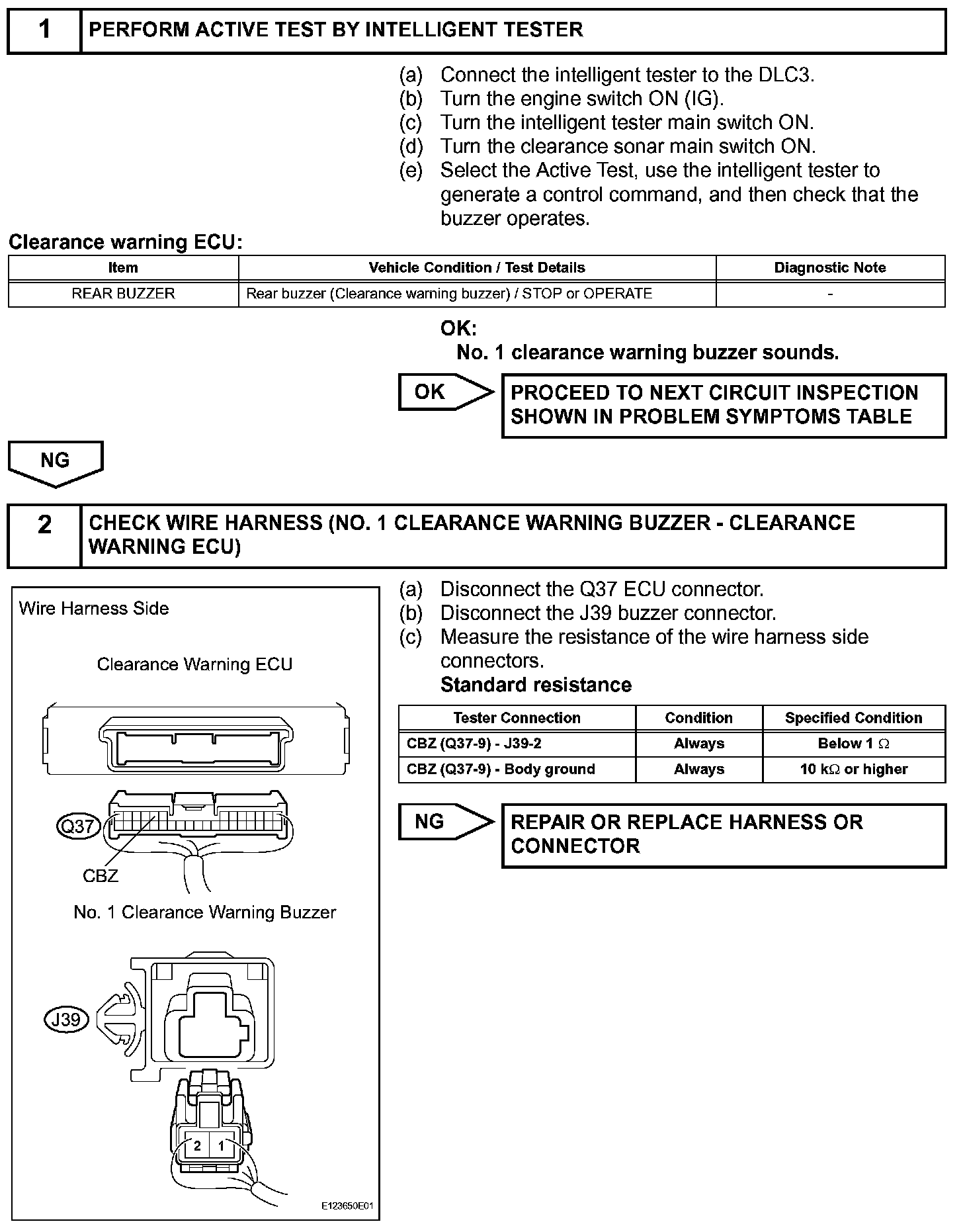

Step 1-2:

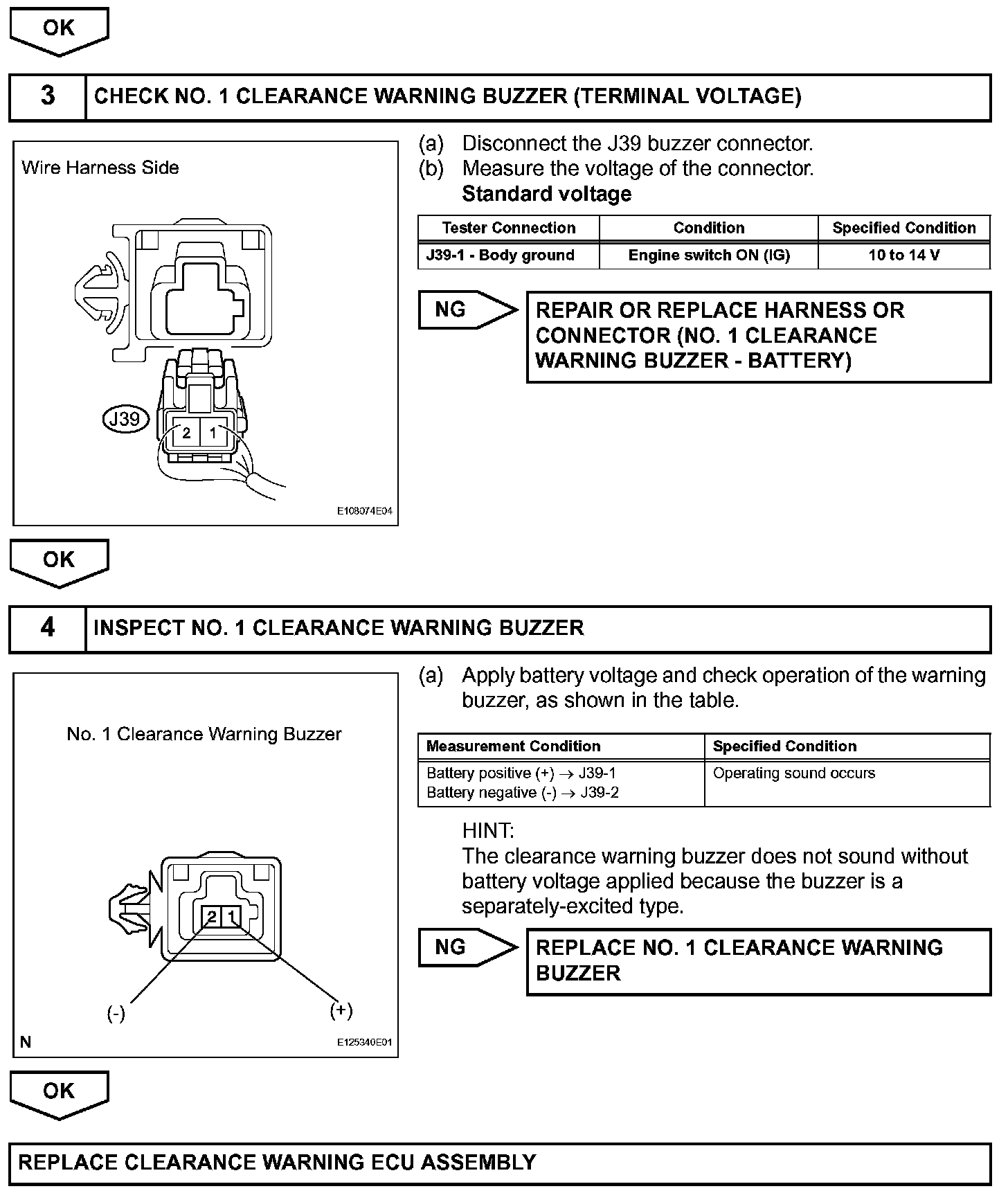

Step 2(continued)-4:
INSPECTION PROCEDURE
