Intuitive Parking Assist System Main Switch Circuit

Clearance Sonar Main Switch Circuit

DESCRIPTION
The clearance sonar main switch is installed on the instrument panel safety pad assembly.
When the clearance sonar main switch in turned ON, an ON signal is sent to the clearance warning ECU through the BEAN line. The clearance sonar system operates according to this signal.

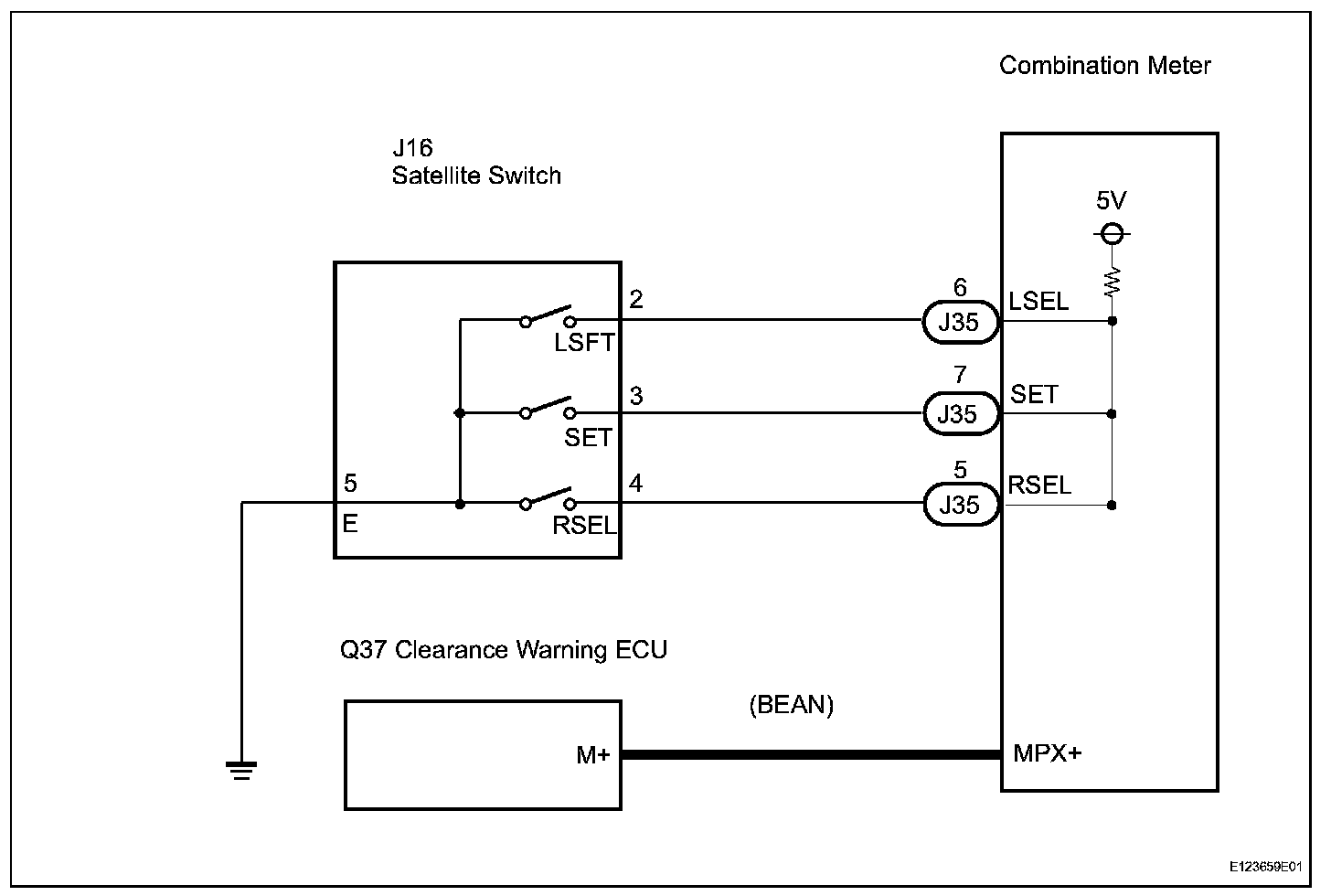

Wiring Diagram:

Step 1-2:

Step 2(continued)-5:

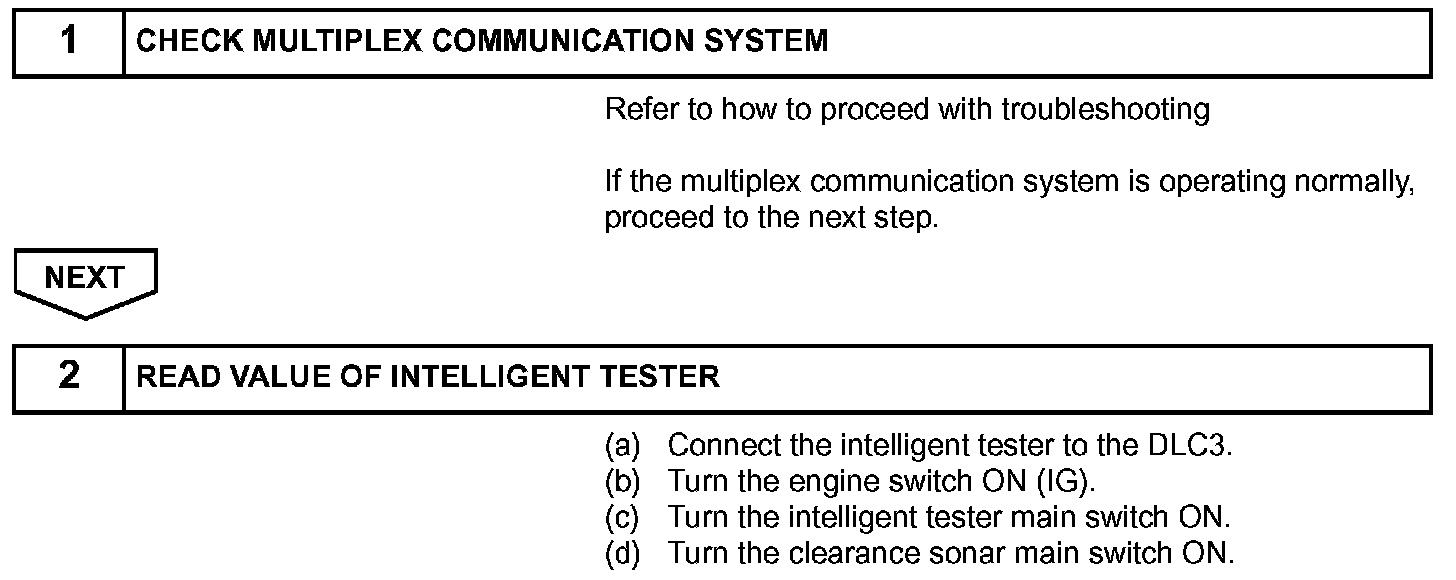

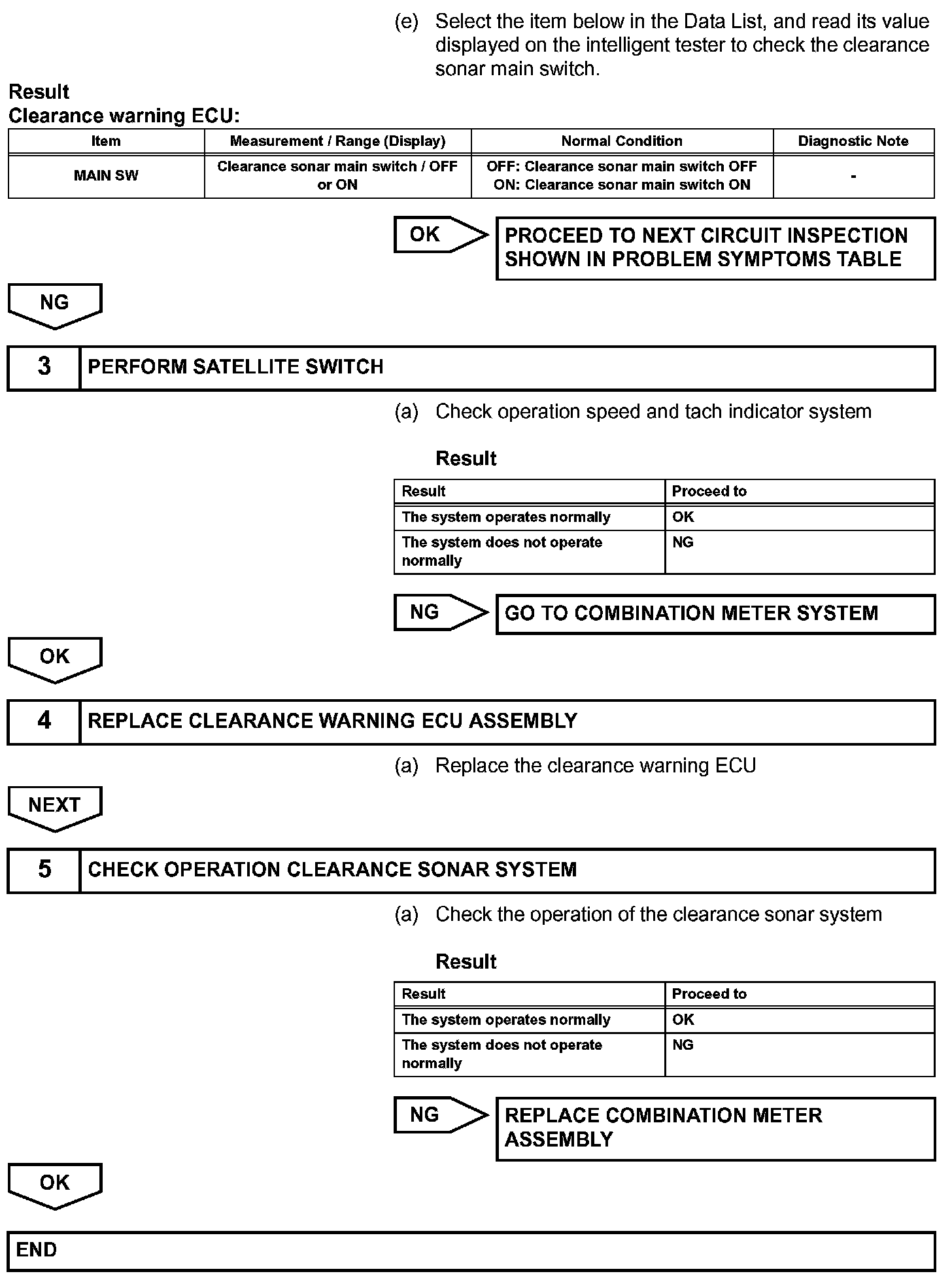

INSPECTION PROCEDURE
