Clearance Warning ECU Power Source Circuit

Clearance Warning ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the clearance warning ECU.

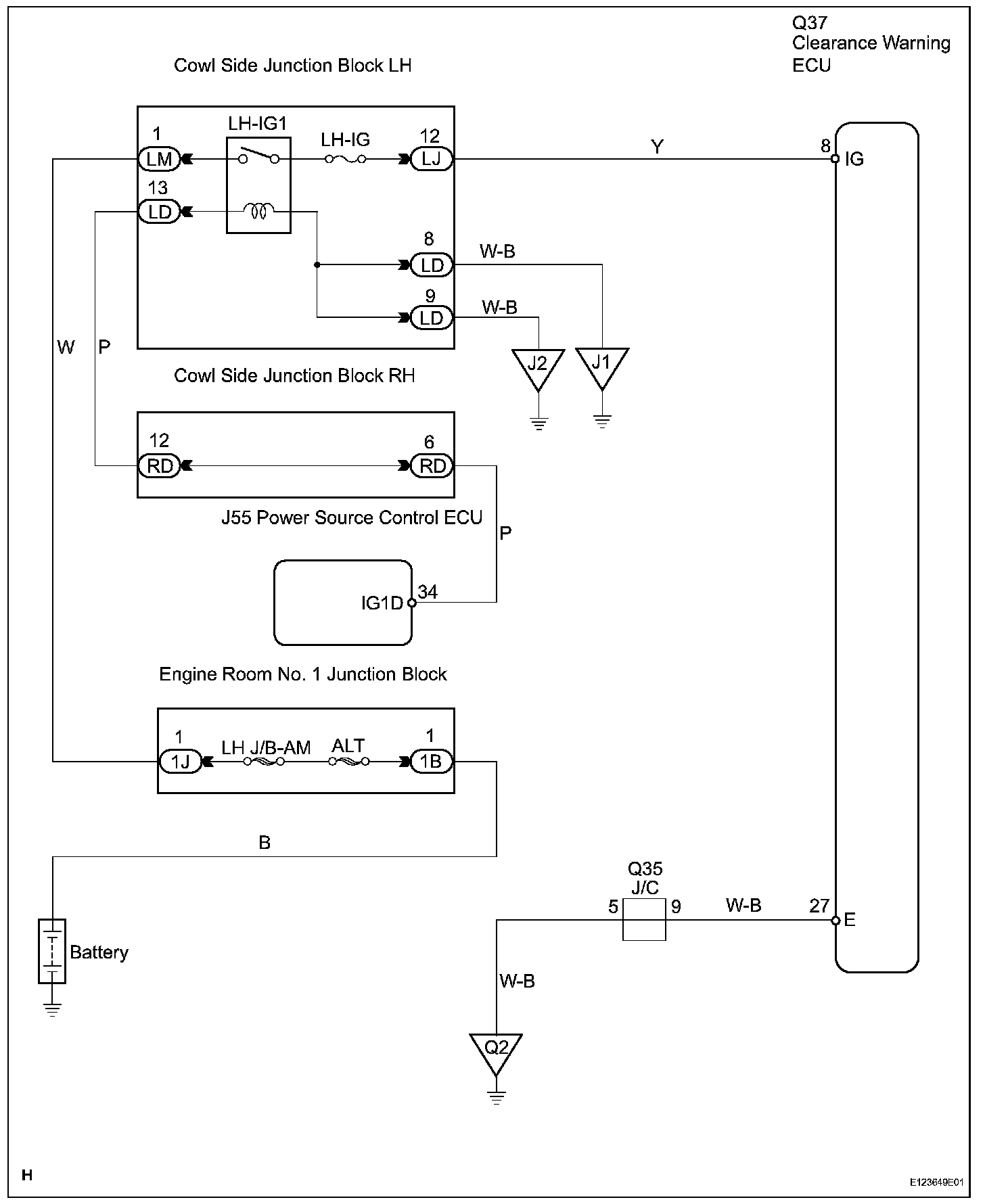

Wiring Diagram:

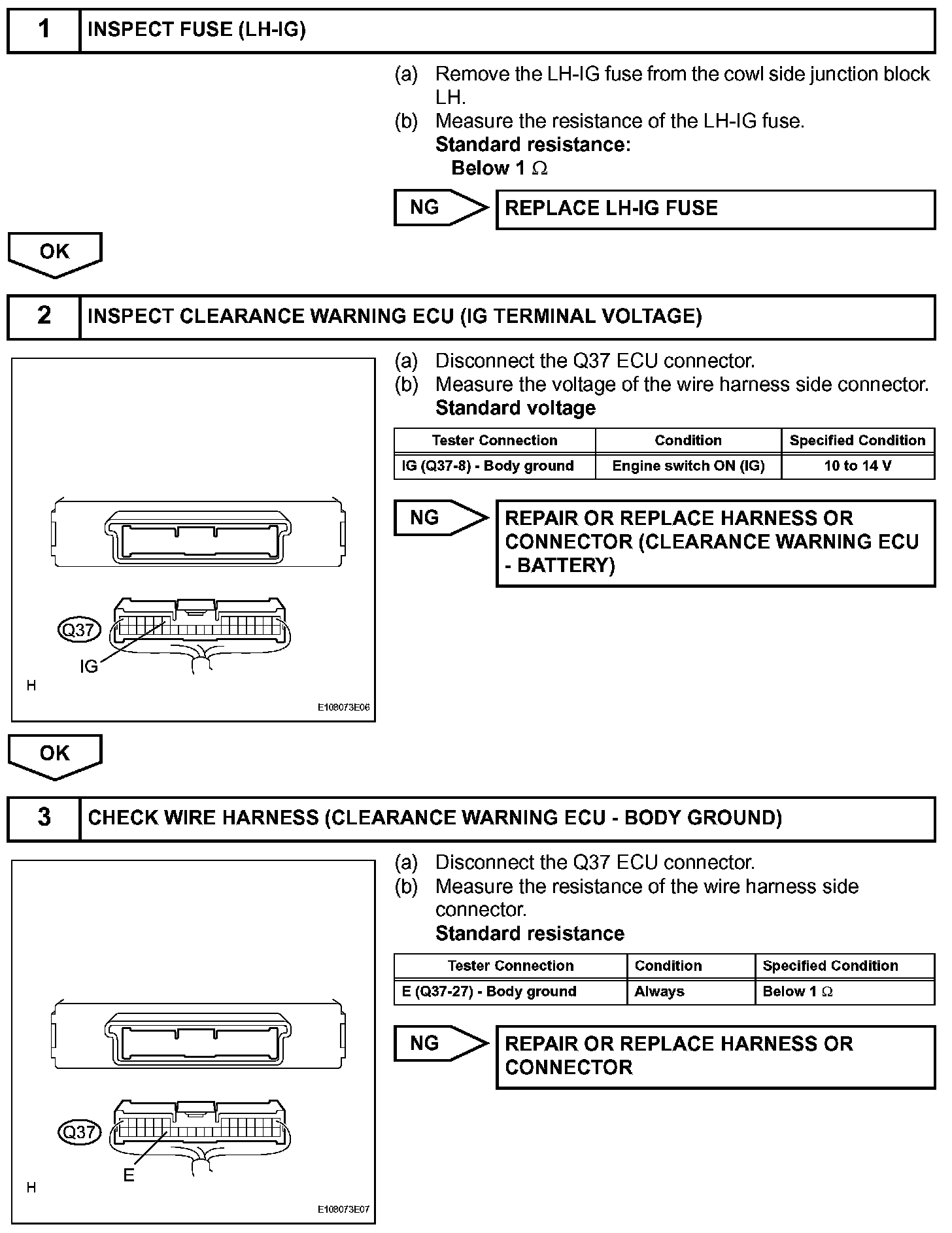

Step 1-3:

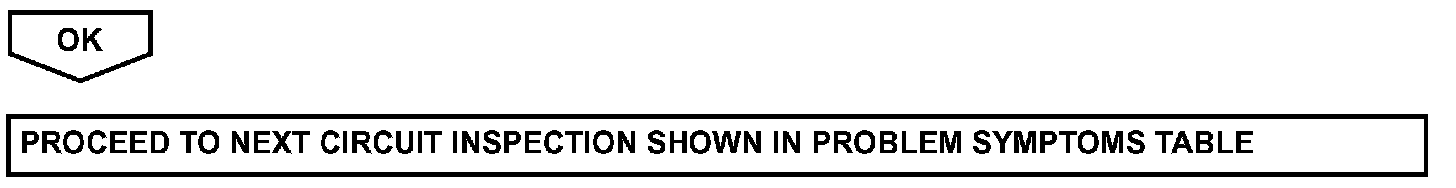

Step 3(continued):




INSPECTION PROCEDURE
