Clearance Warning Buzzer

INSPECTION

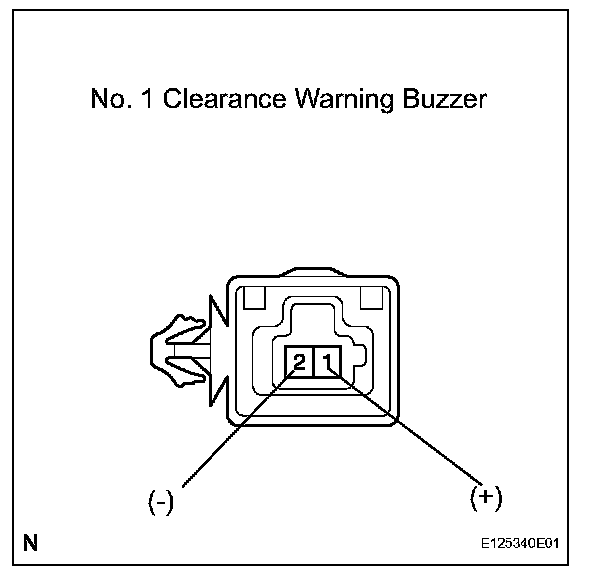

1. INSPECT NO. 1 CLEARANCE WARNING BUZZER

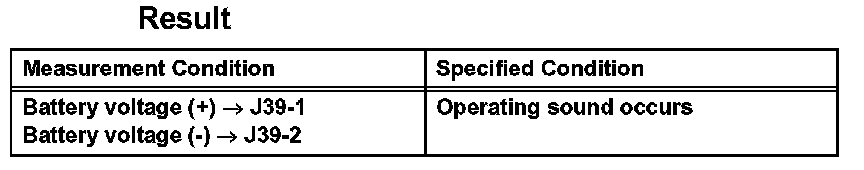

a. Apply battery voltage and check operation of the warning buzzer, as shown in the table.

HINT: The clearance warning buzzer does not sound without battery voltage applied because the buzzer is a separately-excited type.
