Clearance Warning ECU

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH
4. REMOVE ROPE HOOK ASSEMBLY
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
6. REMOVE ROOM LIGHT ASSEMBLY
7. REMOVE ROPE HOOK
8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
9. REMOVE LUGGAGE COMPARTMENT TRIM HOOK
10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER

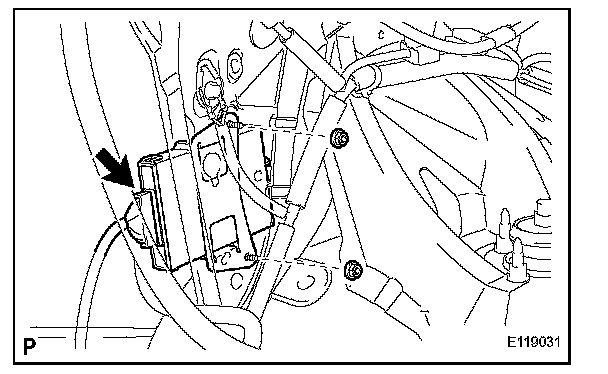

11. REMOVE CLEARANCE WARNING ECU
a. Disconnect the connector.
b. Remove the 2 nuts and clearance warning ECU.

INSTALLATION

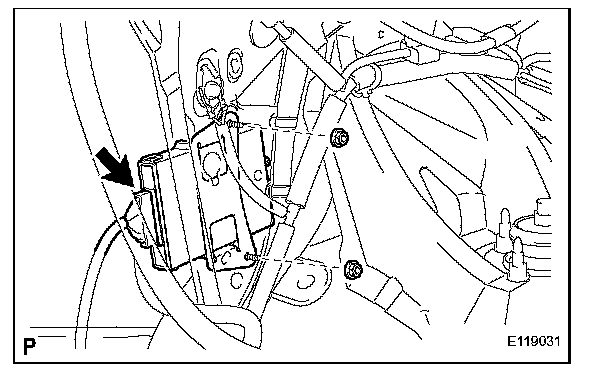

1. INSTALL CLEARANCE WARNING ECU
a. Install the clearance warning ECU with the 2 nuts.
b. Connect the connector.

2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
3. INSTALL LUGGAGE COMPARTMENT TRIM HOOK
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
5. INSTALL ROPE HOOK
6. INSTALL ROOM LIGHT ASSEMBLY
7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL DECK SIDE TRIM BOX RH
10. INSTALL DECK SIDE TRIM BOX LH
11. INSTALL LUGGAGE COMPARTMENT TRIM COVER
