Clearance Warning Buzzer
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY
10. REMOVE CONSOLE BOX
11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (W/o Navigation System)
14. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (W/ Navigation System)
15. REMOVE CLEARANCE WARNING BUZZER
a. Disconnect the connector.

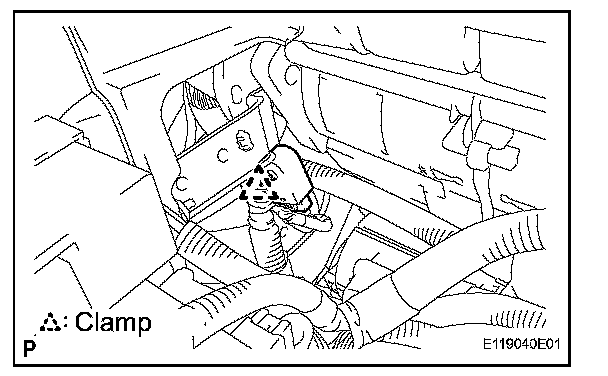

b. Disengage the clamp and remove the clearance warning buzzer.
INSTALLATION
1. INSTALL CLEARANCE WARNING BUZZER

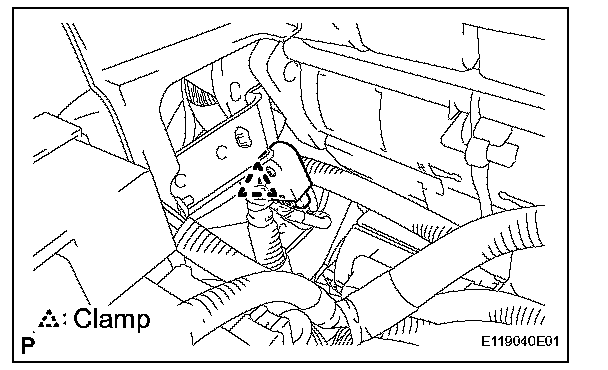

a. Engage the clamp and install the clearance warning buzzer.
b. Connect the connector.
2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (W/o Navigation System)
3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (W/ Navigation System)
4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
5. INSTALL NO.3 INSTRUMENT PANEL REGISTER ASSEMBLY
6. INSTALL CONSOLE BOX
7. INSTALL CONSOLE BOX REGISTER ASSEMBLY
8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
9. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
10. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
11. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
12. INSTALL UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
13. INSTALL UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
16. ADJUST CLOCK
