Rear Vision Camera: Service and Repair

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
4. REMOVE LUGGAGE COMPARTMENT DOOR COVER

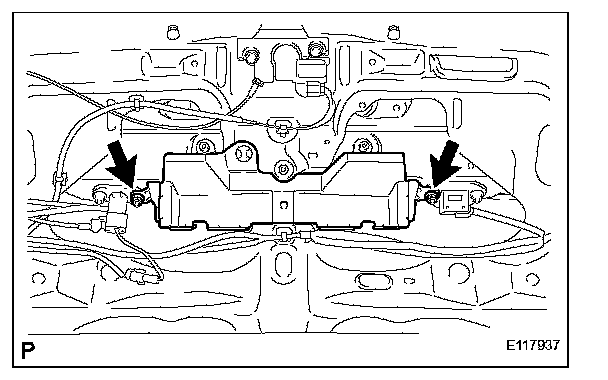

5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT




6. REMOVE TELEVISION CAMERA ASSEMBLY

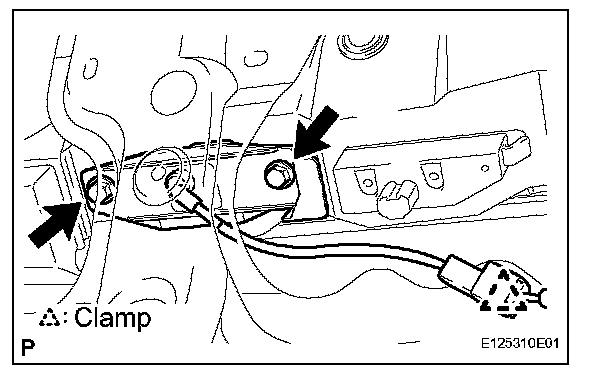

a. Disengage the camera connector clamp.
b. Disconnect the television camera connector.
c. Remove the 2 screws.

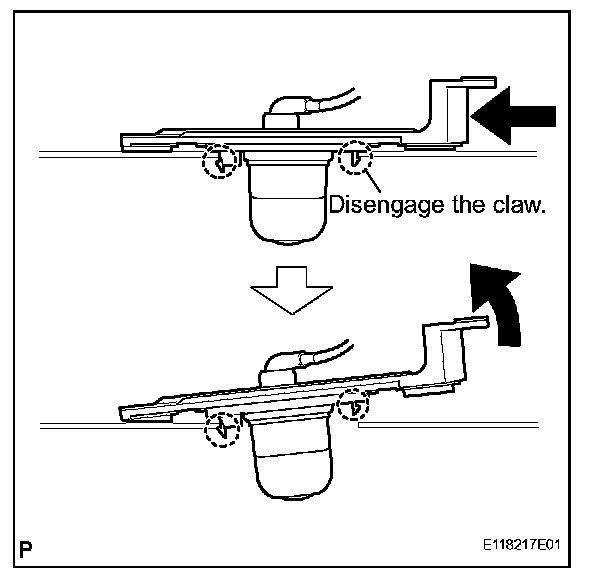

d. Disengage the 2 claws to remove the television camera assembly as shown in the illustration.

INSTALLATION




1. INSTALL TELEVISION CAMERA ASSEMBLY

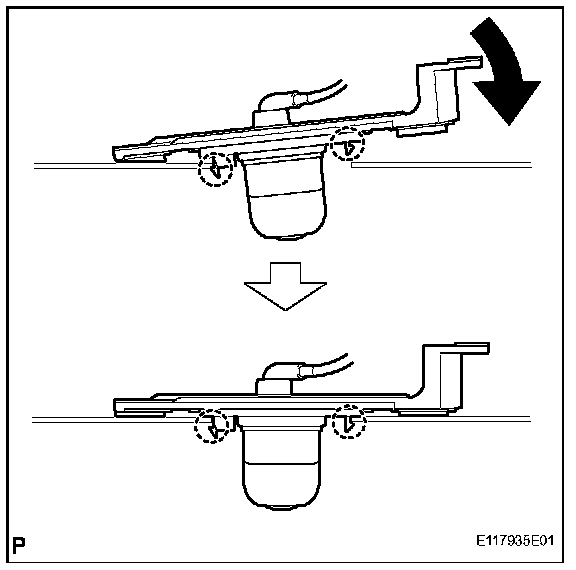

a. Engage the 2 claws to temporarily install the television camera assembly from to the luggage compartment as shown in the illustration.




b. Install the television camera assembly with the 2 screws.

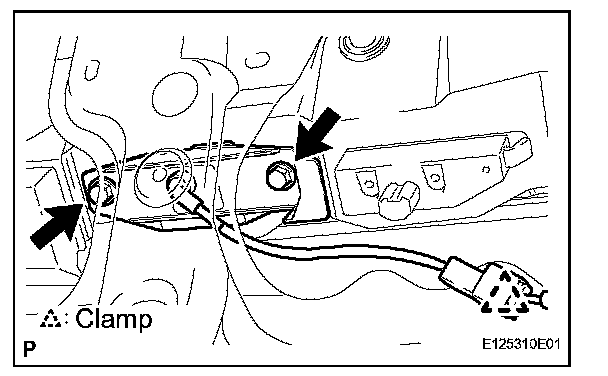

c. Connect the television camera connector.
d. Engage the television camera connector clamp.




2. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT

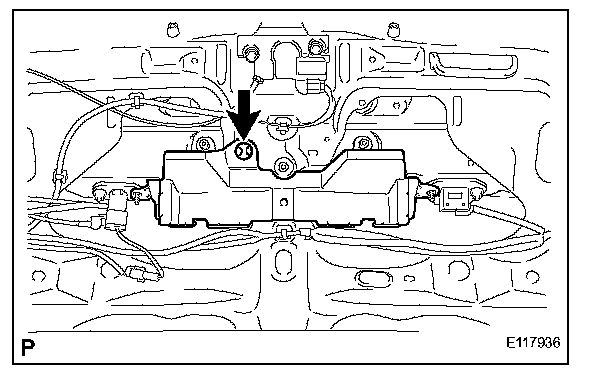

a. Temporarily install the luggage compartment door reinforcement with the clip.




b. Install the luggage compartment door reinforcement with the 2 nuts.

3. INSTALL LUGGAGE COMPARTMENT DOOR COVER
4. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
5. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
6. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
