Registration
REGISTRATION1. DESCRIPTION OF CODE REGISTRATION
HINT:
- ID codes are the same as recognition codes for the wireless transmitter and the engine immobilizer function. Registering an ID code enables the smart access system with push-button start, the wireless door lock control function and the engine immobilizer function to be operated.
- Code registration is needed when the certification ECU, ID code box, steering lock ECU or key is replaced with a new one.
a. PROCEDURE "1"

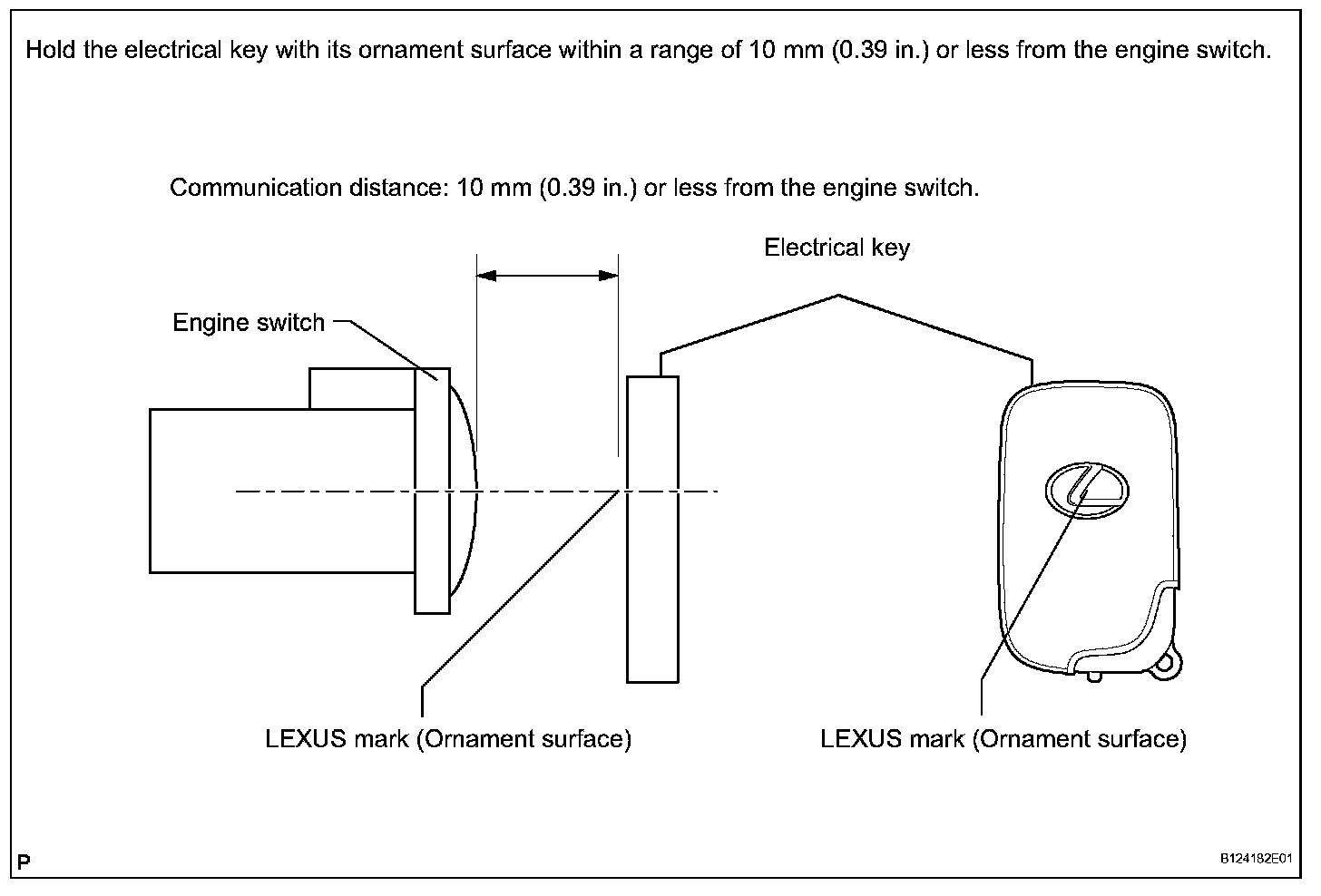

The vehicle with the smart access system with push-button start system does not have a key slot. Therefore, hold the key close to the engine switch to register the key, as shown in the illustration.
2. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES

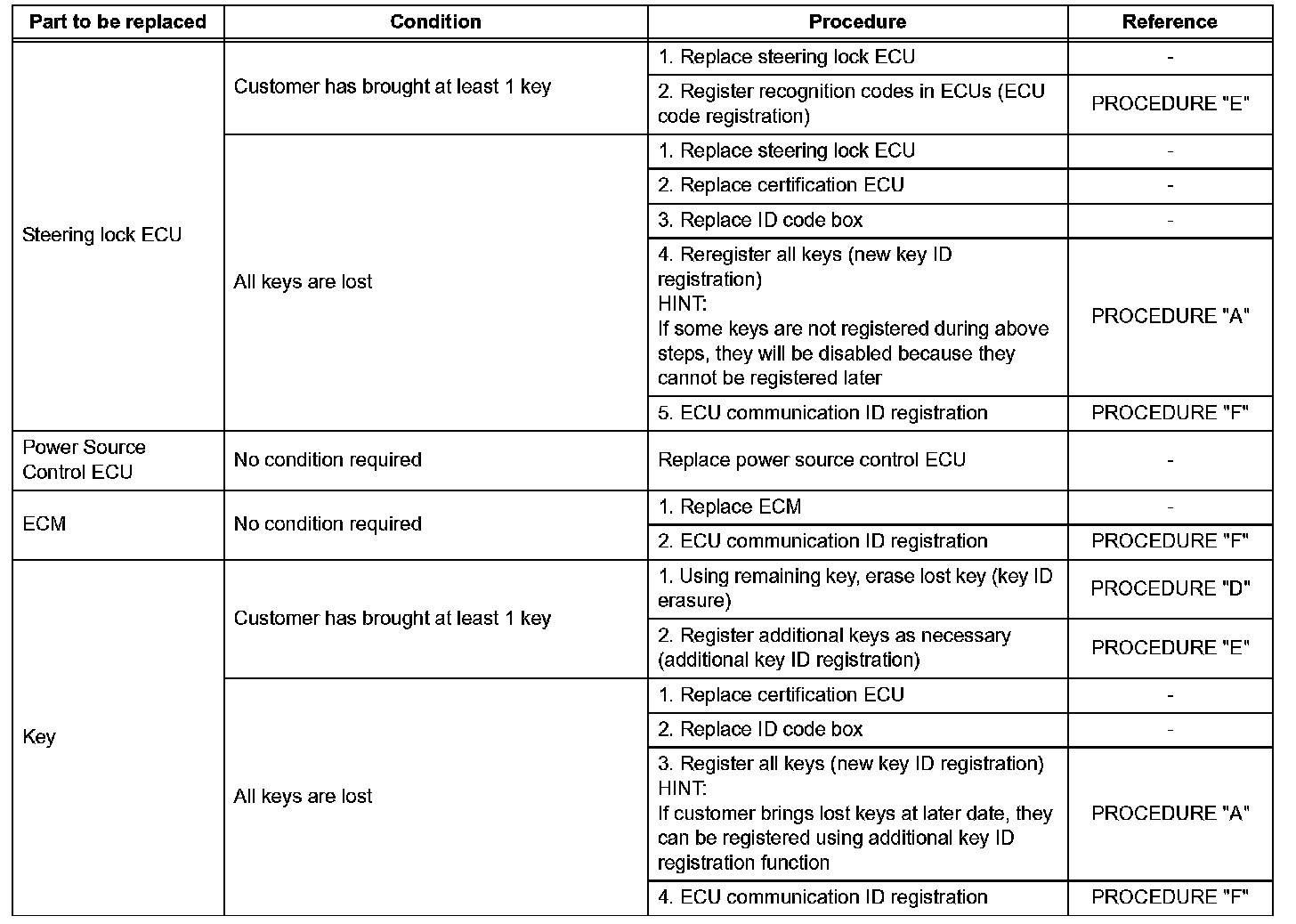

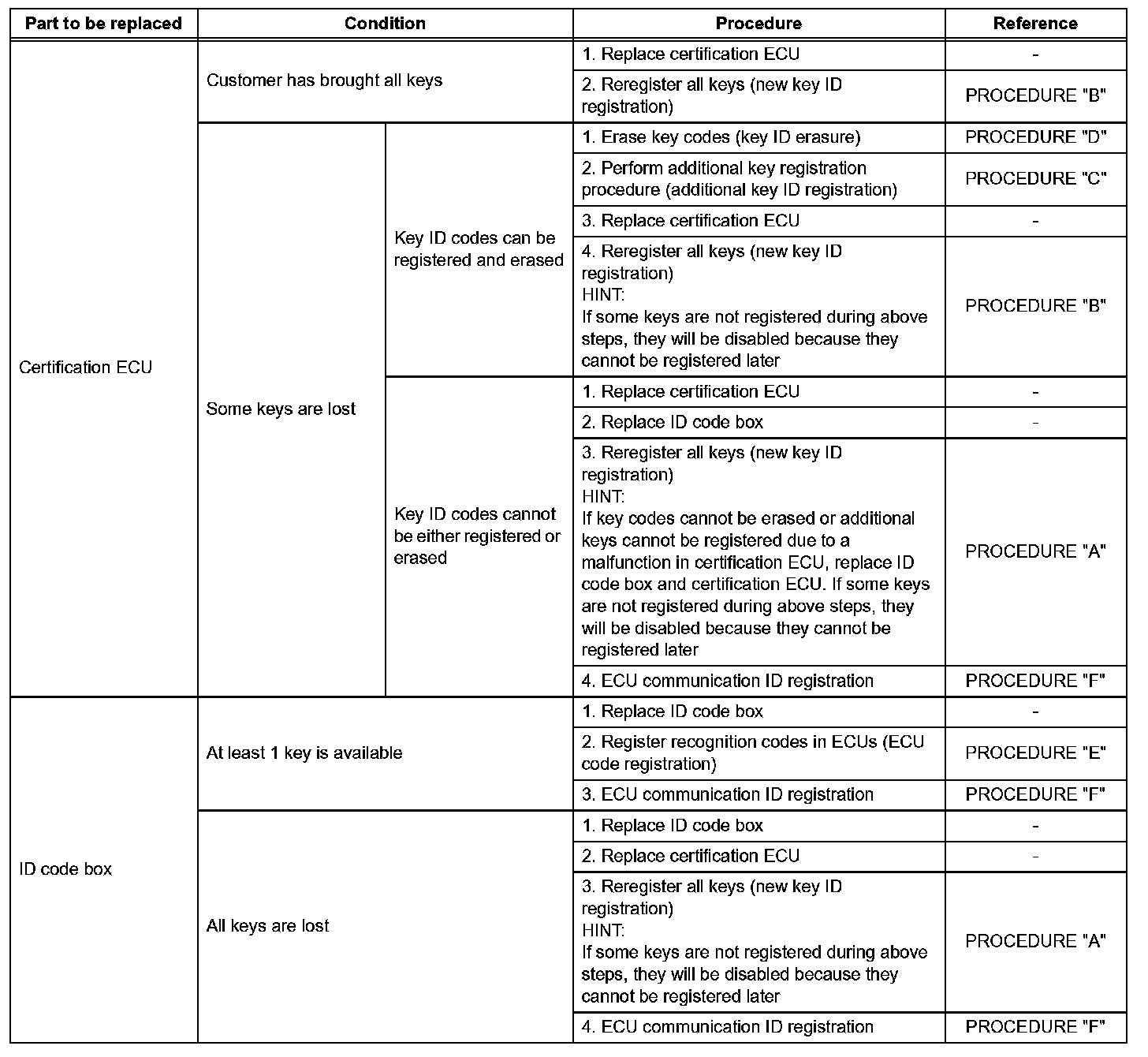

a. The table shows ECU replacement and key registration procedures in case the malfunctioning ECU has been specified after troubleshooting the smart access system with push-button start.
Part 1:
Part 2:
HINT:
- The following procedures indicated in the table given require the use of the intelligent tester:
New key ID registration
Additional key ID registration
Key ID erasure
ECU code registration
- If all of the registered keys are not available, replacement of the ID code box is also required.
- A maximum of 7 keys can be registered.

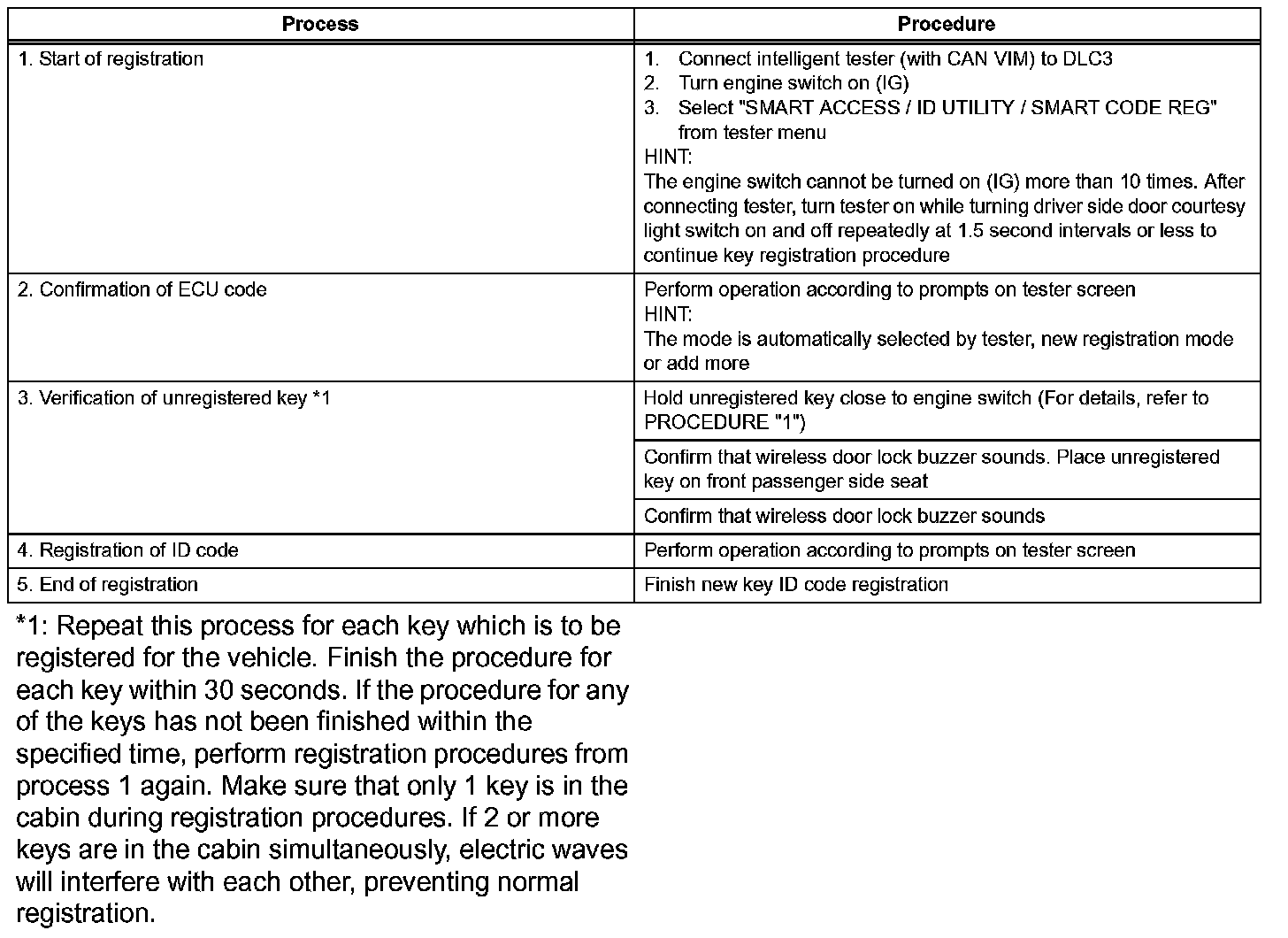

3. KEY REGISTRATION PROCEDURES
a. PROCEDURE "A"

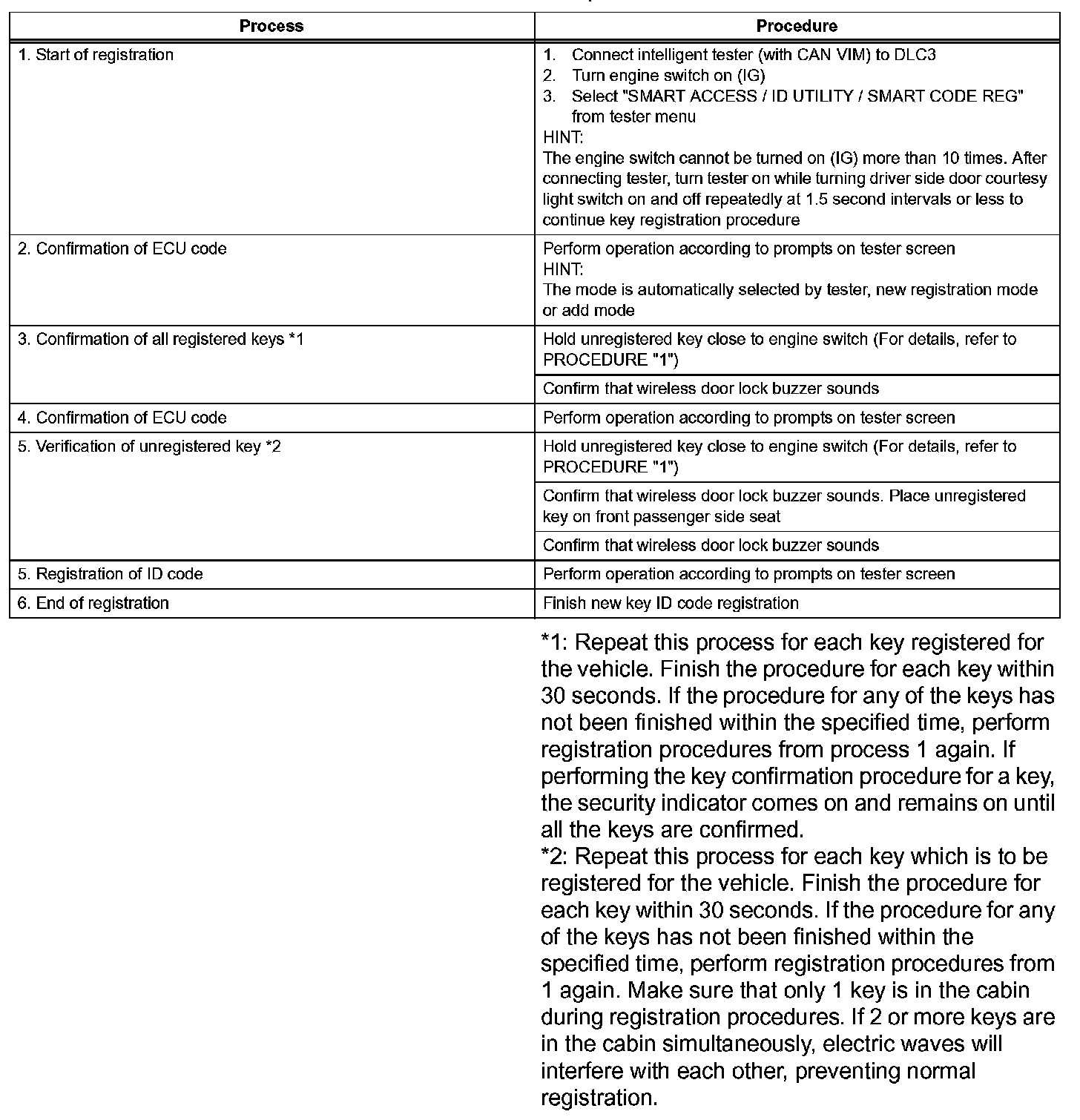

New key ID registration (when replacing certification ECU and ID code box, or certification ECU, ID code box and steering lock ECU)
b. PROCEDURE "B"
New key ID registration (when replacing certification ECU)
c. PROCEDURE "C"

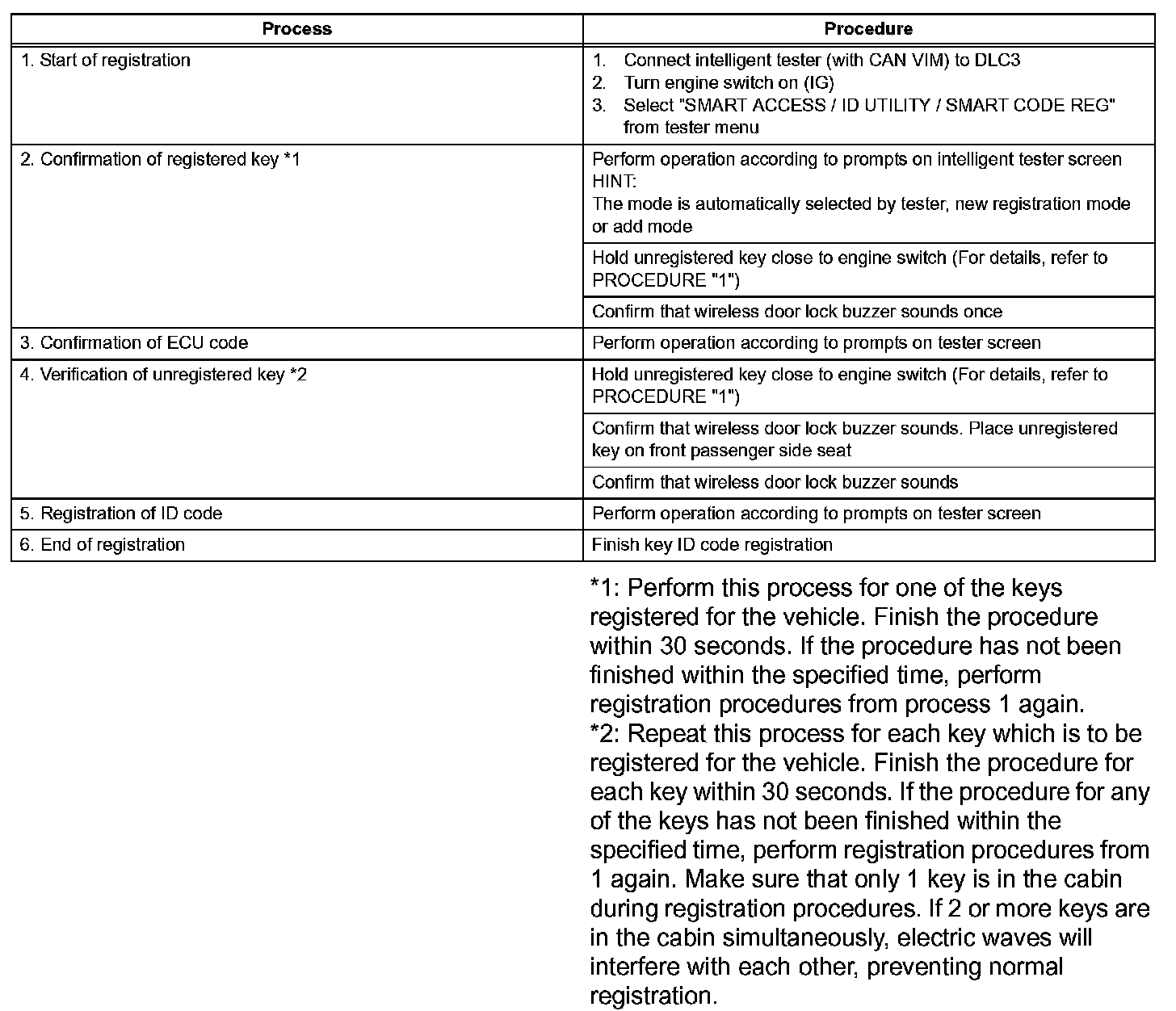

Additional key ID registration
d. PROCEDURE "D"

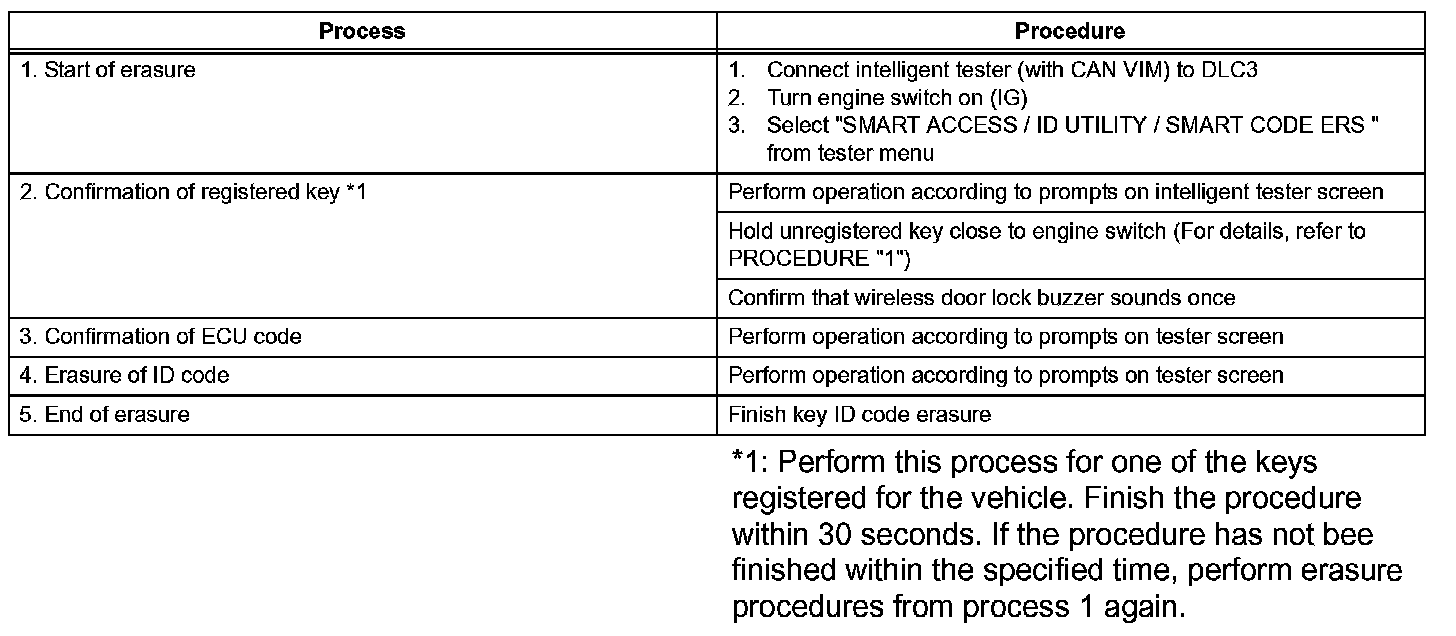

Key ID erasure
HINT: Erase all registered key codes except one.
e. PROCEDURE "E"

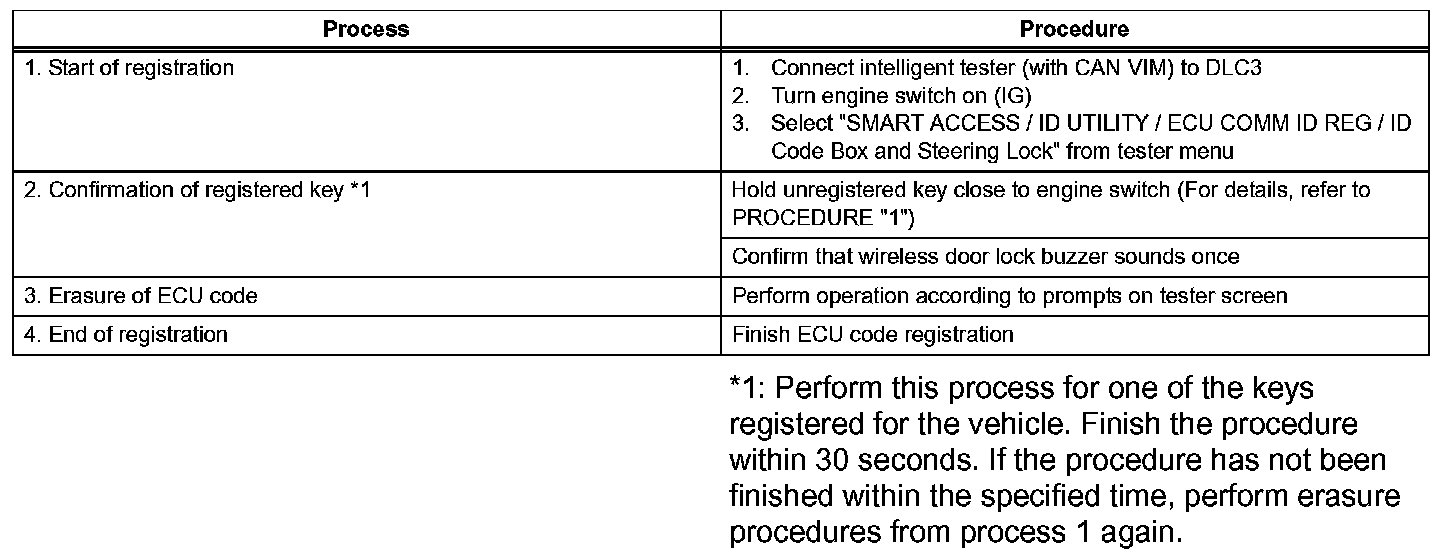

ECU code registration
f. PROCEDURE "F"
ECU communication ID registration
NOTE:
- The ECU COMMUNICATION ID should be registered when the ID code box and/or the ECM is replaced in order to match these ECM COMMUNICATION ID.
- The engine cannot be started unless the ECM COMMUNICATION ID matches.
Register the ECU communication ID.

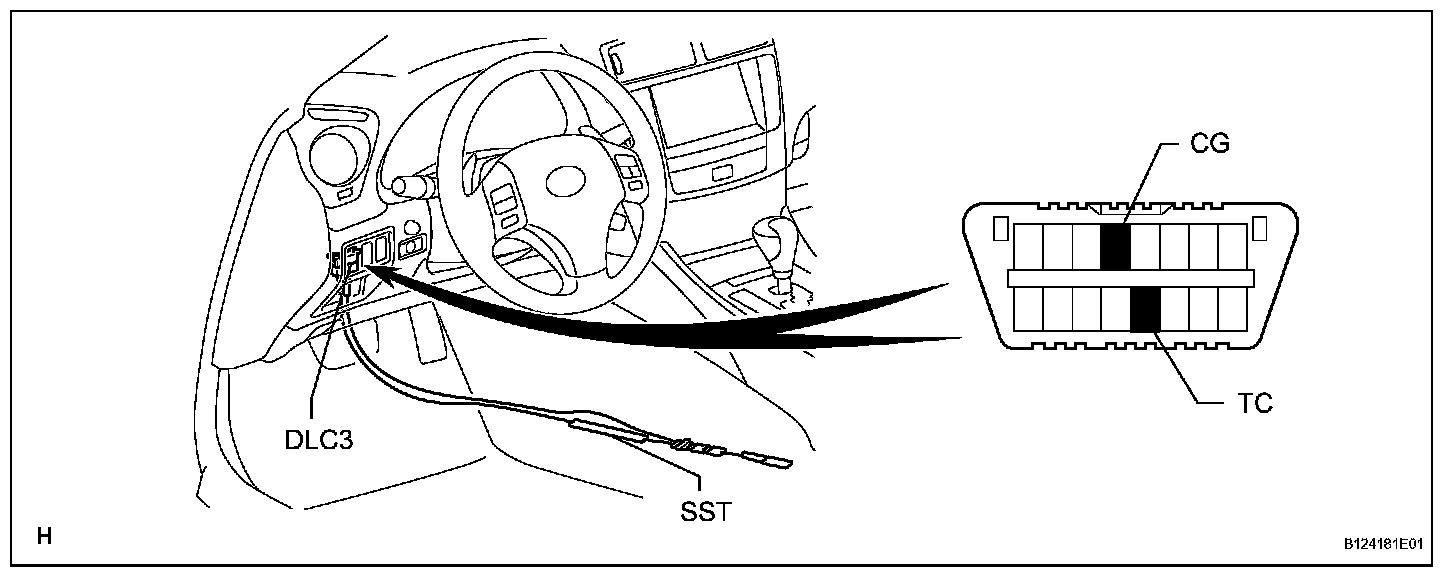

1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
2. Turn the engine switch on (IG) and leave it for 30 minutes.
HINT: Do not start the engine.
3. Turn the engine switch off and disconnect terminals TC and CG.
4. Check that the engine starts.
