Pinout Values and Diagnostic Parameters

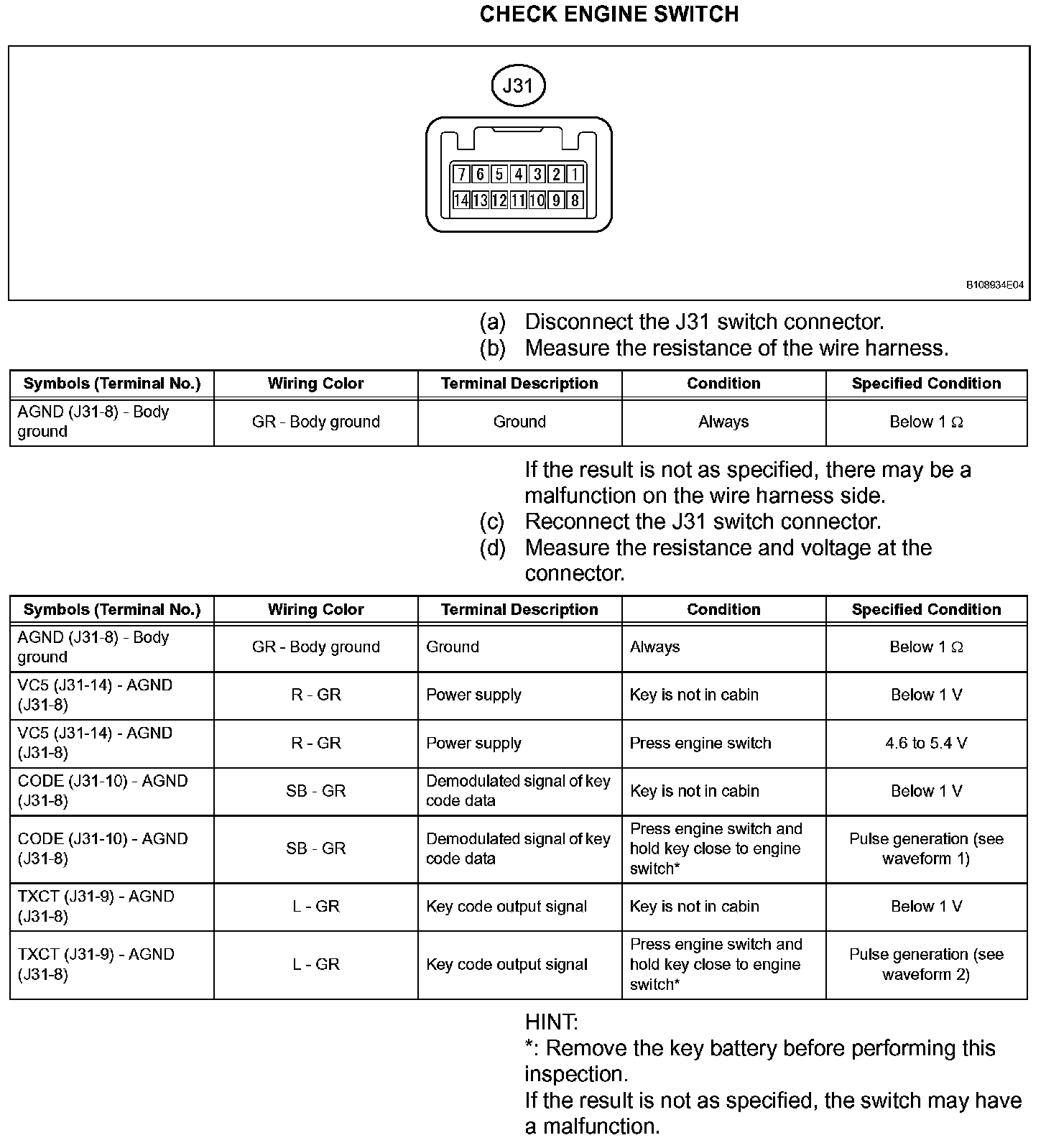

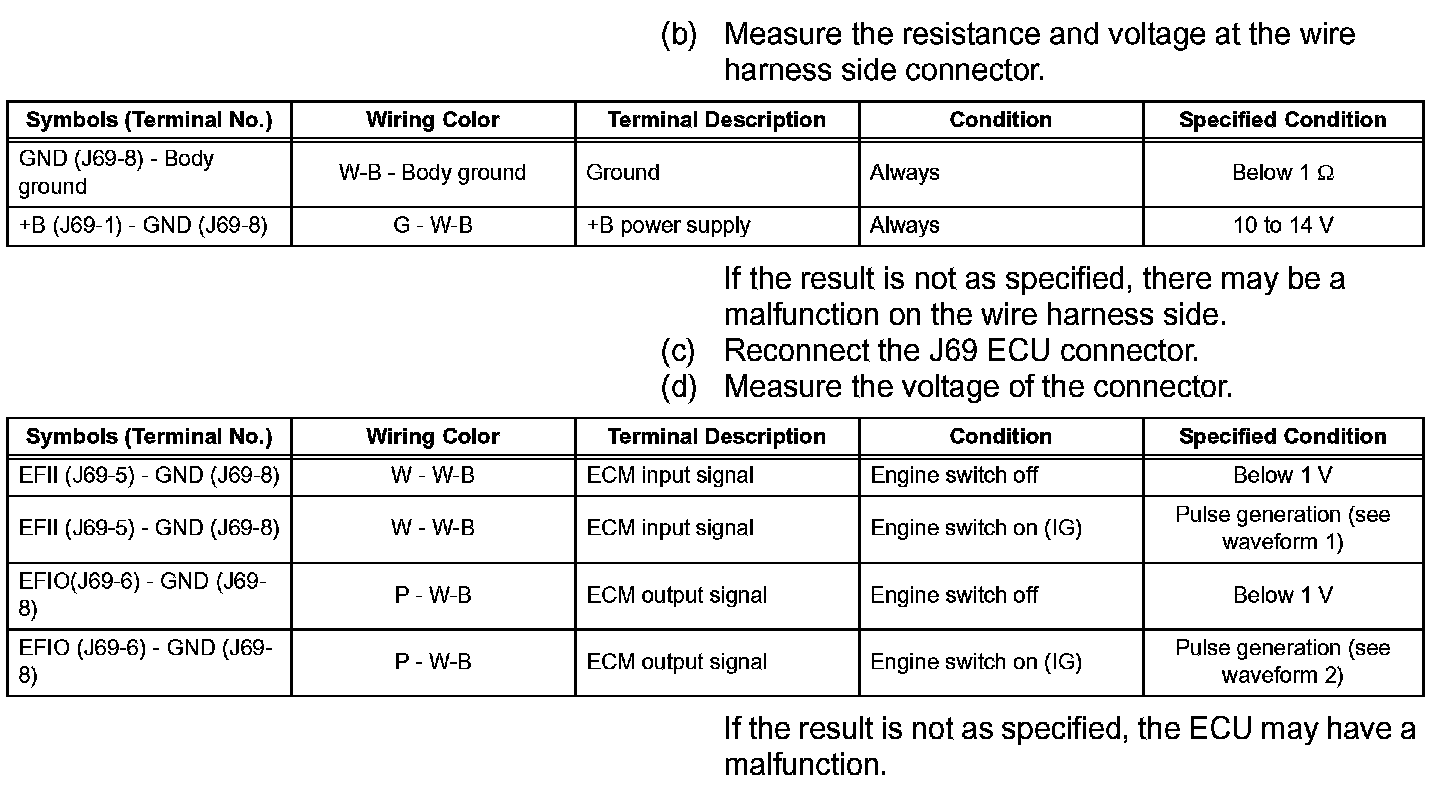

Terminals Of Control Module/Pinouts - Check Engine Switch:

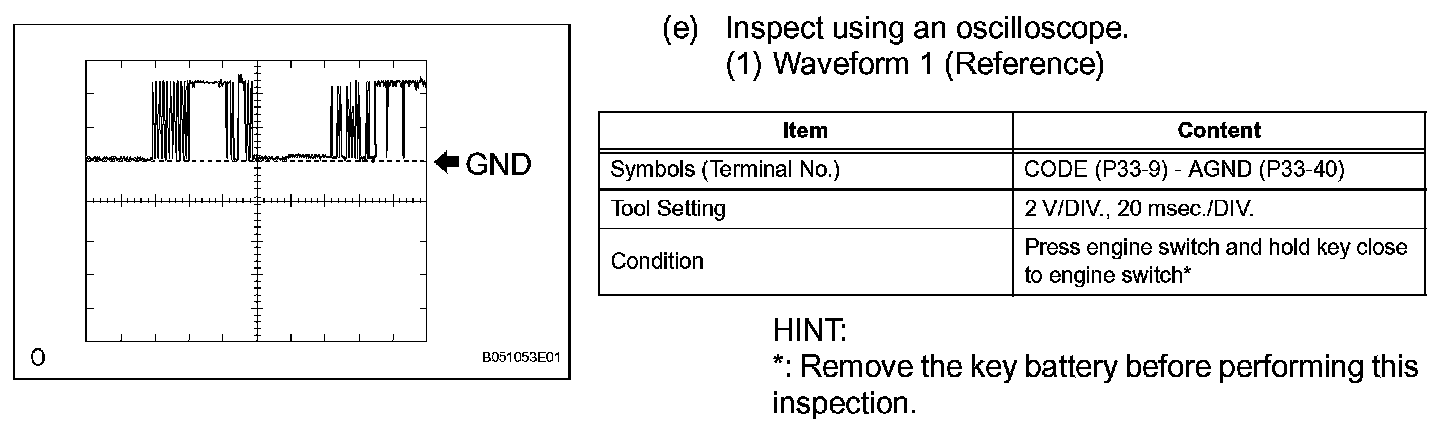

Oscilloscope Waveform:

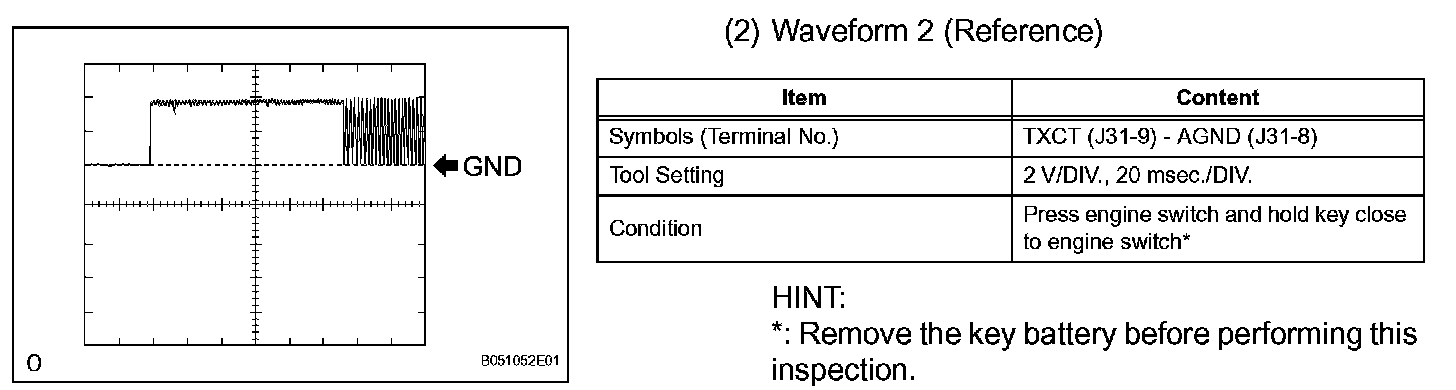

Oscilloscope Waveform:

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):

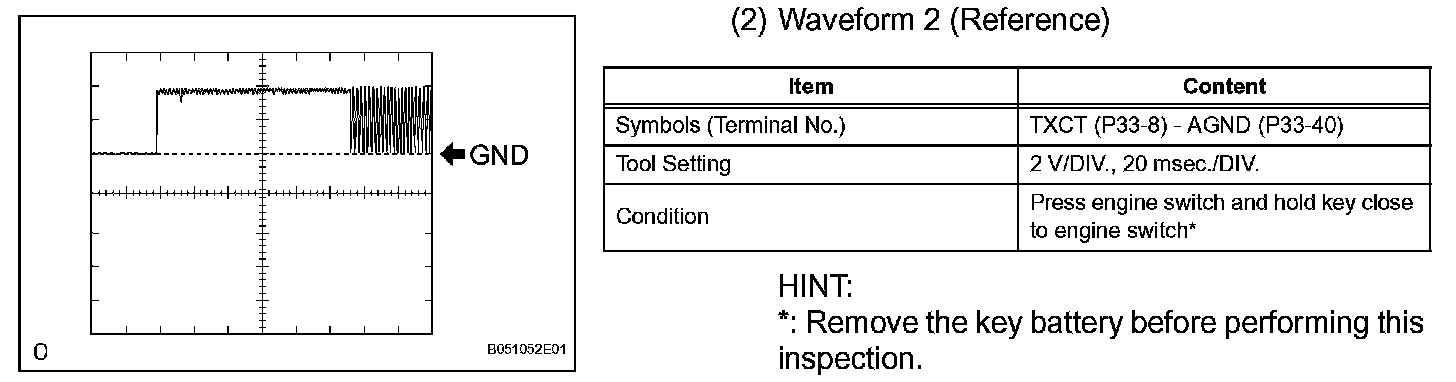

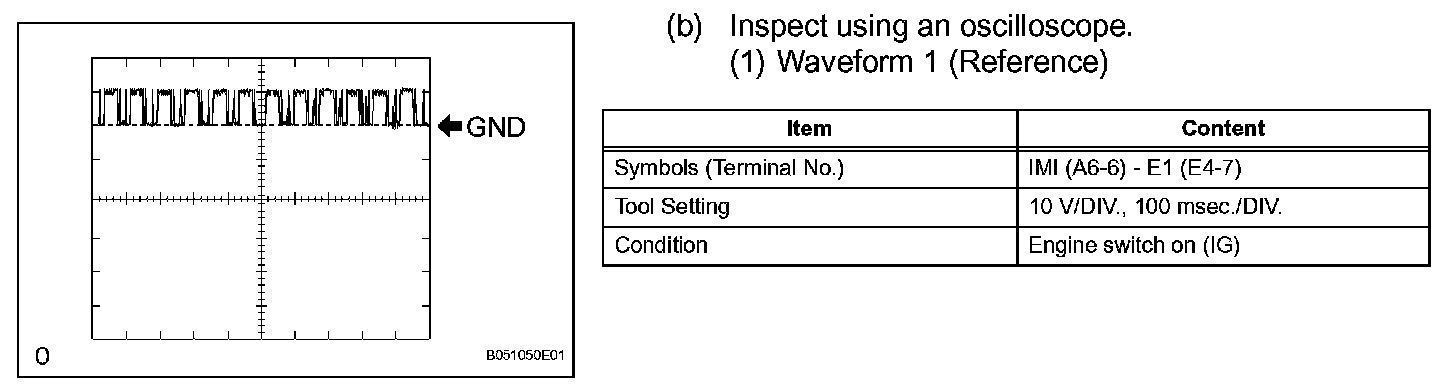

Oscilloscope Waveform:

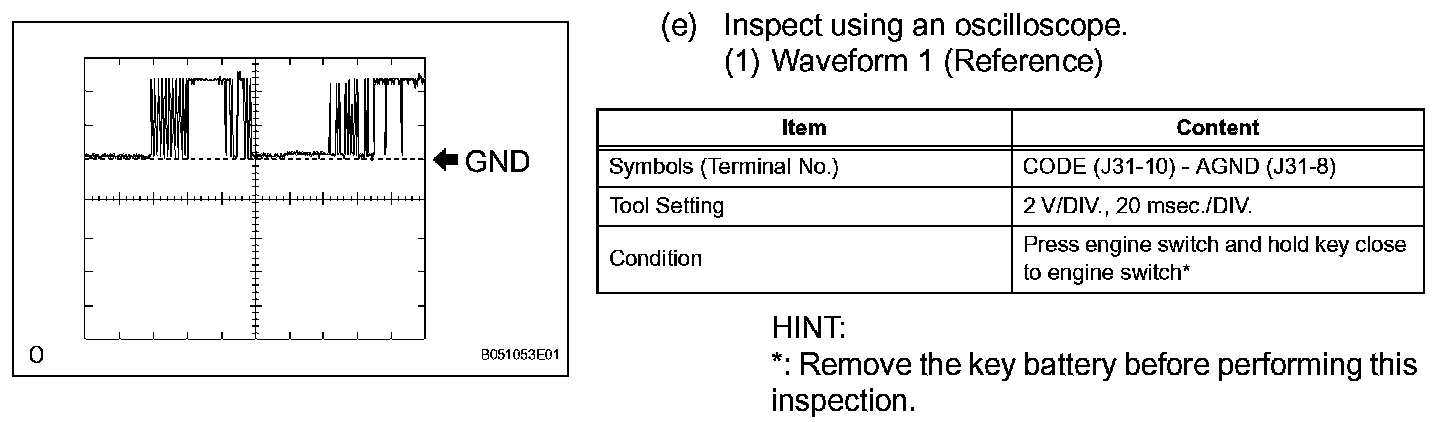

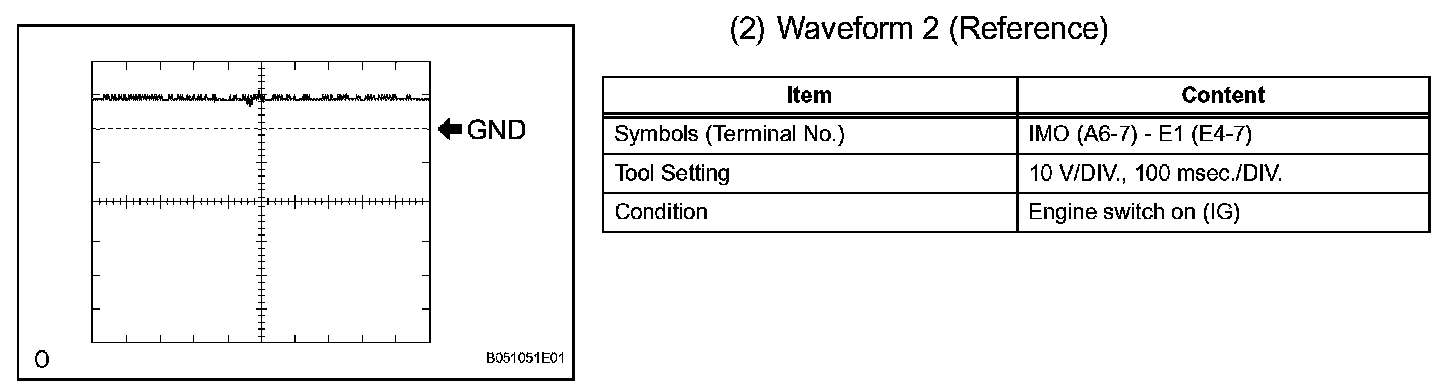

Oscilloscope Waveform:

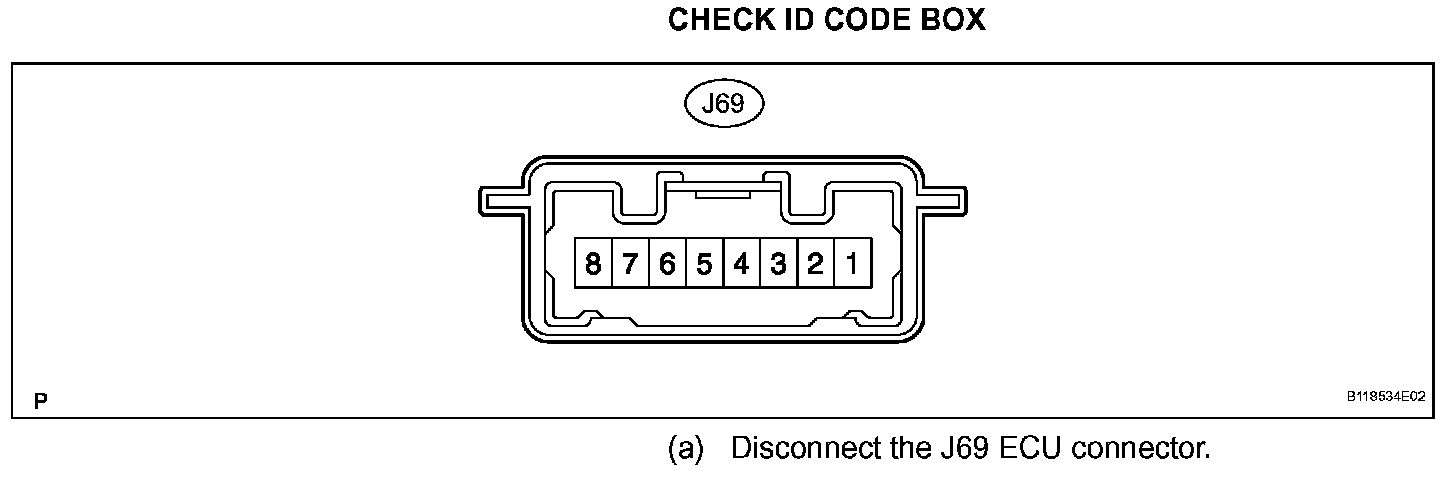

Terminals Of Control Module/Pinouts - Check ID Code Box (Part 1):

Terminals Of Control Module/Pinouts - Check ID Code Box (Part 2):

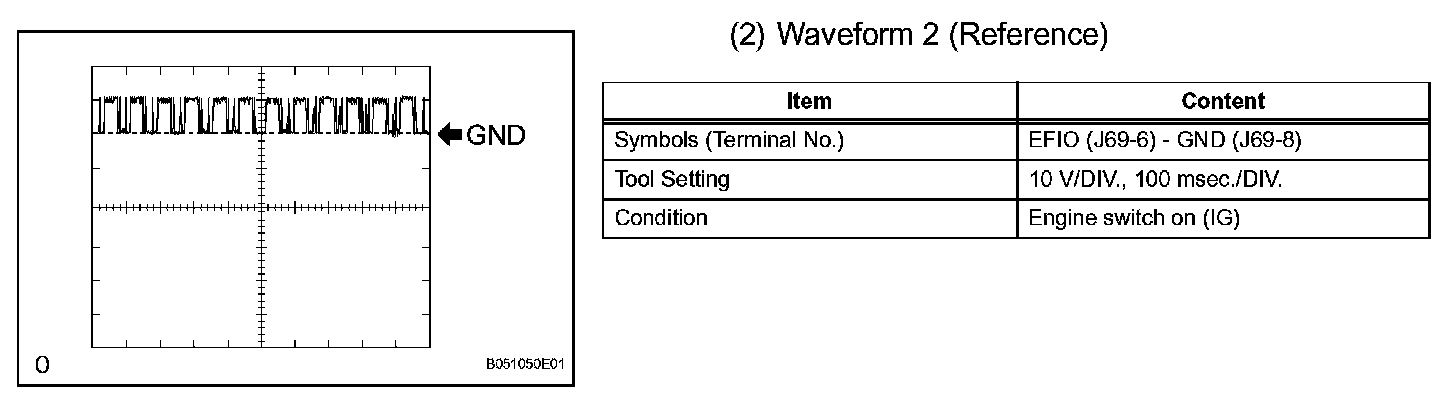

Oscilloscope Waveform:

Oscilloscope Waveform:

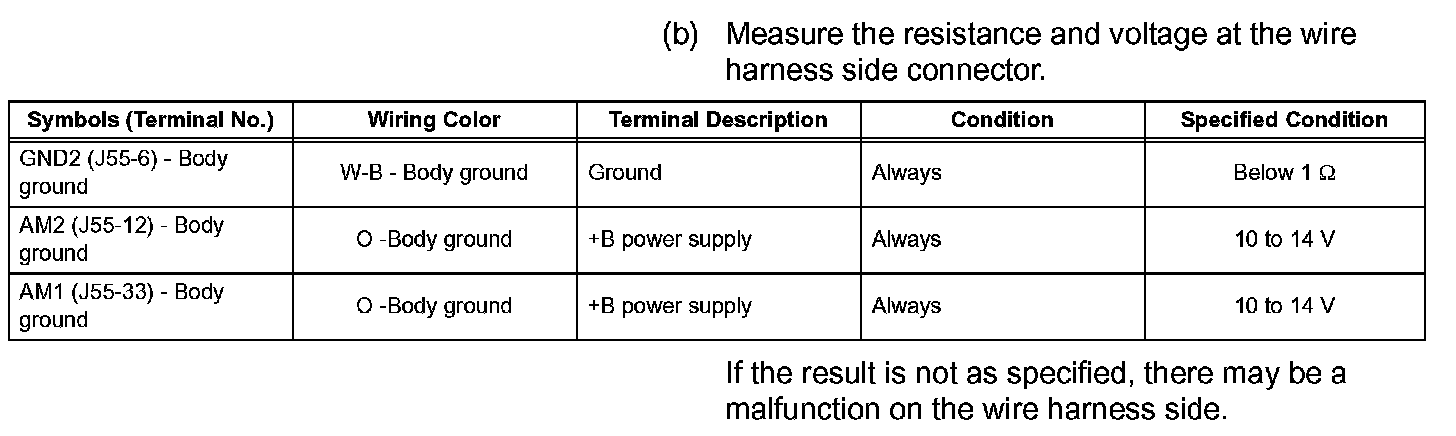

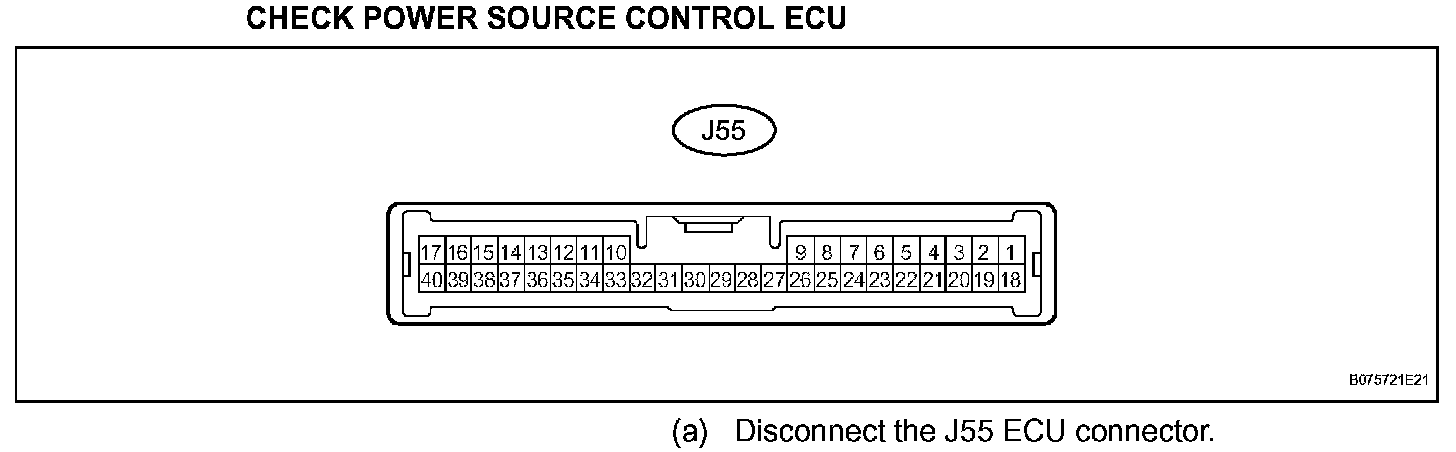

Terminals Of Control Module/Pinouts - Check Power Source Control ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Power Source Control ECU (Part 2):

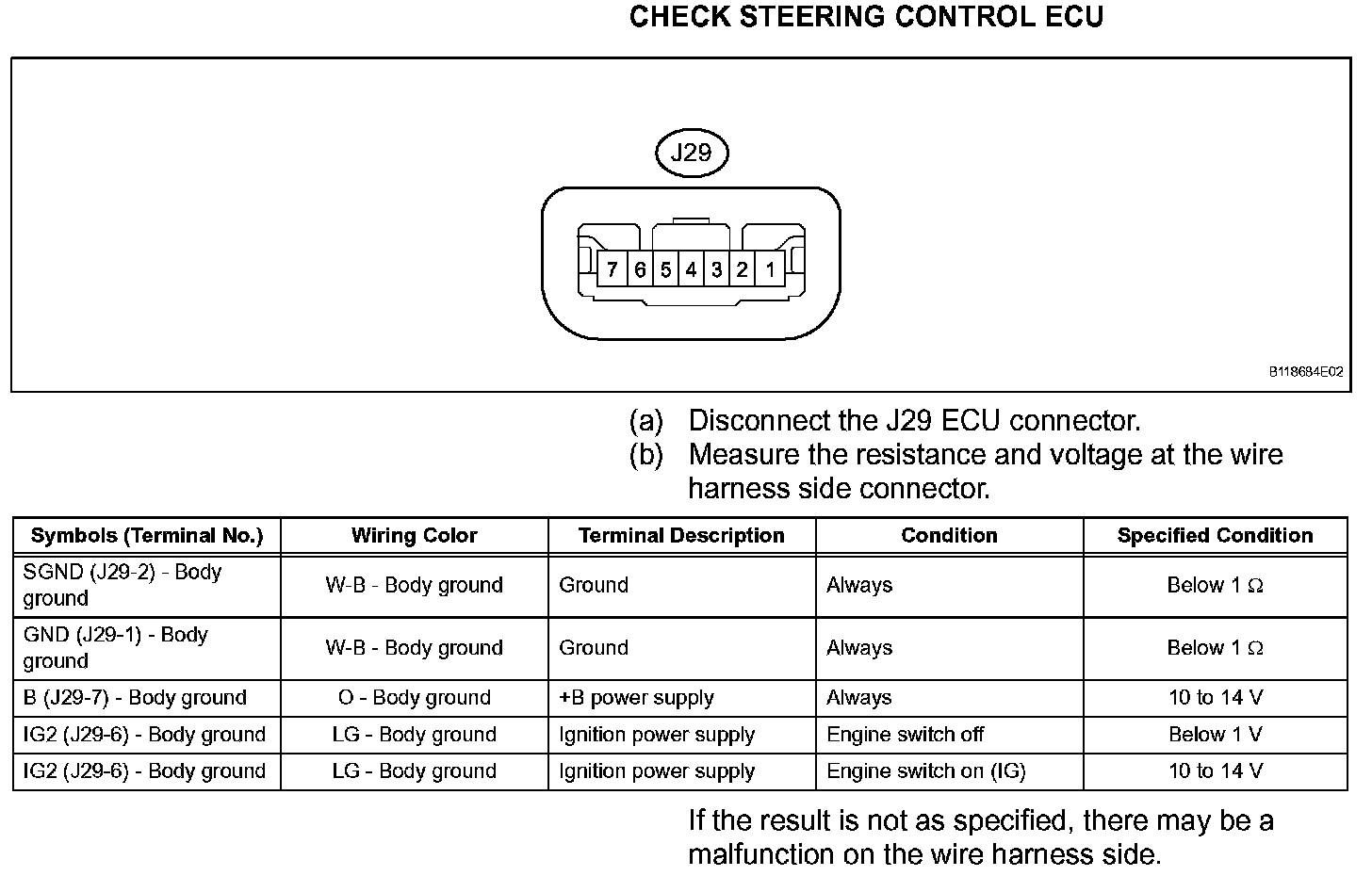

Terminals Of Control Module/Pinouts - Check Steering Control ECU:

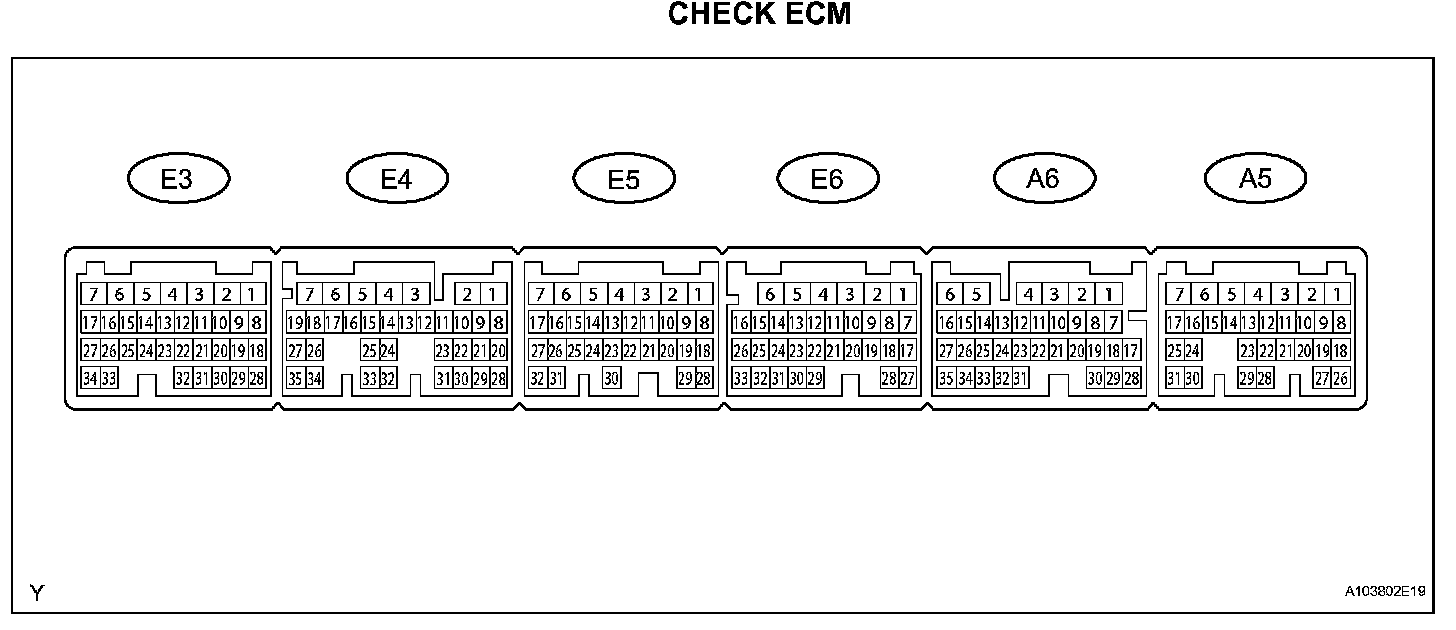

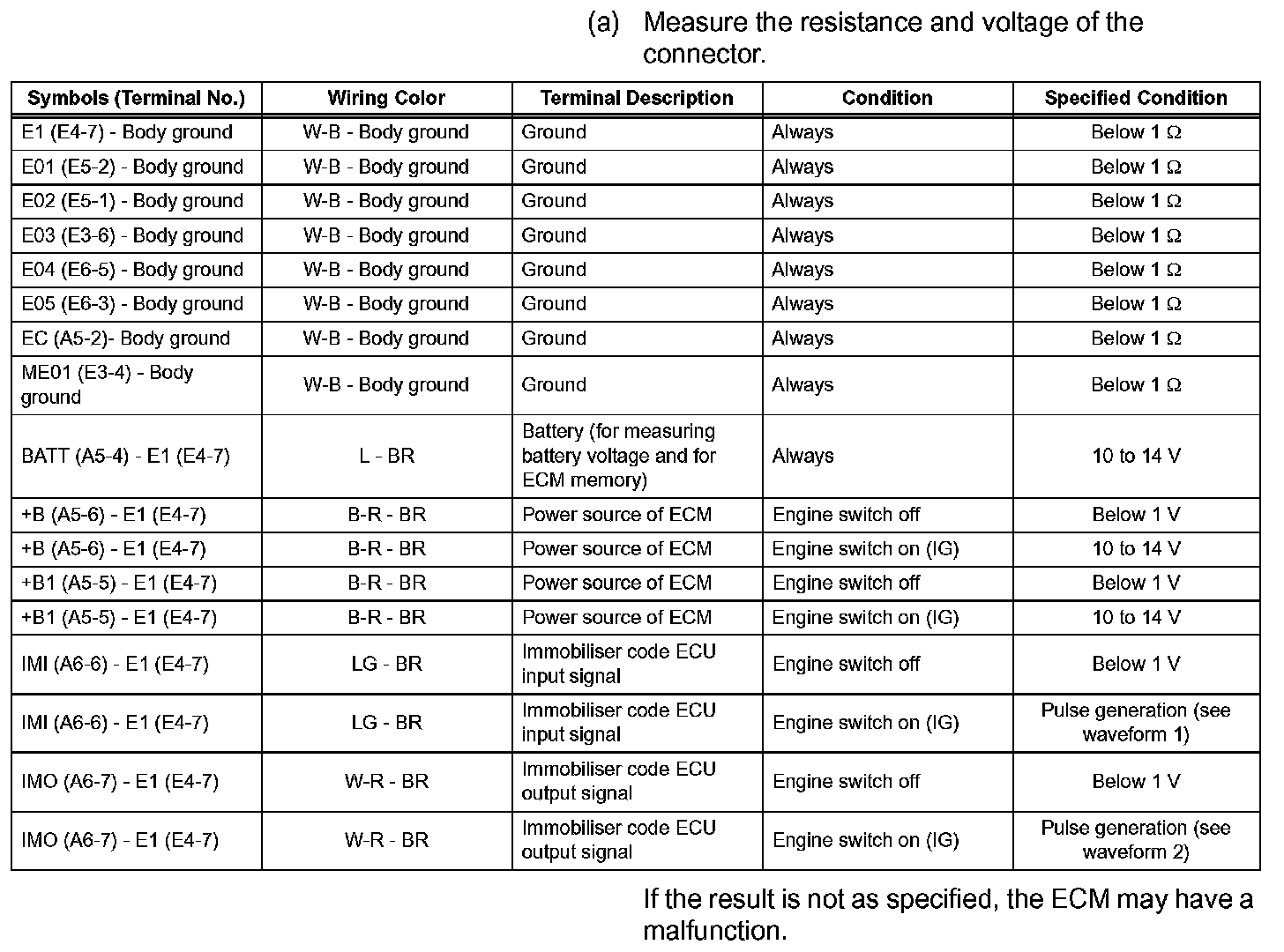

Terminals Of Control Module/Pinouts - Check ECM (Part 1):

Terminals Of Control Module/Pinouts - Check ECM (Part 2):

Oscilloscope Waveform:

Oscilloscope Waveform:

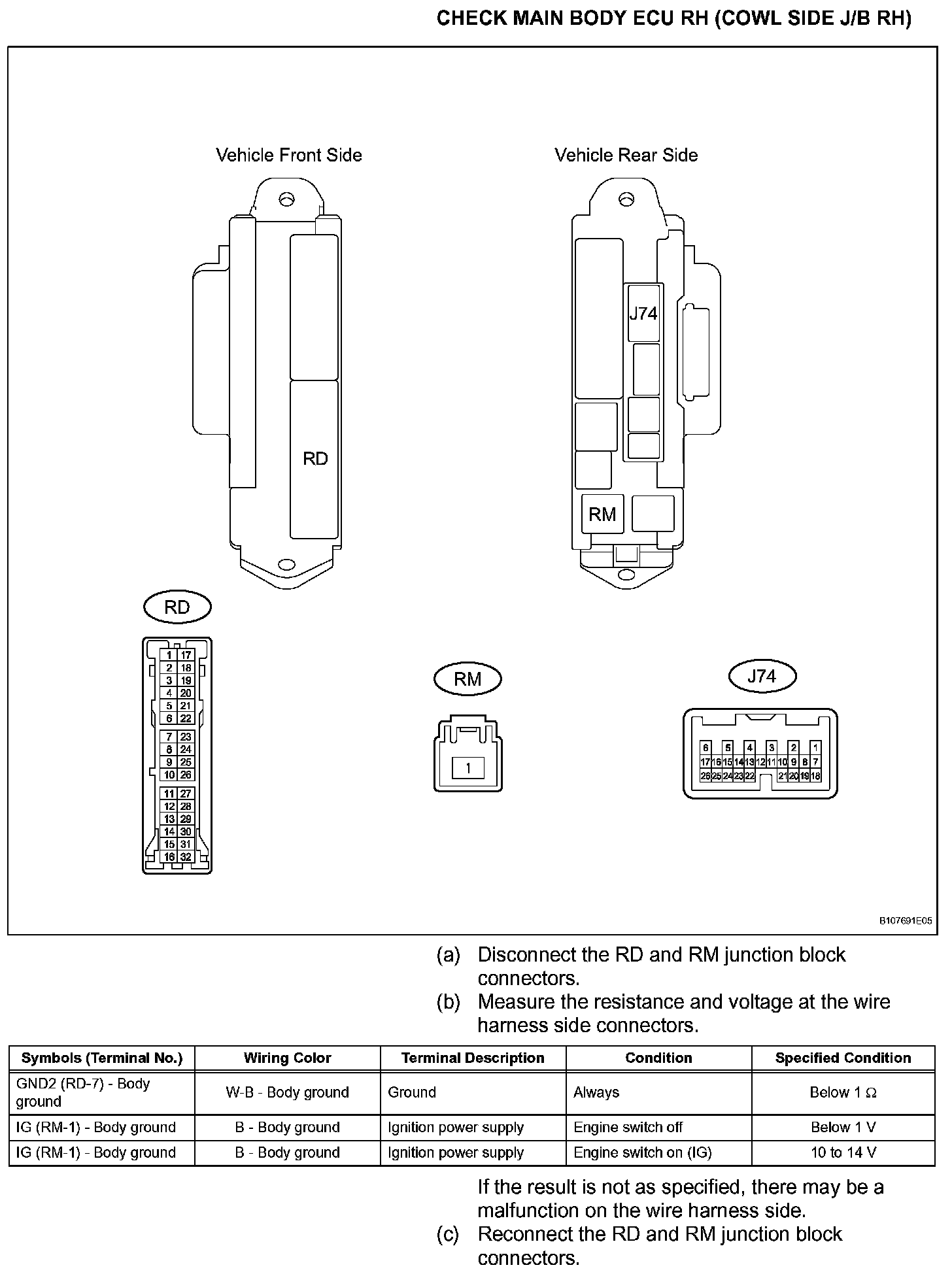

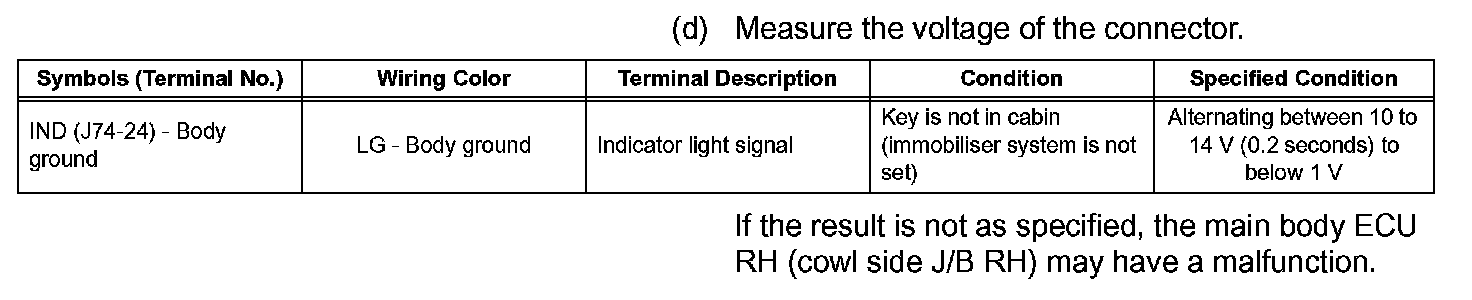

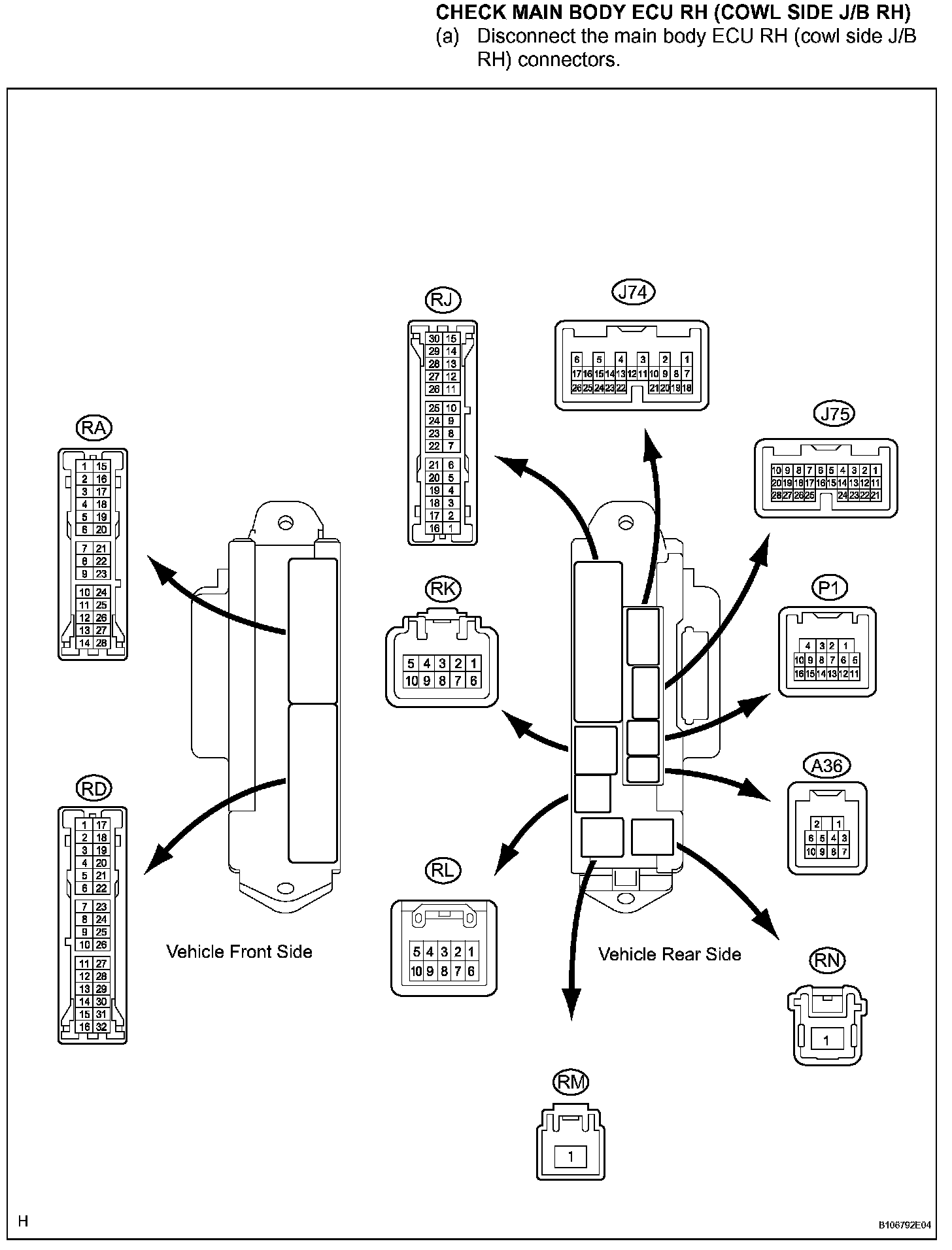

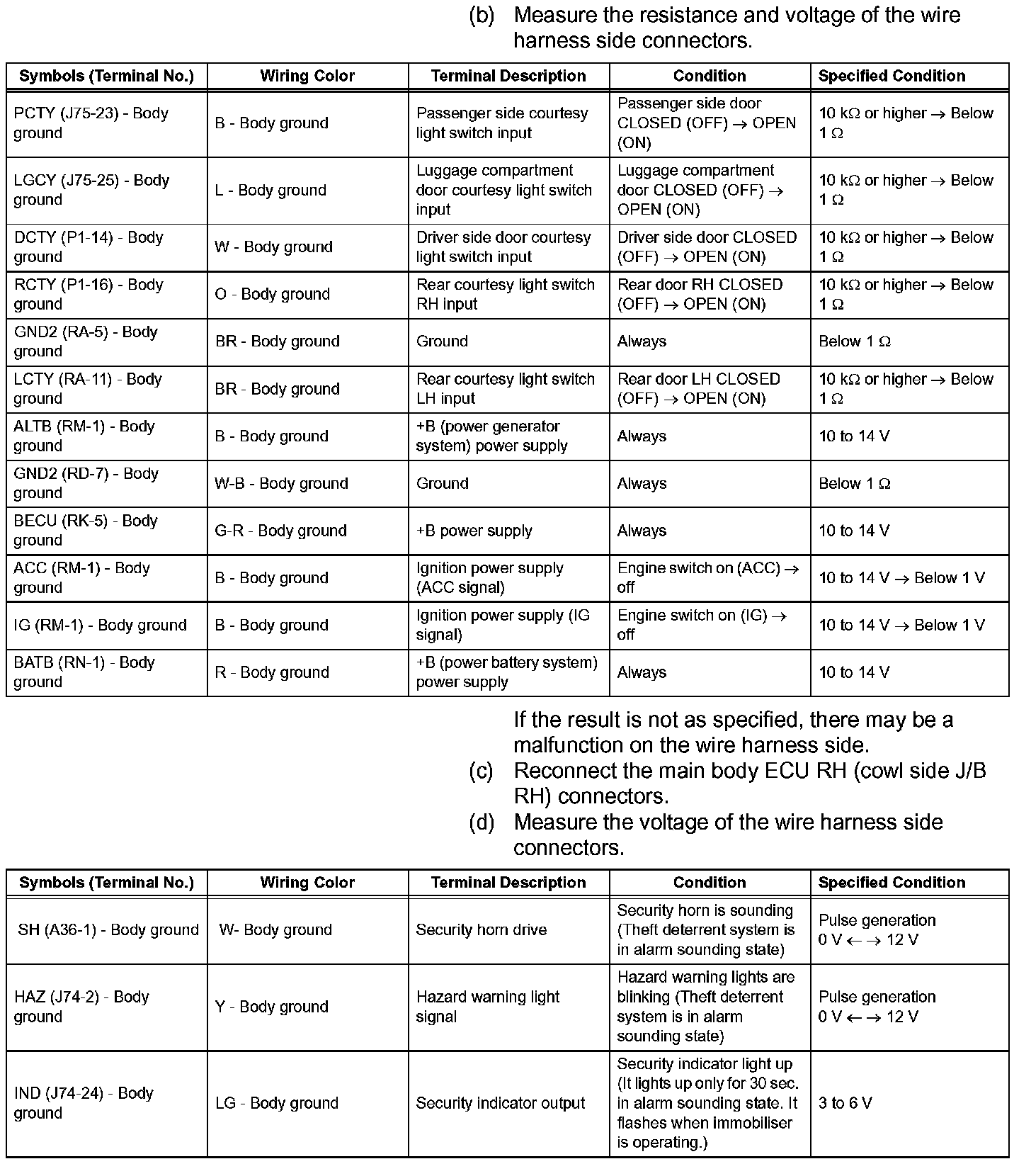

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 1):

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 2):

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 1):

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 2):

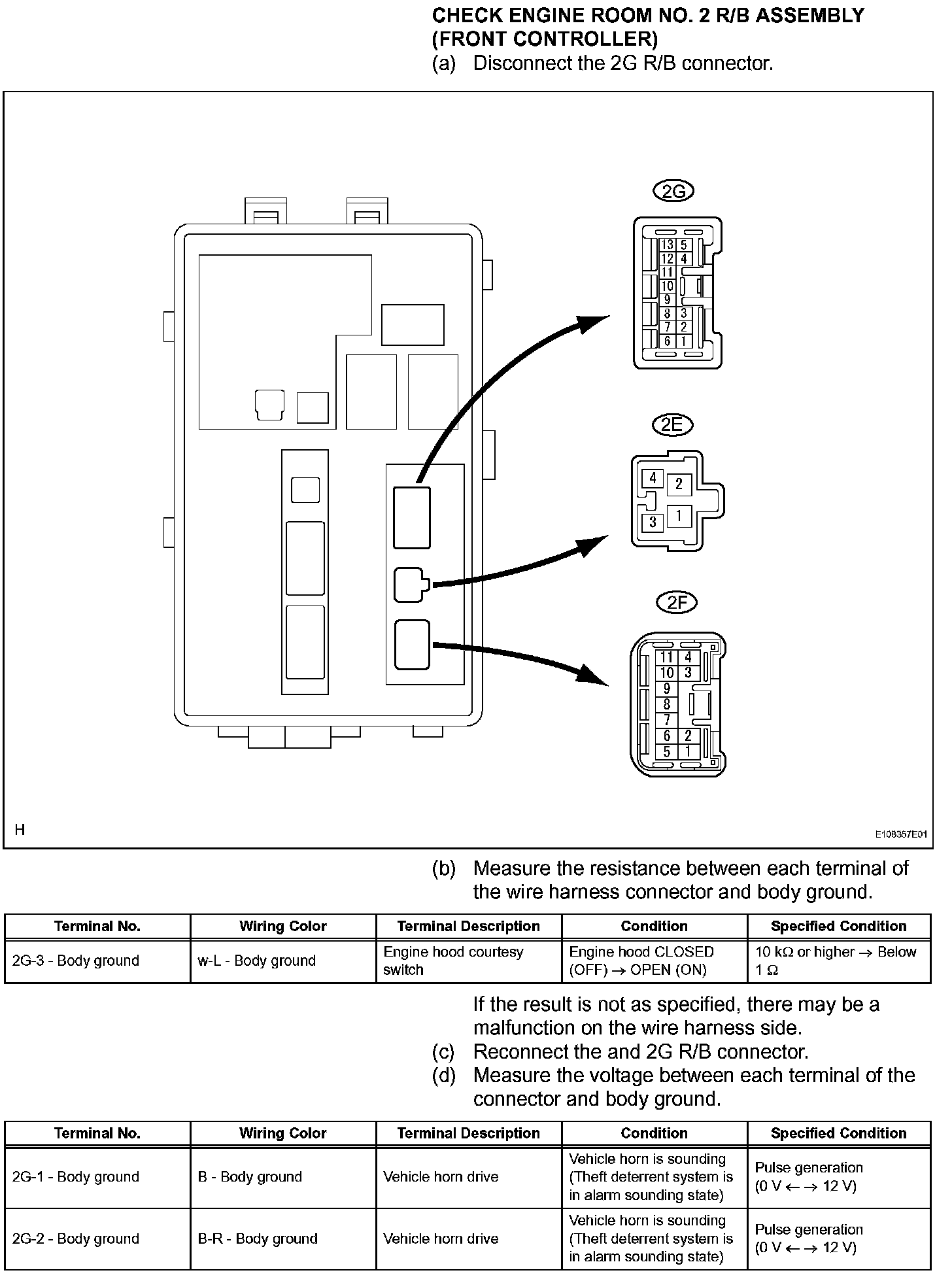

Terminals Of Control Module/Pinouts - Check Engine Room No.2 R/B Assembly (Front Controller):
