Ignition Switch Circuit

Ignition Switch Circuit

DESCRIPTION

When the engine switch is turned on (IG), positive (+) battery voltage is applied to the main body ECU RH (cowl side J/B RH). When battery positive (+) voltage is applied to terminal IG of the main body ECU (cowl side J/B RH) while the theft deterrent system is operating, the warning stops.

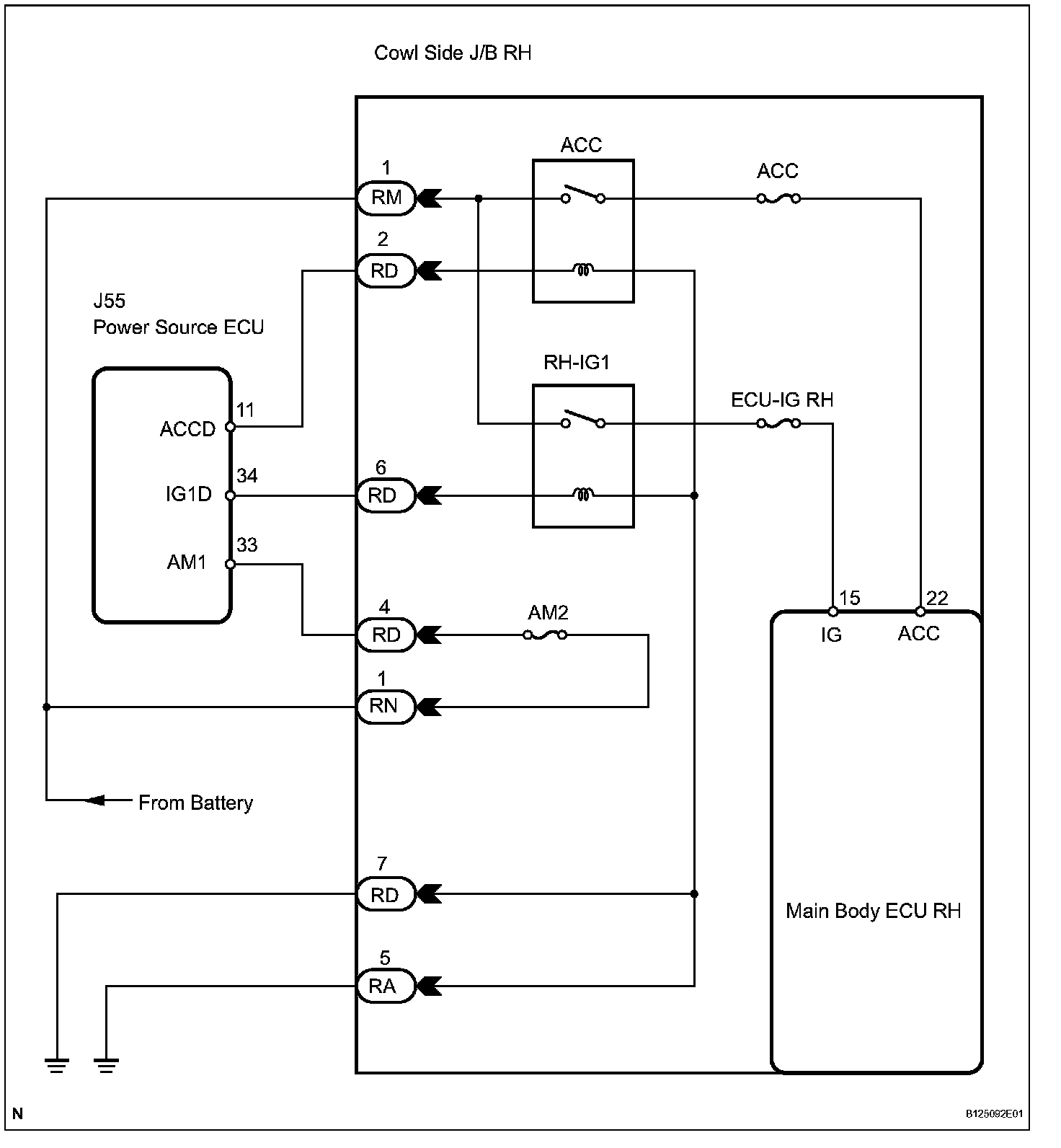

Wiring Diagram:

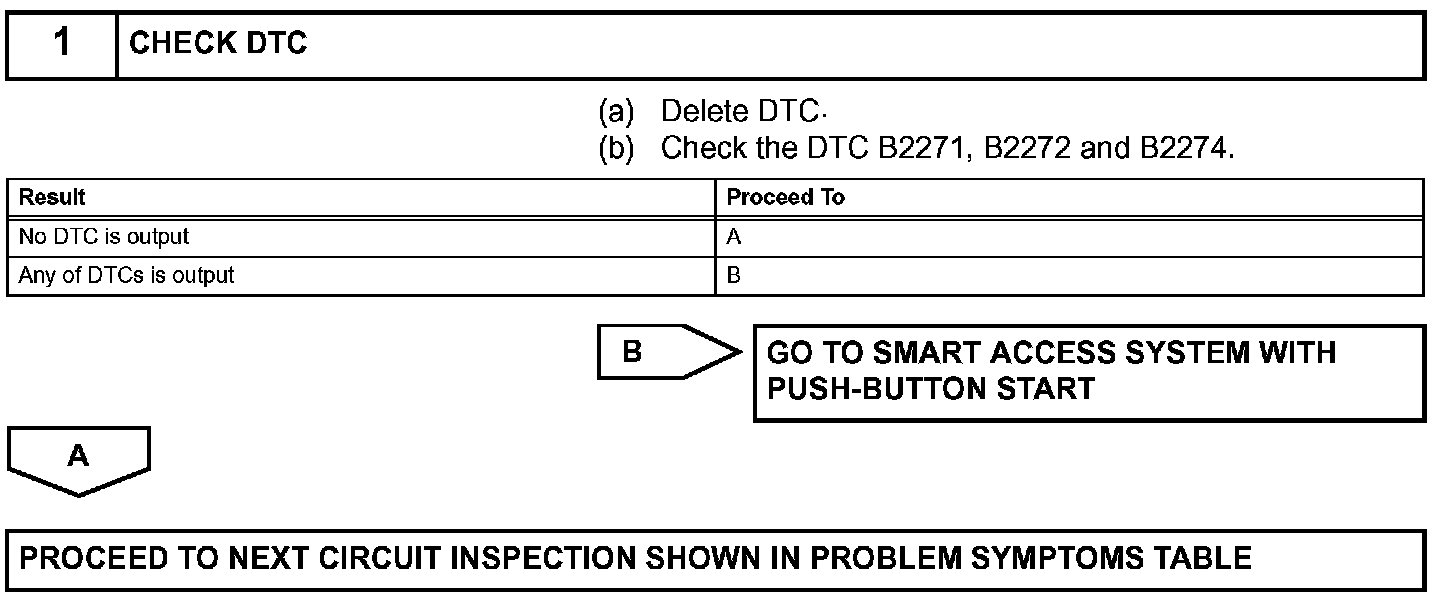

Step 1:




INSPECTION PROCEDURE
