ID Code Box Power Source Circuit

ID Code Box Power Source Circuit

DESCRIPTION
This circuit provides power to operate the ID code box.

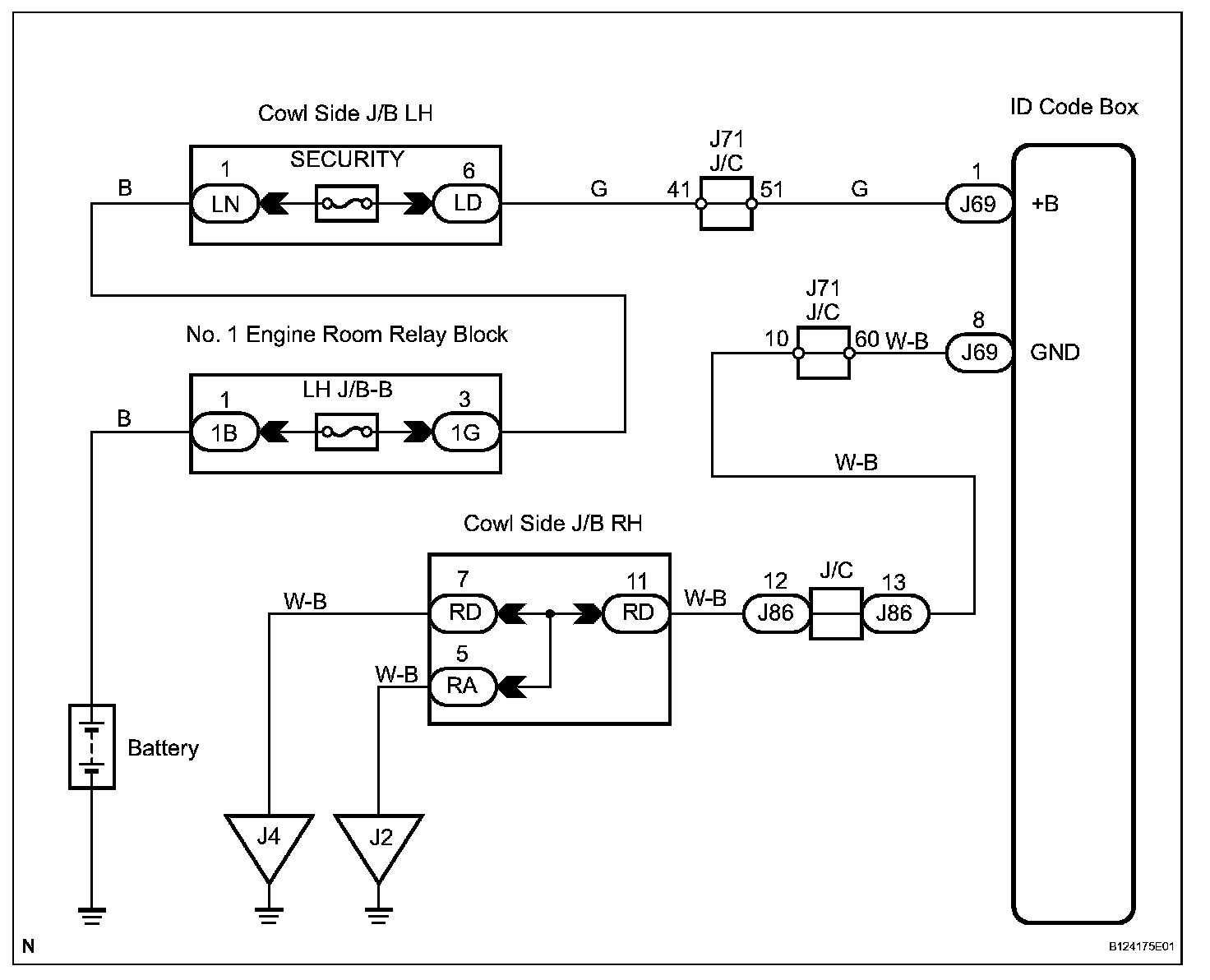

Wiring Diagram:

Step 1:

Step 1 (Continued)-3:

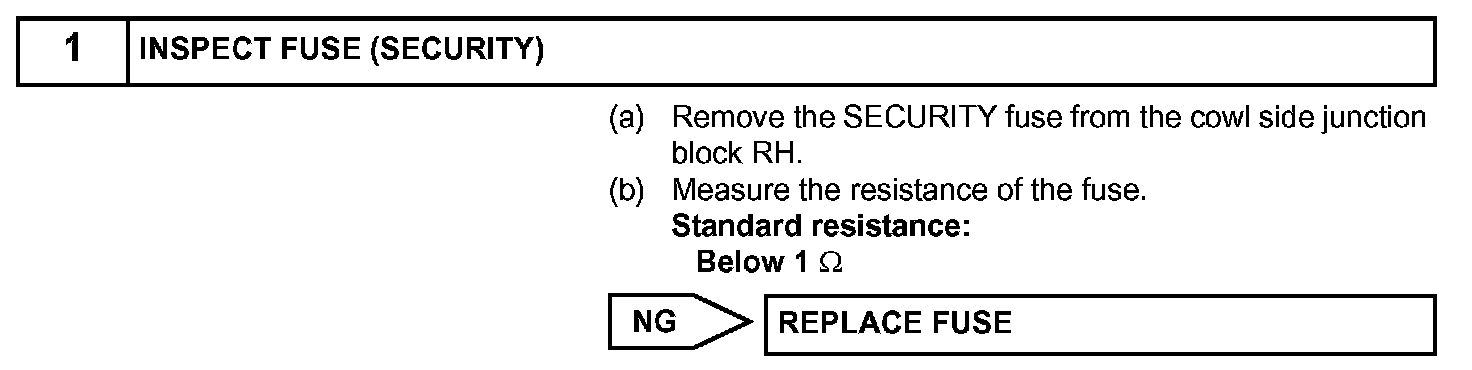

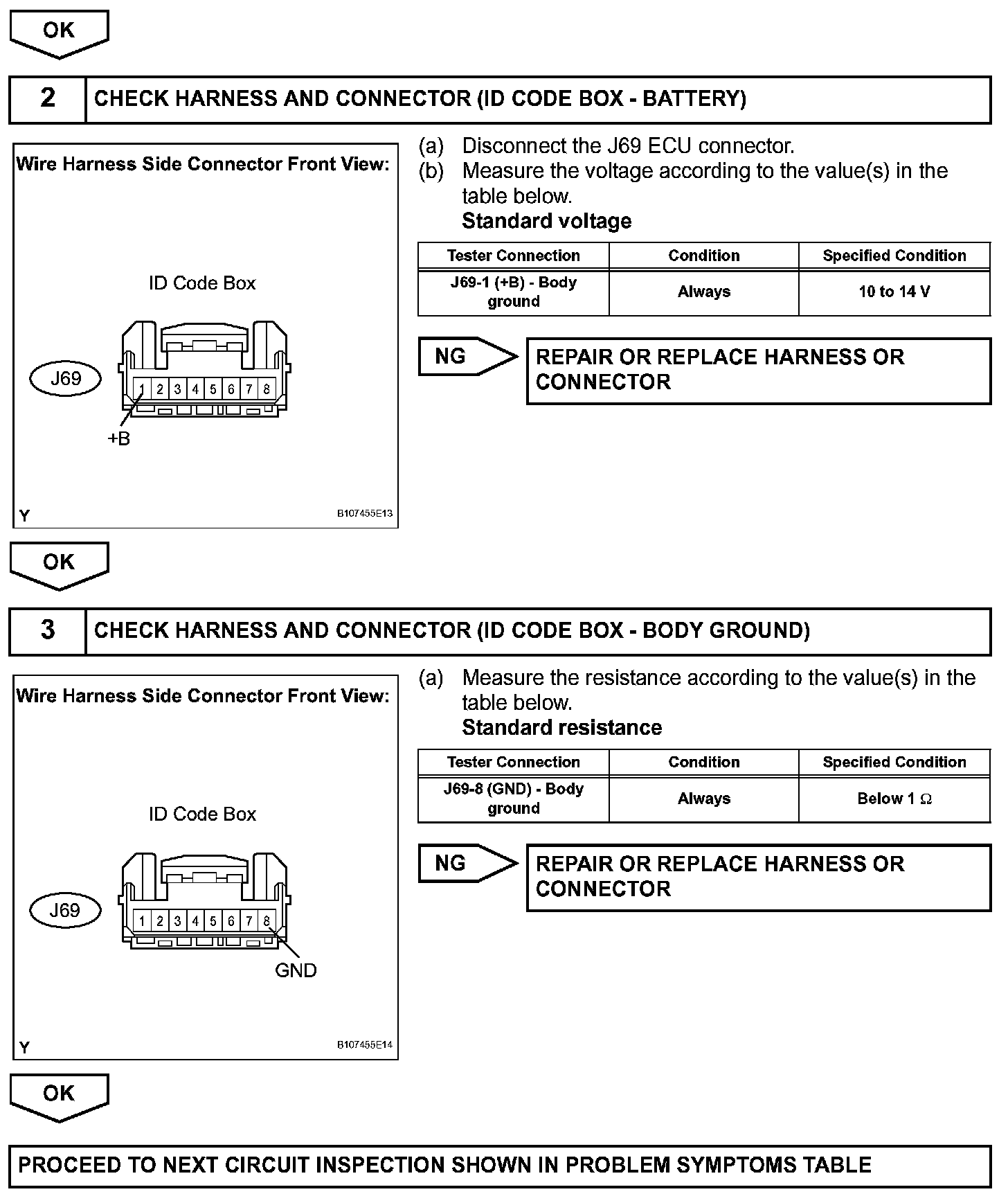

INSPECTION PROCEDURE
