Certification ECU Power Source Circuit

Certification ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the certification ECU.

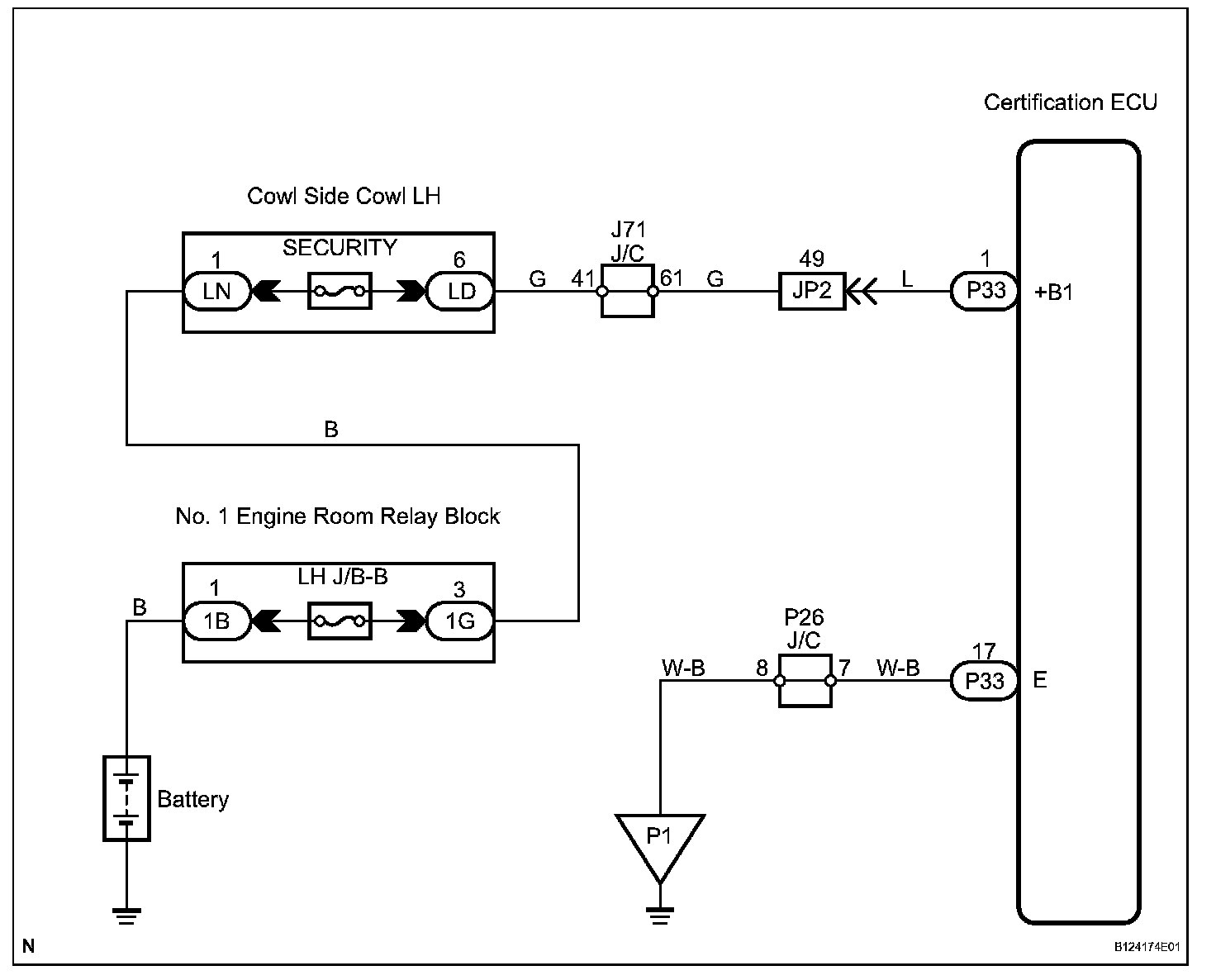

Wiring Diagram:

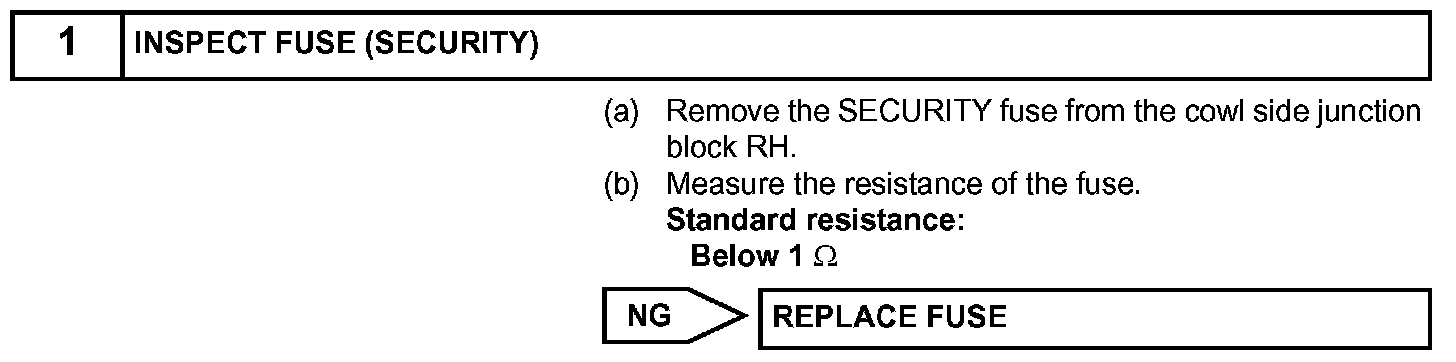

Step 1:

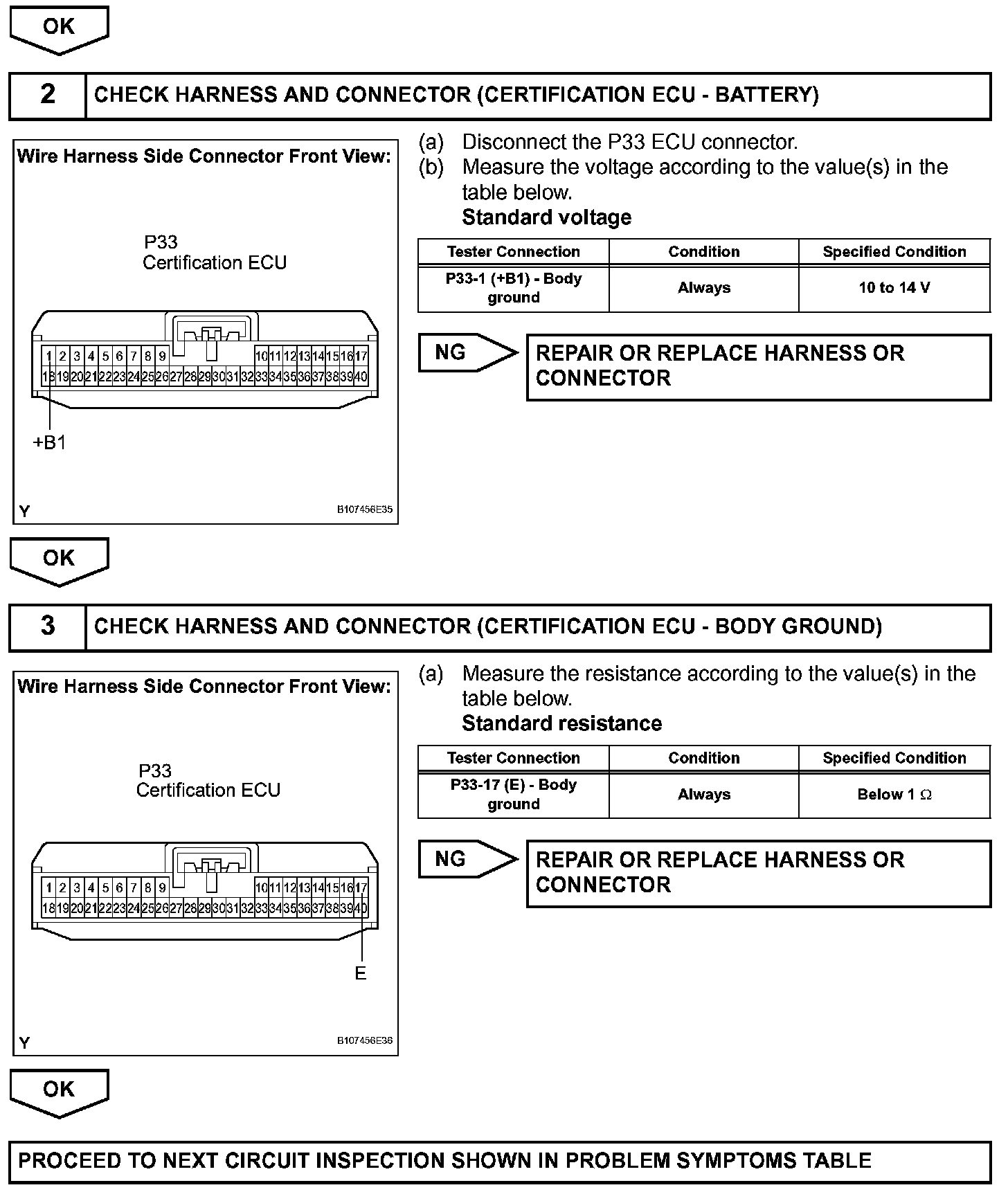

Step 1 (Continued)-3:




INSPECTION PROCEDURE
