Wireless Door Lock Control System

PROBLEM SYMPTOMS TABLE

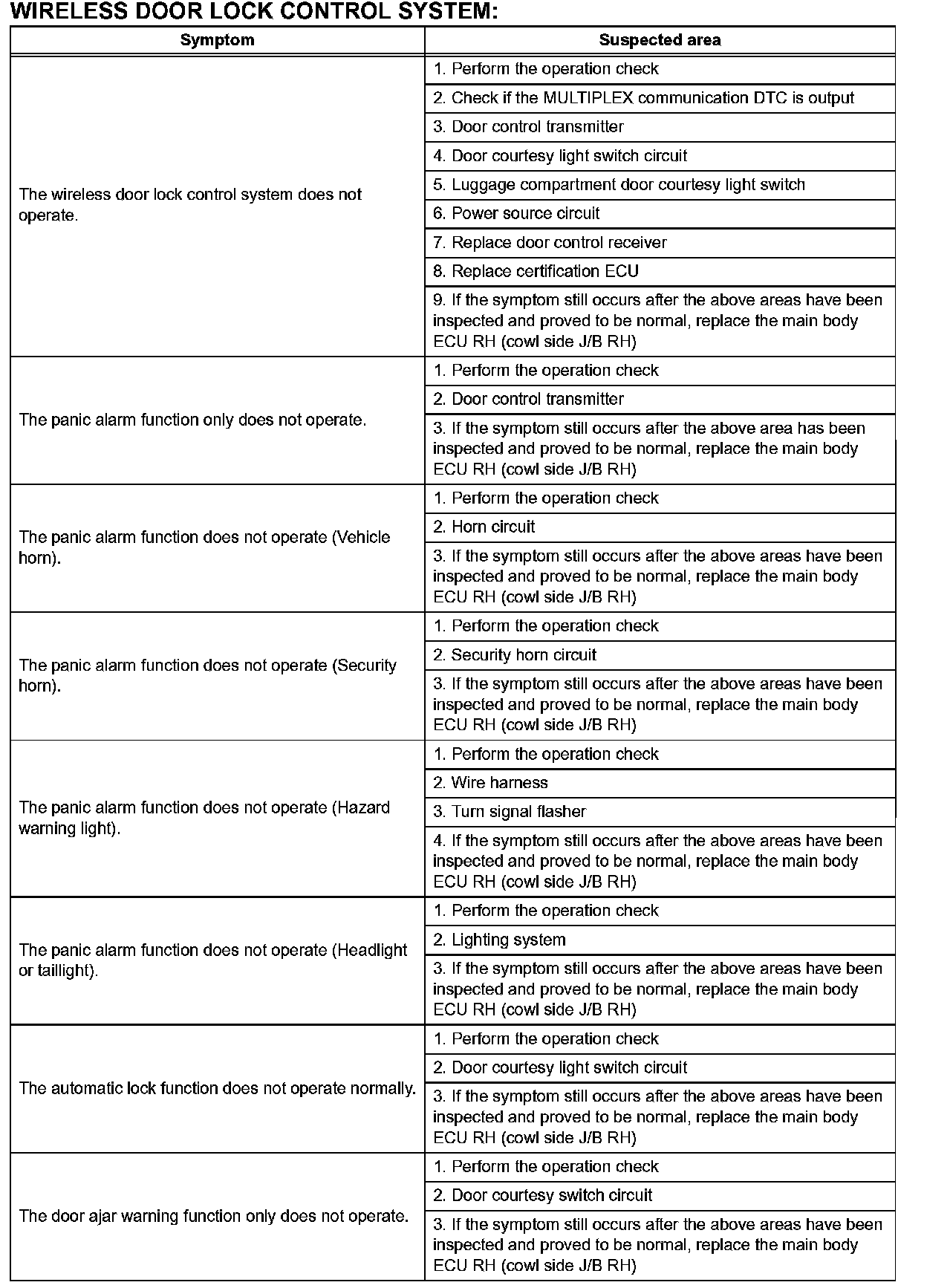

Problem Symptoms Table - Wireless Door Lock Control System (Part 1):

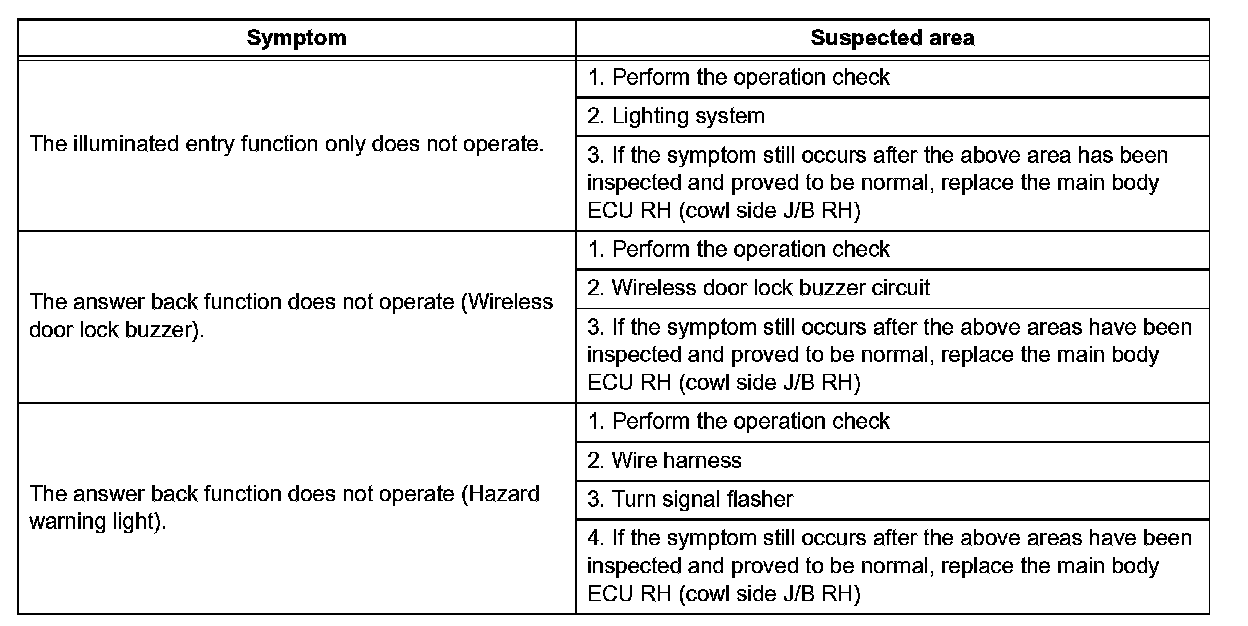

Problem Symptoms Table - Wireless Door Lock Control System (Part 2):

Proceed to the reference shown in the table given for each malfunction symptom and troubleshoot each circuit.
