Wireless Door Lock Control System

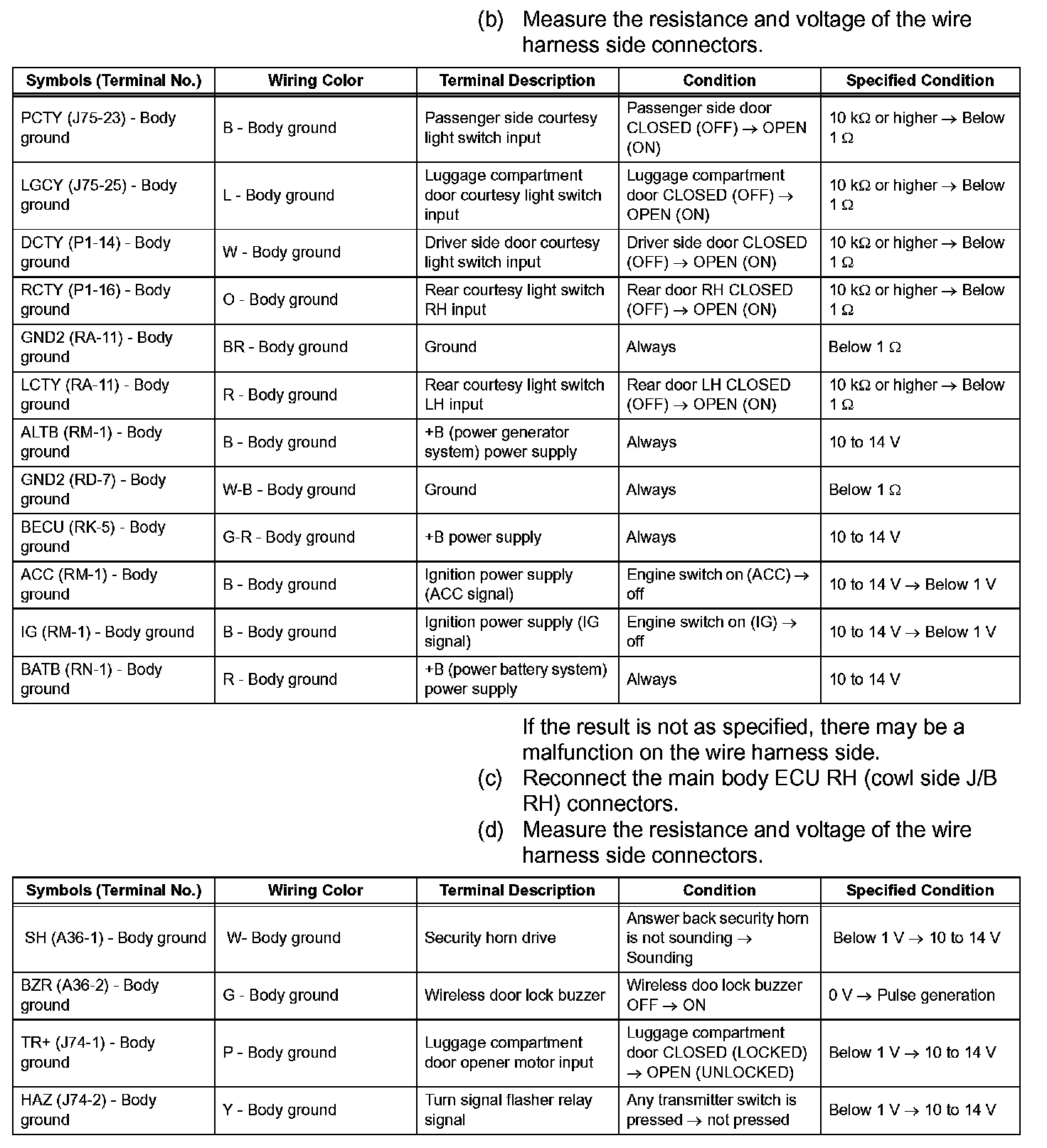

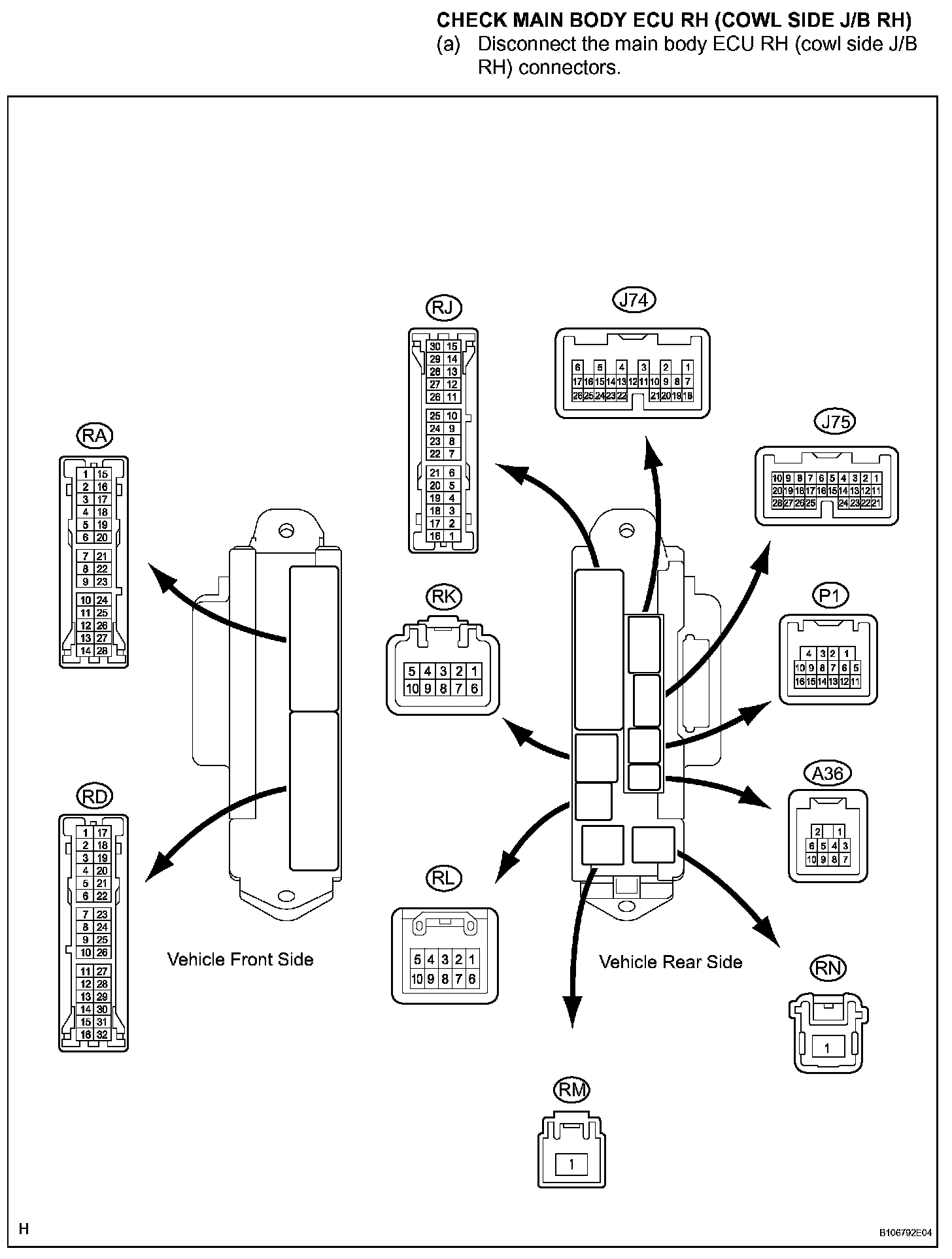

Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 1):



Terminals Of Control Module/Pinouts - Check Main Body ECU RH (Cowl Side J/B RH) (Part 2):

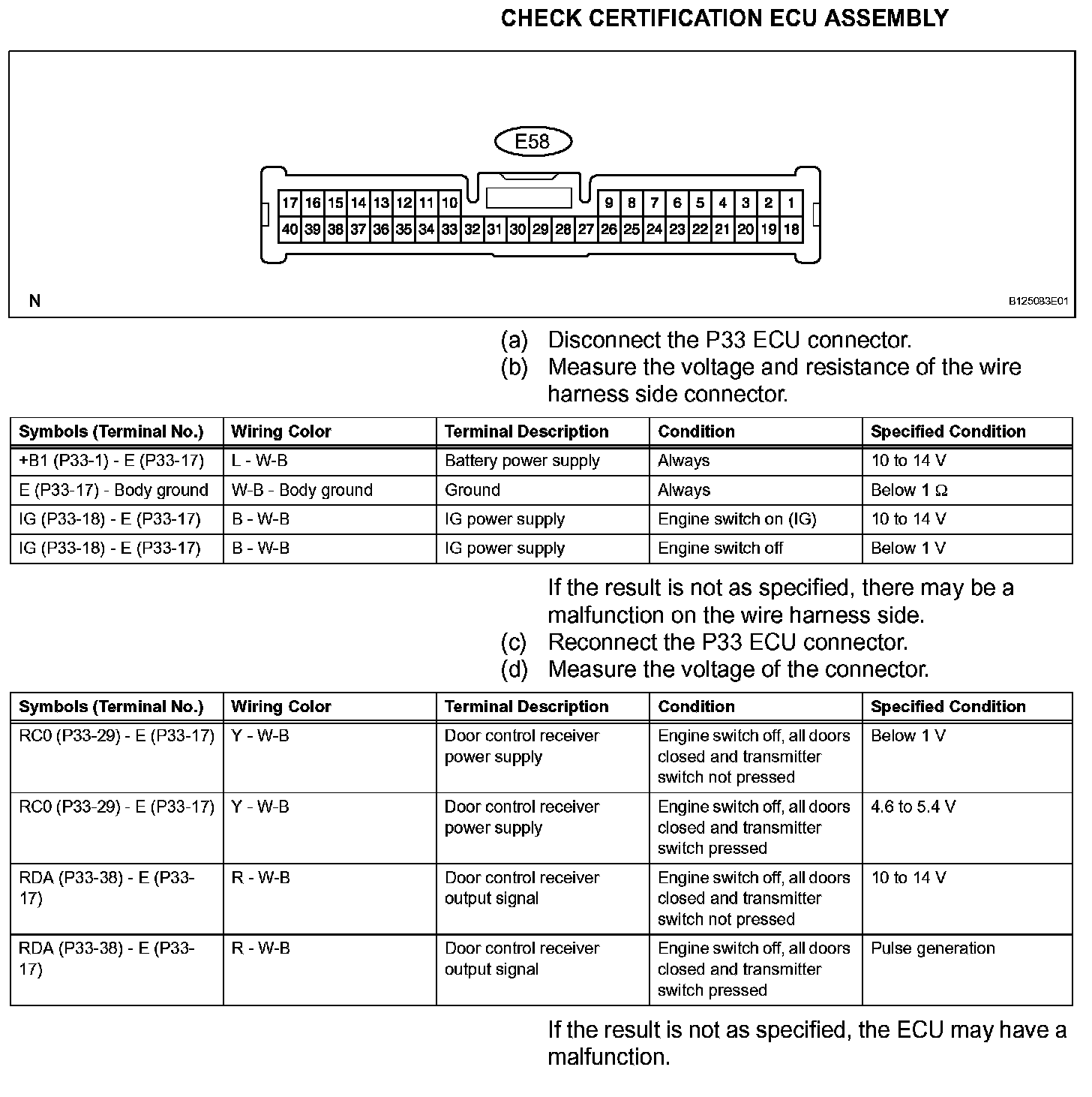

Terminals Of Control Module/Pinouts - Check Certification ECU Assembly:
