Touch Sensor Circuit

Touch Sensor Circuit

DESCRIPTION

This circuit receives the signal indicating whether or not a touch sensor signal is detected.

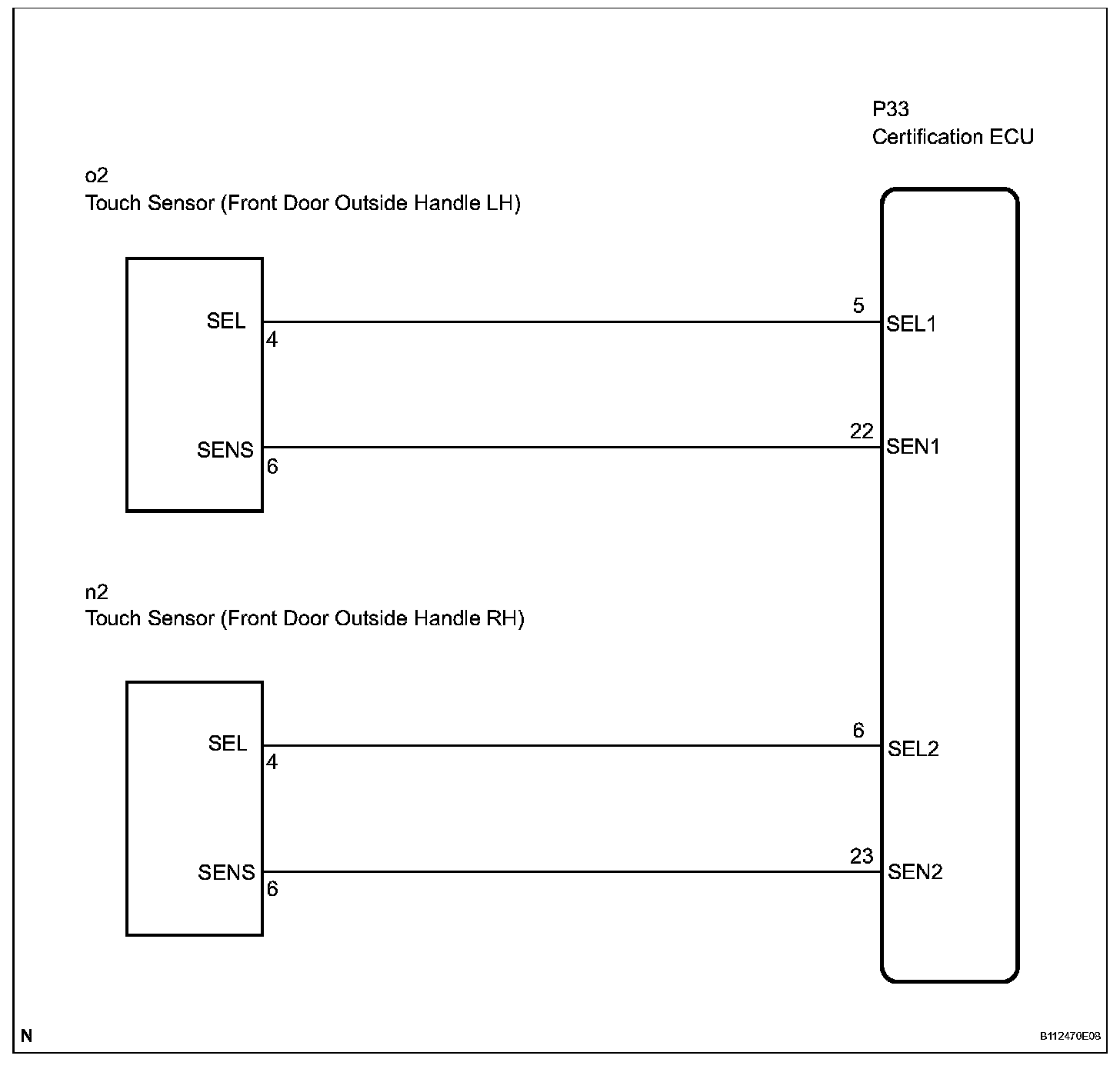

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

Step 2 (Continued)-4:

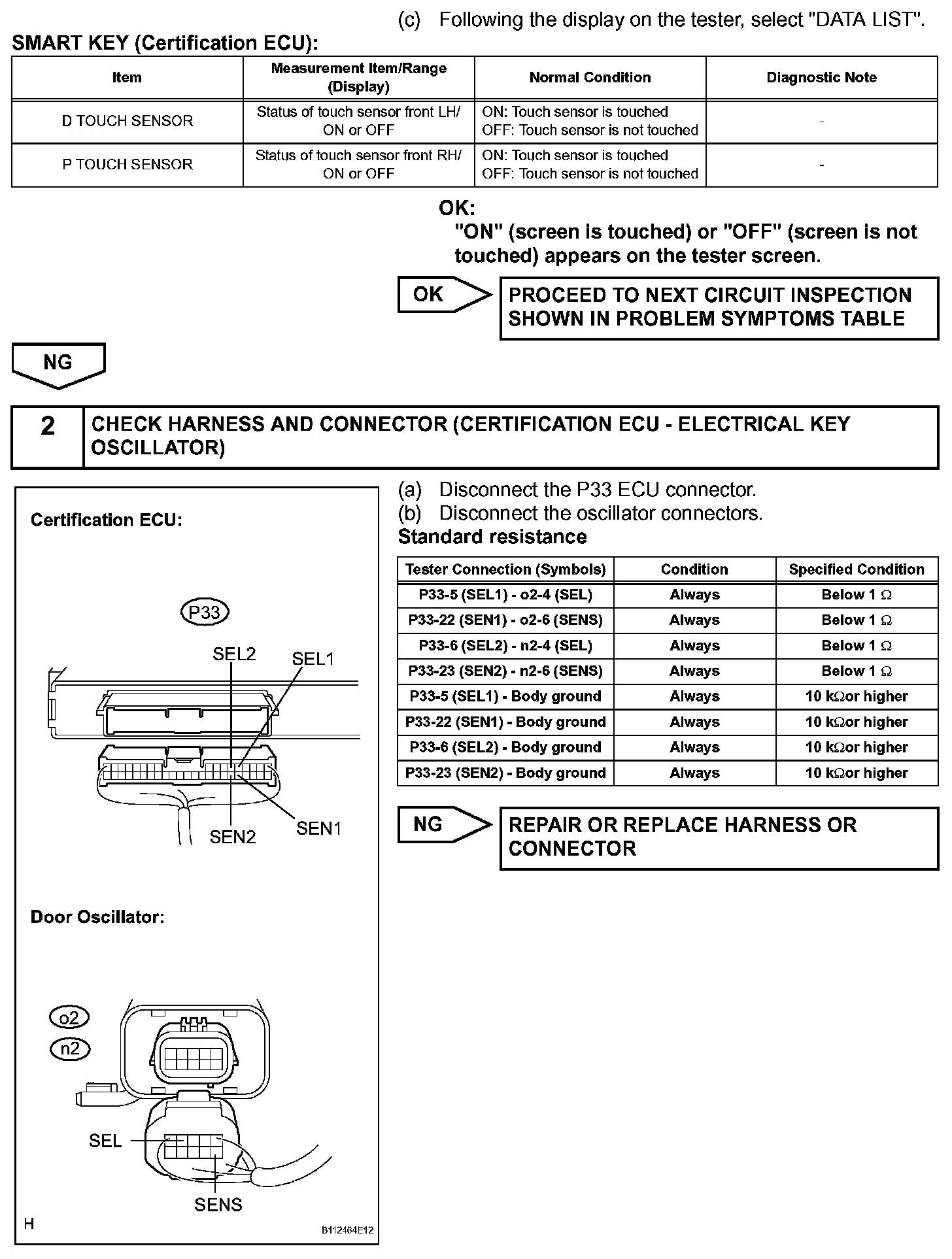

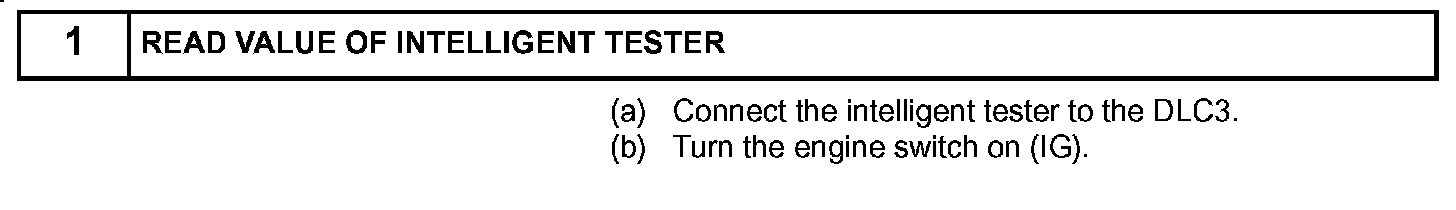

INSPECTION PROCEDURE
