Entry Lock and Unlock Switch

Entry Lock And Unlock Switch:

ENTRY LOCK AND UNLOCK SWITCH

REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE COURTESY LIGHT ASSEMBLY
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
5. REMOVE FRONT DOOR TRIM COVER
6. REMOVE FRONT DOOR SERVICE HOLE COVER
7. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
8. REMOVE FRONT DOOR OUTSIDE HANDLE COVER




9. REMOVE FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY

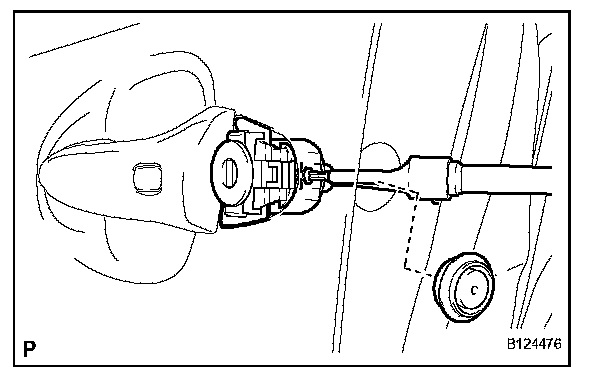

a. Remove the hole plug.
b. Using a "torx" socket wrench (T30), loosen the screw and remove the front door outside handle cover and the door lock key cylinder as a unit.

HINT: The screw cannot be removed because it is integrated into the front door outside handle frame sub-assembly.

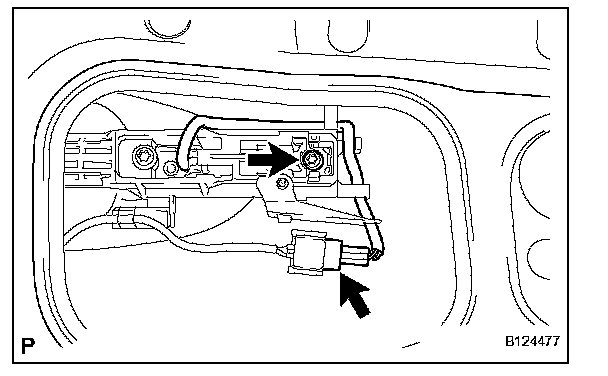

c. Disconnect the connector.
d. Using a "torx" socket wrench (T30), loosen the screw.

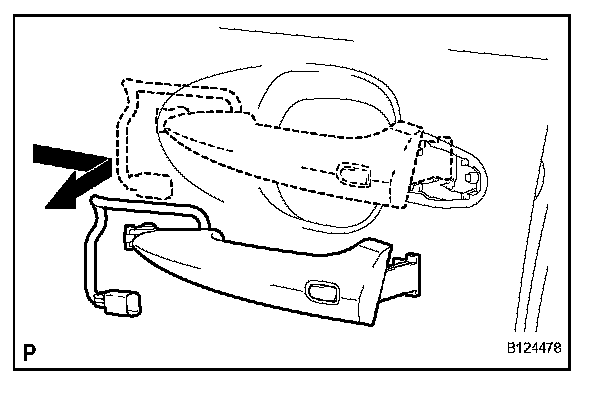

e. Remove the front door outside handle sub-assembly as shown in the illustration.

INSTALLATION




1. INSTALL FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY
a. Insert the front end of the front door outside handle sub-assembly in to the front door out side handle frame.

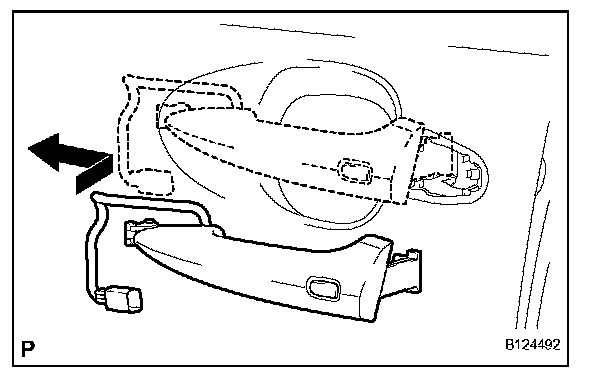

b. Insert the rear end of the front door outside handle assembly into the front door outside handle frame. Next slide the front door outside handle assembly to the front of the vehicle to install it.

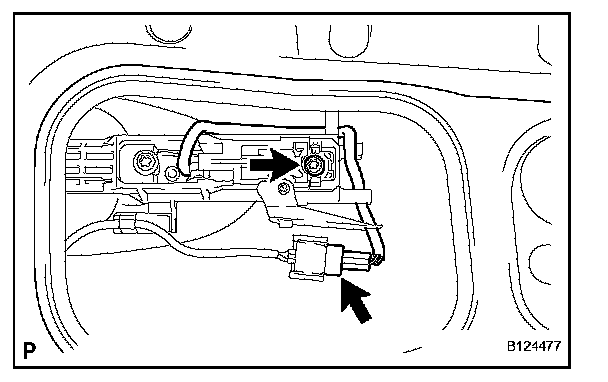

c. Using a "torx" socket wrench (T30), install the front door outside handle sub-assembly with the screw.
d. Connect the connector.

2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER
3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
4. INSTALL FRONT DOOR SERVICE HOLE COVER
5. INSTALL FRONT DOOR TRIM COVER
6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
7. INSTALL COURTESY LIGHT ASSEMBLY
8. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
