Alarm Module: Testing and Inspection

ECU Power Source Circuit

DESCRIPTION

This circuit provides power for main body ECU RH operation.

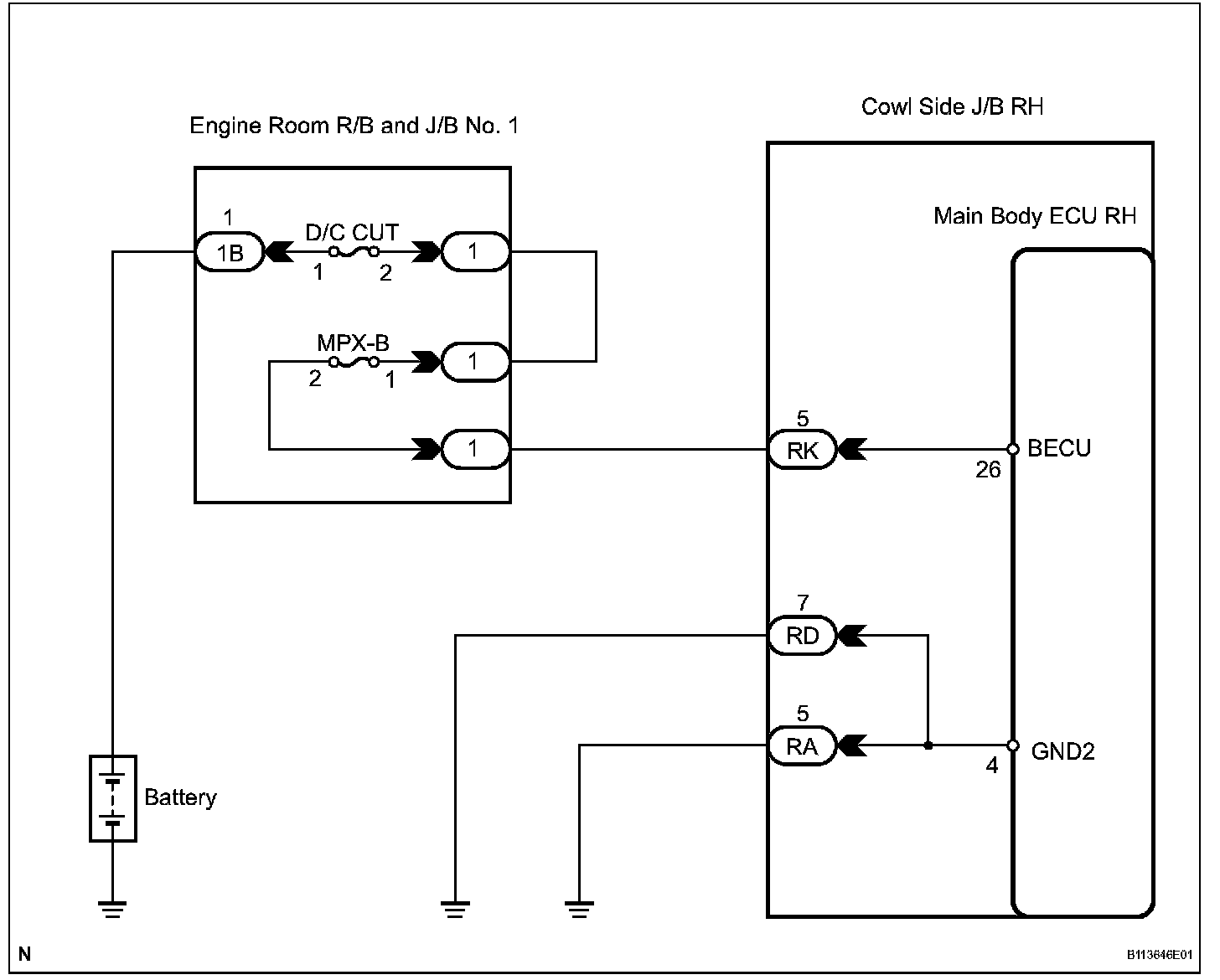

Wiring Diagram:

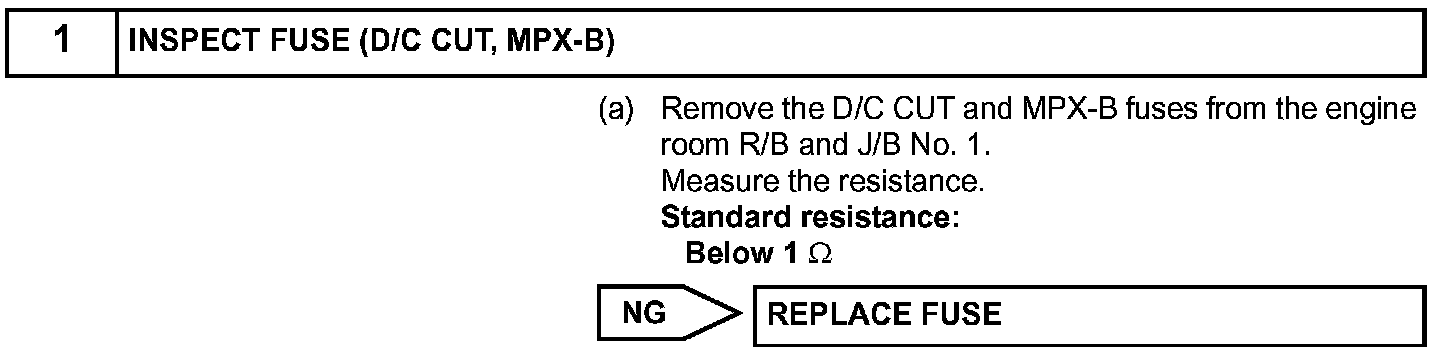

Step 1:

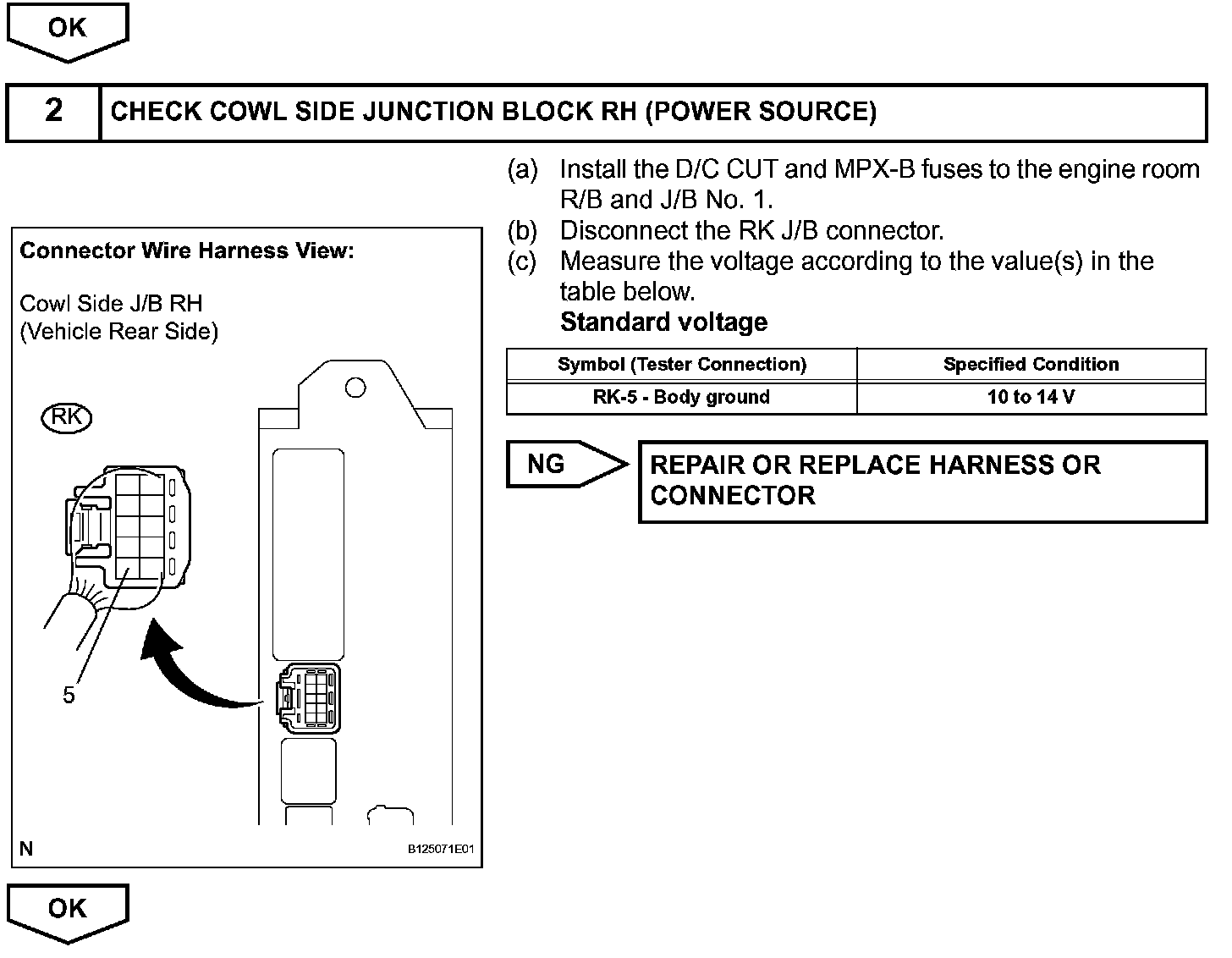

Step 1 (Continued)-2:

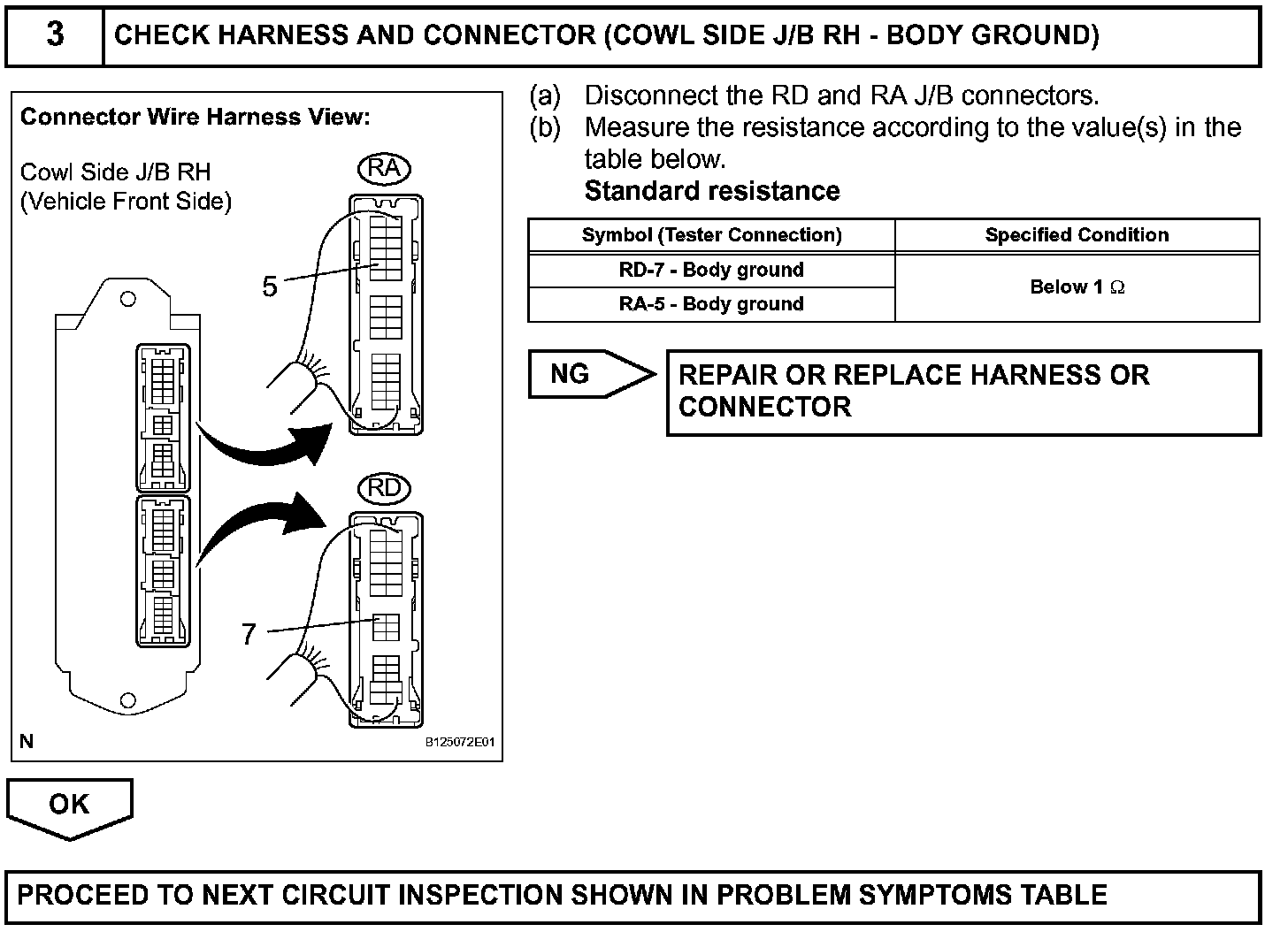

Step 3:

INSPECTION PROCEDURE
