Horn Circuit

Horn Circuit

DESCRIPTION

When the theft deterrent system is switched from the armed state to the alarm sounding state, the main body ECU RH transmits a signal to cause the horn to sound at intervals of 0.4 seconds.

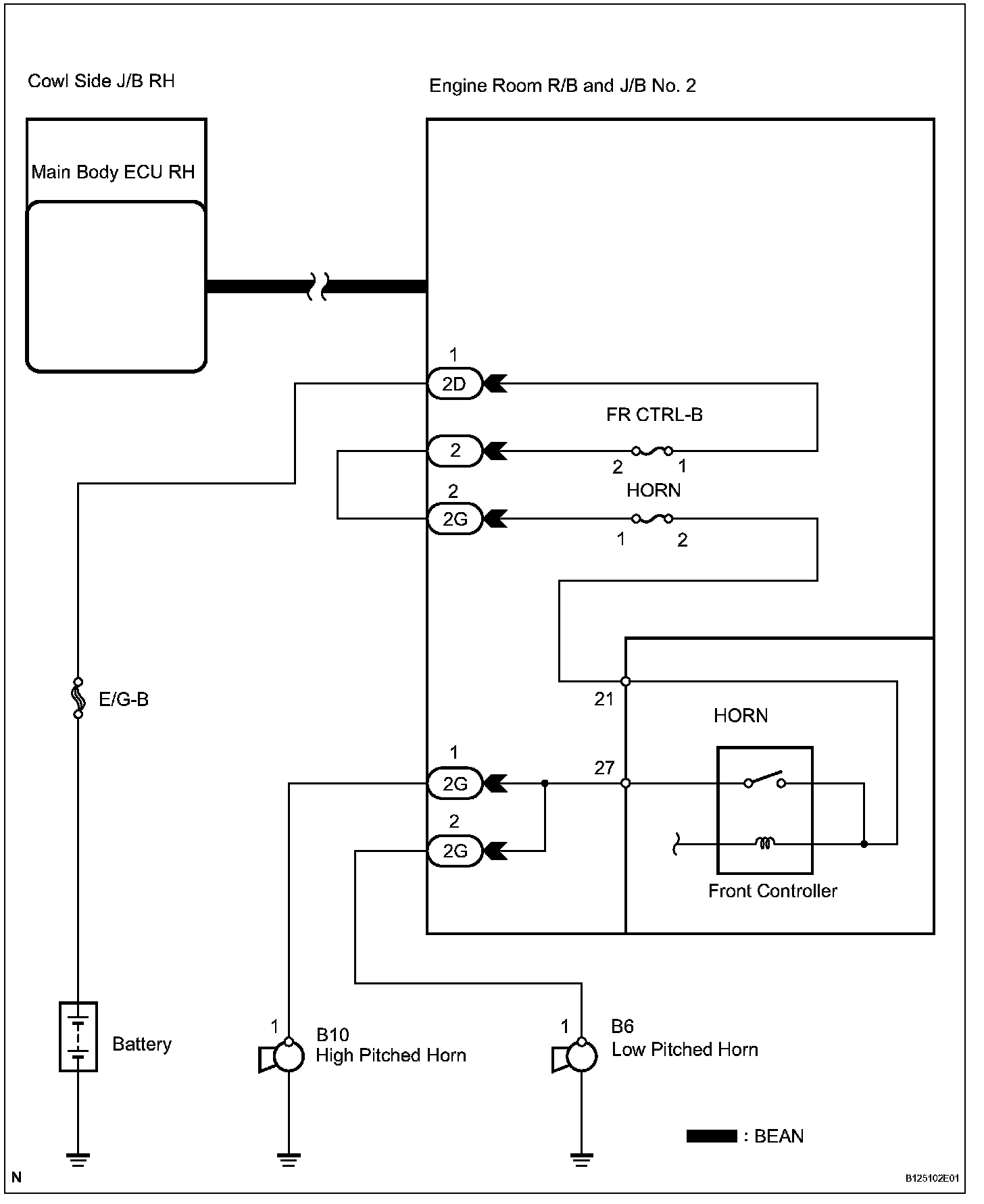

Wiring Diagram:






Step 1:

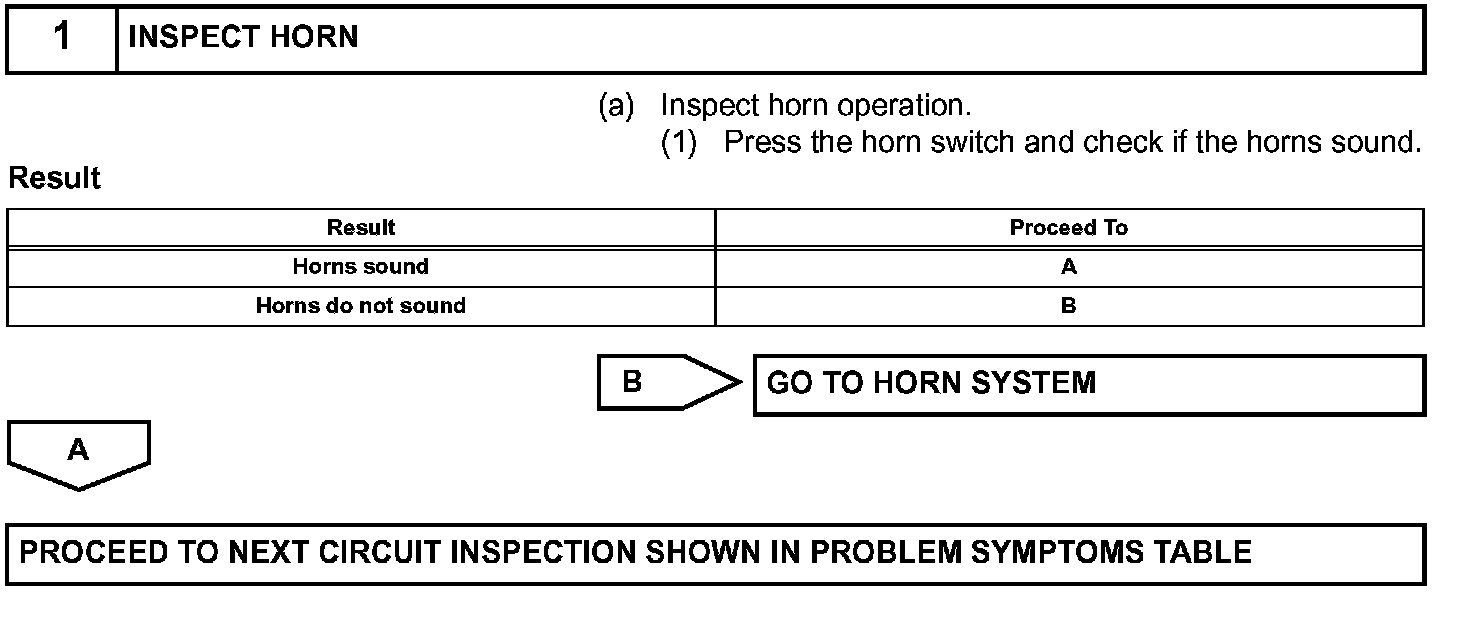

INSPECTION PROCEDURE
