Dynamic Radar Cruise Control System
DTC U0126 Lost Communication with Steering Angle Sensor ModuleDESCRIPTION

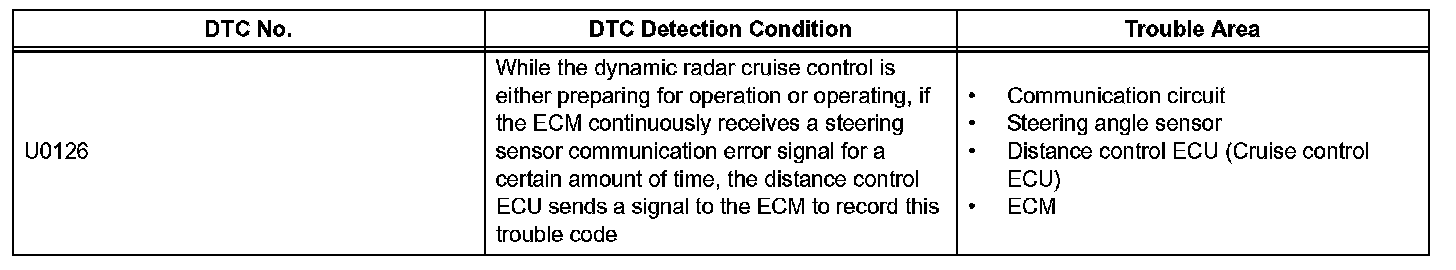

DTC Detection Condition:
This circuit detects the angle and direction of the steering wheel and automatically transmits a signal to the skid control ECU and distance control ECU.

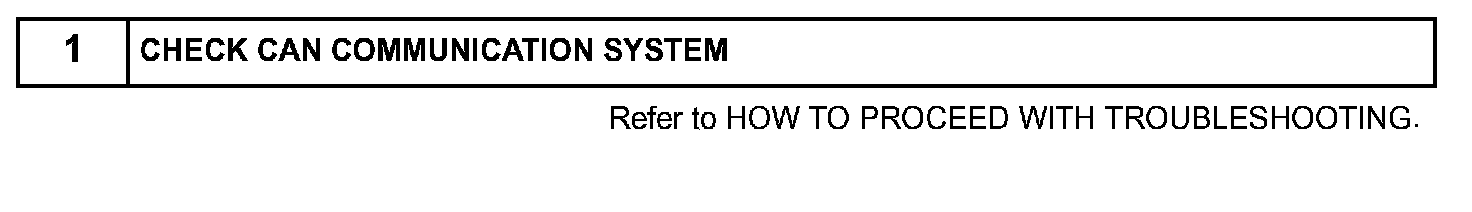

Step 1:
INSPECTION PROCEDURE
HINT: This circuit uses CAN communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system are output.
