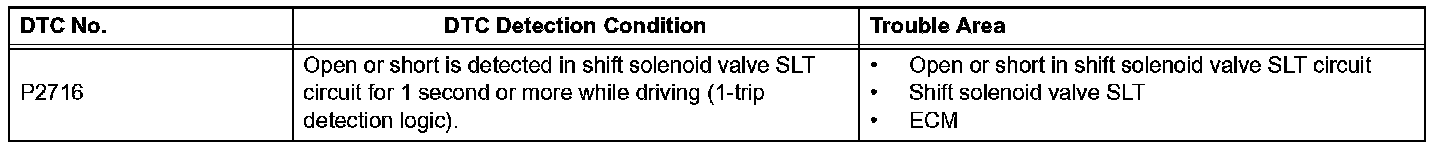

DTC P2716 Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION
Refer to DTC P0894. P0894

P2716:

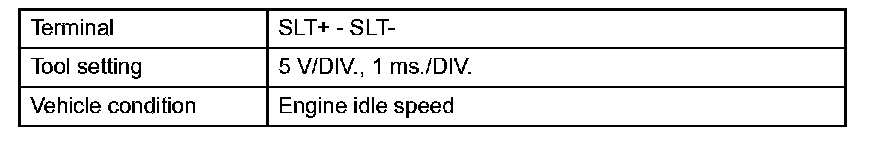

Reference (Using an oscilloscope): Check the waveform between the terminals SLT+ and SLT- of the ECM connector

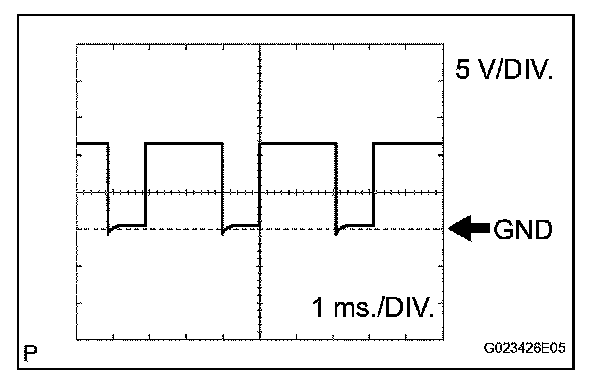

Standard: Refer to the illustration.





MONITOR DESCRIPTION
When an open or short in the linear solenoid valve (SLT) circuit is detected, the ECM interprets this as a fault. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY

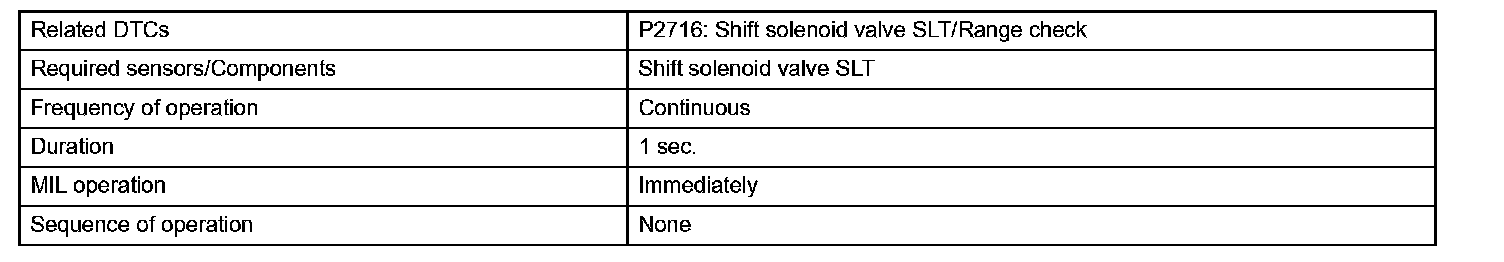

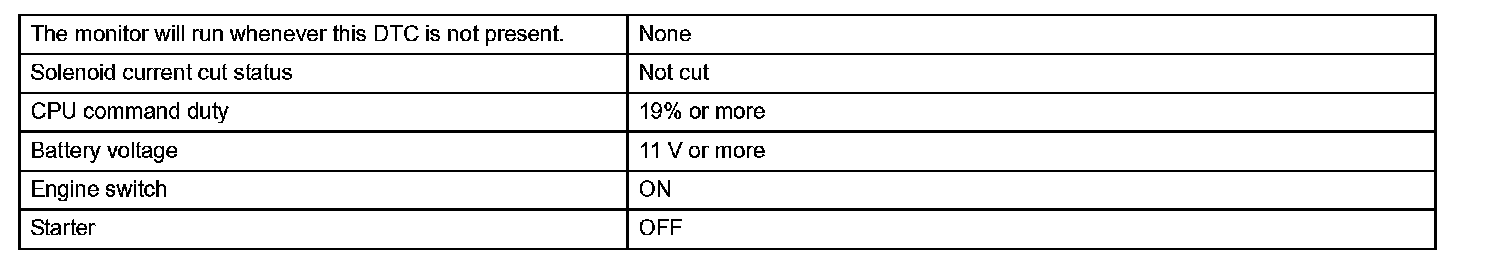

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

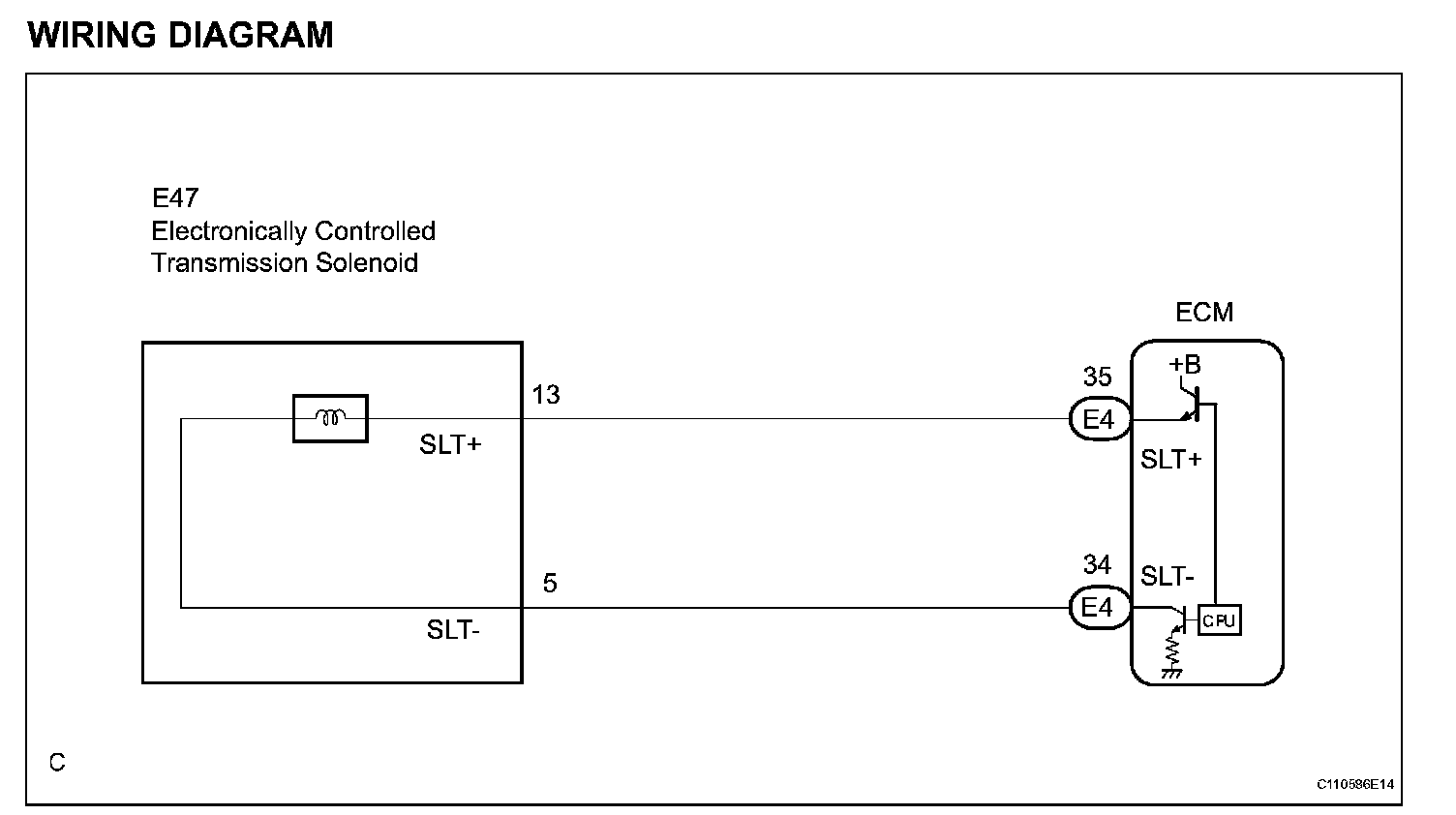

WIRING DIAGRAM:

INSPECTION PROCEDURE

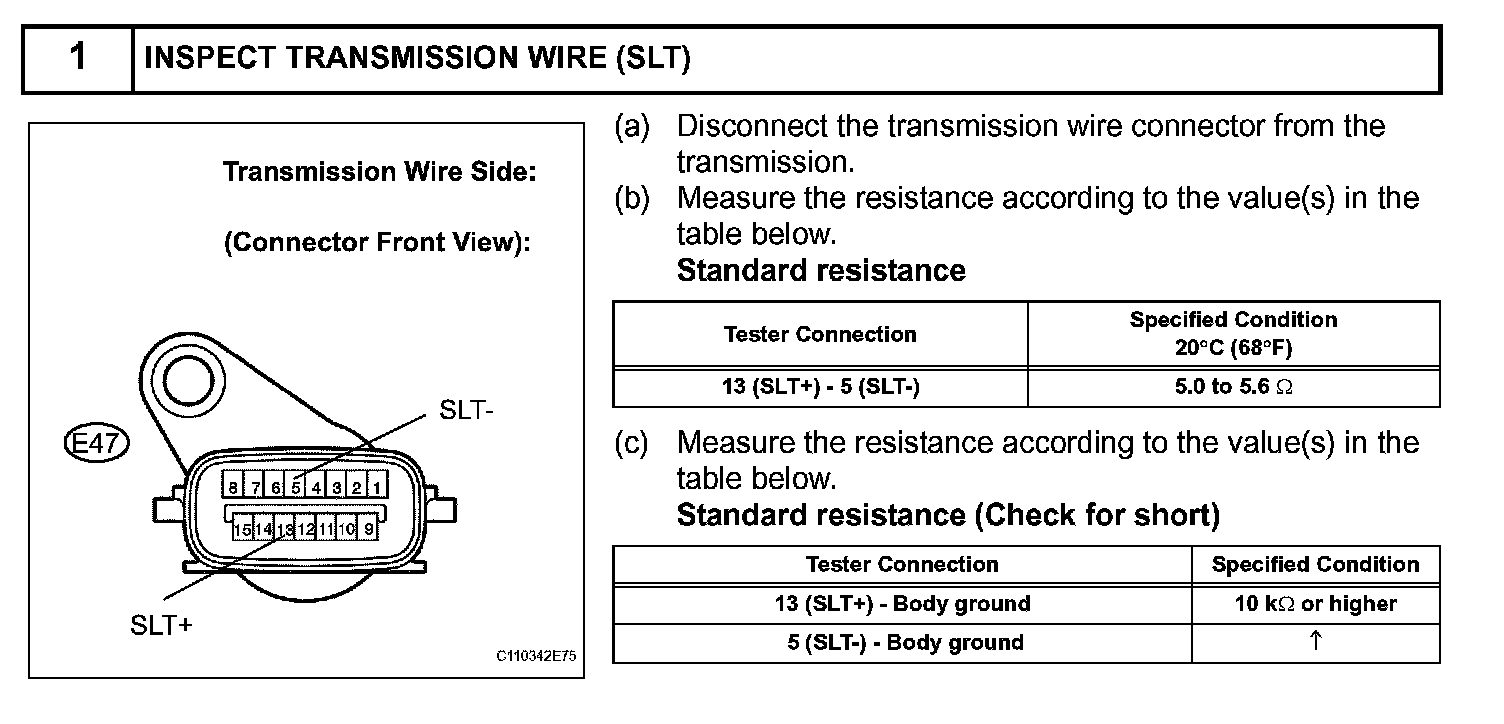

Step 1(Part 1):

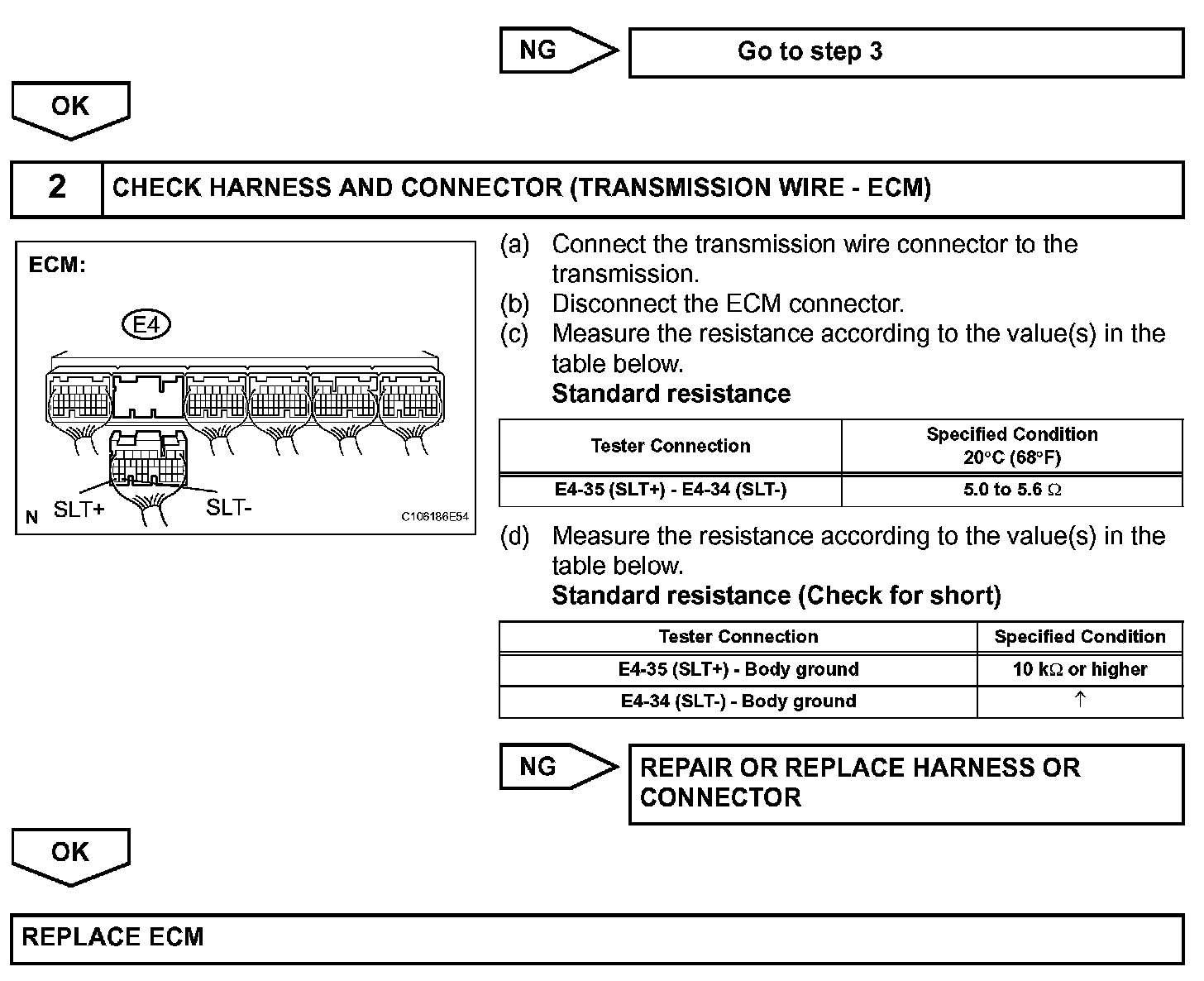

Steps 1(Part 2)-2:

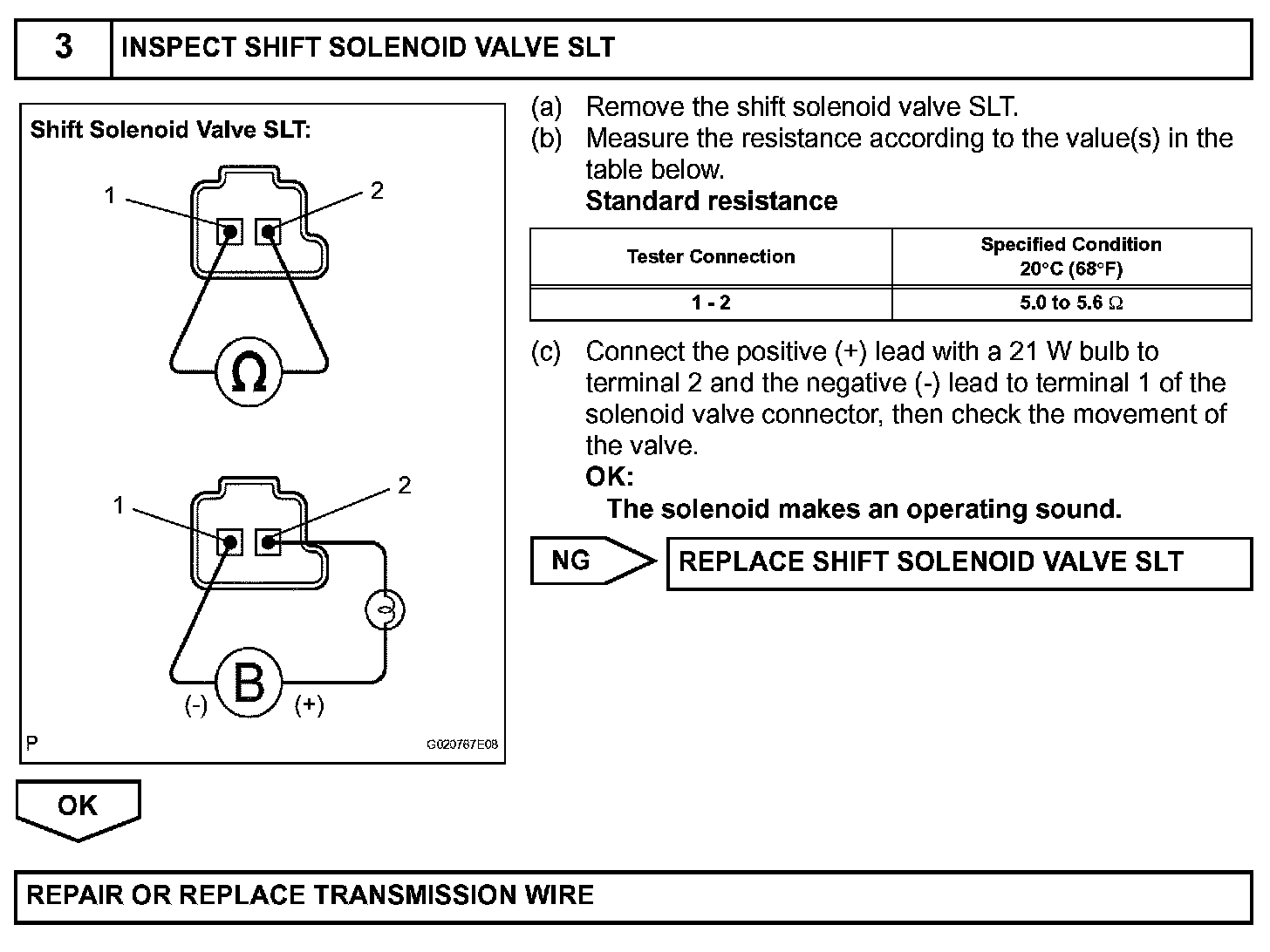

Step 3:
