DTC P2009 Intake Manifold Runner Control Circuit Low (Bank 1)
DTC P2010 Intake Manifold Runner Control Circuit High (Bank 1)

DESCRIPTION

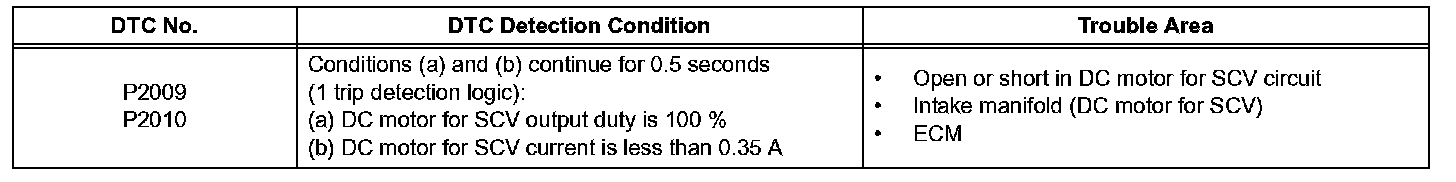

DTC Detection Condition:

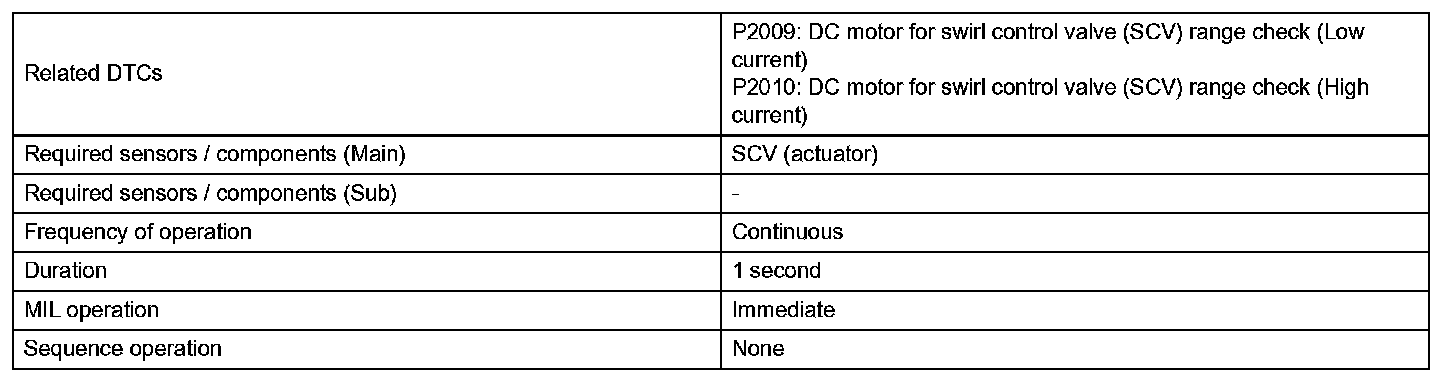

Monitor Strategy:

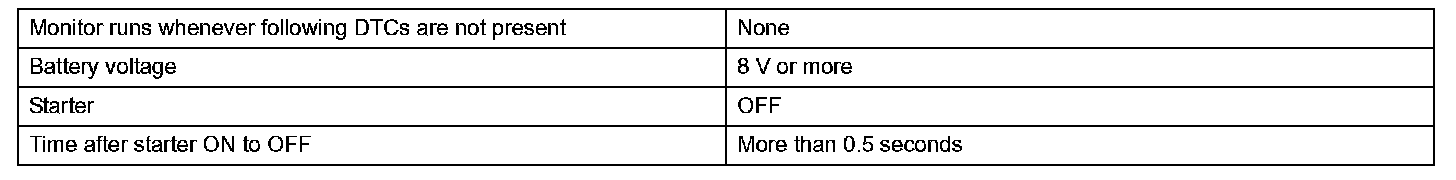

Typical Enabling Conditions:

Typical Malfunction Thresholds:

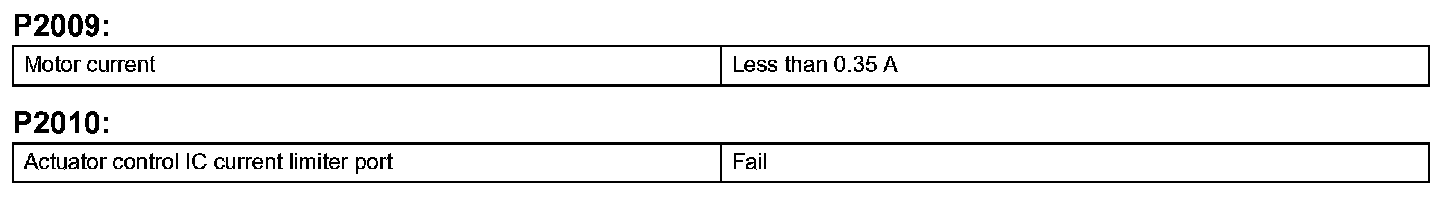

Component Operating Range:

The ECM activates the DC motor for Swirl Control Valve (SCV), which opens and closes SCV. The ECM activates the DC motor based on engine rpm, coolant temperature, engine load signals and other conditions. When the voltage of the DC motor deviates from the standard range, the ECM determines that a malfunction has occurred and outputs a DTC.

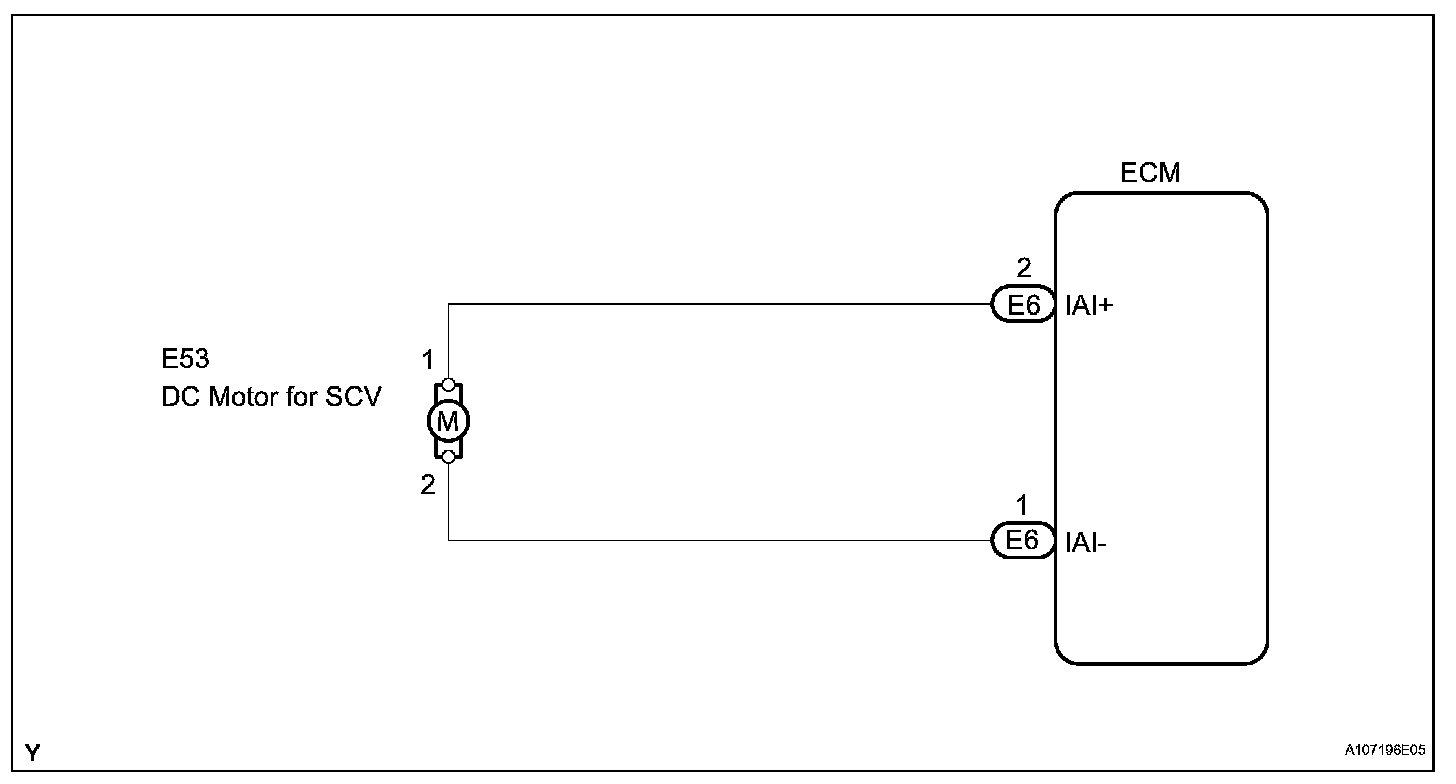

Wiring Diagram:

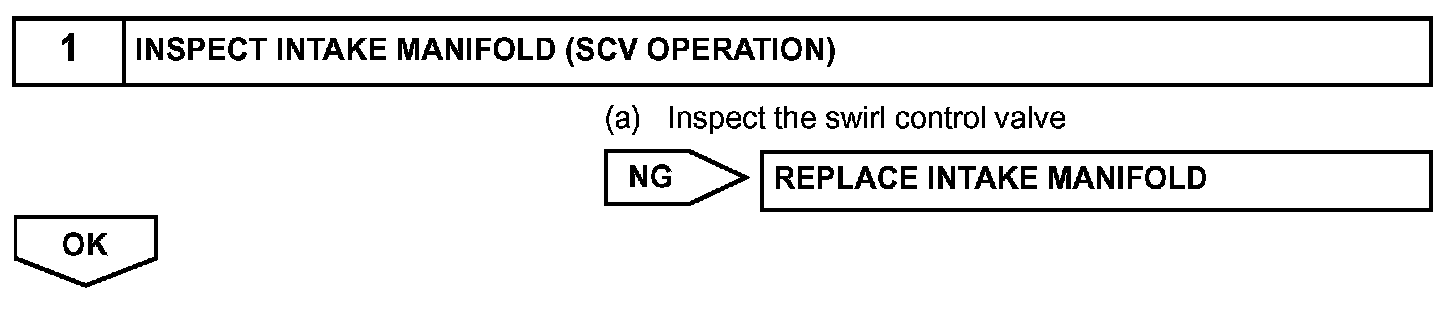

Step 1:

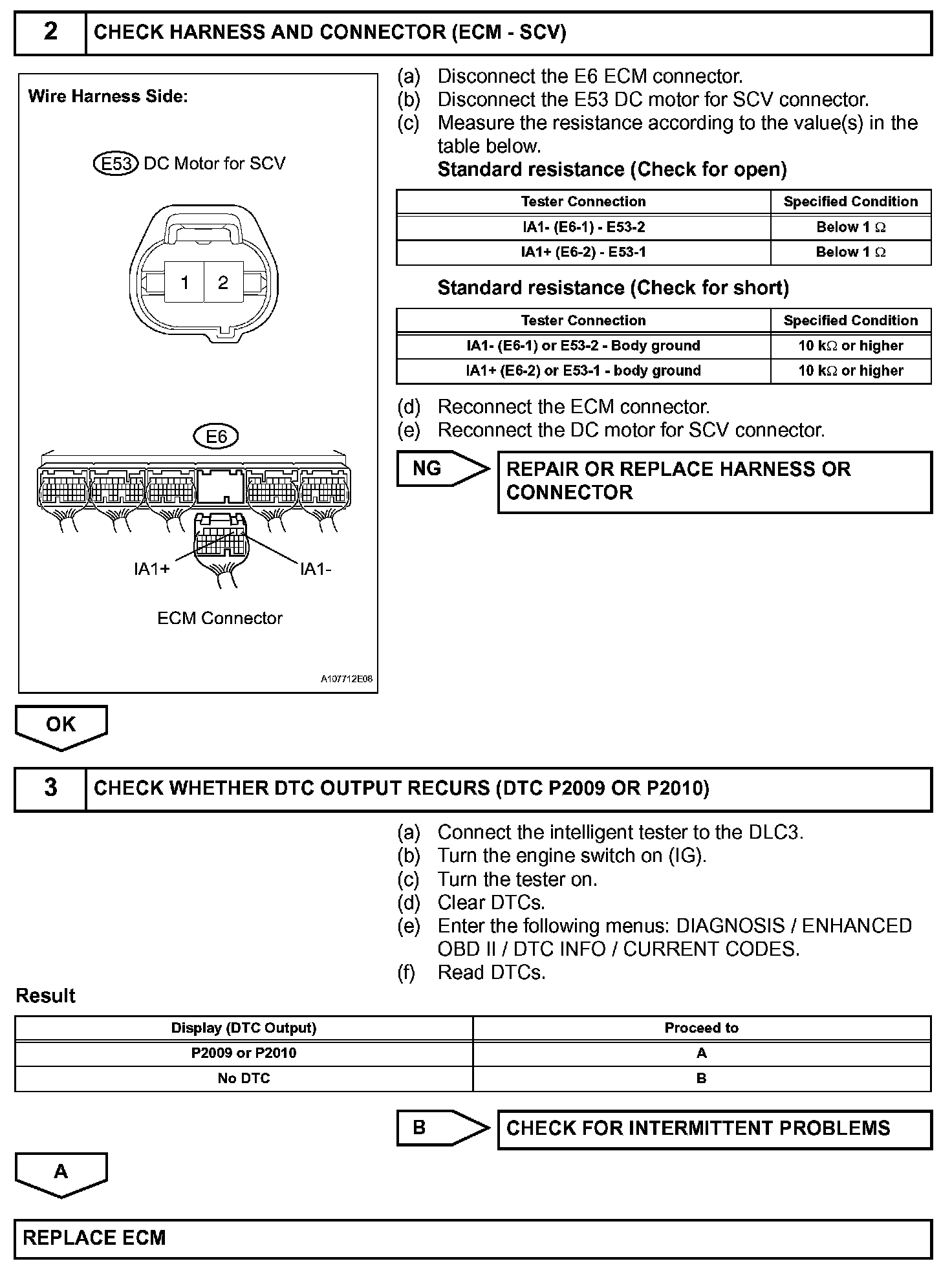

Step 2-3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
