P12FF

DTC P0200 Injector Circuit / Open
DTC P0201 Injector Circuit / Open - (Cylinder 1)
DTC P0202 Injector Circuit / Open - (Cylinder 2)
DTC P0203 Injector Circuit / Open - (Cylinder 3)
DTC P0204 Injector Circuit / Open - (Cylinder 4)
DTC P0205 Injector Circuit / Open - (Cylinder 5)
DTC P0206 Injector Circuit / Open - (Cylinder 6)
DTC P12FF Electric Driver Unit

DESCRIPTION

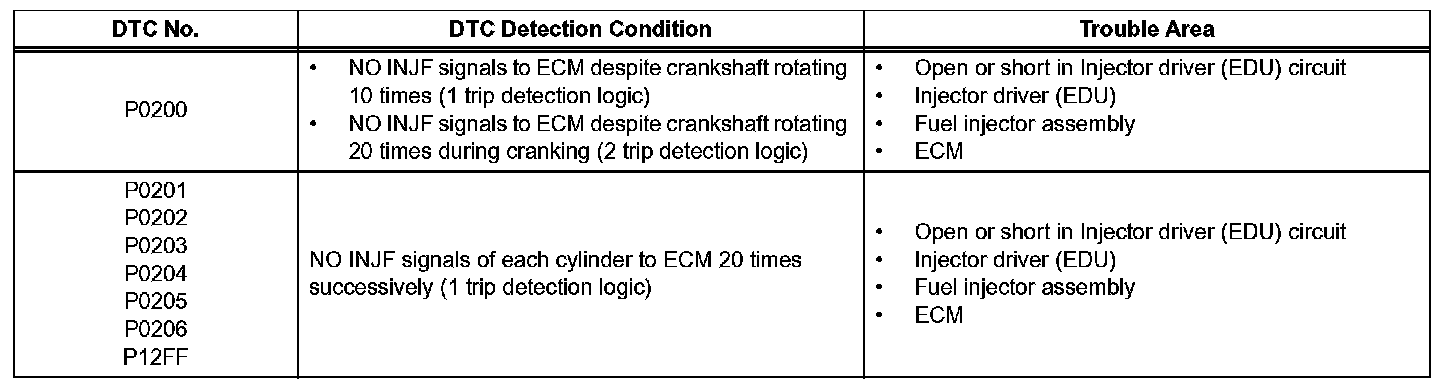

DTC Detection Condition:

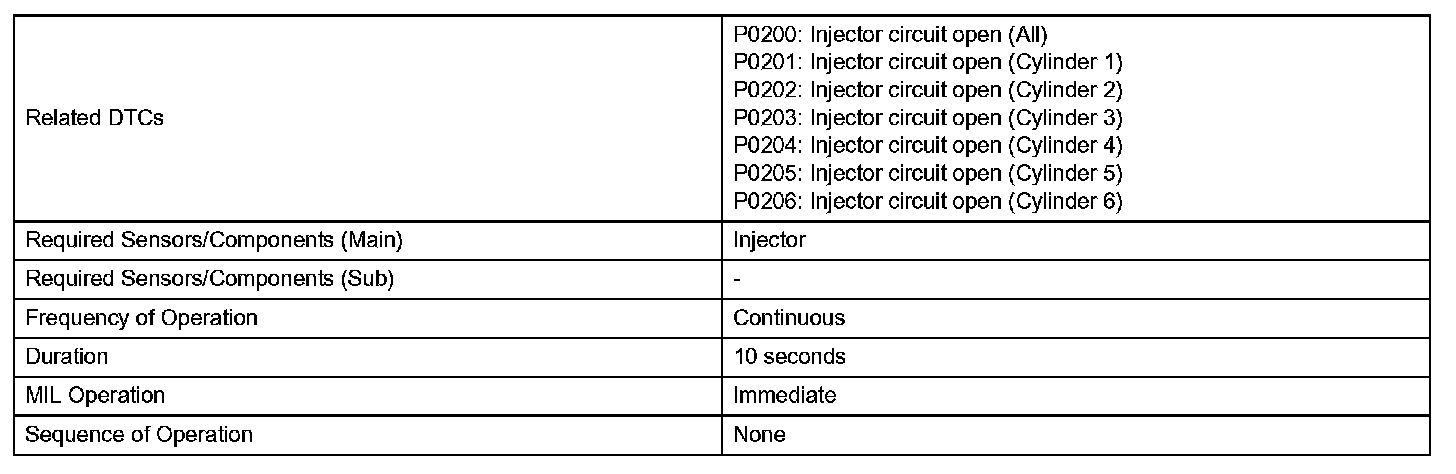

Monitor Strategy:

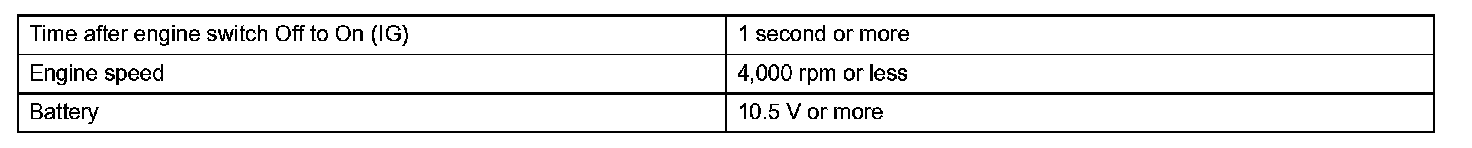

Typical Enabling Conditions:

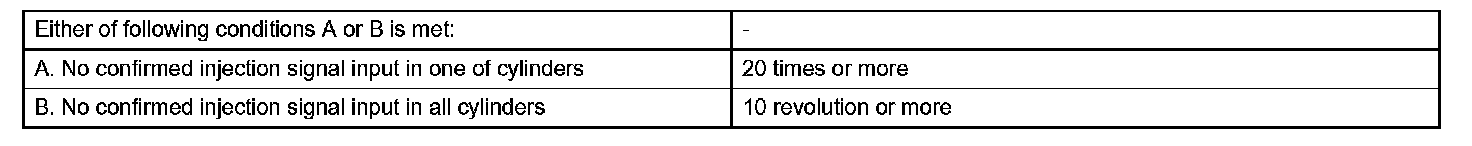

Typical Malfunction Thresholds:

The high speed activation of the high pressure fuel injector is possible through the high-voltage, rapid-recharge DC/DC converter. Using high pressure fuel, the atomized fuel's injection timing can be accurately controlled, which decreases emissions and fuel consumption. The steady ECM checks the injector driver movement. When the injector driver or injector has a malfunction, the injection control of the relevant cylinder is stopped or power to the injector relay is cut. Then the ECM illuminates the check engine warning light.

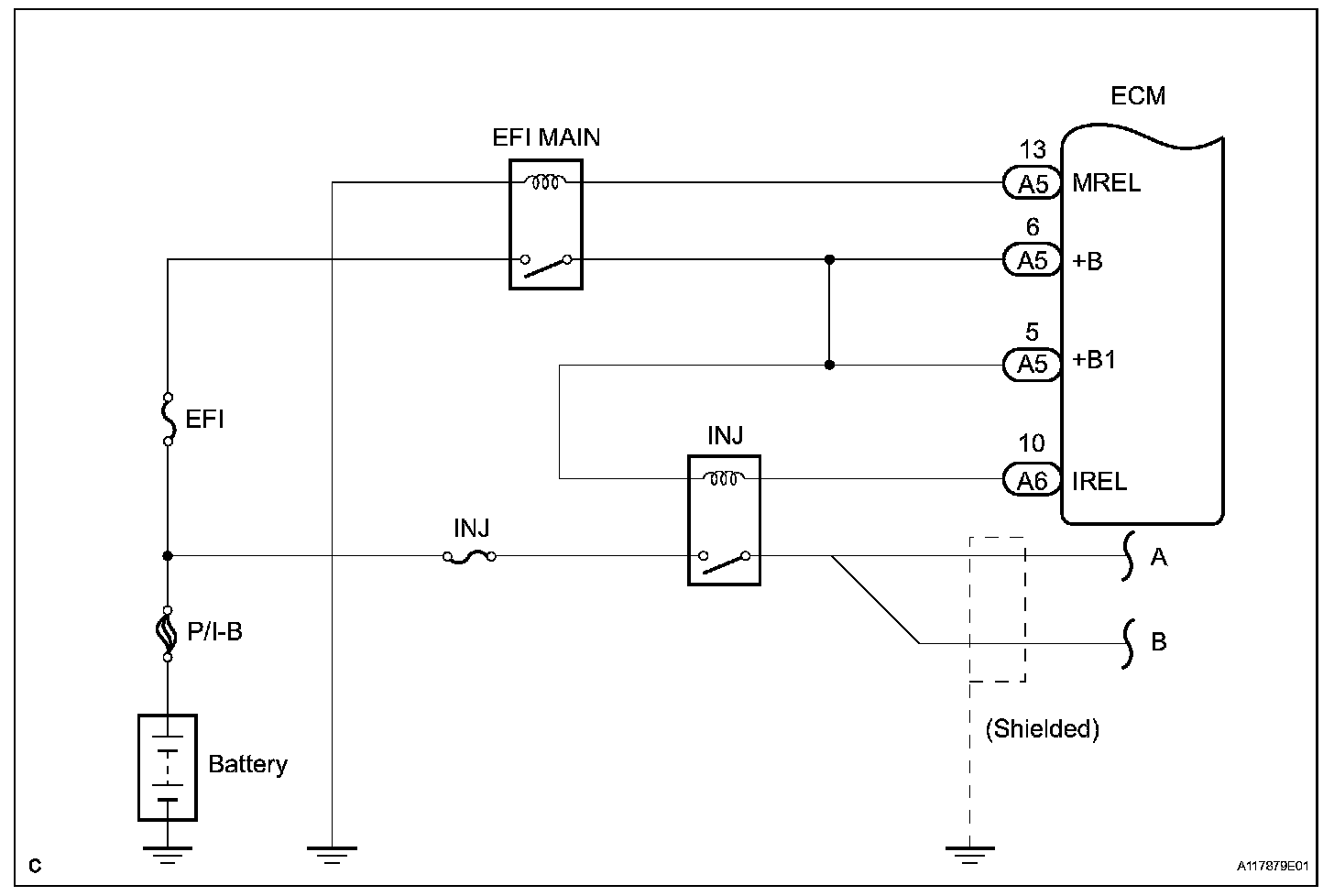

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

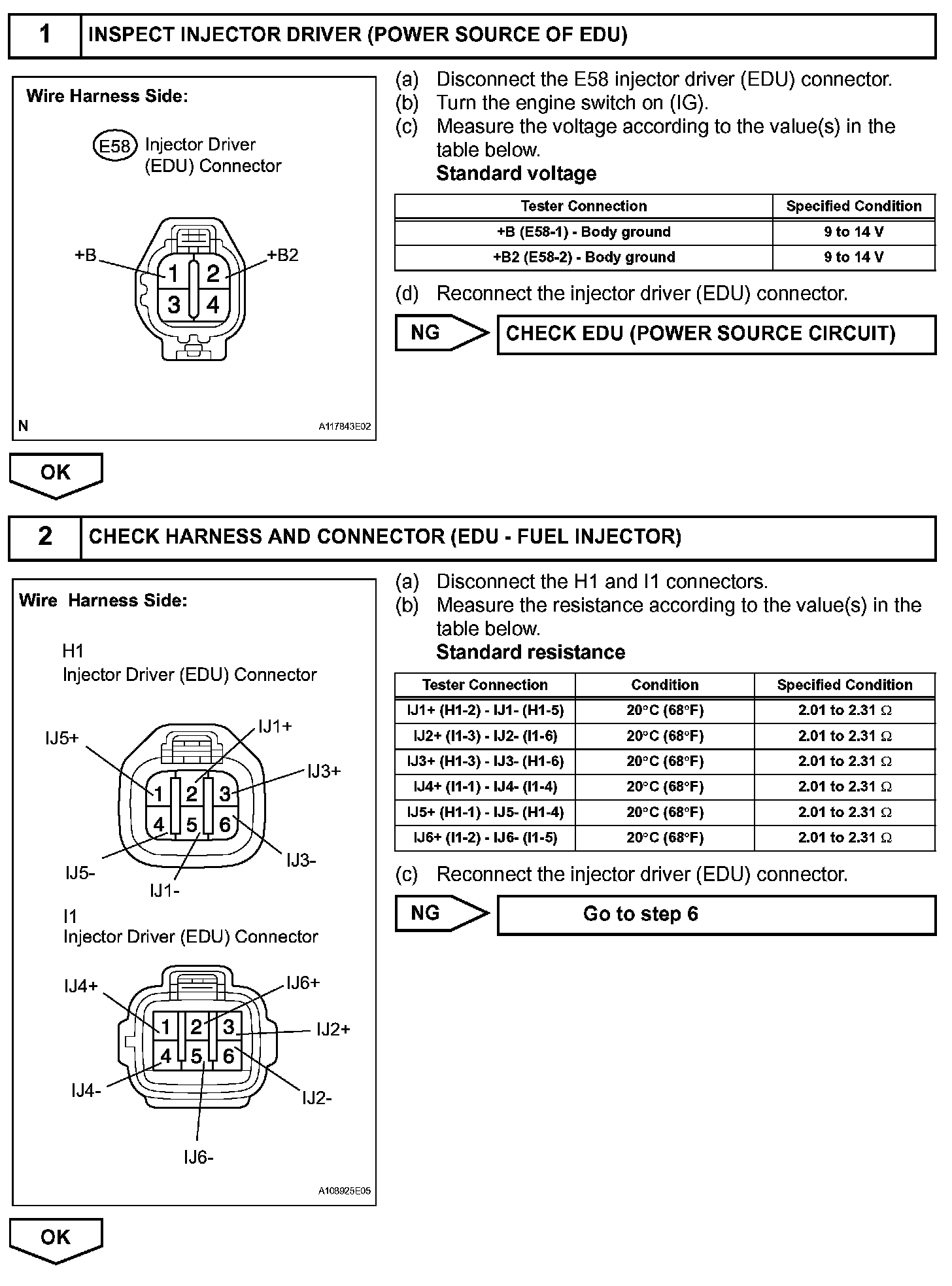

Step 1-2:

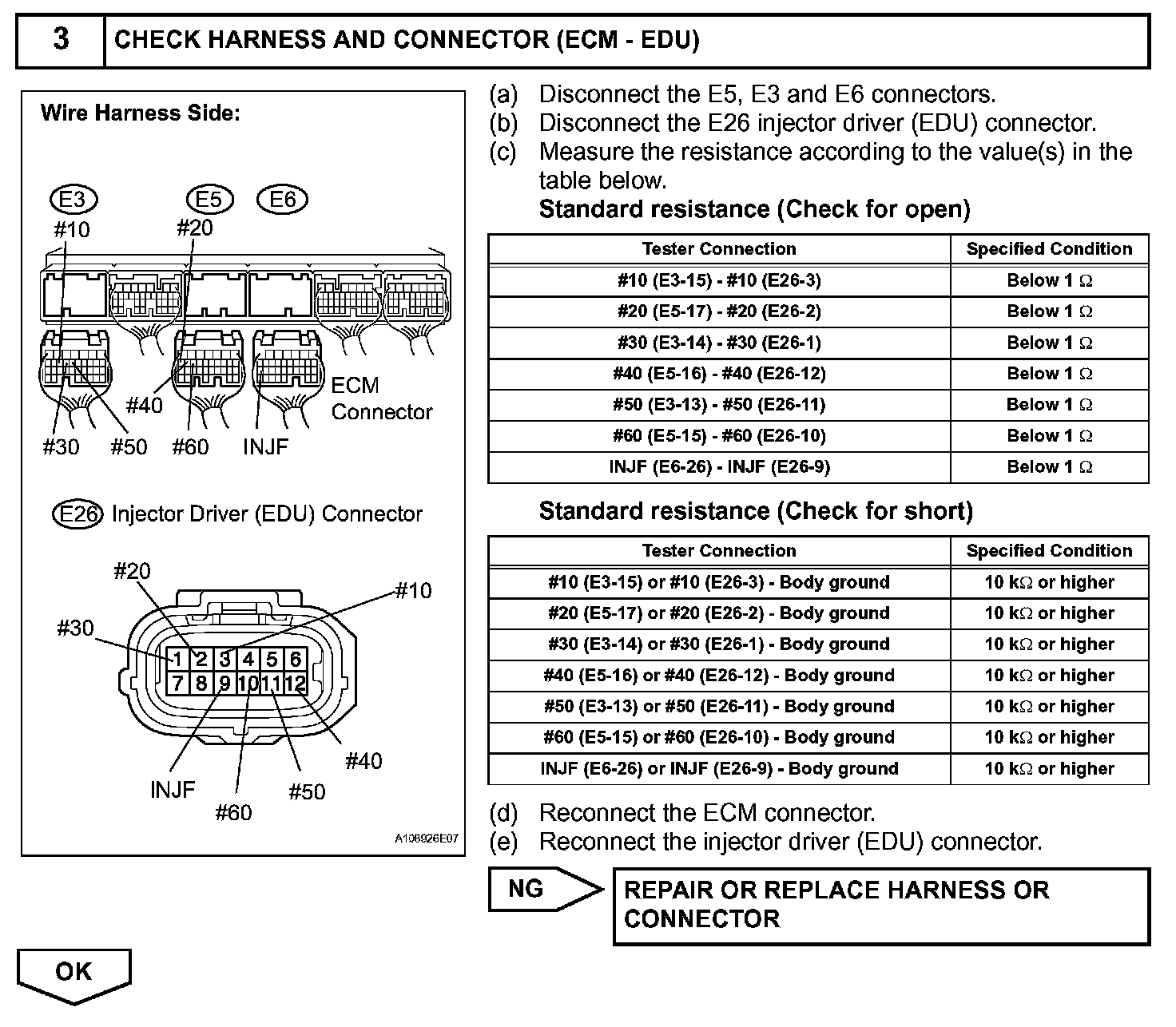

Step 3:

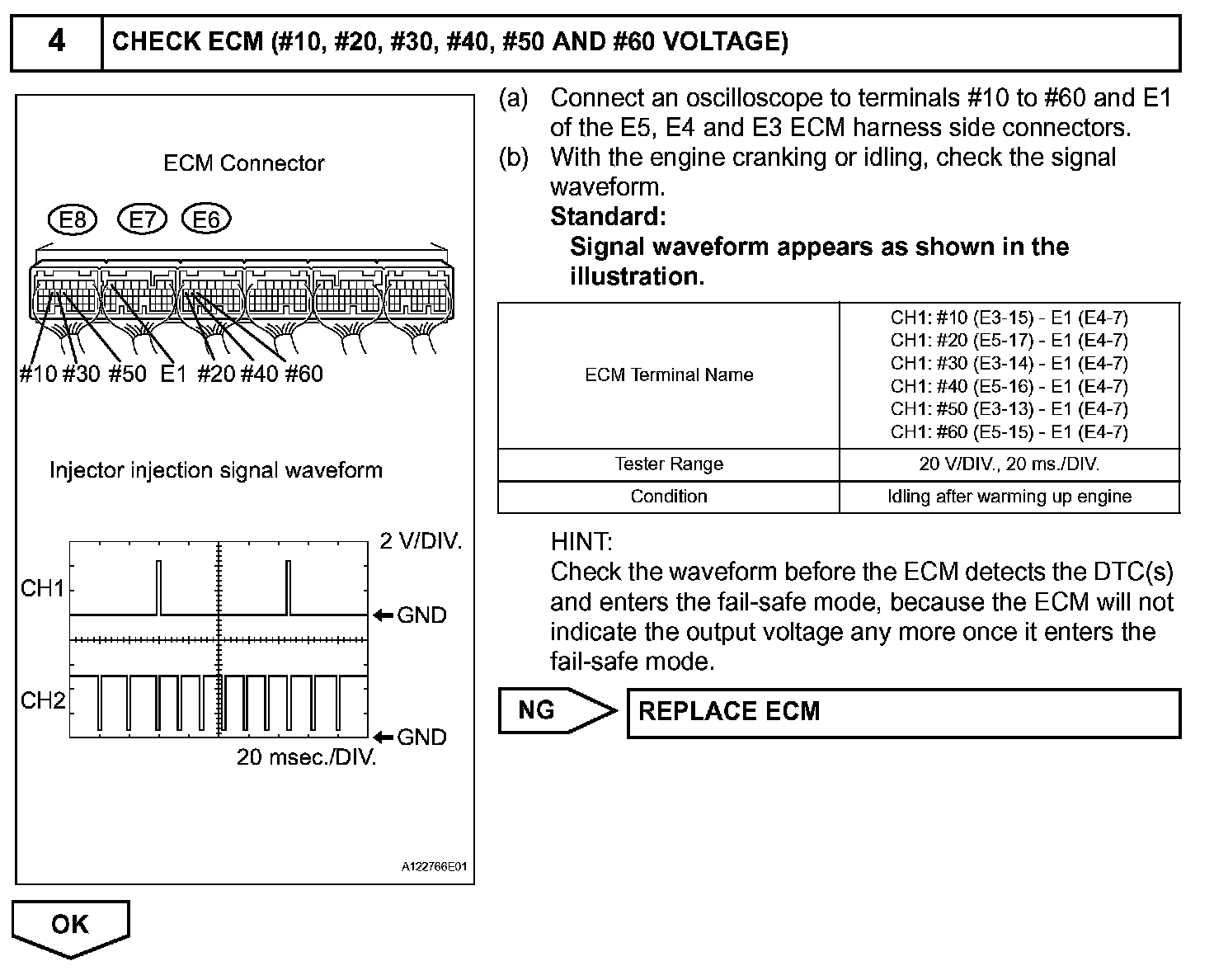

Step 4:

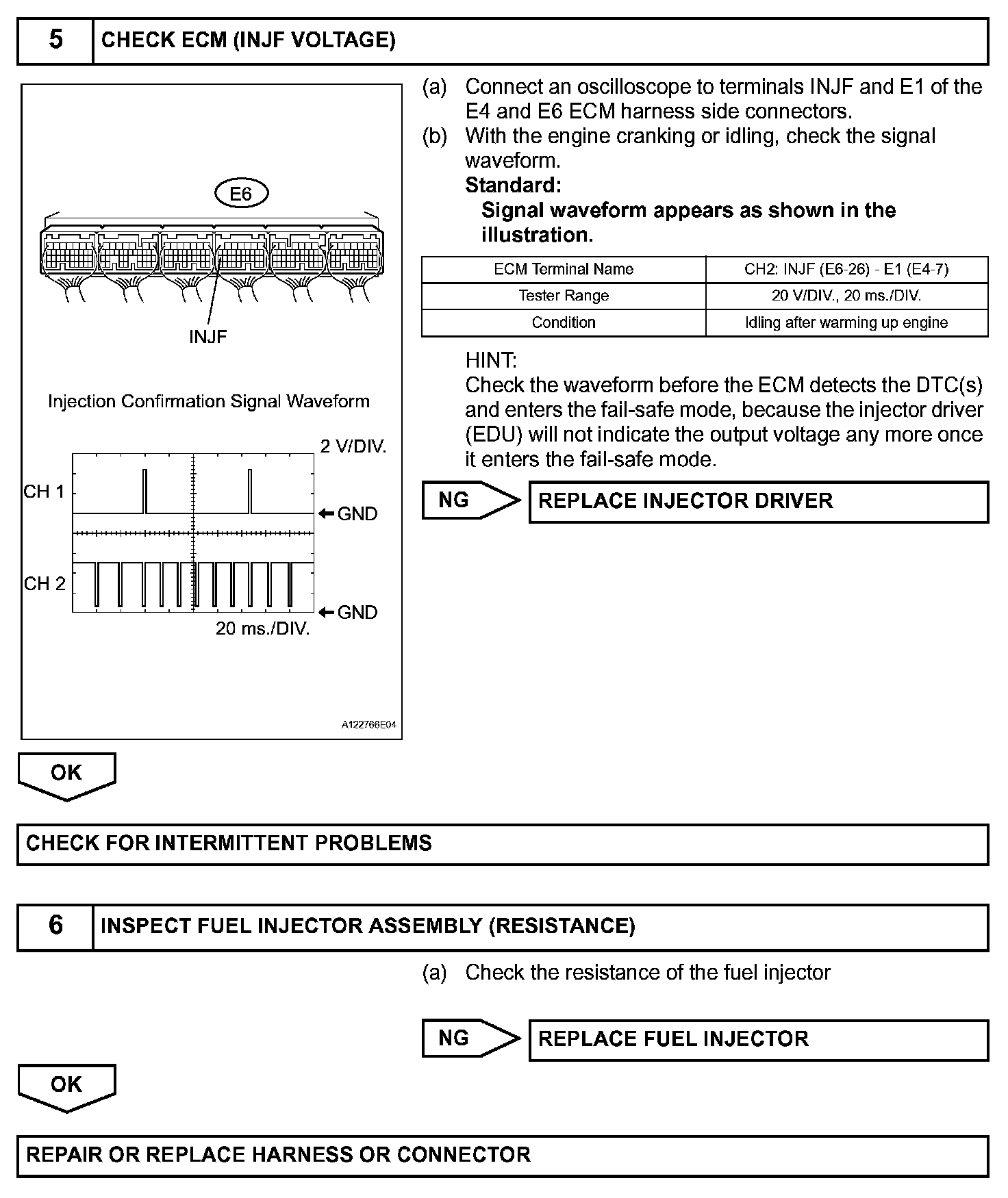

Step 5-6:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
