P1235

DTC P1235 High Pressure Fuel Pump Circuit

DESCRIPTION

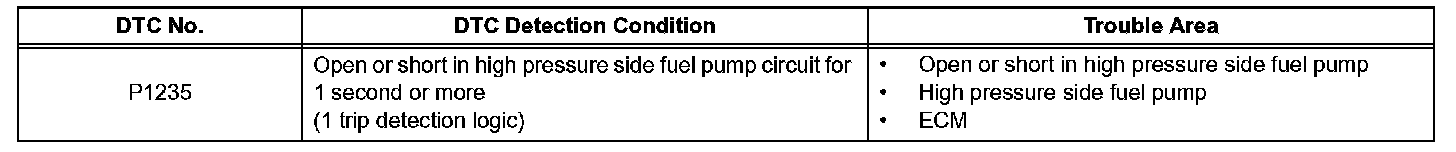

DTC Detection Condition:

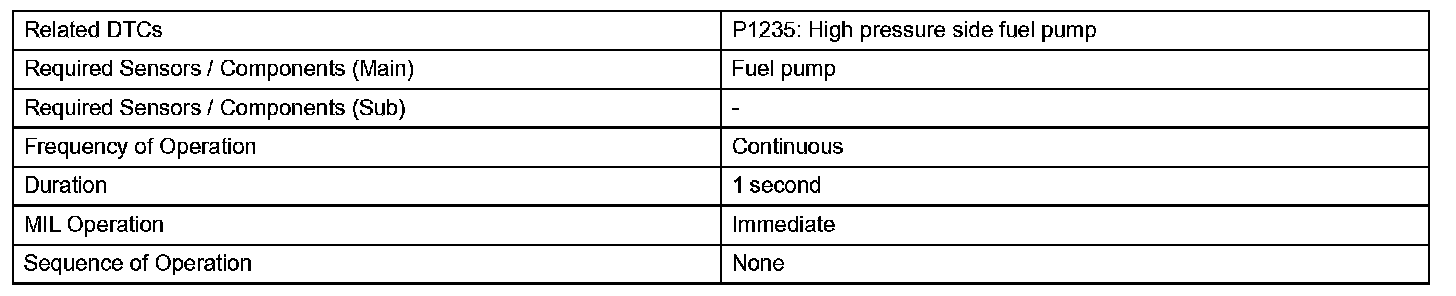

Monitor Strategy:

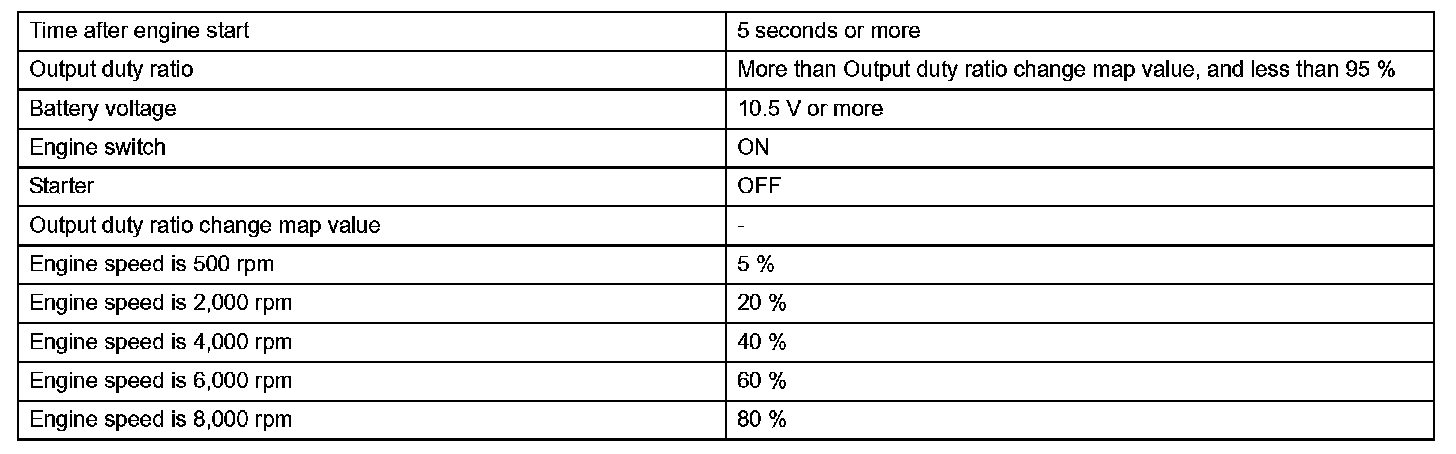

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The high pressure side fuel pump is attached to the insulator, which is attached to the cylinder head cover. The pump activates according to the position of the cam on the exhaust side camshaft (right bank). The high pressure side fuel pump increases the pressure of the fuel supplied from the fuel pump in the fuel tank to 4 to 13 MPa (40.8 to 132.6 kgf/cm, 580 to 1,885 psi) according to the operating condition, and it feeds the fuel to the fuel delivery pipe.

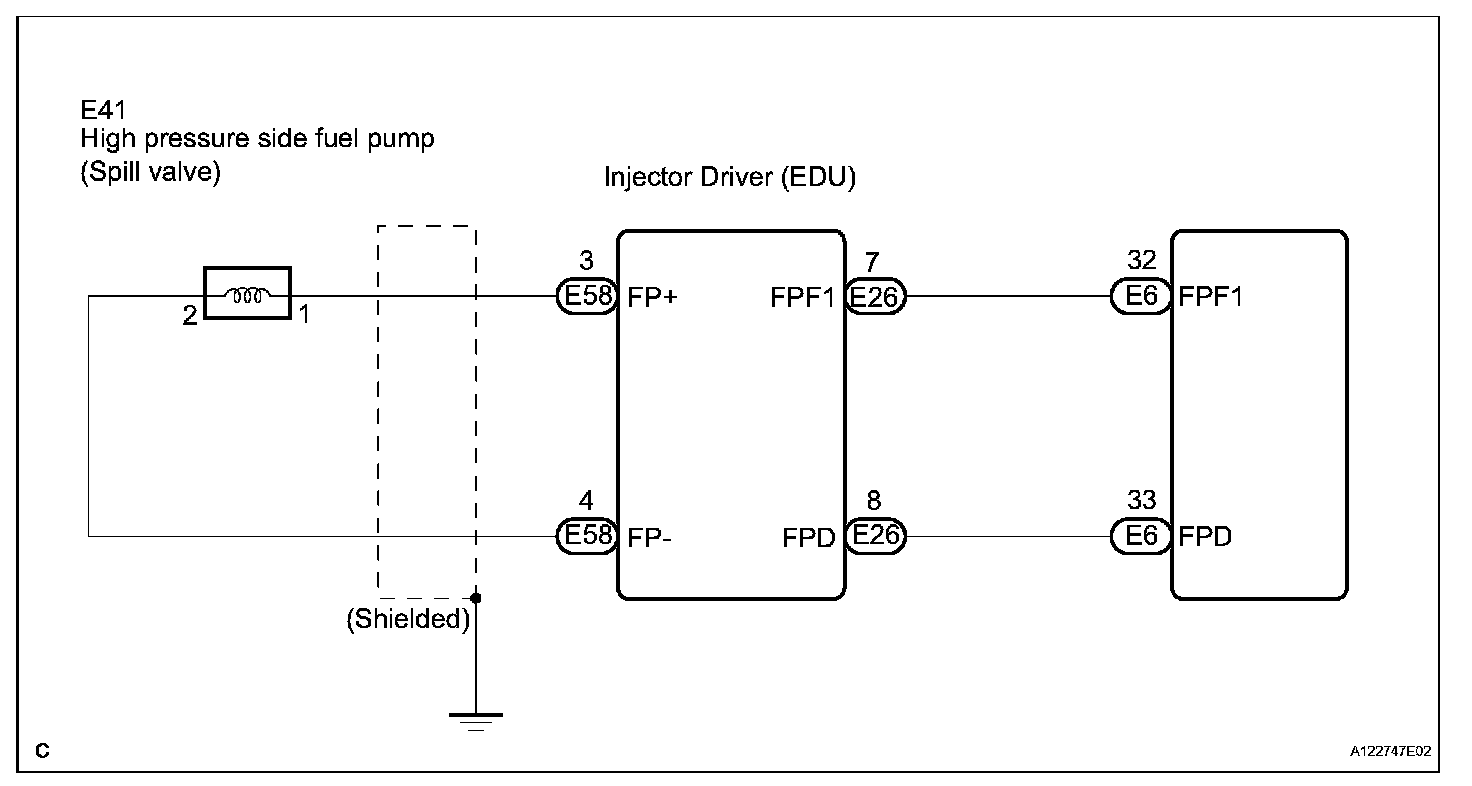

Wiring Diagram:

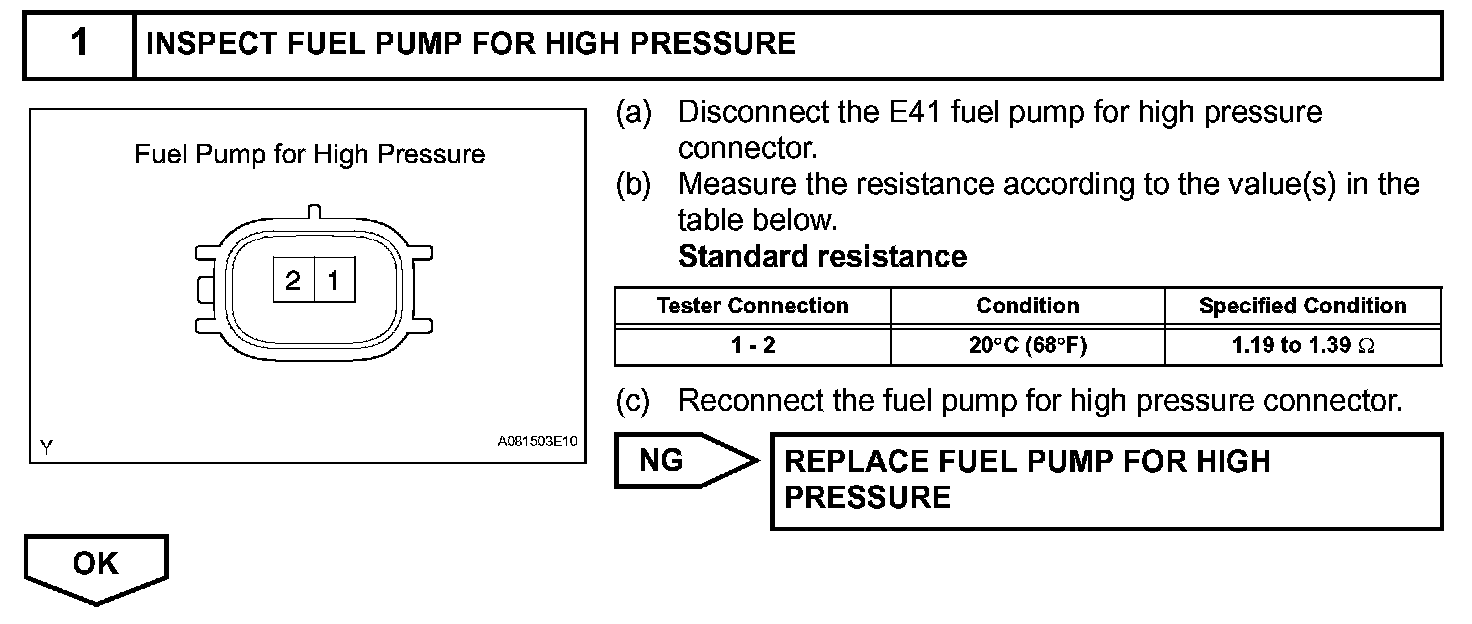

Step 1:

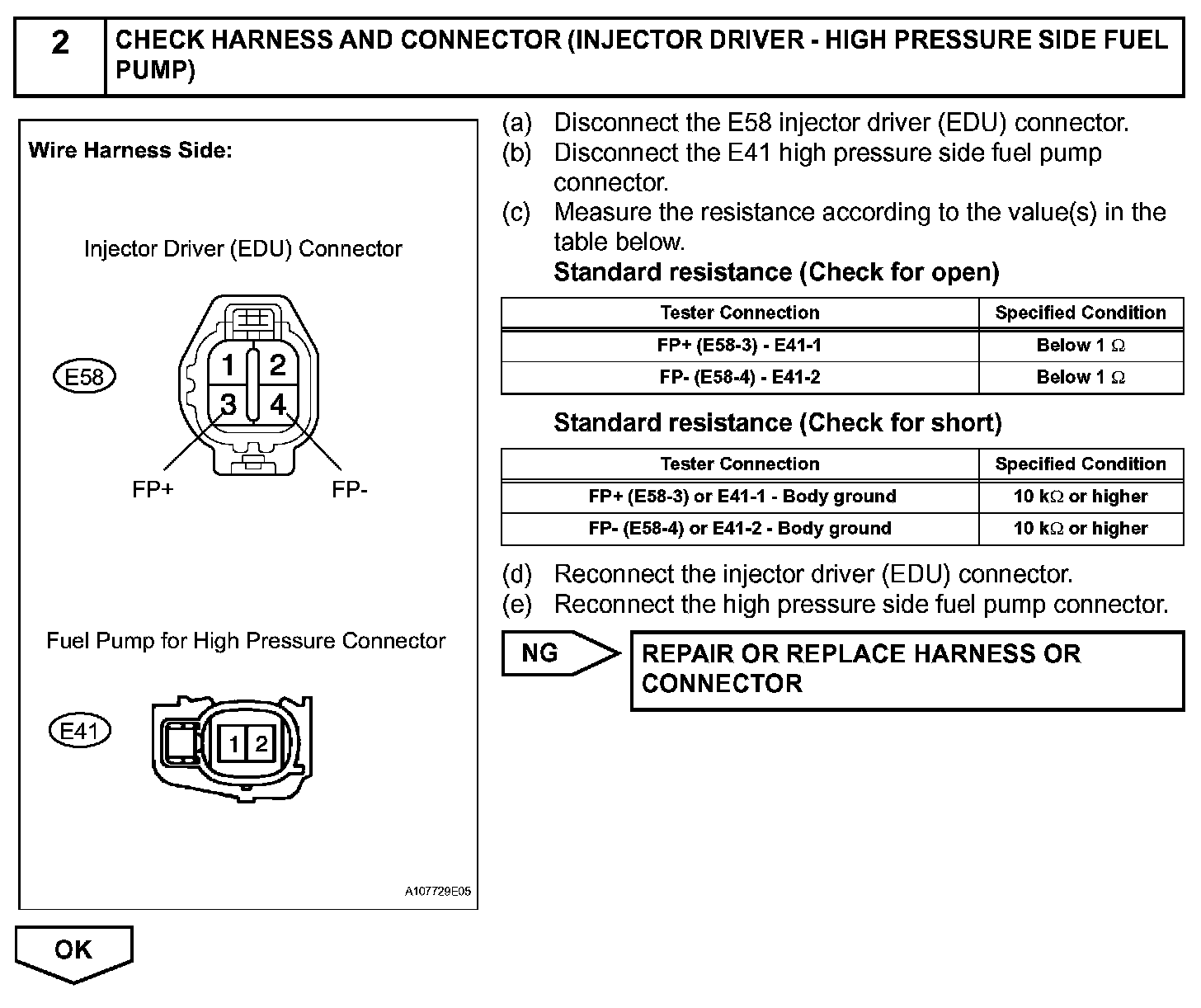

Step 2:

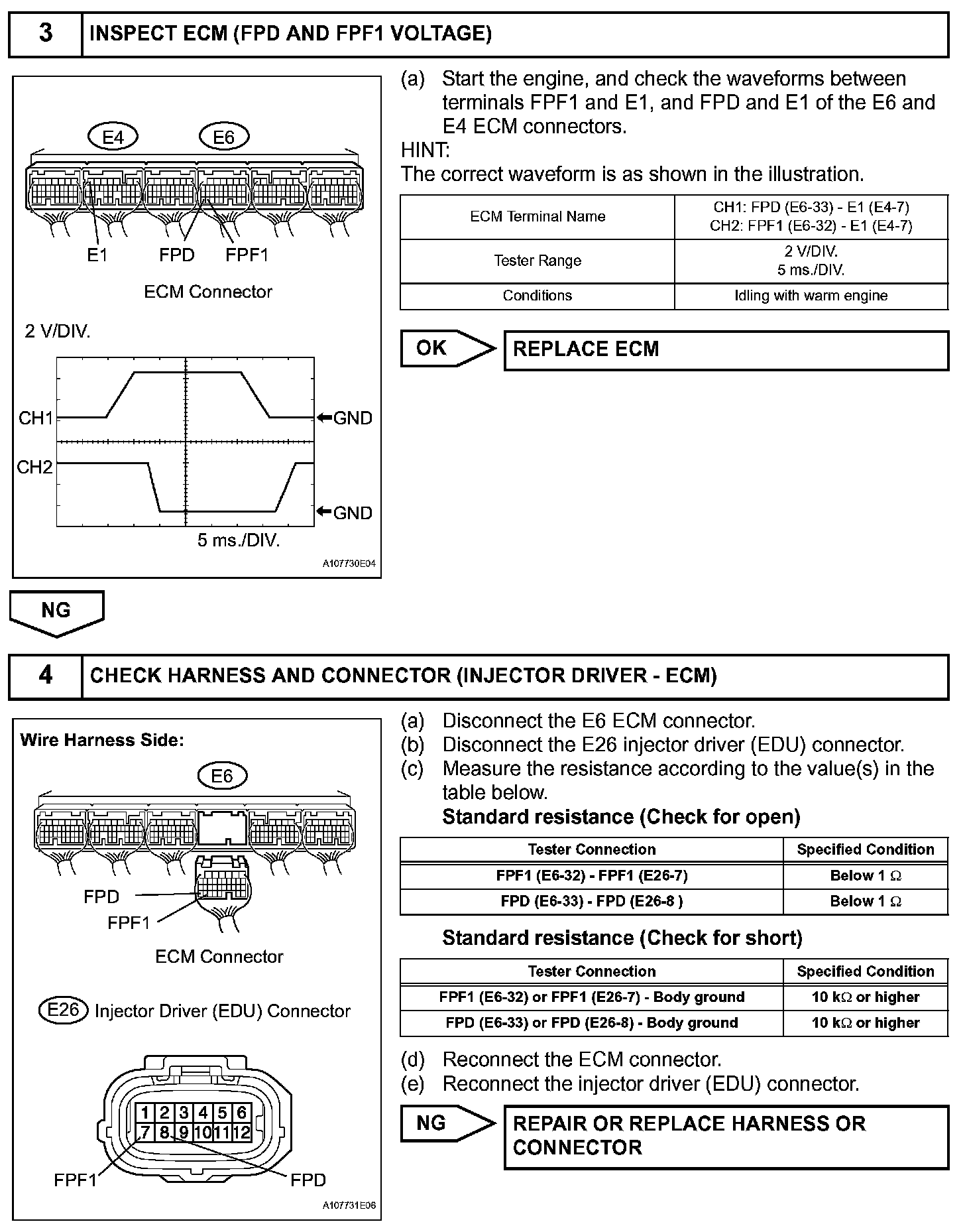

Step 3-4:

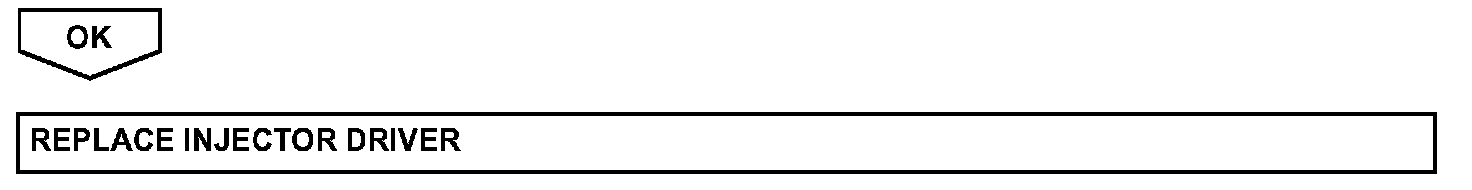

Step 4(Continued):

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
