P0606
DTC P0606 ECM / PCM ProcessorDESCRIPTION

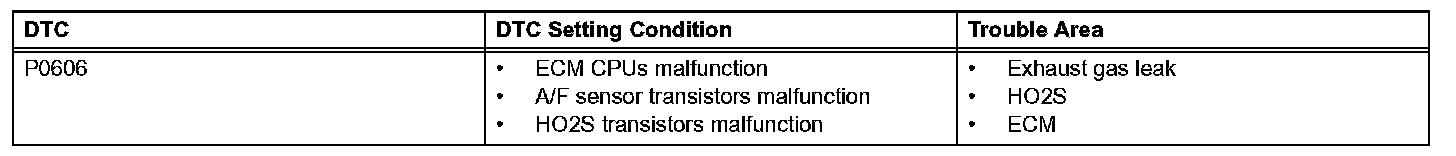

DTC Setting Condition:

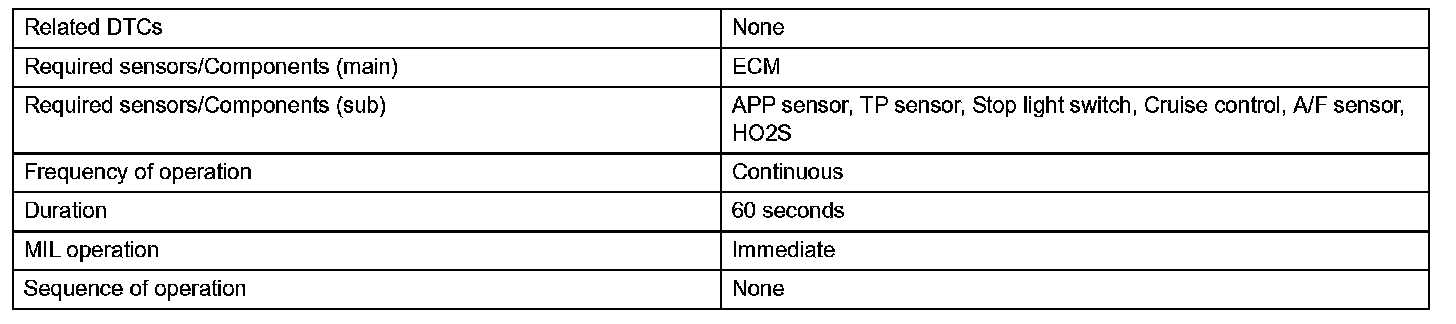

Monitor Strategy:

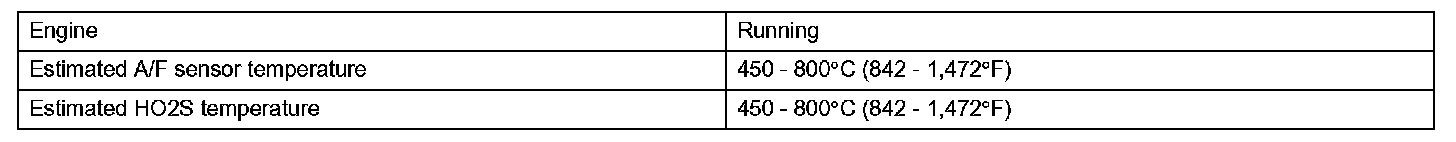

Typical Enabling Conditions:

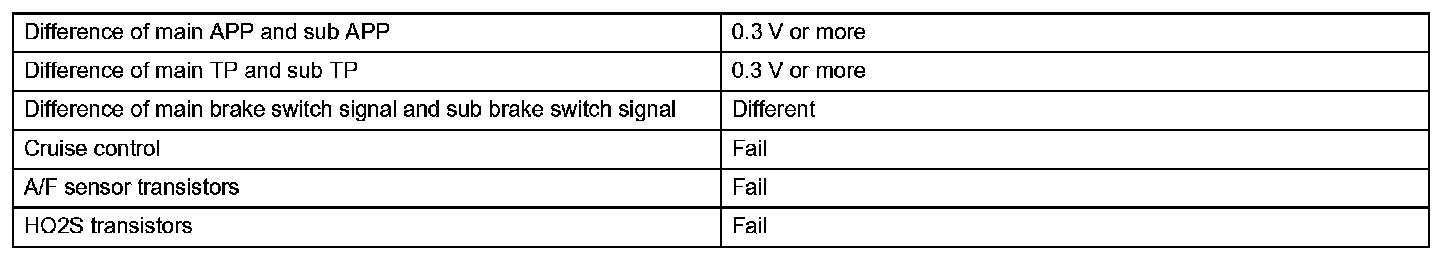

Typical Malfunction Thresholds:
The ECM continuously monitors its internal processors (CPUs), A/F sensor transistors and heated oxygen sensor (HO2S) transistors. This self-check ensures that the ECM functioning properly. These are diagnosed by internal "mirroring" of the main and sub CPUs to detect the processors error. If outputs from the processors deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.
NOTE: First check for an exhaust gas leak around the HO2S if P0606 is present. An exhaust gas leak generates noise in the HO2S output. The ECM may interpret this an HO2S transistor malfunction and set P0606.

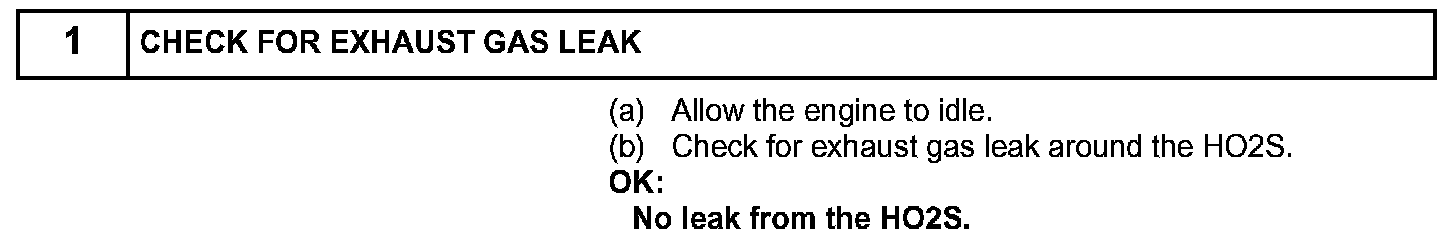

Step 1:

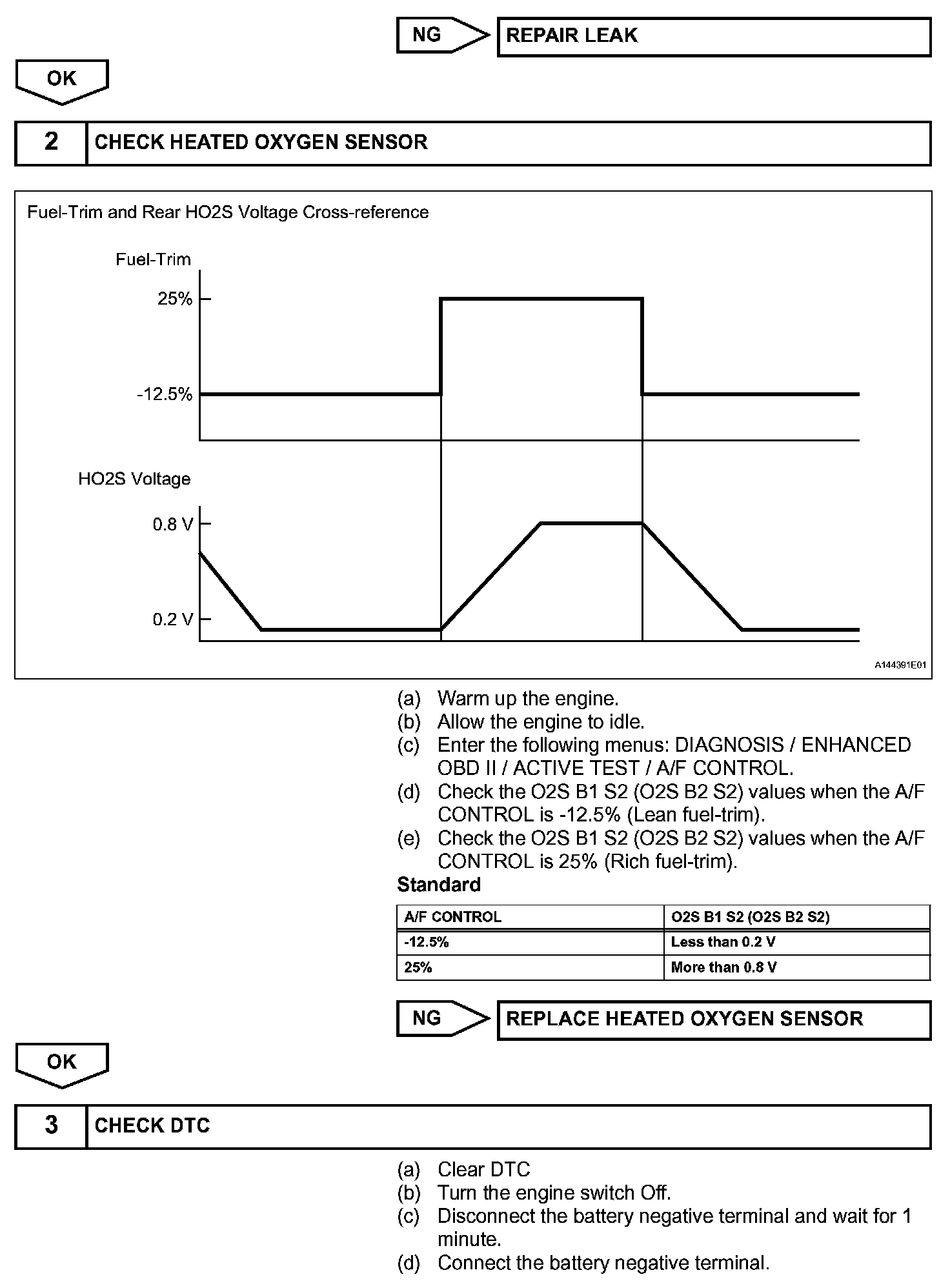

Step 1(Continued)-3:

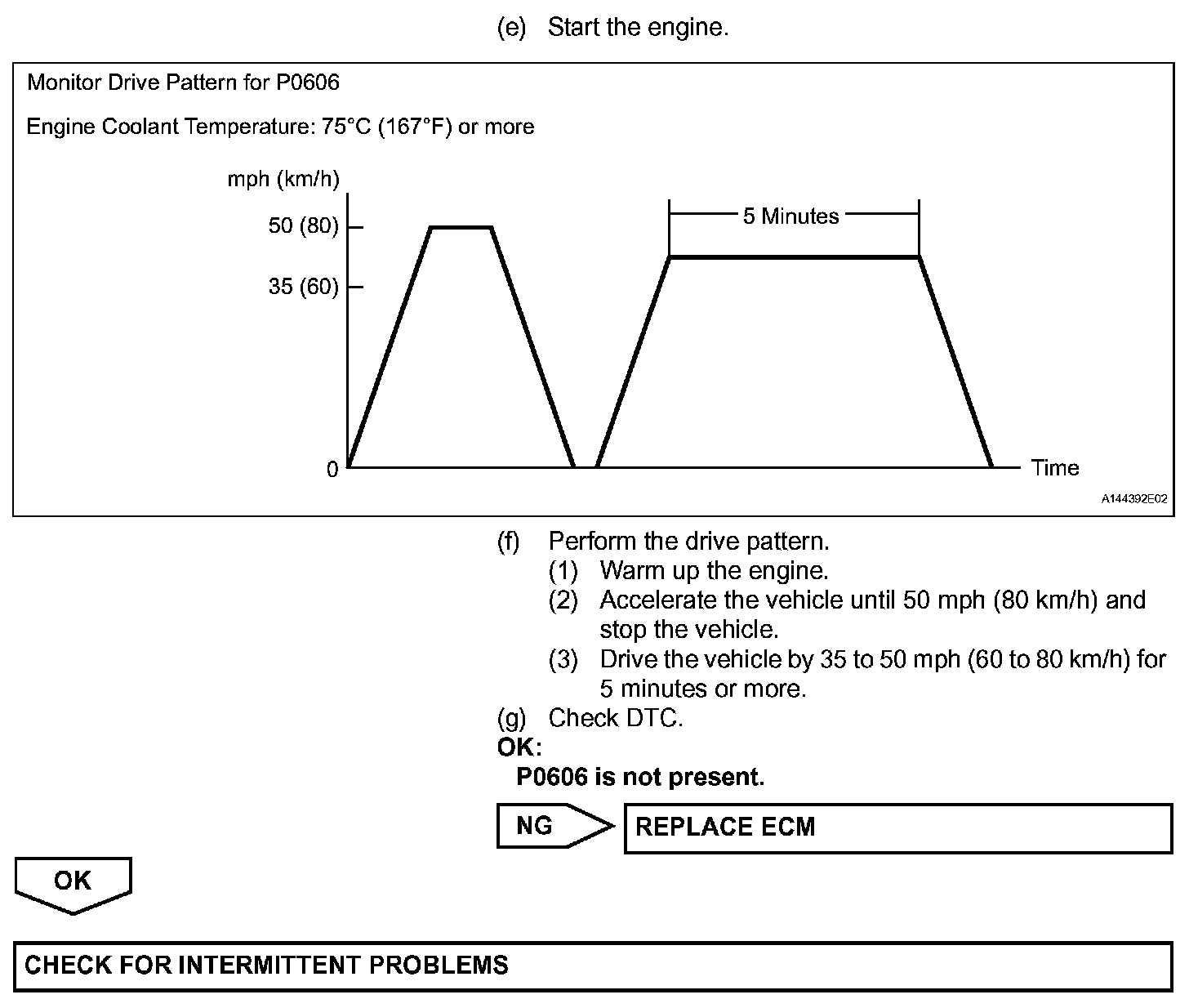

Step 3(Continued):
INSPECTION PROCEDURE
