P0560

DTC P0560 System Voltage

DESCRIPTION

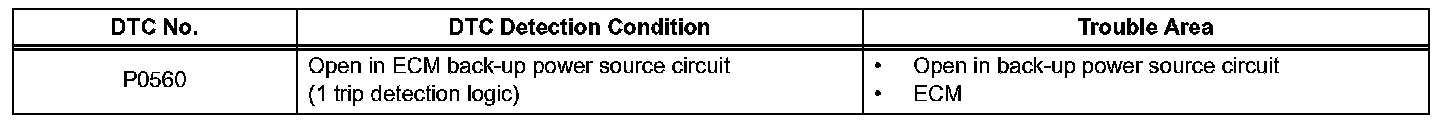

DTC Detection Condition:

Monitor Strategy:

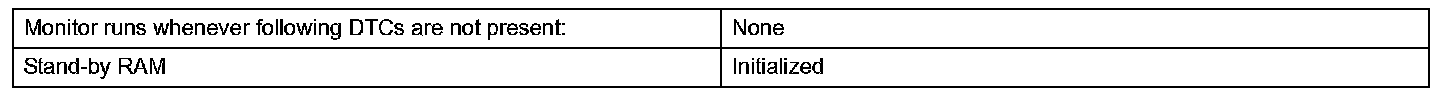

Typical Enabling Conditions:

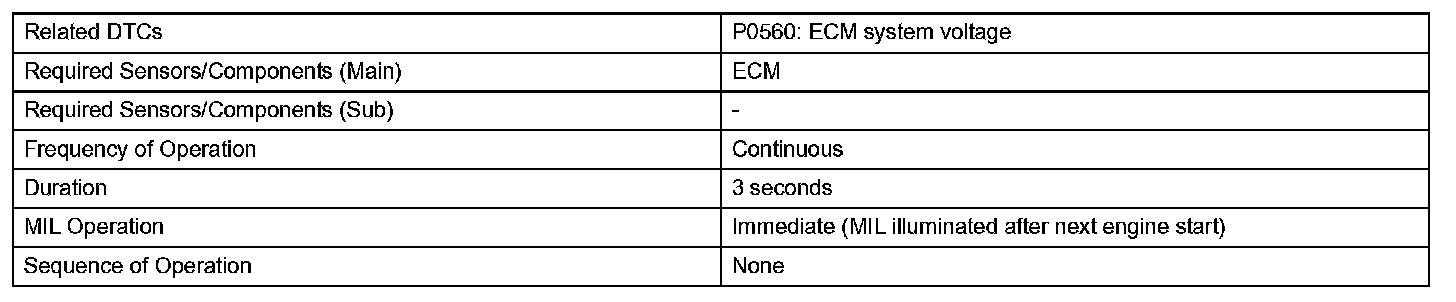

Typical Malfunction Thresholds:

The battery supplies electricity to the ECM even when the engine switch is off. This power allows the ECM to store data such as DTC history, freeze frame data and fuel trim values. If the battery voltage falls a minimum level, these memories are cleared and the ECM determines that there is a malfunction in the power supply circuit. When the engine is next started, the ECM will illuminate the MIL and set the DTC.

HINT: If DTC P0560 is set, the ECM does not store other DTCs.

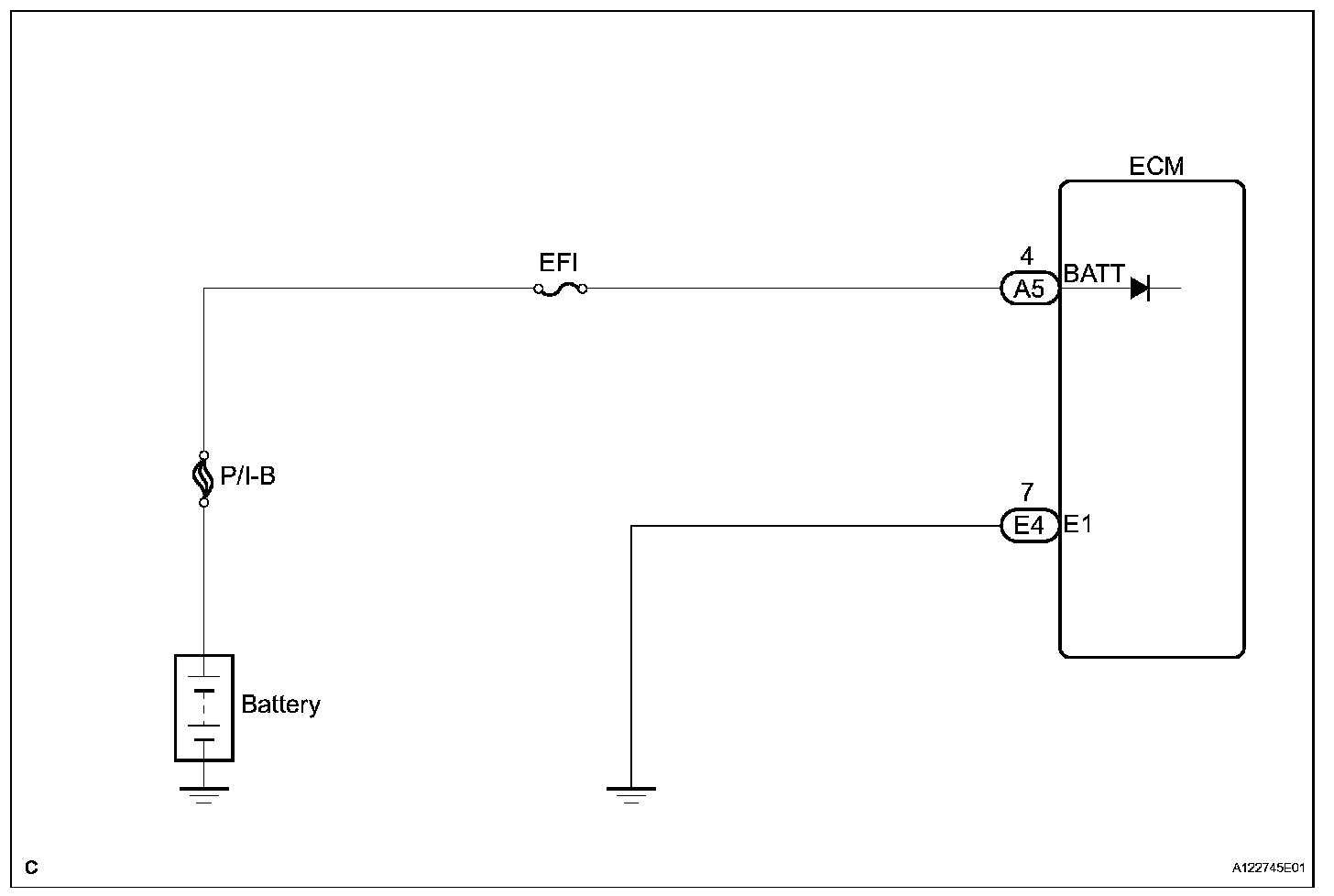

Wiring Diagram:

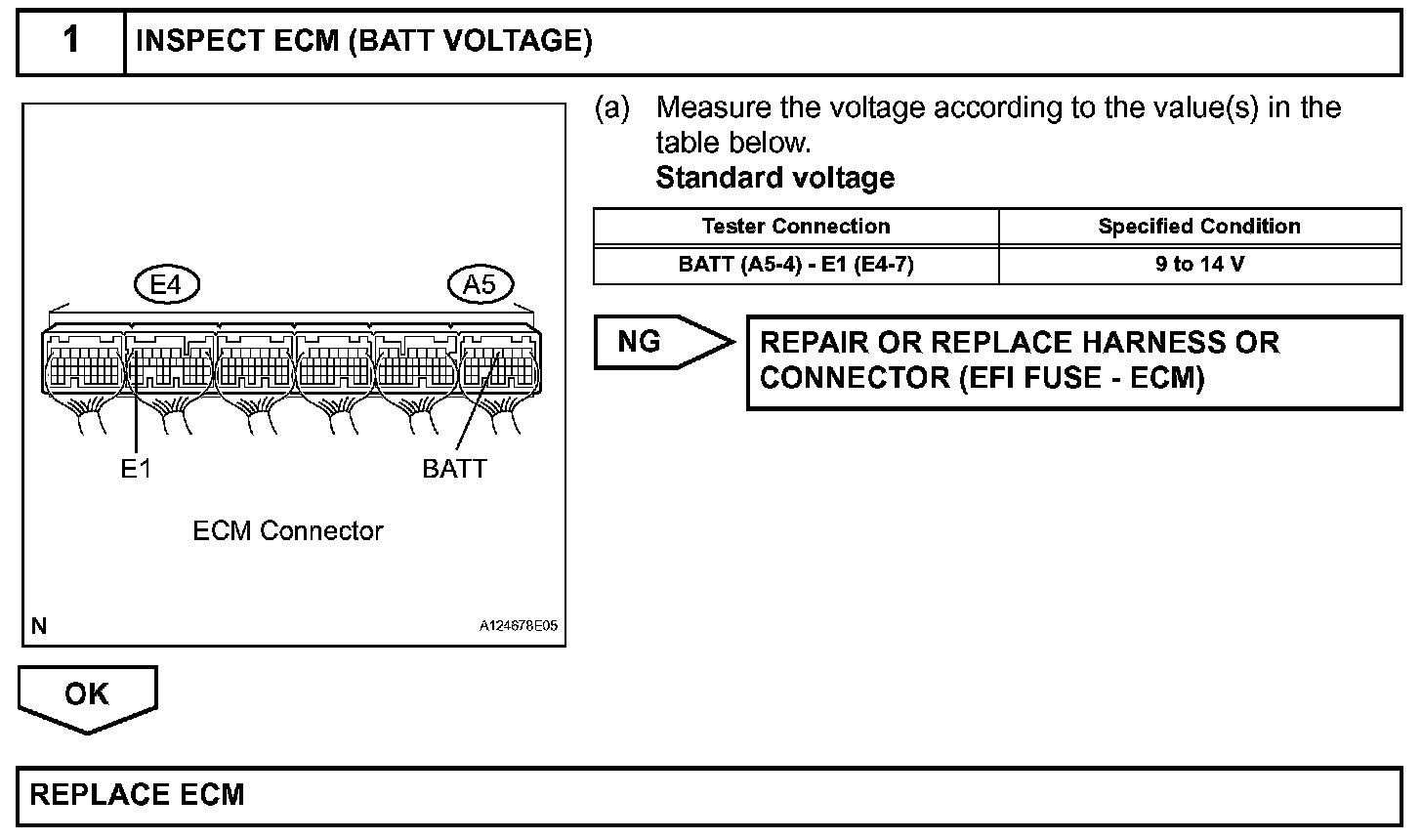

Step 1:

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
