DTC 37

DTC B1655/37 Driver Side Seat Belt Buckle Switch Circuit Malfunction

DESCRIPTION

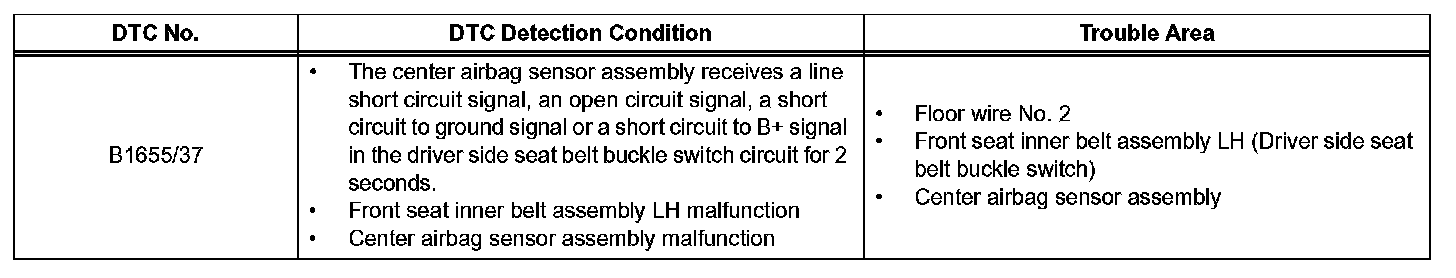

DTC Detection Condition:

The driver side seat belt buckle switch circuit consists of the center airbag sensor assembly and the front seat inner belt assembly LH.

DTC B1655/37 is recorded when a malfunction is detected in the driver side seat belt buckle switch circuit.

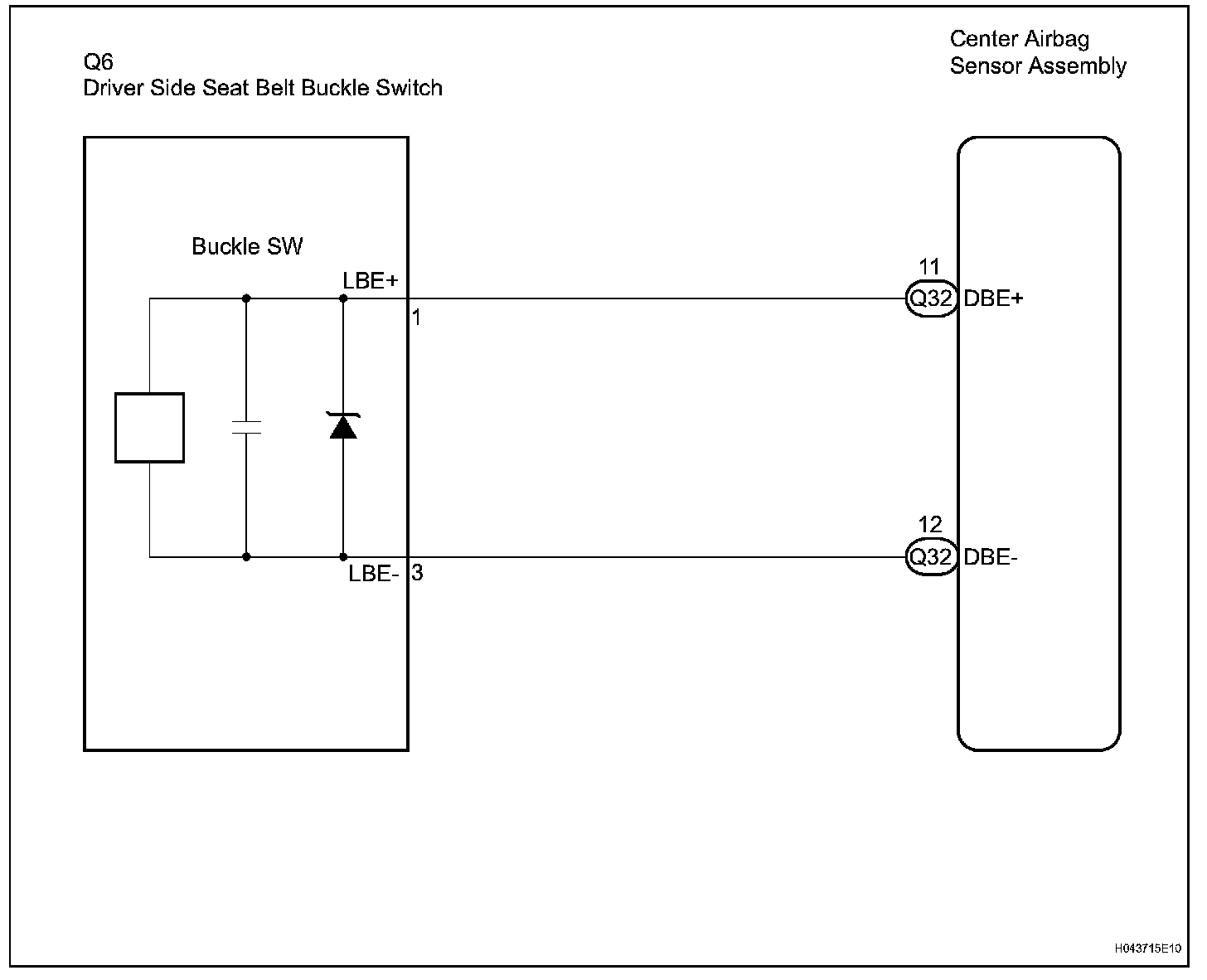

Wiring Diagram:

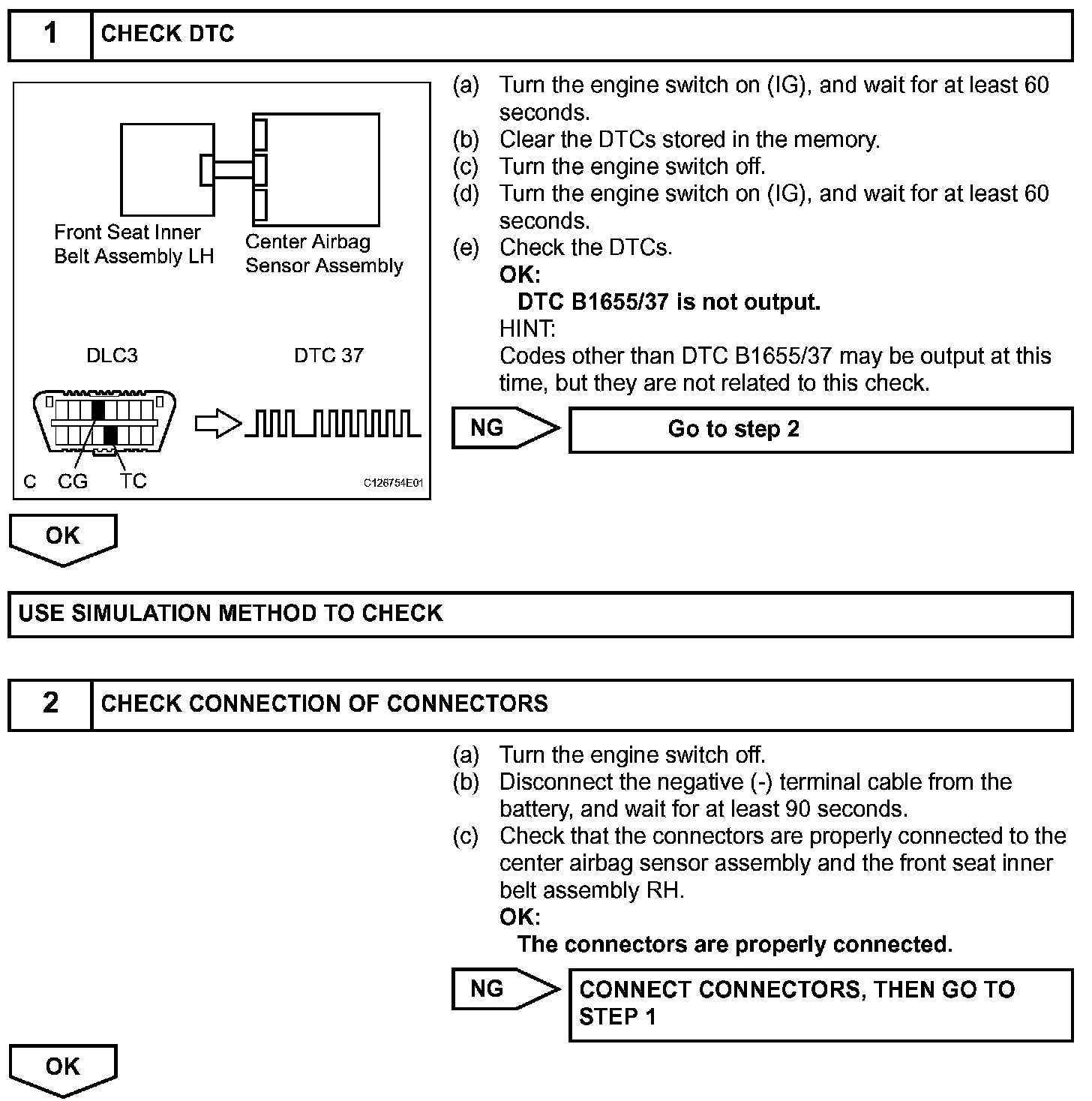

Step 1-2:

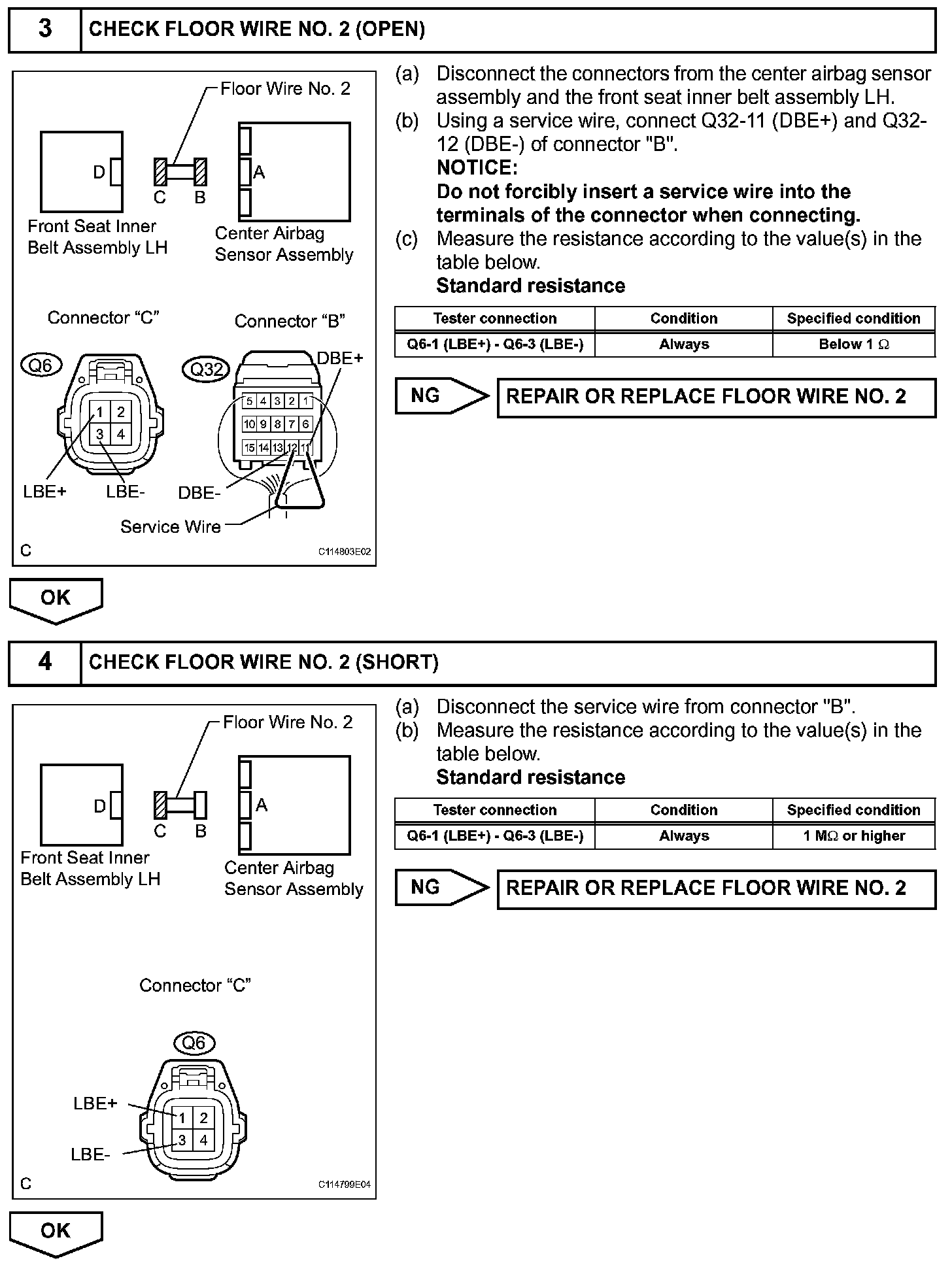

Step 3-4:

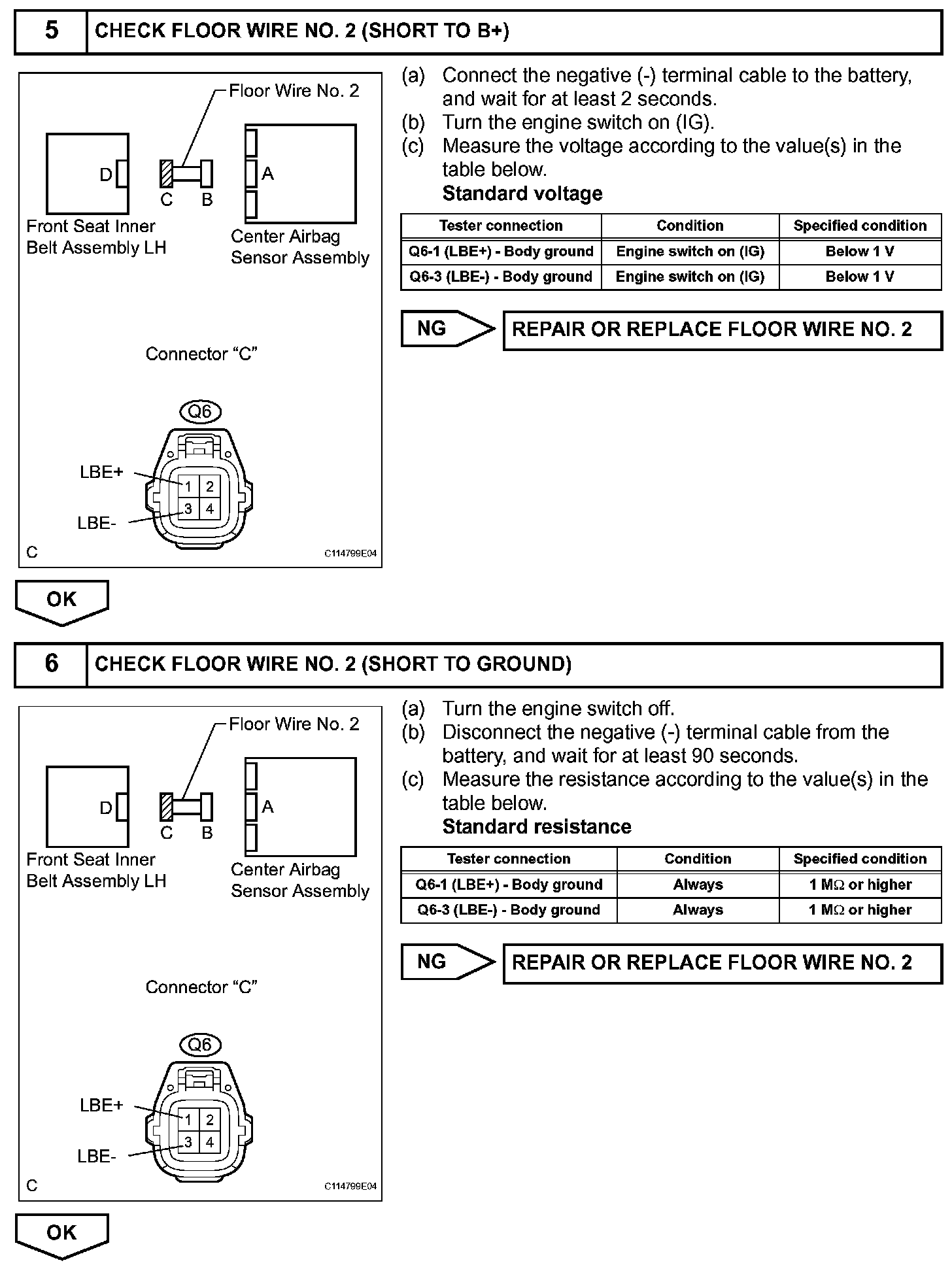

Step 5-6:

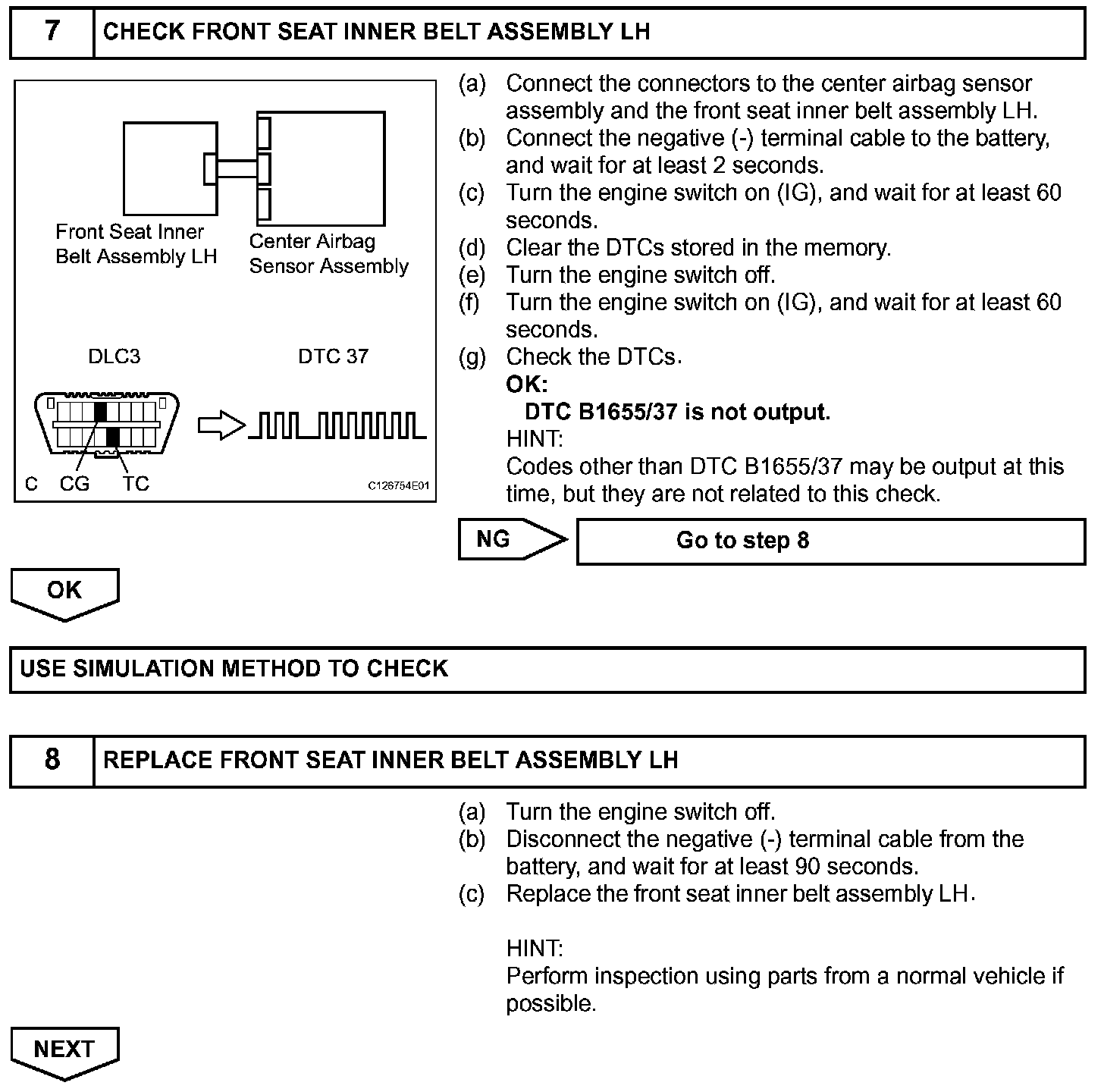

Step 7-8:

Step 9:

INSPECTION PROCEDURE
