DTC 74-40

DTC 74-40 Short in Speaker Circuit

DESCRIPTION

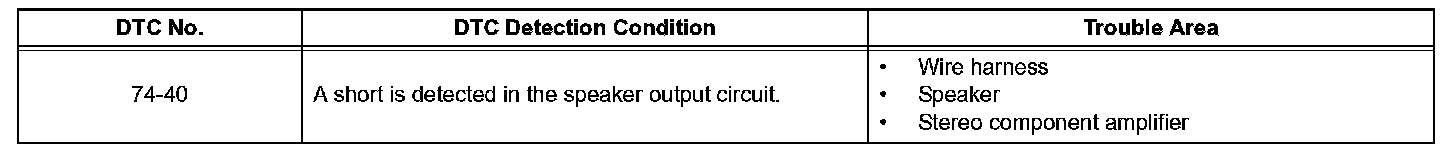

DTC Detection Condition:

This circuit has a fail-safe function.
- When a short in the speaker circuit is detected, all sound outputs are stopped.

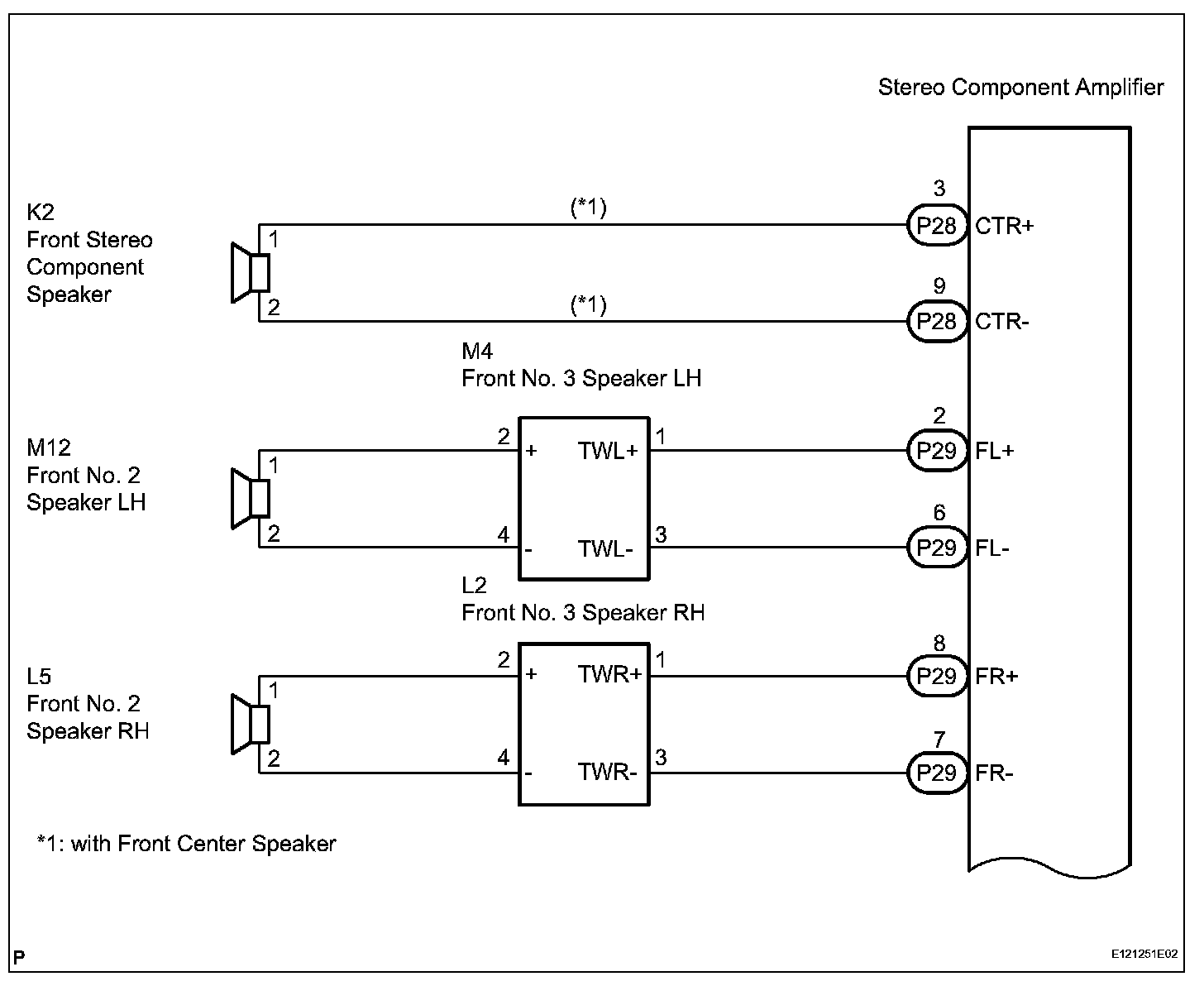

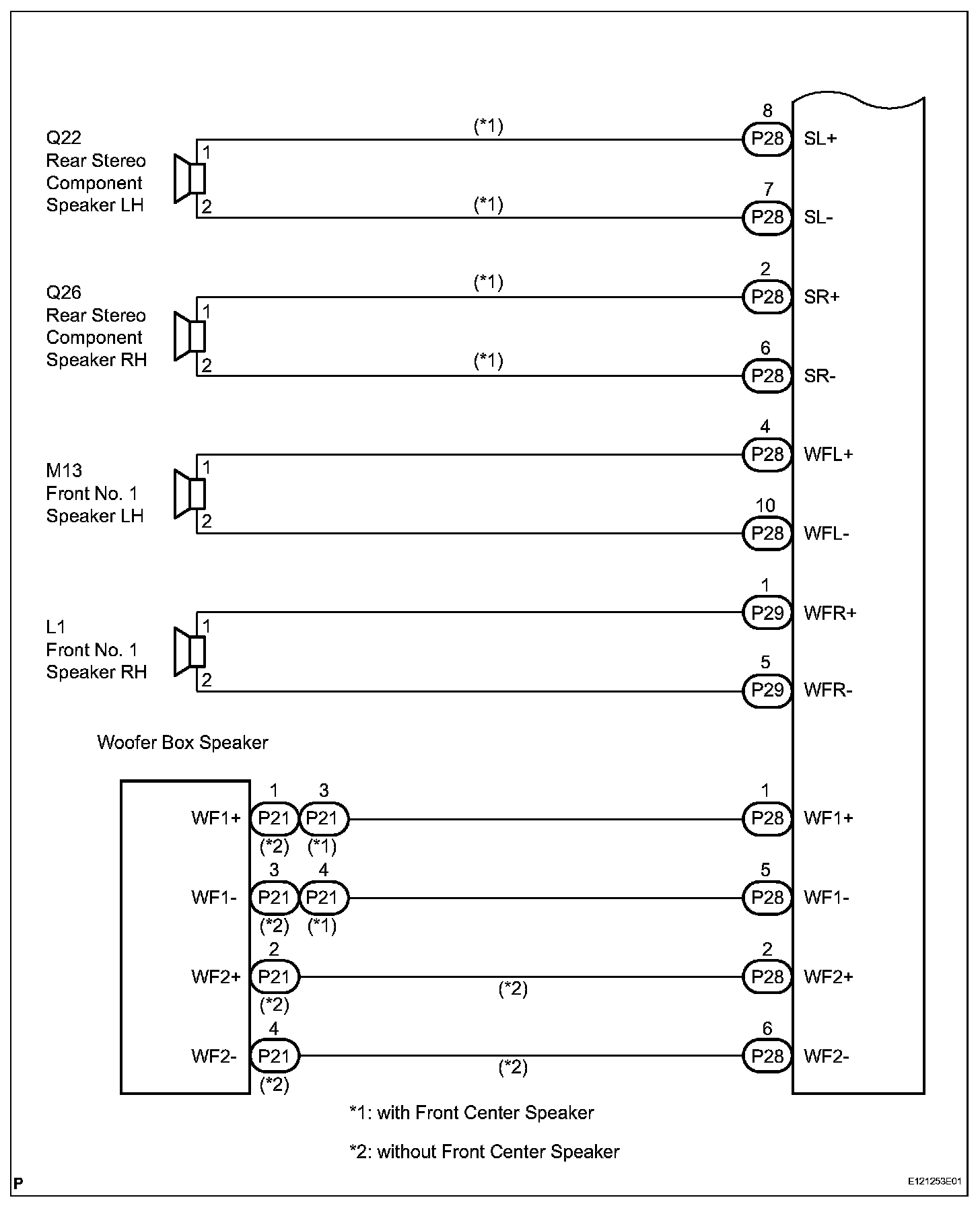

Wiring Diagram (Part 1):

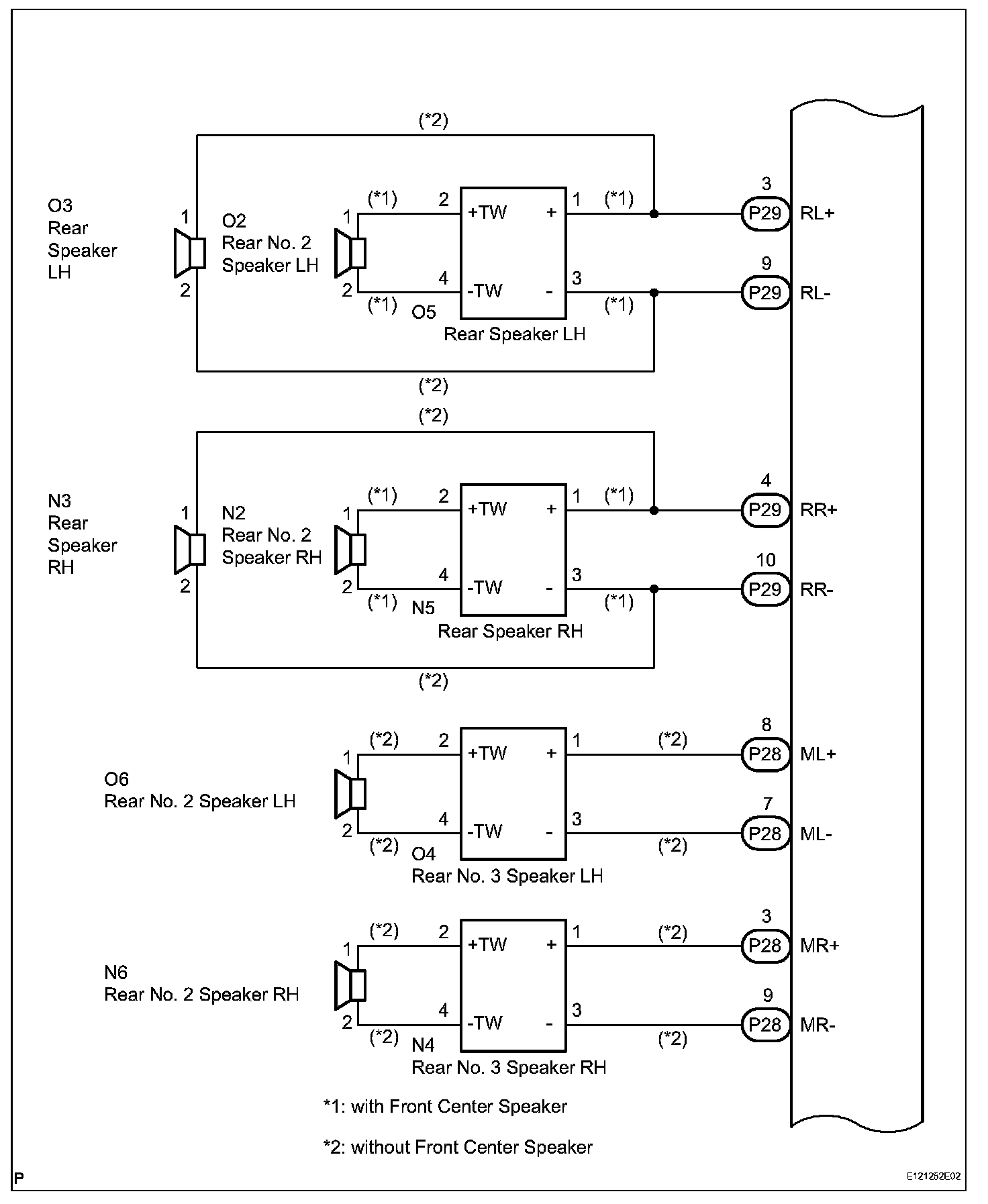

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

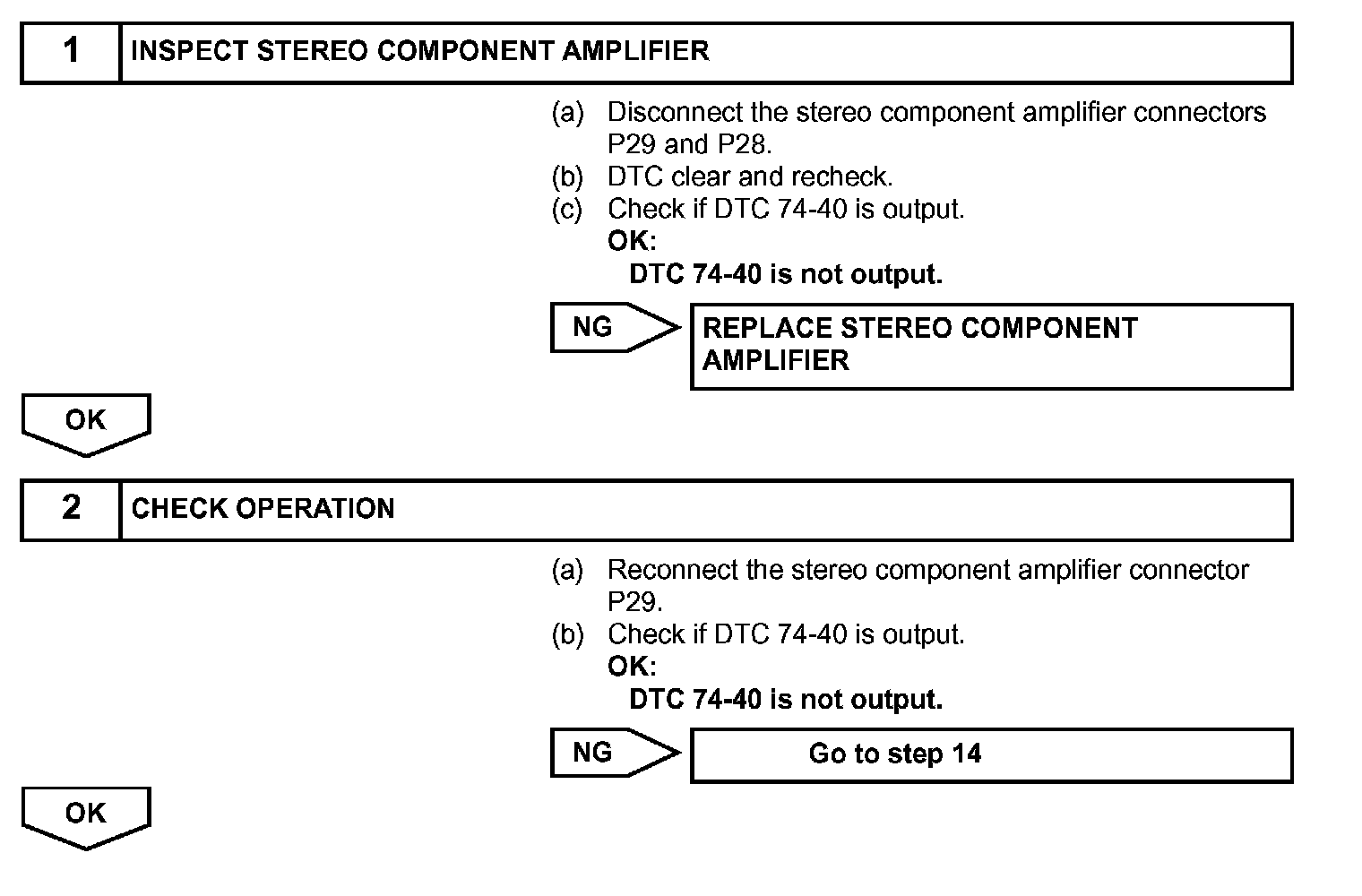

Step 1-2:

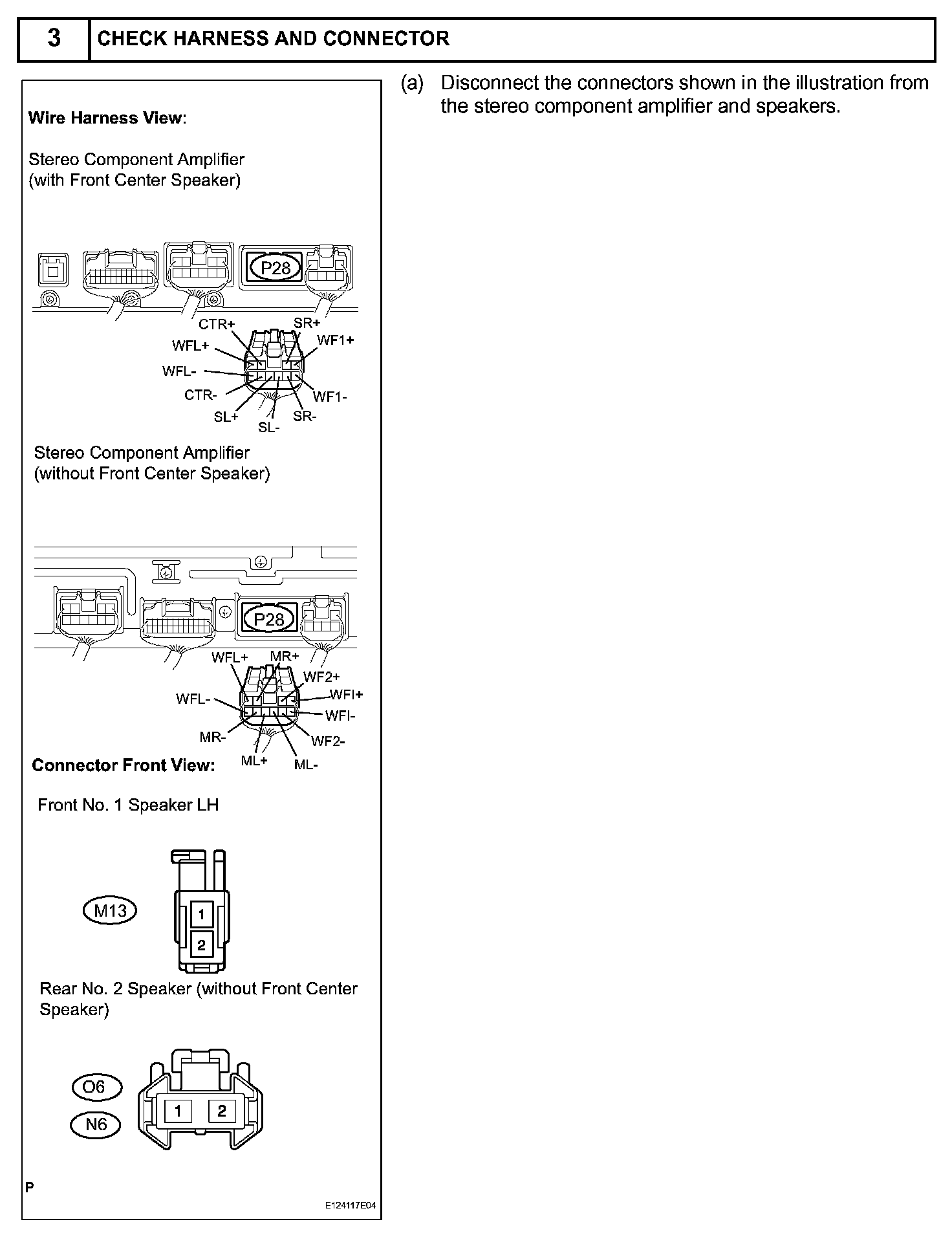

Step 3:

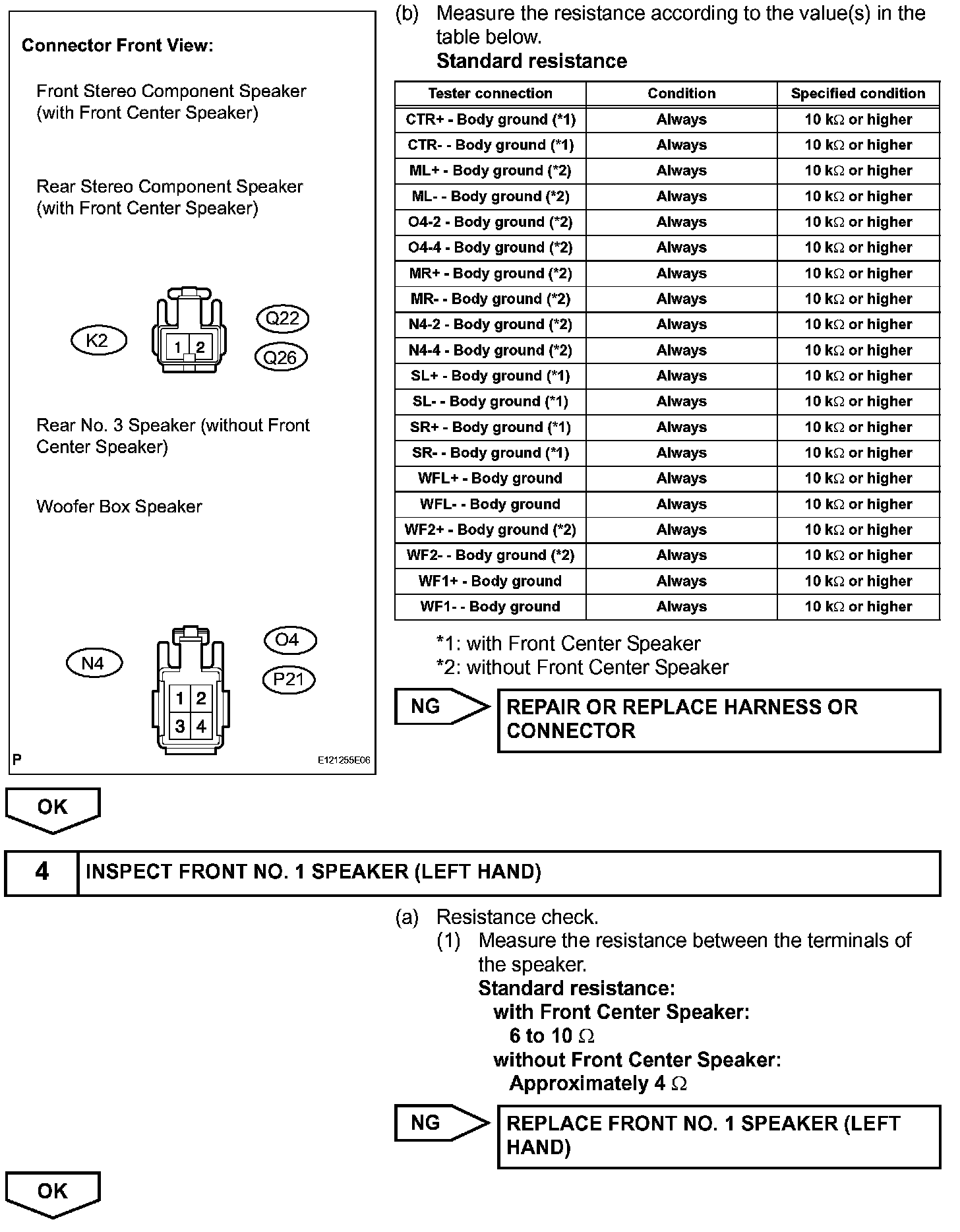

Step 3 (Continued)-4:

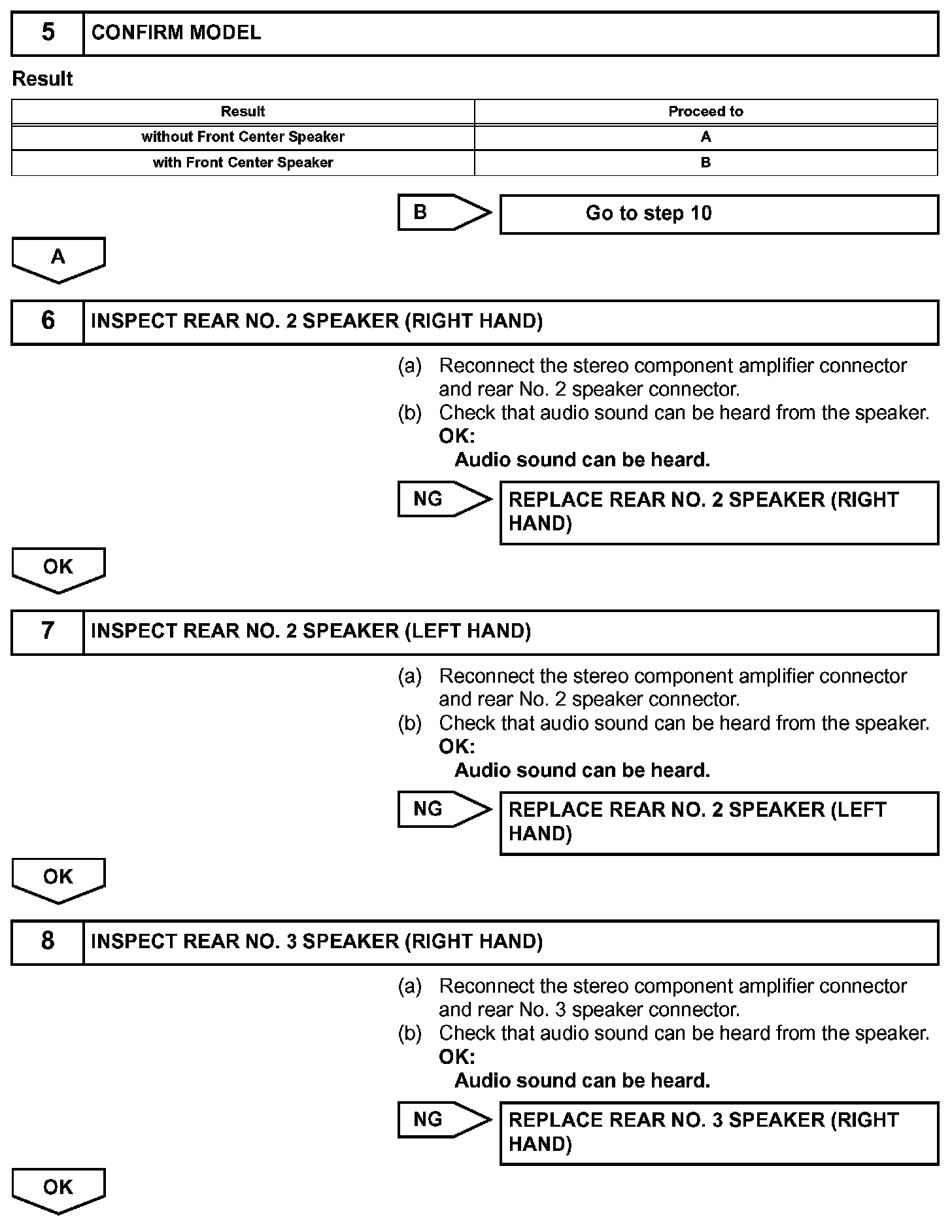

Step 5-8:

Step 9-12:

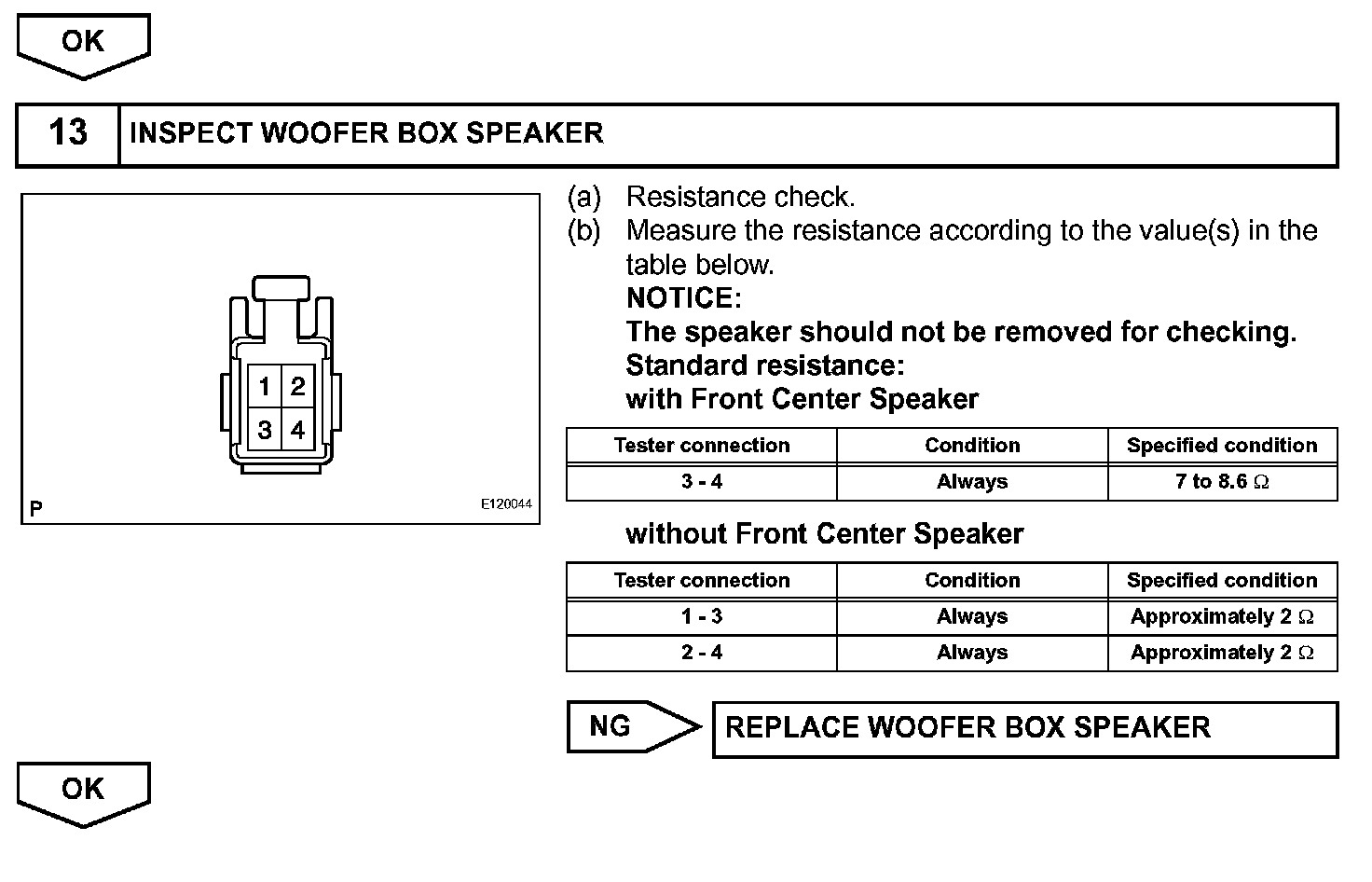

Step 12 (Continued)-13:

Step 14:

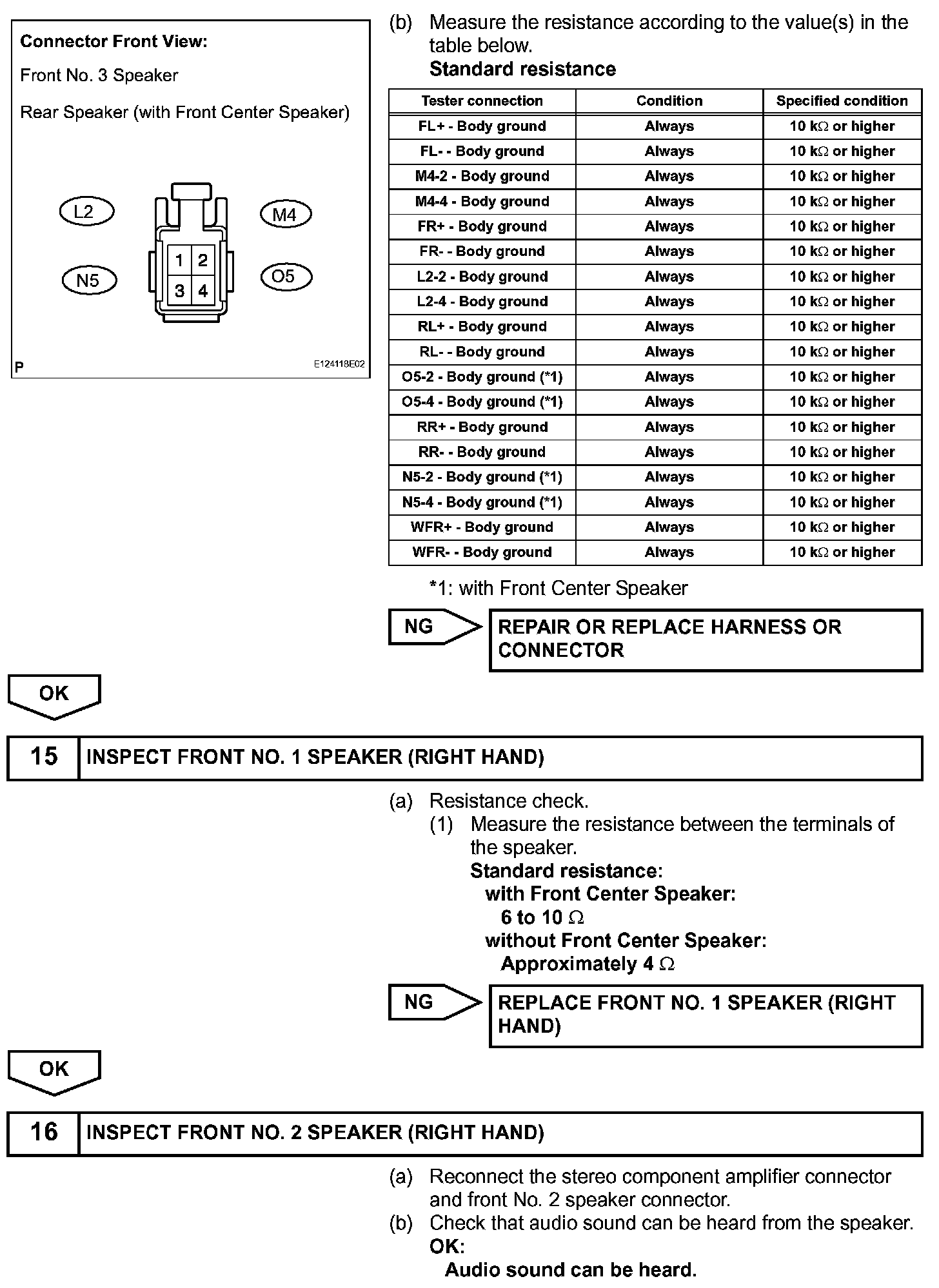

Step 14 (Continued)-16:

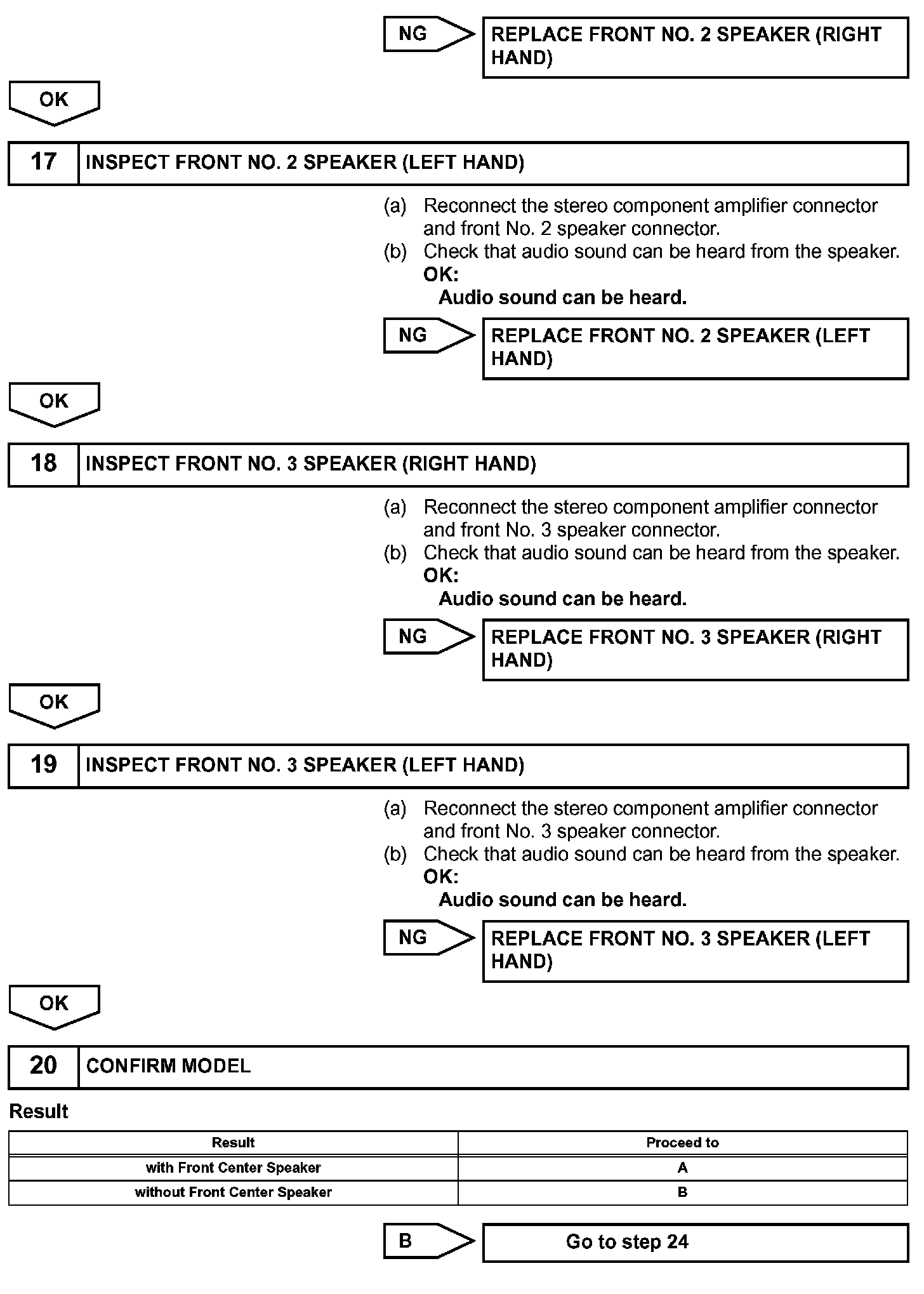

Step 16 (Continued)-20:

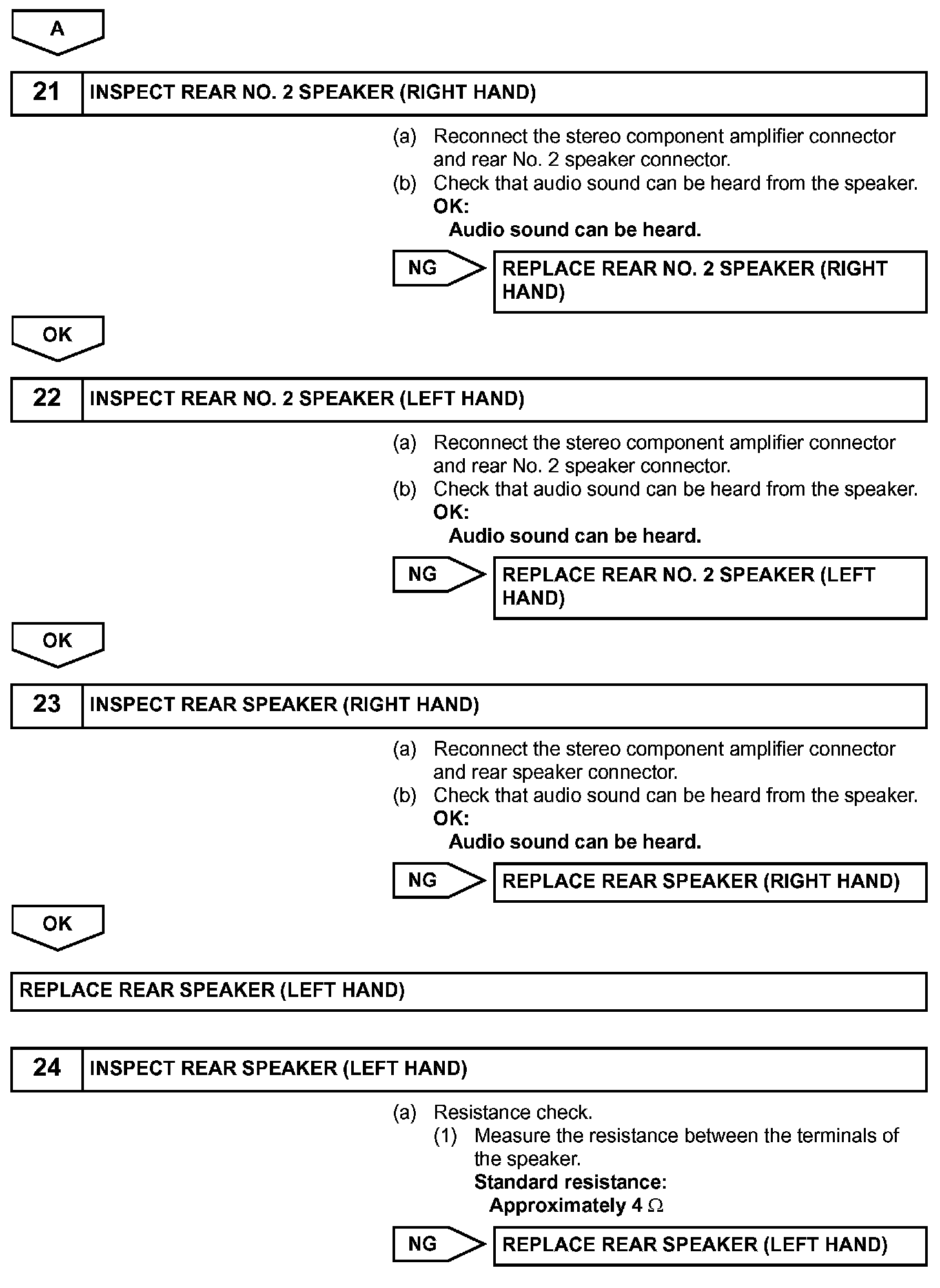

Step 20 (Continued)-24:

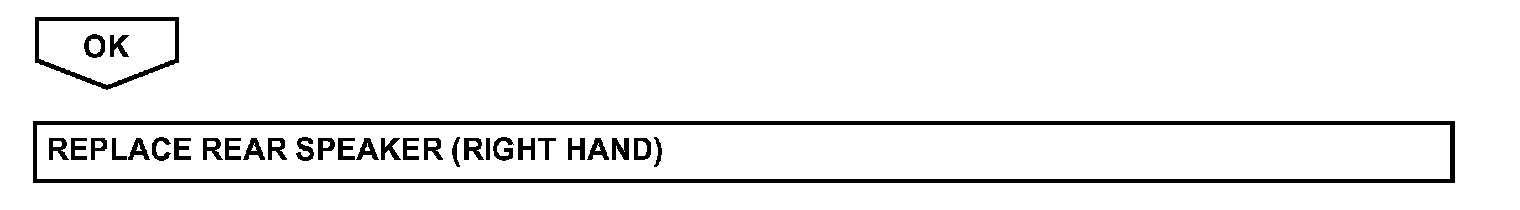

Step 24 (Continued):

INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.
