DTC 51

DTC B1451/51 Compressor Solenoid Circuit

DESCRIPTION

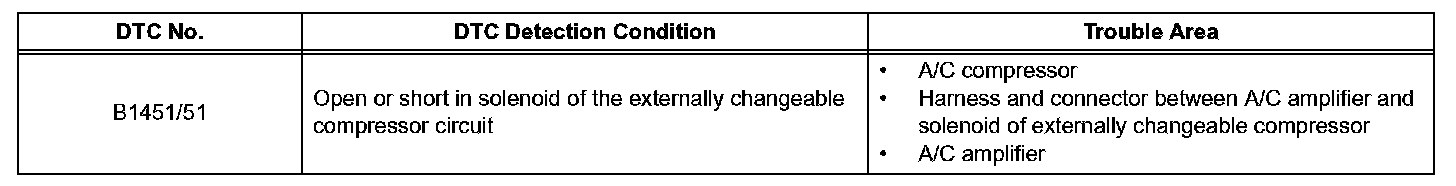

DTC Detection Condition:

In this circuit, the compressor receives a refrigerant compression demand signal from the air conditioning amplifier.

Based on this signal, the compressor changes the amount of compressor output.

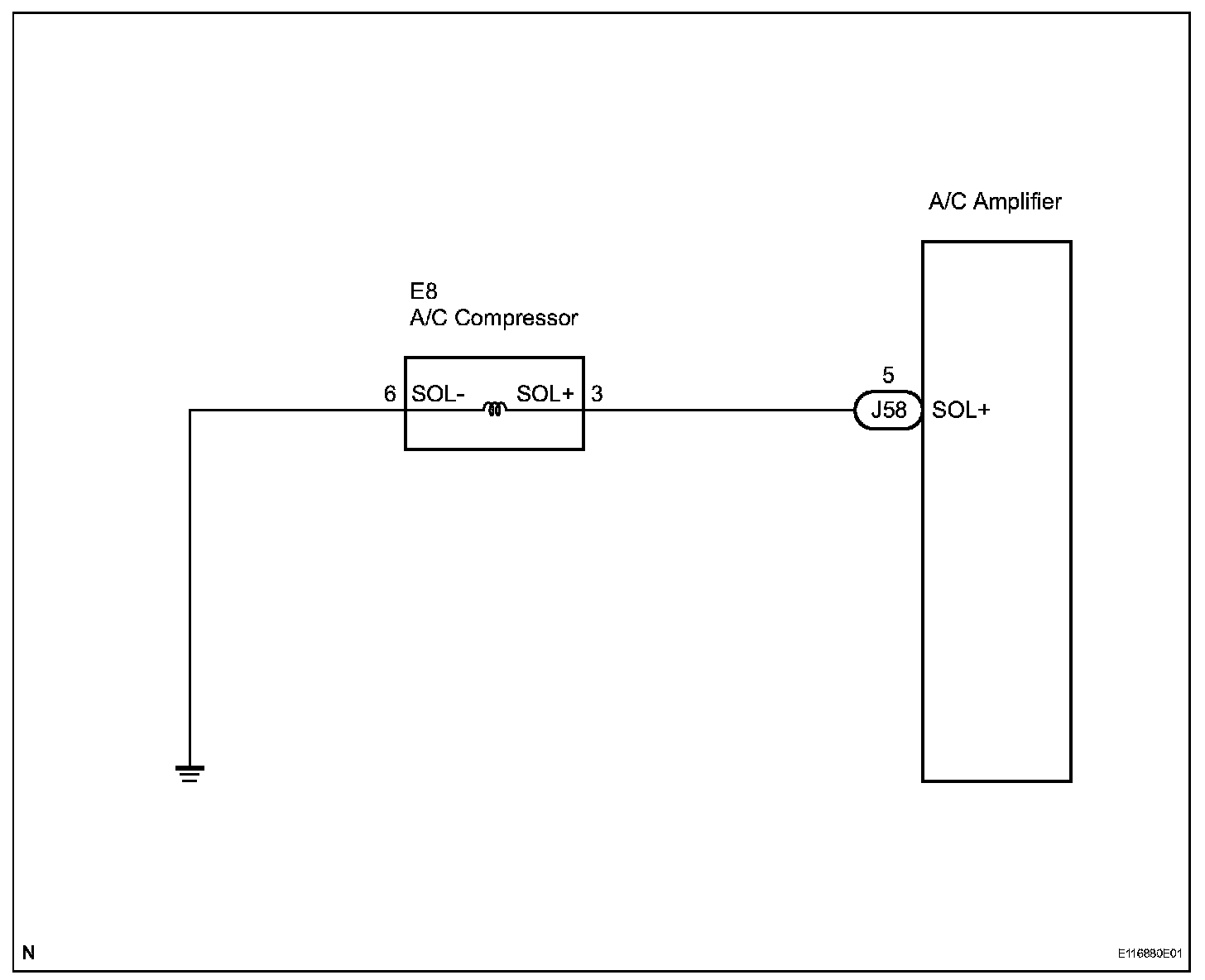

Wiring Diagram:

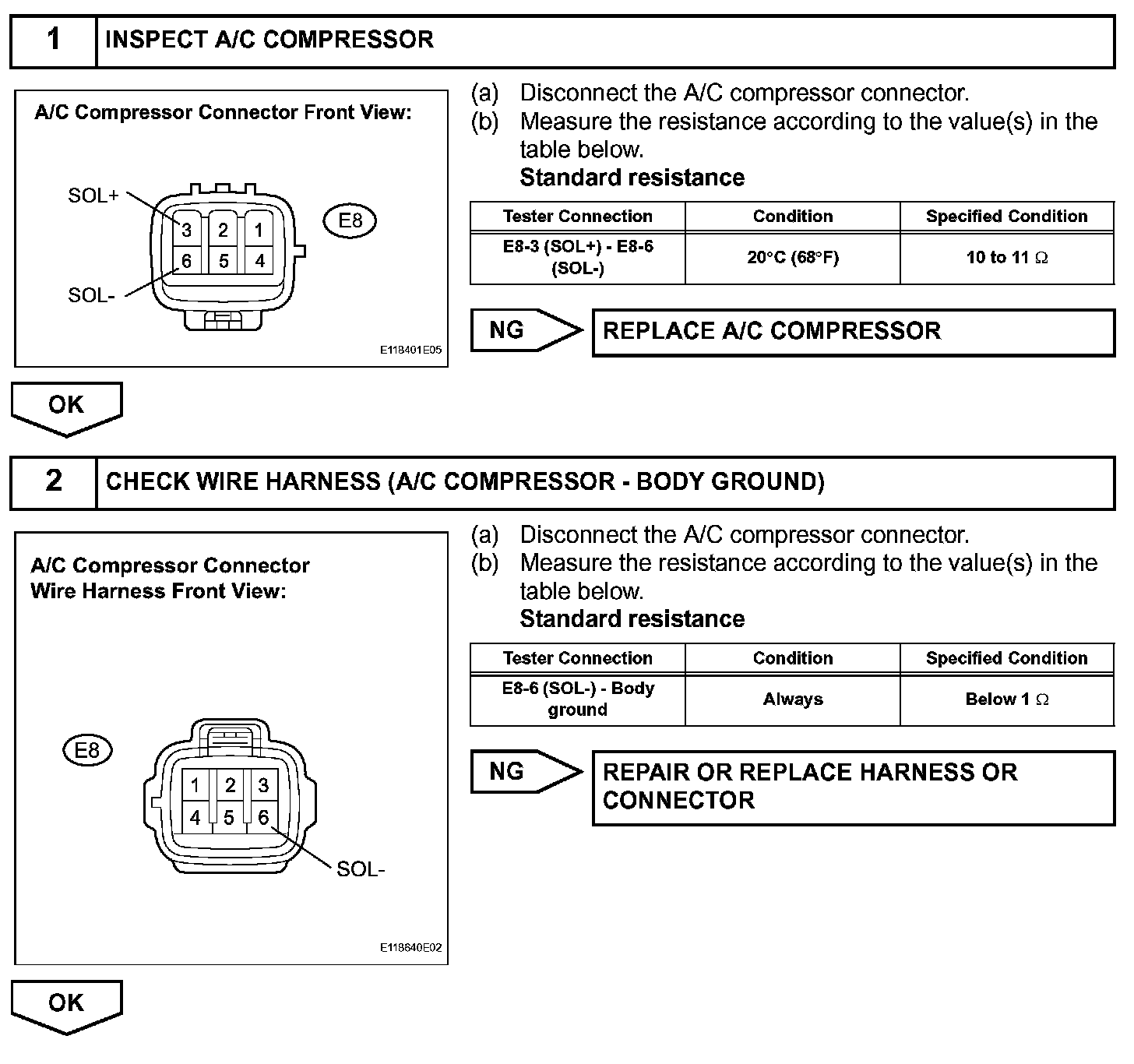

Step 1-2:

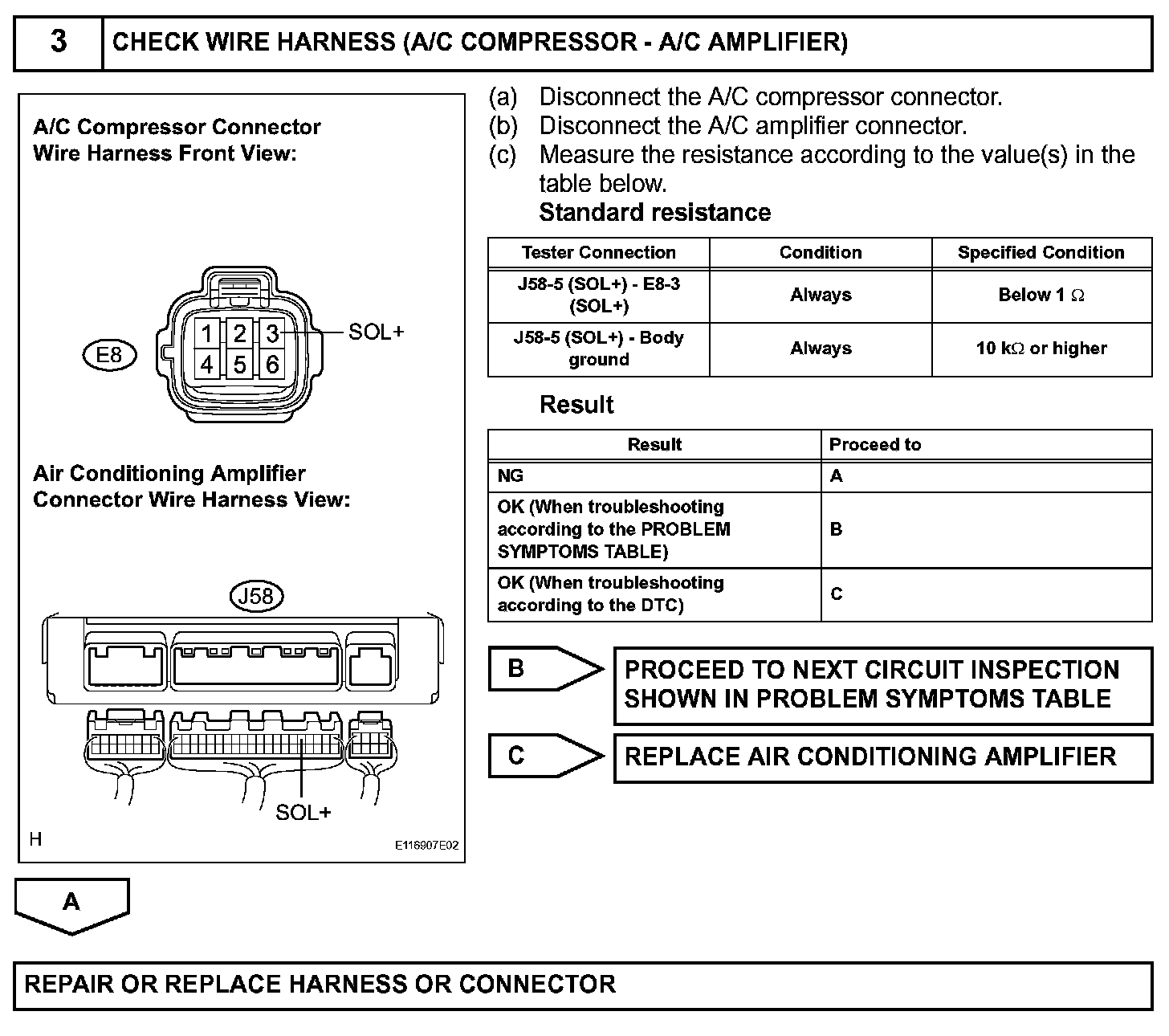

Step 3:

INSPECTION PROCEDURE
