DTC 13

DTC B1413/13 Evaporator Temperature Sensor Circuit

DESCRIPTION

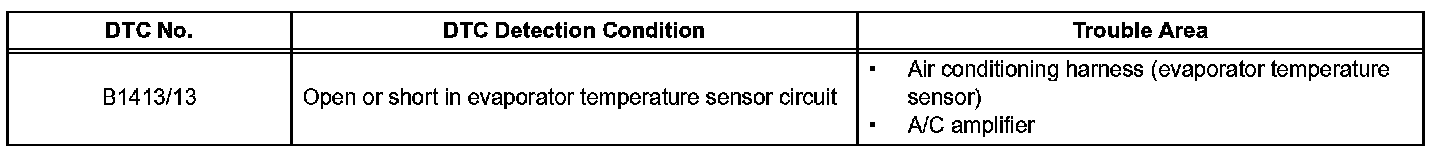

DTC Detection Condition:

The evaporator temperature sensor (A/C thermistor) is installed on the evaporator in the air conditioner unit. It detects the temperature of the cooled air that has passed through the evaporator and its signal is used to control the air conditioning. It sends a signal to the A/C amplifier. The resistance of the evaporator temperature sensor (A/C thermistor) changes in accordance with the temperature of the cooled air that has passed through the evaporator. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.

The A/C amplifier applies voltage (5 V) to the evaporator temperature sensor (A/C thermistor) and reads voltage changes as the resistance of the evaporator temperature sensor (A/C thermistor) changes. This sensor is used to prevent the evaporator from freezing.

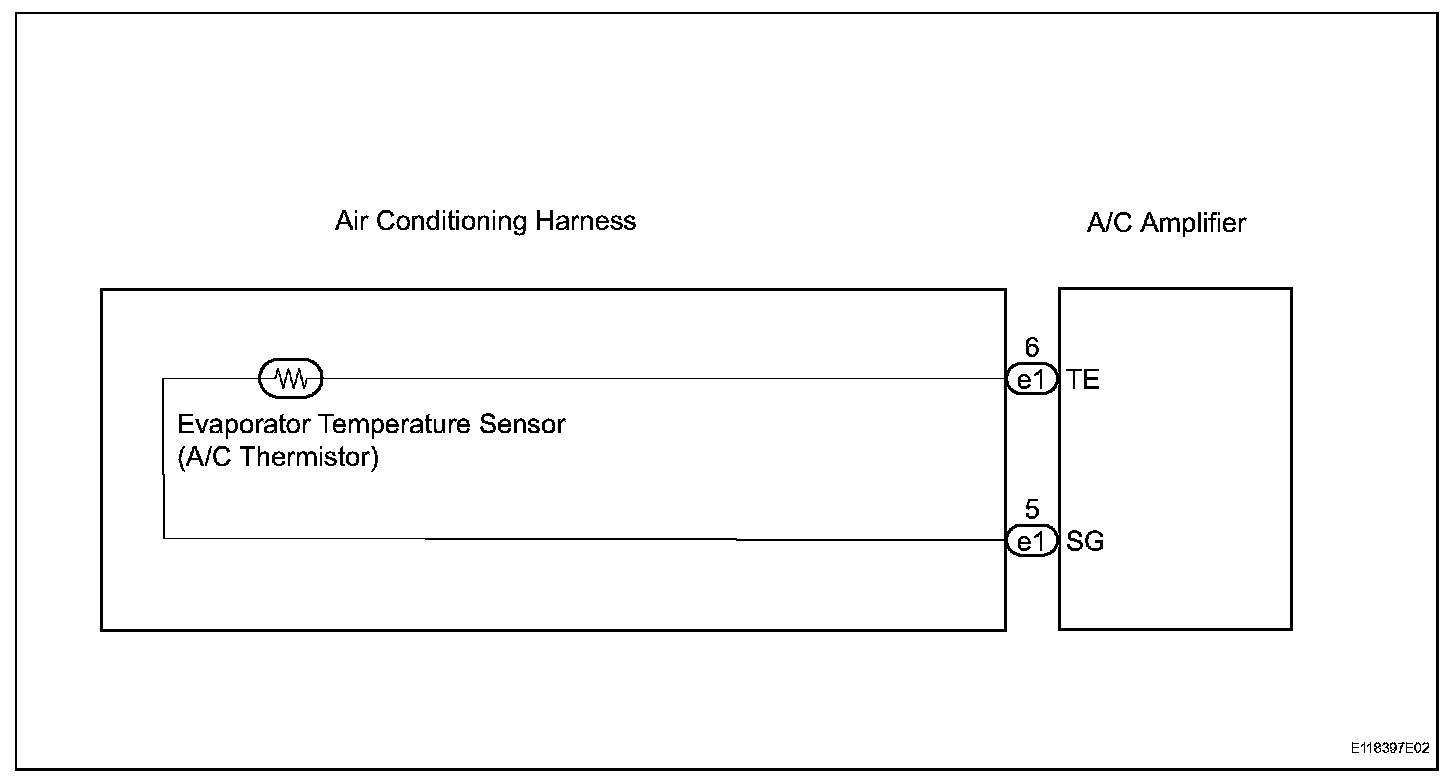

Wiring Diagram:

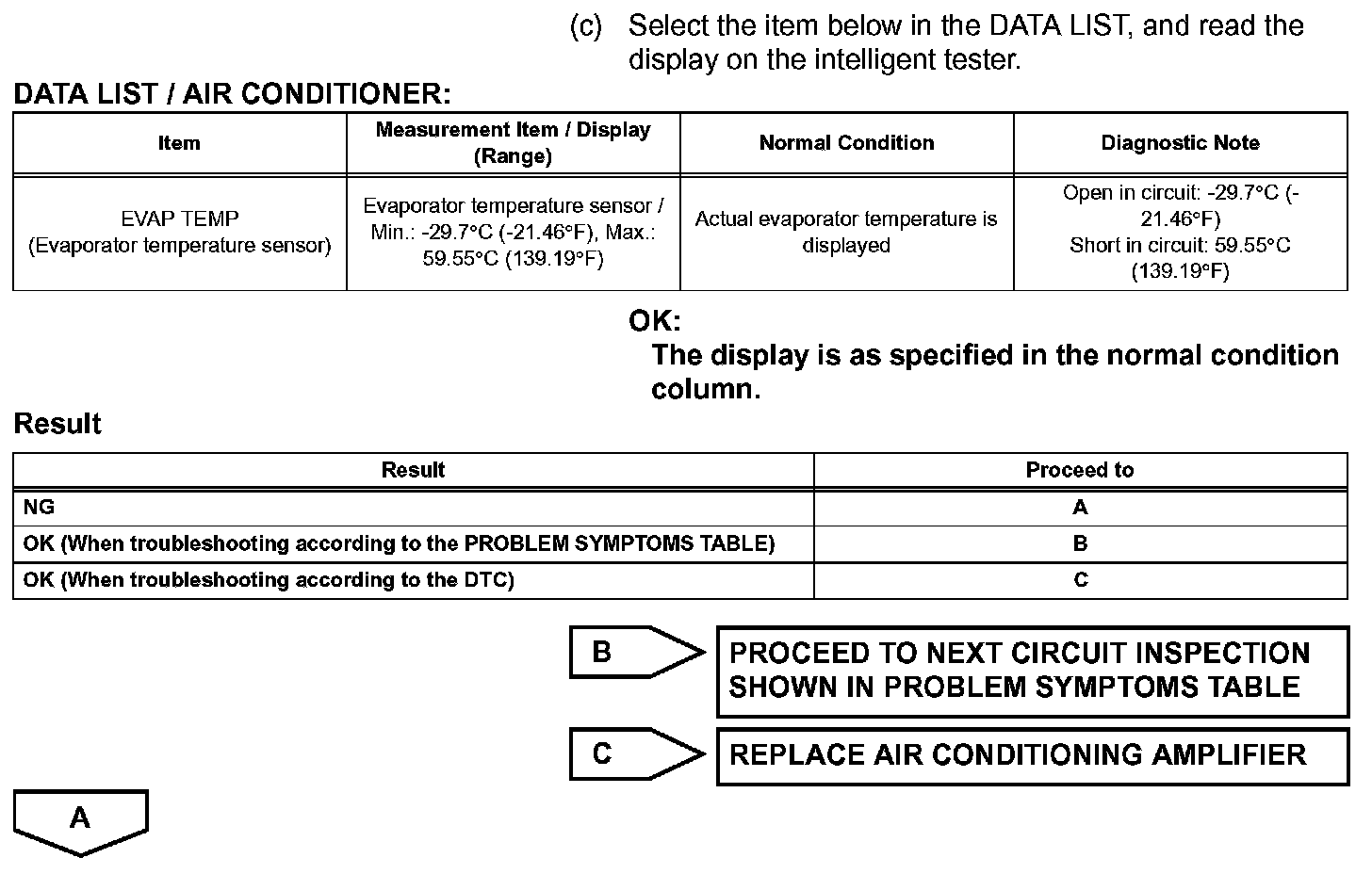

Step 1:

Step 1 (Continued):

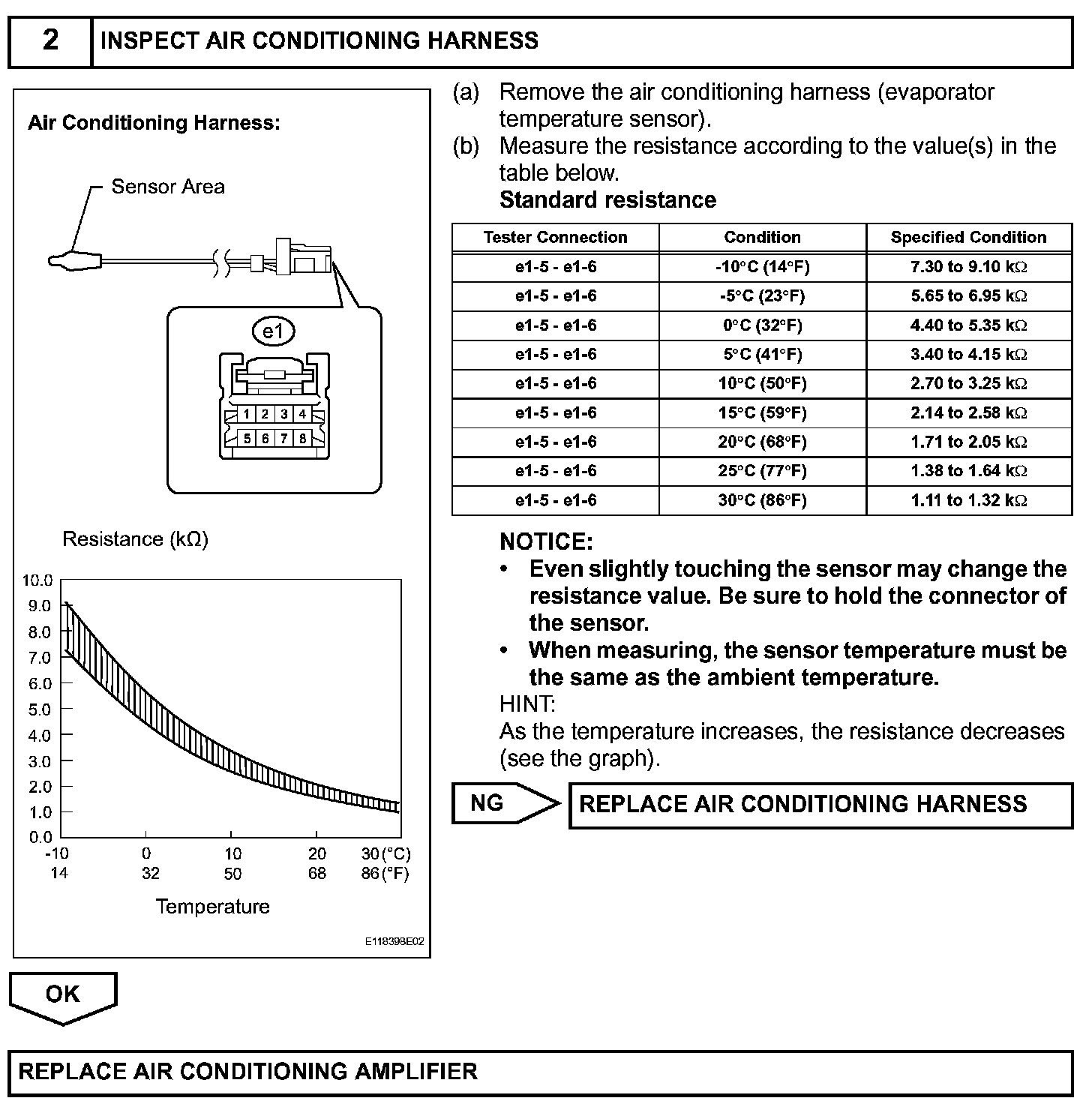

Step 2:

INSPECTION PROCEDURE
