Vehicle Stability Control System (w/ VDIM)

DIAGNOSTIC TROUBLE CODE CHART

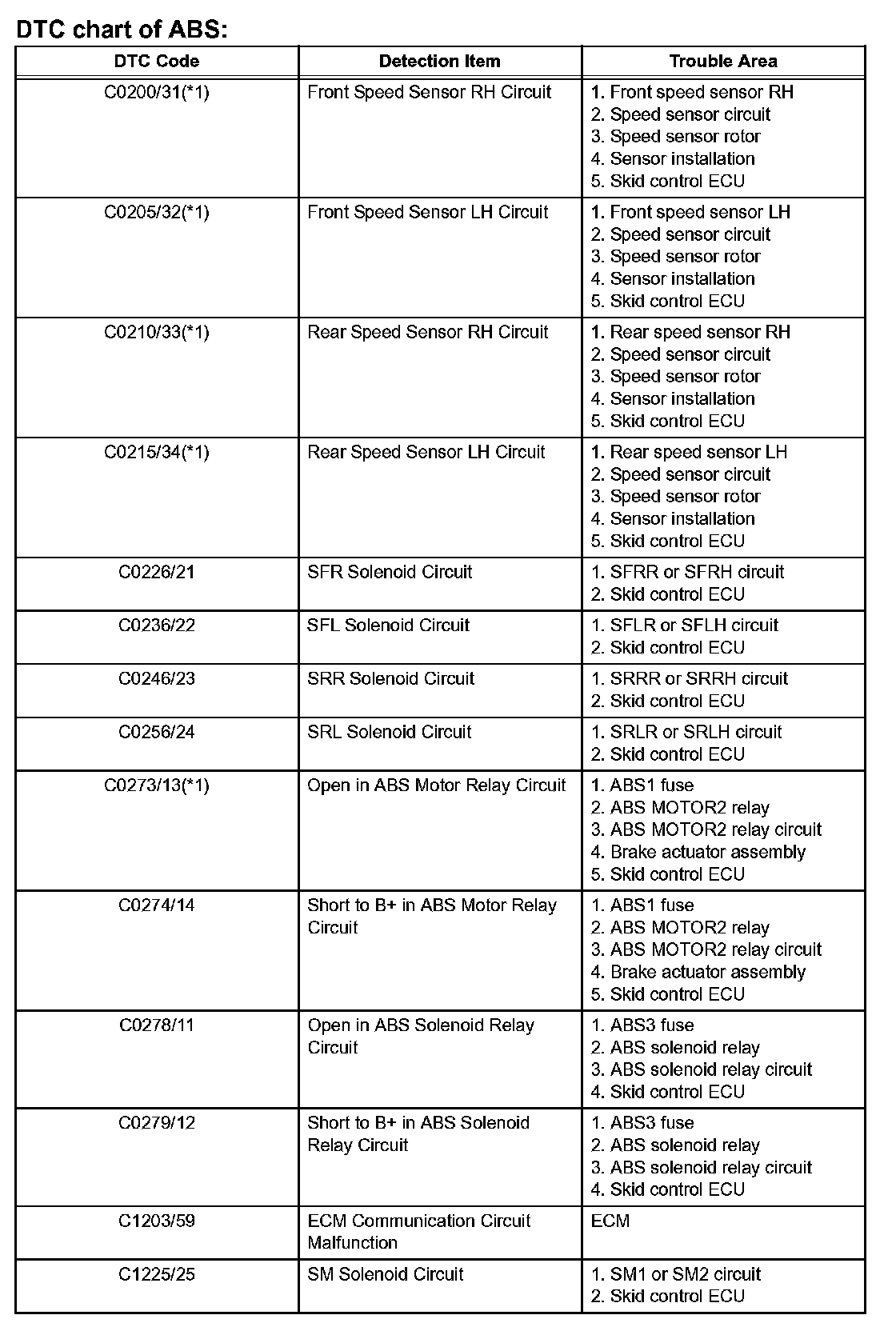

C0200/31(*1)-C1225/25:

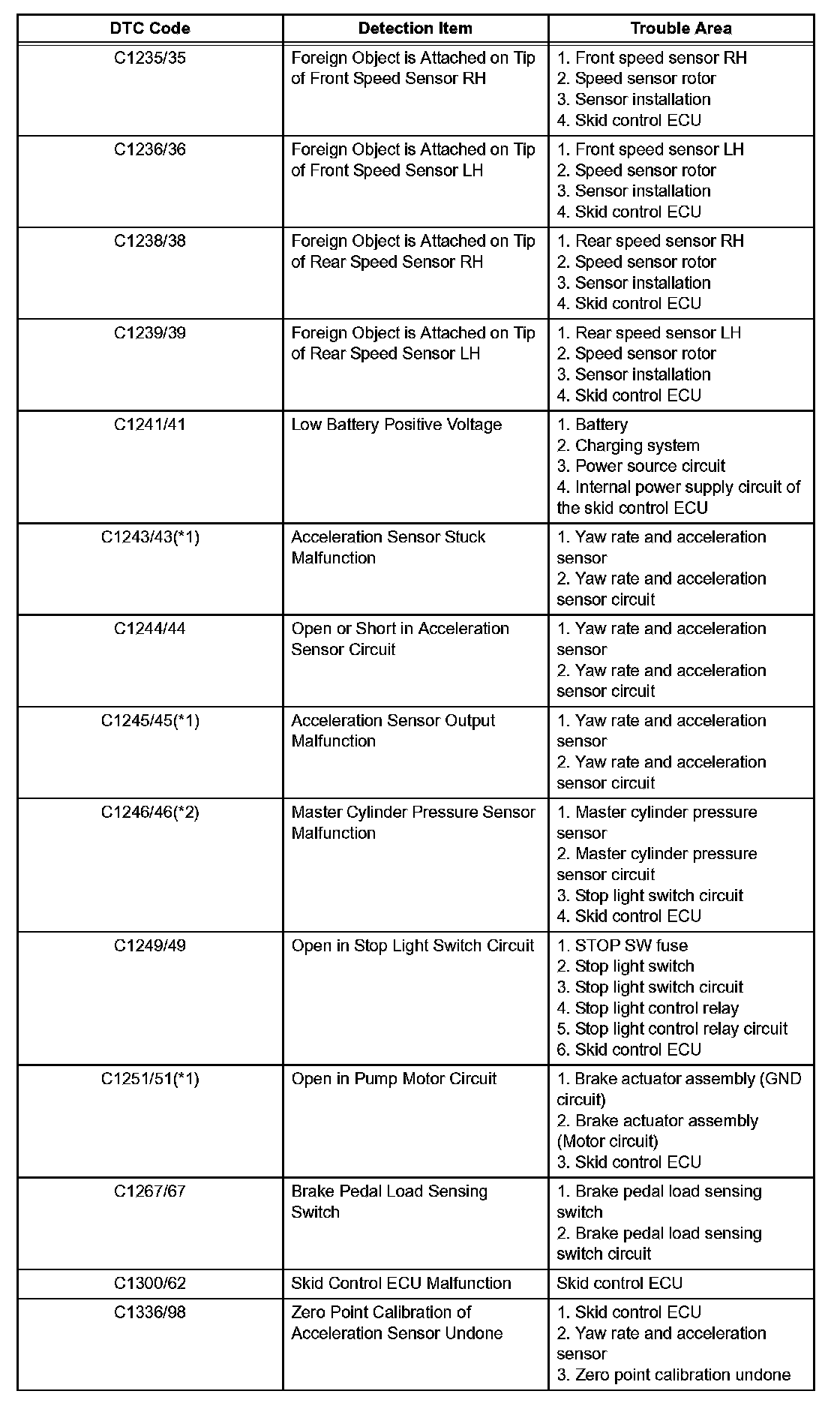

C1235/35-C1336/98:

C1361/91-C138/97 / U0073/94-U0124/95:

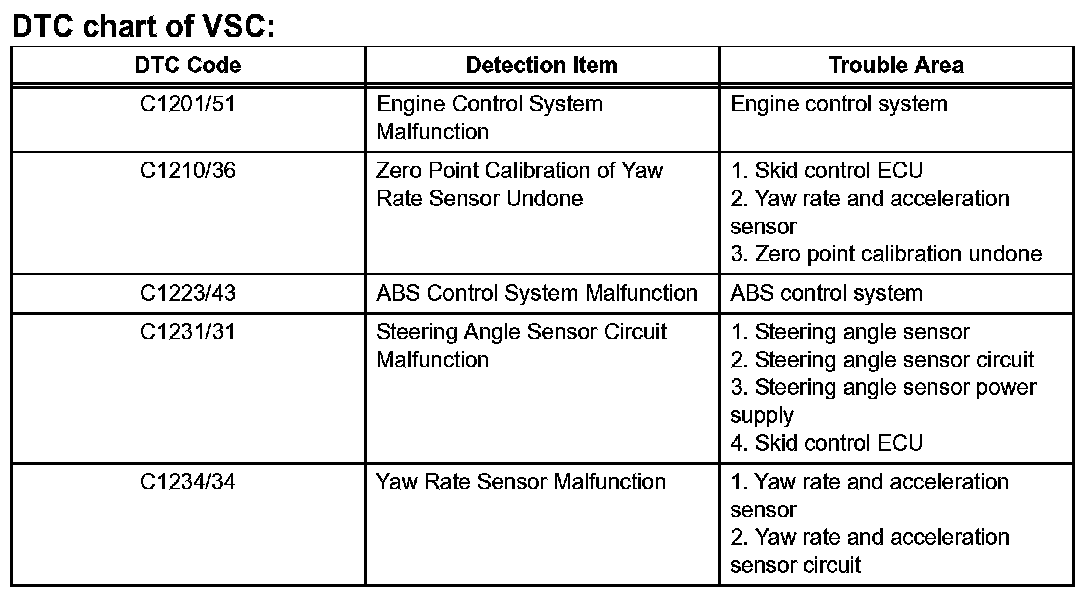

C1201/51-C1234/34:

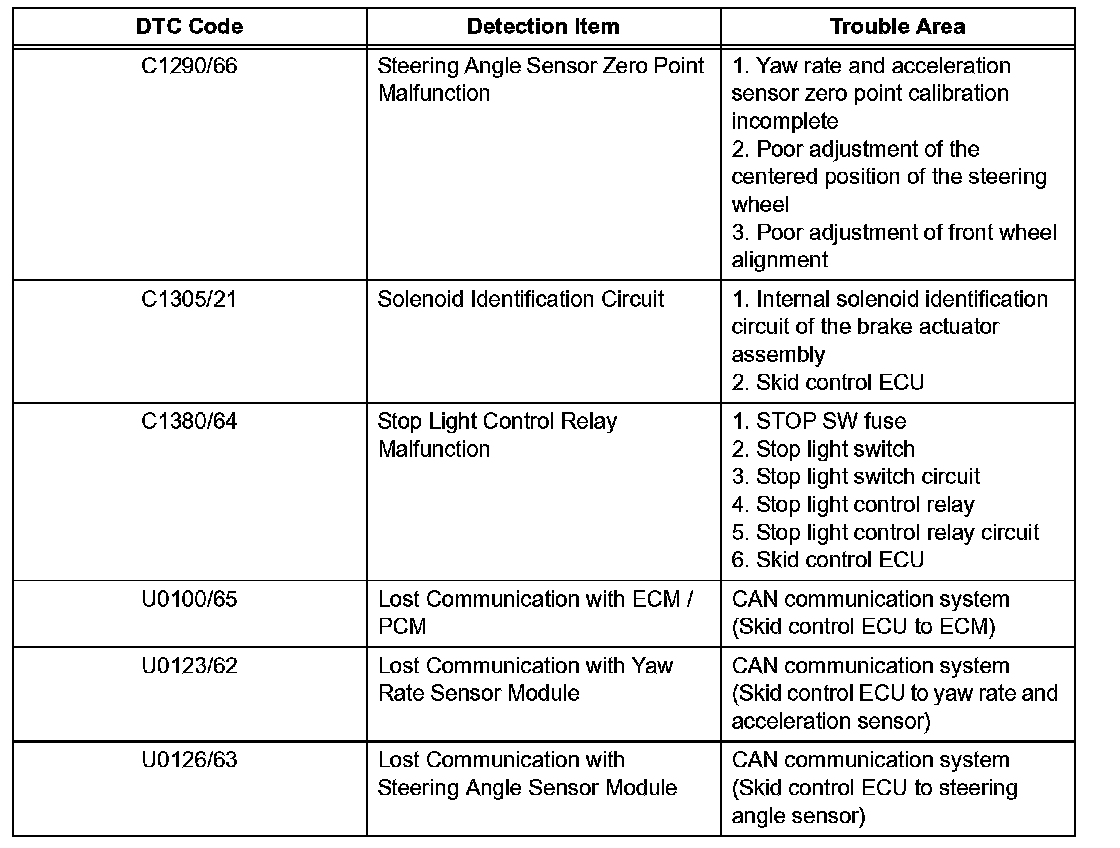

C1290/66-C1380/64 / U0100/65-U0126/63:

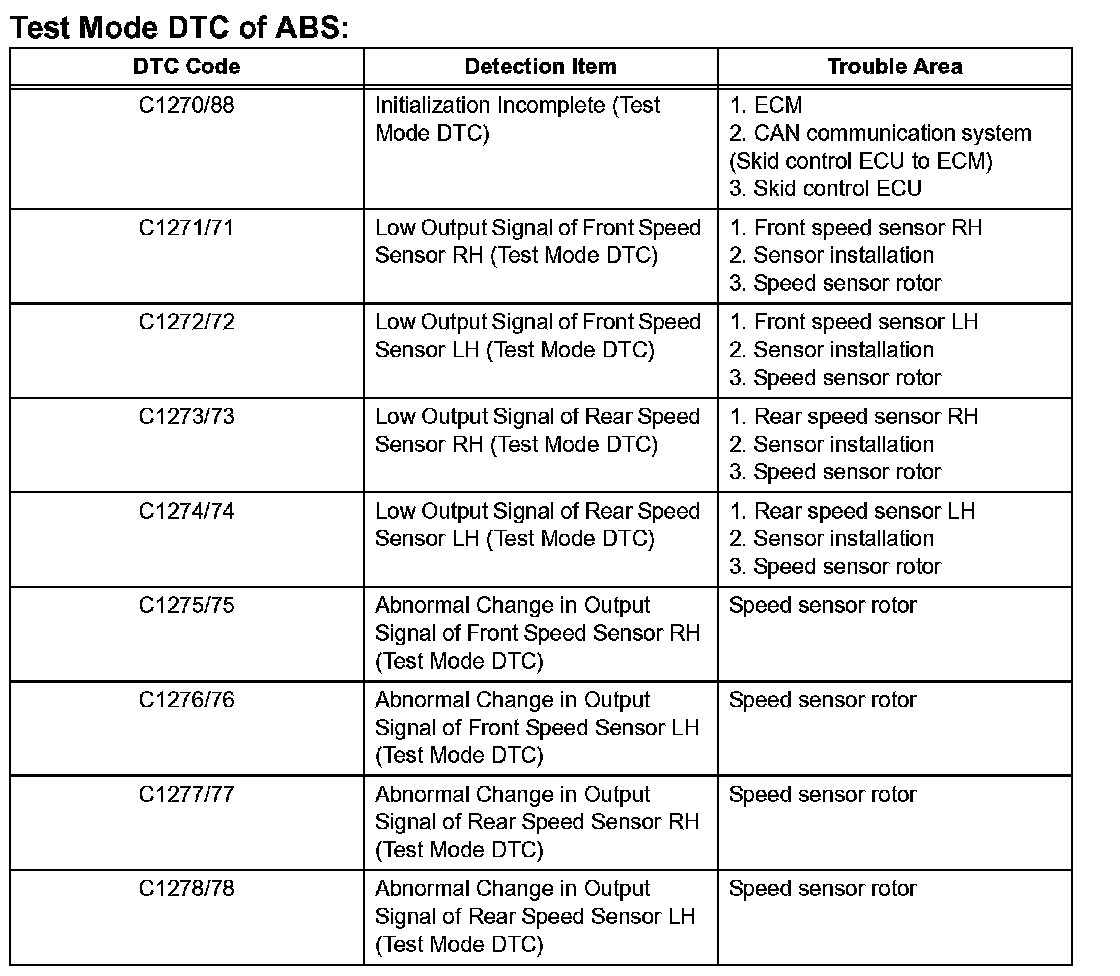

C1270/88-C1278/78:

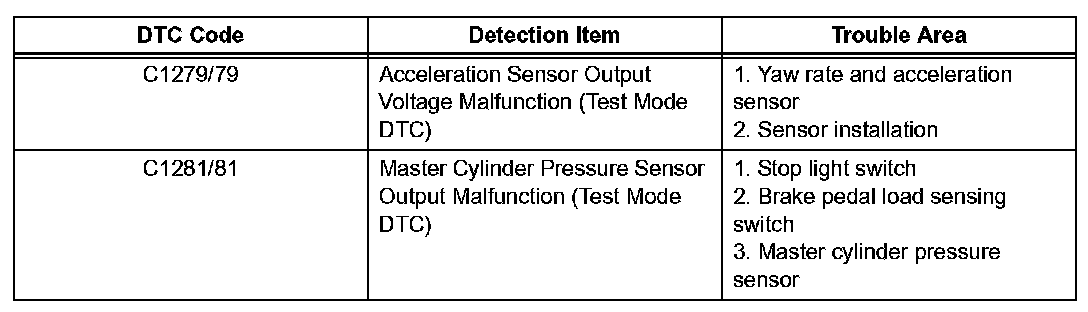

C1279/79-C1281/81:

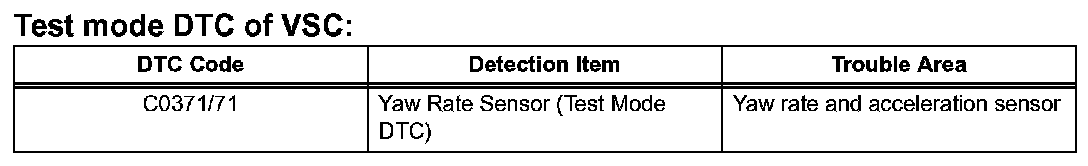

C0371/71:

- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC..
- Inspect the fuse and relay before investigating the trouble areas as shown in the table.

HINT: In some cases, the intelligent tester cannot be used when the ABS warning light remains on.

HINT: In some cases, the intelligent tester cannot be used when the VSC warning (multi-information display and master caution indicator light) light remains on.
